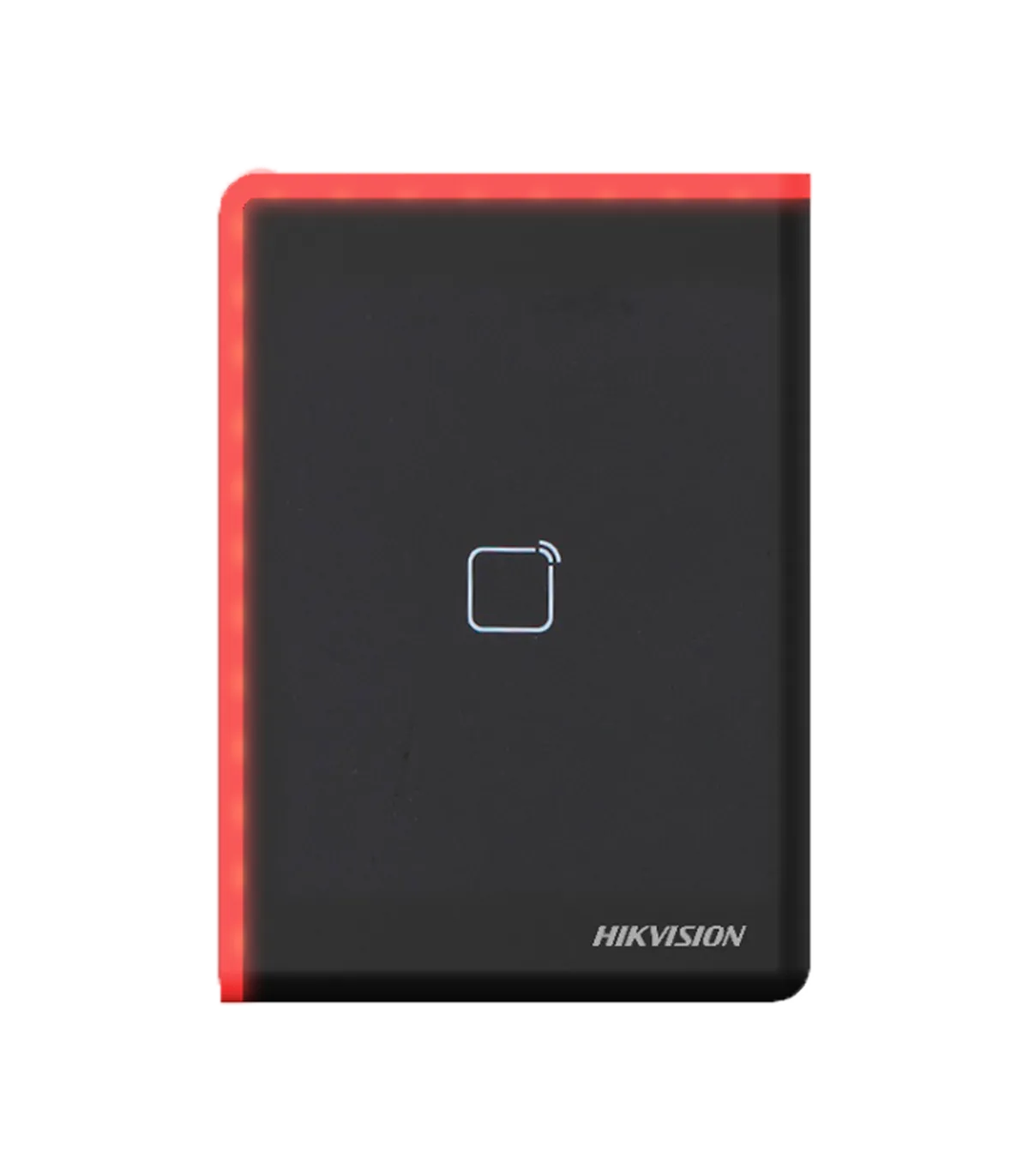

The DS-K1108AM is an access reader designed to identify users seeking entry to a secured system managed by an access controller. It transmits credential information, with the controller determining the appropriate response. This reader enables identification through cards or key fobs utilizing MF technology at 13.56 MHz.
Connection to controllers is achieved via Wiegand or RS485, ensuring a secure installation outdoors with an IP65 rating.
| Brand | Hikvision |
| Model | DS-K1108AM |
| Card reading distance | < 5 cm |
| Identification modes | Card (MF 13.56 MHz) |
| Outputs | RS485, Wiegand 26/34, buzzer for status indication, tamper |
| Compatibility | Hikvision DS-K2800 Series and DS-K2600T Series controllers |
| Power supply | DC 12 V / 500 mA max. |
| Protection rating | Suitable for outdoor use IP65 |
| Operating temperature | -20 ºC ~ +65 ºC |
| Dimensions | 123 (W) x 88 (H) x 21 (D) mm |
| Weight | 300 g |
The DS-K1108AM access reader is ideal for installation in various environments, such as office buildings, educational institutions, and industrial facilities. For instance, in a corporate office, the reader can be mounted at entry points to ensure that only authorized personnel gain access. By utilizing MF technology, the device provides quick and reliable identification through cards or key fobs, enhancing security measures. The IP65 rating allows for outdoor installation, making it suitable for entrances exposed to the elements. Additionally, the integration with Hikvision controllers ensures seamless operation and compatibility, allowing for a plug-and-play setup. The built-in LED indicator and acoustic signals provide immediate feedback to users, enhancing the overall user experience. With its robust design and reliable performance, the DS-K1108AM is an excellent choice for enhancing security in any facility.
