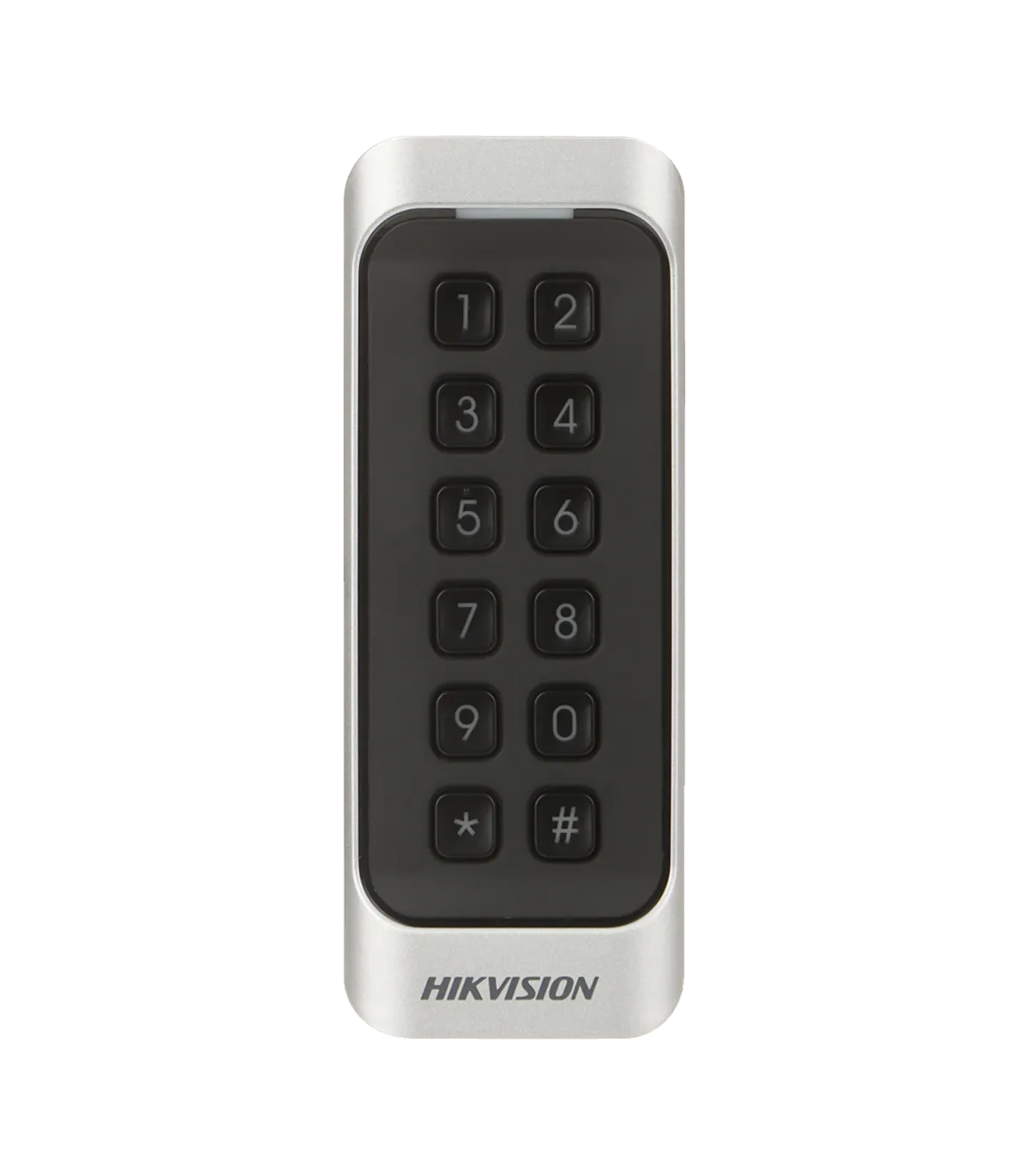

An access reader is used to identify users who wish to access a system protected by an access controller. It transmits the credential information, with the controller deciding how to act.
This reader allows identification through RFID EM 125 kHz cards or key fobs, as well as a keypad for numeric codes.
The connection to the controllers is made via Wiegand or RS485. These protocols enable a secure connection for outdoor installations with an IP65 rating.
| Brand | Hikvision |
| Model | DS-K1107AEK |
| Card reading distance | < 5 cm |
| Identification modes | Card (RFID EM 125 kHz) and password |
| Outputs | RS485, Wiegand 26/34, buzzer for status indication, tamper |
| Compatibility | Hikvision DS-K2800 Series and DS-K2600T Series controllers |
| Power supply | DC 12 V / 500 mA max. |
| Protection rating | Suitable for outdoor use IP65 |
| Operating temperature | -20 ºC ~ +65 ºC |
| Dimensions | 115 (H) x 44 (W) x 22 (D) mm |
| Weight | 150 g |
Data sheet
