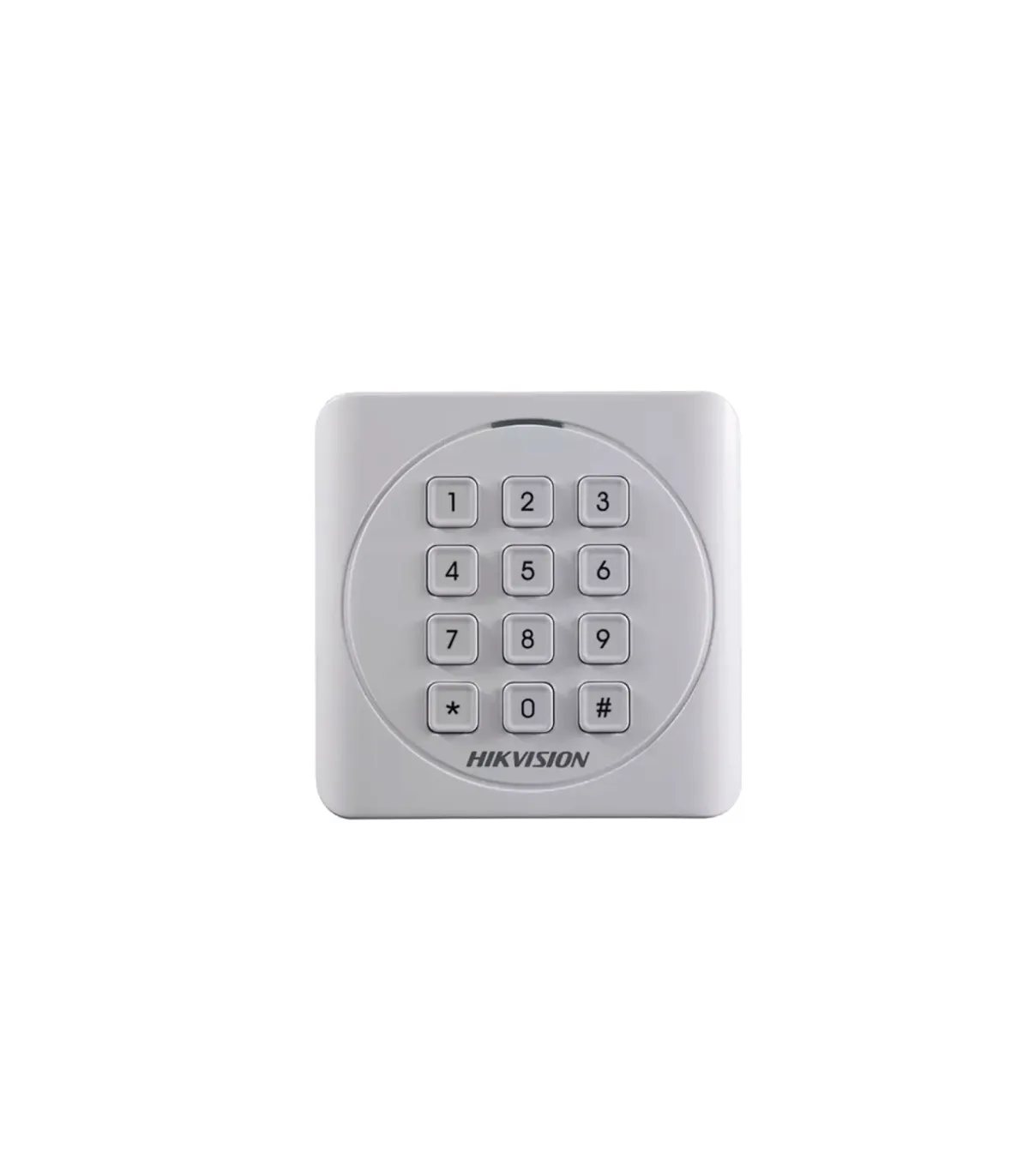

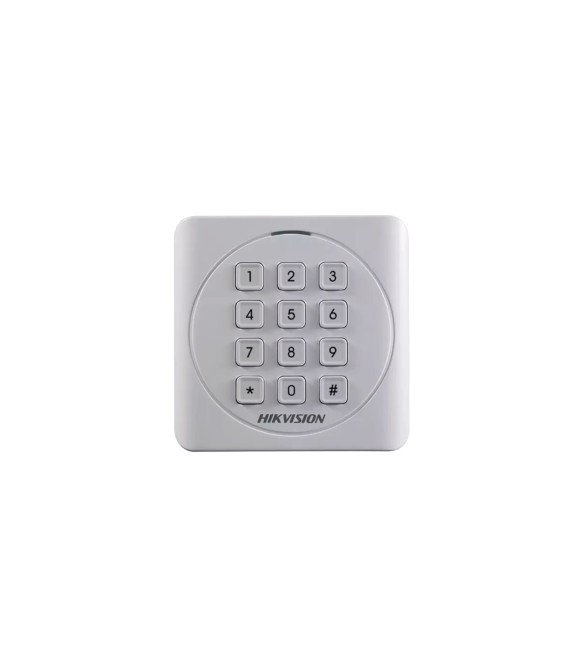

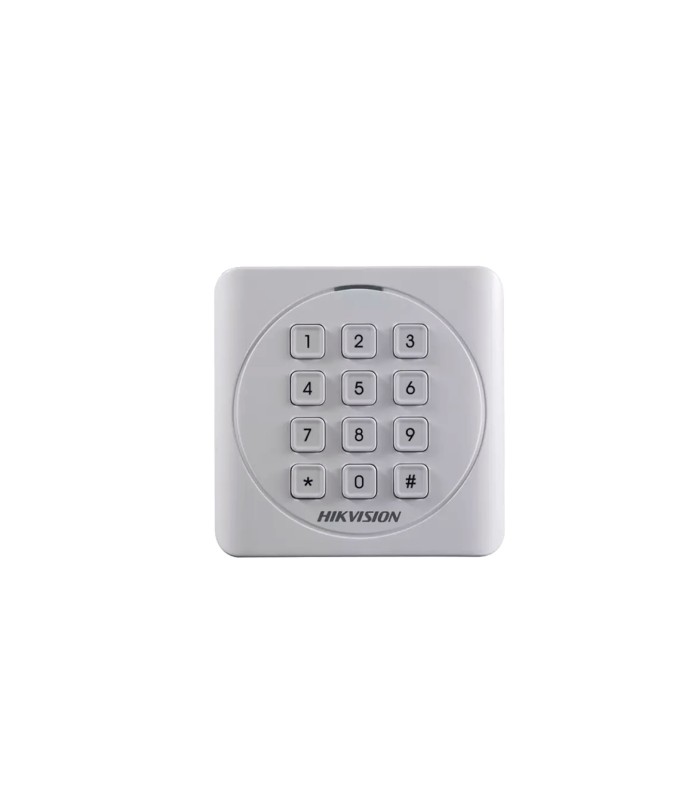

Hikvision DS-K1801MK Reader

Hikvision DS-K1801MK Reader - MF Card Reader with Keypad

The Hikvision DS-K1801MK Reader is a versatile MF card reader with a built-in keypad and audible beeper. It is designed to provide secure access control solutions for various applications. The reader supports both EM and MF cards, making it compatible with a wide range of access control systems. With its Wiegand interface and IP65 rating, the DS-K1801MK Reader is suitable for indoor and outdoor installations.

Technical Characteristics:

• Processor: 8 bits
• Wiegand Interface: W26/W34
• Card Type: EM Card; M1 Card
• Card Reading Distance: ≤50 mm (≤1.97")

Product Specifications:

• Power Supply: 12V DC, 0.15A
• Power Consumption: ≤1.6W
• Operating Temperature: -20°C to +65°C (-4°F to +149°F)
• Operating Humidity: 10% to 90% (non-condensing)
• Protection Level: IP65
• Dimensions: 87mm × 87mm × 13.3mm (3.43" × 3.43" × 0.52")
• Keypad: N/A/12 keys (0~9,*,#)
• Beeper: Support

Product Benefit and Use:

The Hikvision DS-K1801MK Reader offers a reliable and secure access control solution for various environments. With its durable construction and advanced features, it provides enhanced security and convenience for users. The reader's compatibility with EM and MF cards, along with its audible beeper and Wiegand interface, makes it a versatile choice for access control systems.
