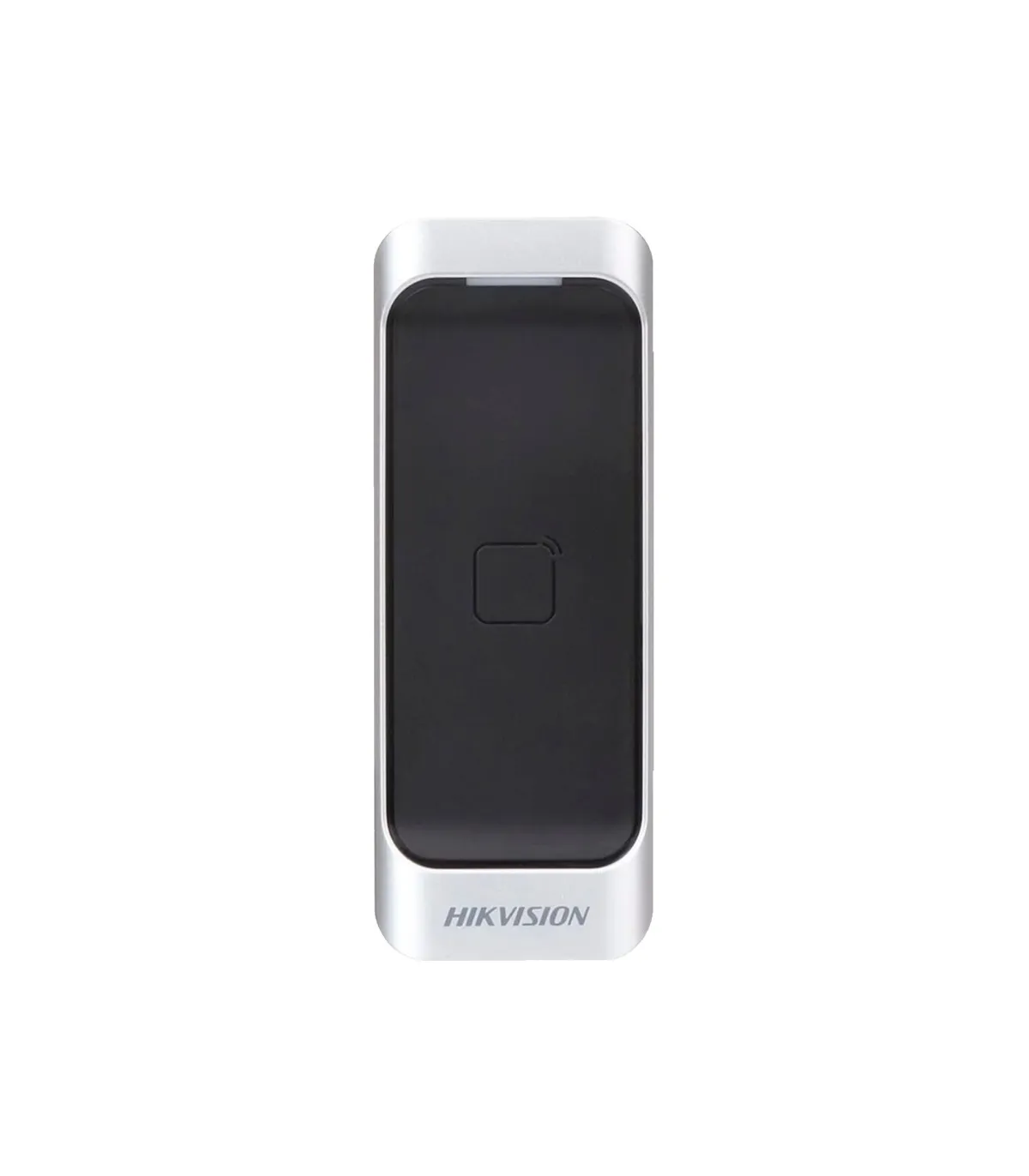

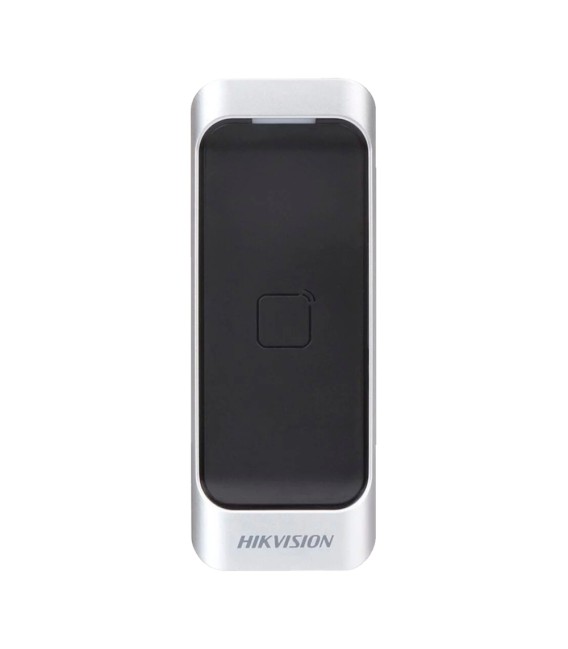

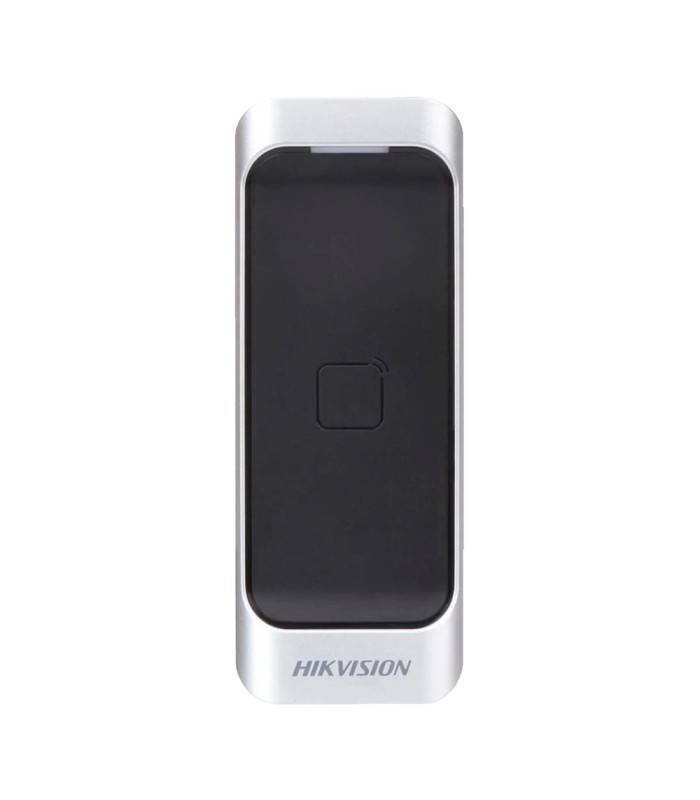

Access reader for Hikvision DS-K1107AE frames
- Hikvision
- Access reader for controller
- Access by EM card
- LED signaling and acoustic indicator
- Wiegand 26/34 and RS485
- Compact design for frames
- Suitable for outdoor IP65
- Compatible with Hikvision controllers
Technical specifications
| Brand | Hikvision |
| Model | DS-K1107AE |
| Card reading distance | < 5 cm |
| Identification modes | Card (RFID EM 125 kHz) |
| Outputs | RS485, Wiegand 26/34, buzzer for status indication, tamper |
| Compatibility | Hikvision DS-K2800 Series and DS-K2600T Series controllers |
| Power | DC 12 V / 500 mA max. |
| Protection degree | Suitable for outdoor use IP65 |
| Temp. operation | -20º C ~ +65º C |
| Dimensions | 115 (H) x 44 (W) x 22 (D) mm |
| Weight | 150 g |
Contents
- Hikvision card reader
- Mounting material
- Instructions for use
