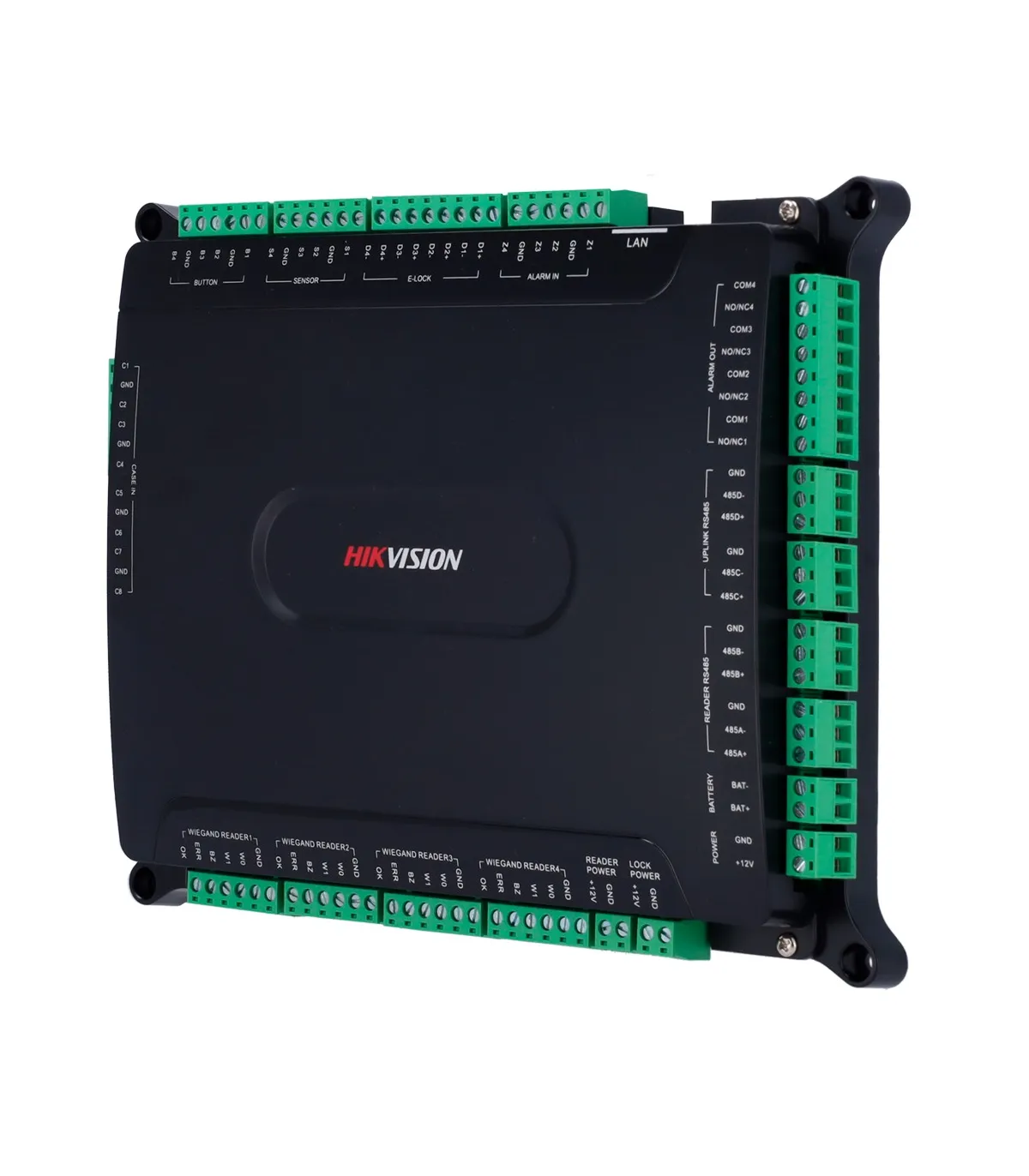

| Brand | Hikvision |
| Model | DS-K2604T |
| Hardware CPU | 32bit MIPS CPU |
| Capacity | Up to 100,000 users (97,000 users / 3,000 visitors / 5,000 fingerprints) |
| Registrations | 300,000 records |
| Identification modes | Facial, fingerprint, card, QR and/or passwords |
| Proximity card | RFID EM 125 kHz and MF 13.56 MHz |

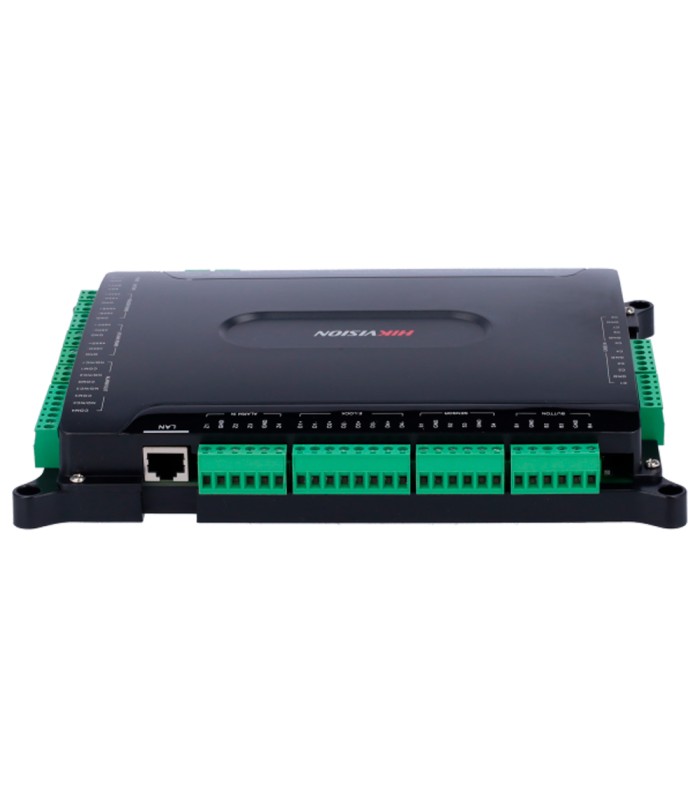

| Communication | TCP/IP, RS485, eHome and ISAPI |

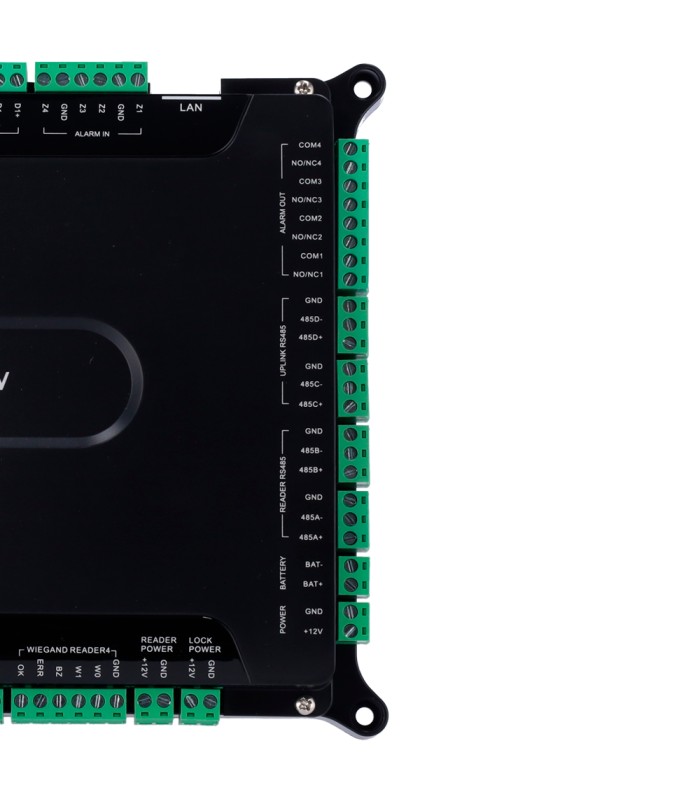

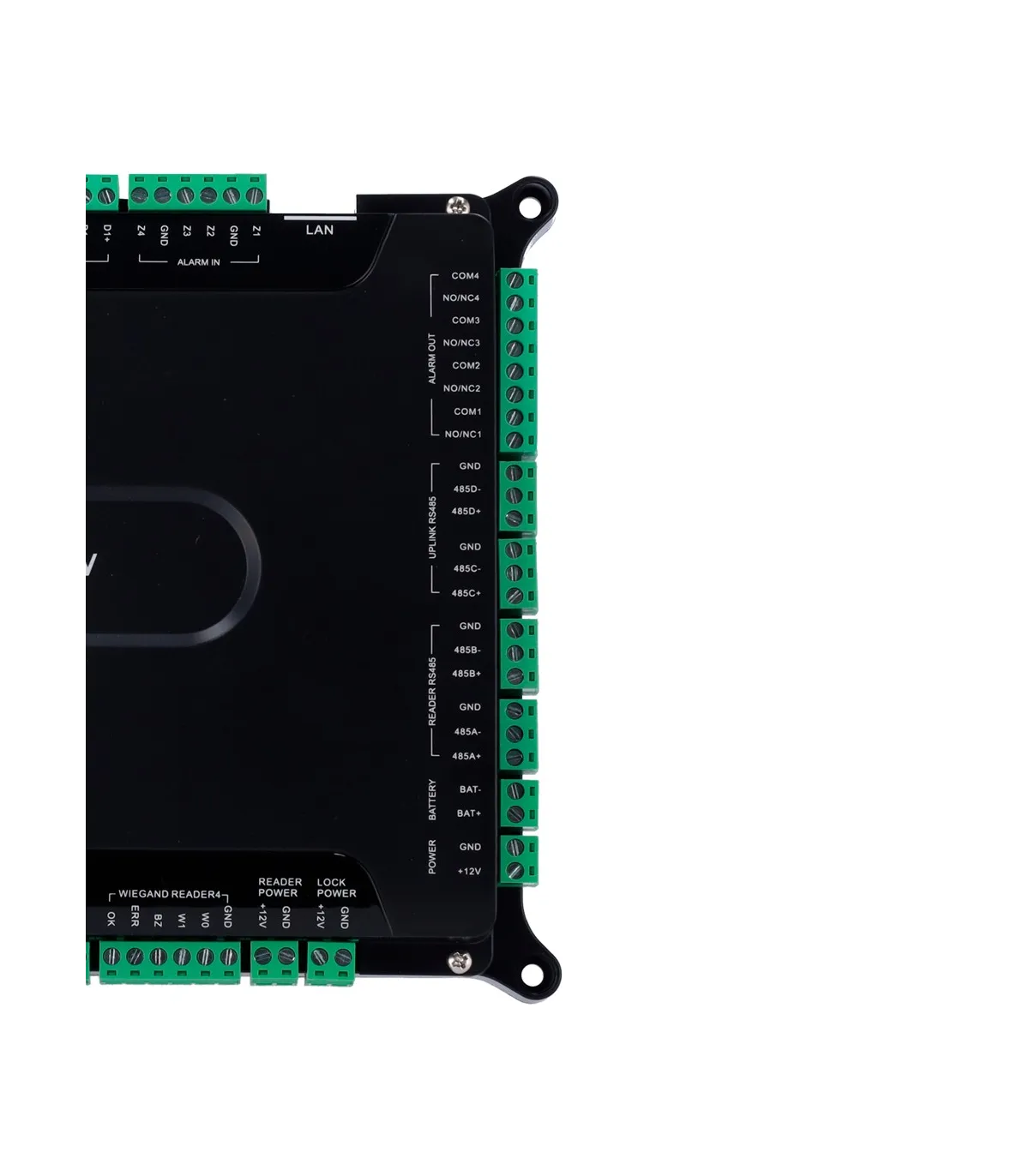

| Outputs | 4 x relay output, 4 x output alarm |

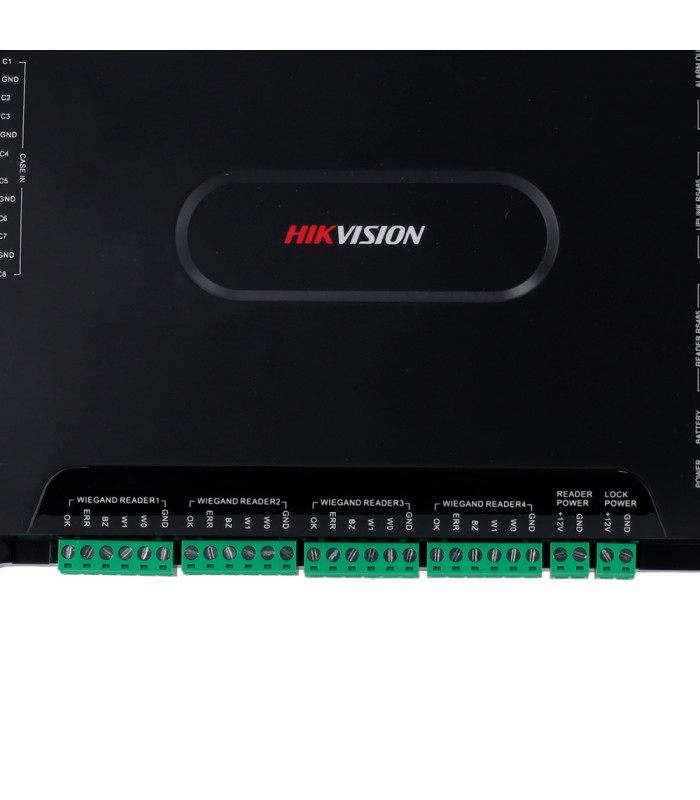

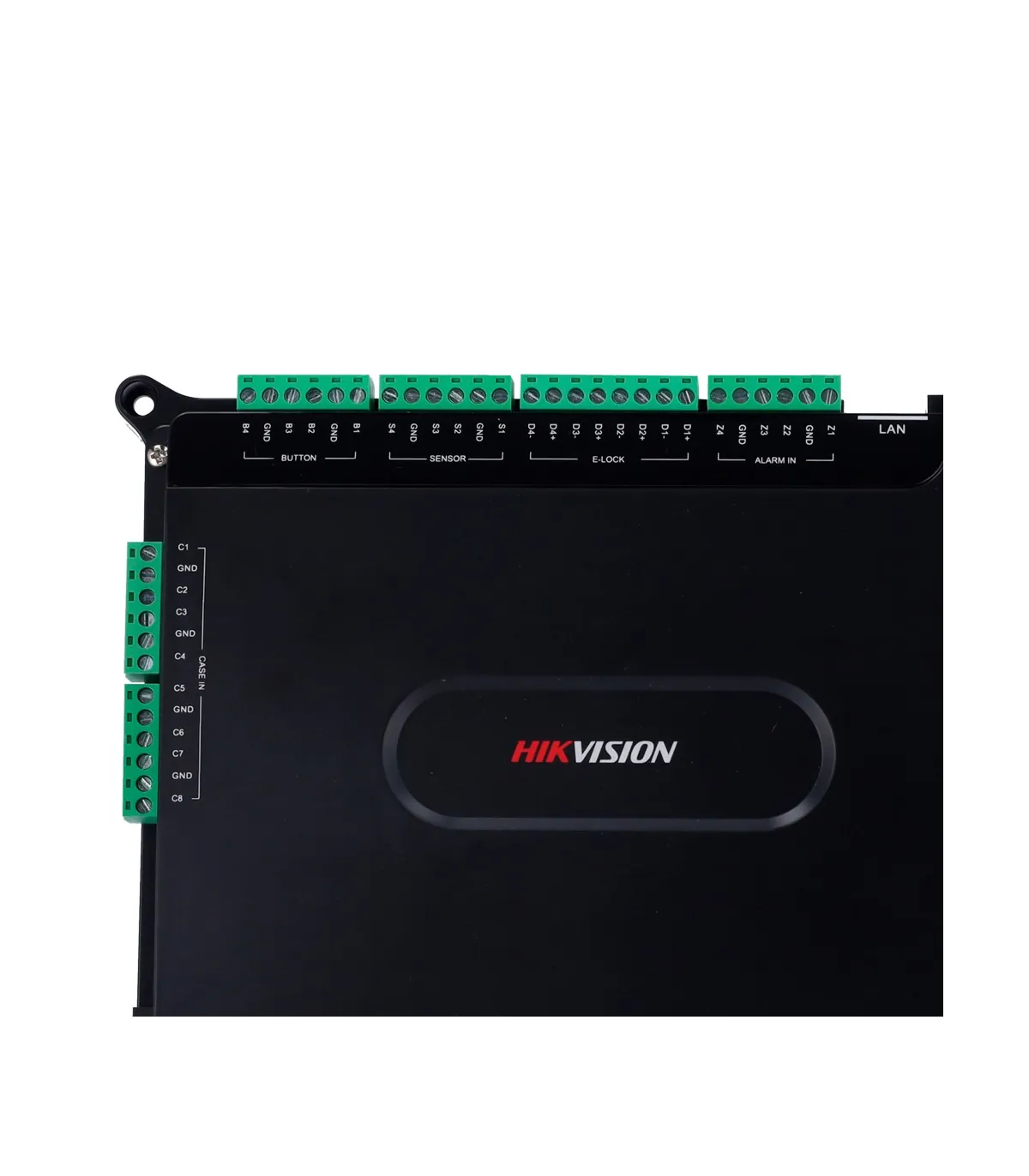

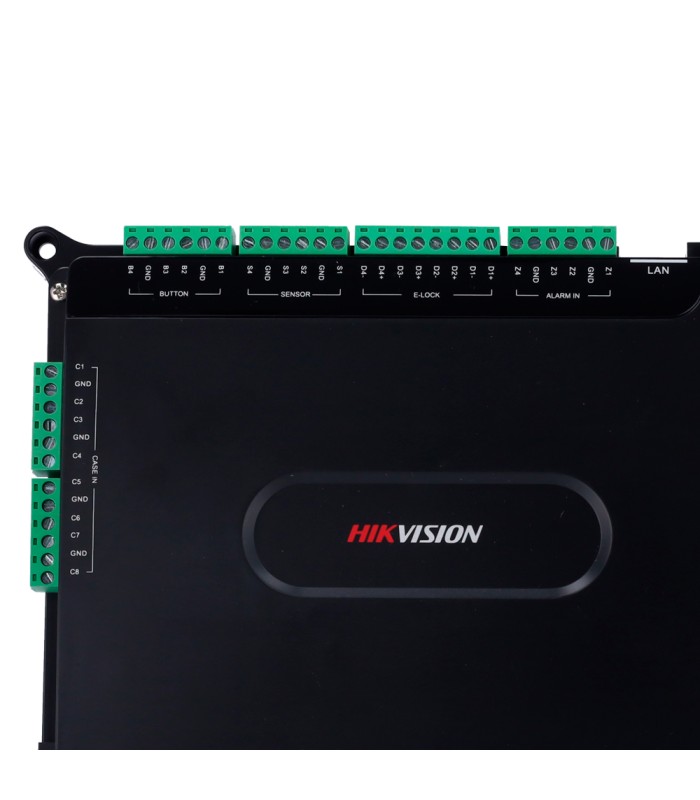

| Inputs | 4 x Wiegand 26/34, 8 x RS485, 4 x door sensor, 4 x opening button, 8 x auxiliary, 4 x alarm input, 1 x tamper |
| Software | iVMS-4200 / iVMS-4200 AC |
| Functions | Multi-door locks, anti-passback, multi-card, first card opening |
| Power | Power supply included (DC 12 V / 1 A max.) connected to 220 VAC |
| Temp. operation | -20º C ~ +65º C |
| Dimensions | 220 (W) x 175 (H) x 40 (Fo) mm |
| Weight | 600 g |
Data sheet
