- Hikvision PRO Series IP Dome Camera
- 4 Megapixel Resolution (2688x1520)
- 2.8 mm Lens | Dual Array Microphone
- Alarms | Audio | MicroSD
- Hybrid Light Range 30 m | PoE | IP67, IK08
- Motion Detection 2.0 | AcuSense

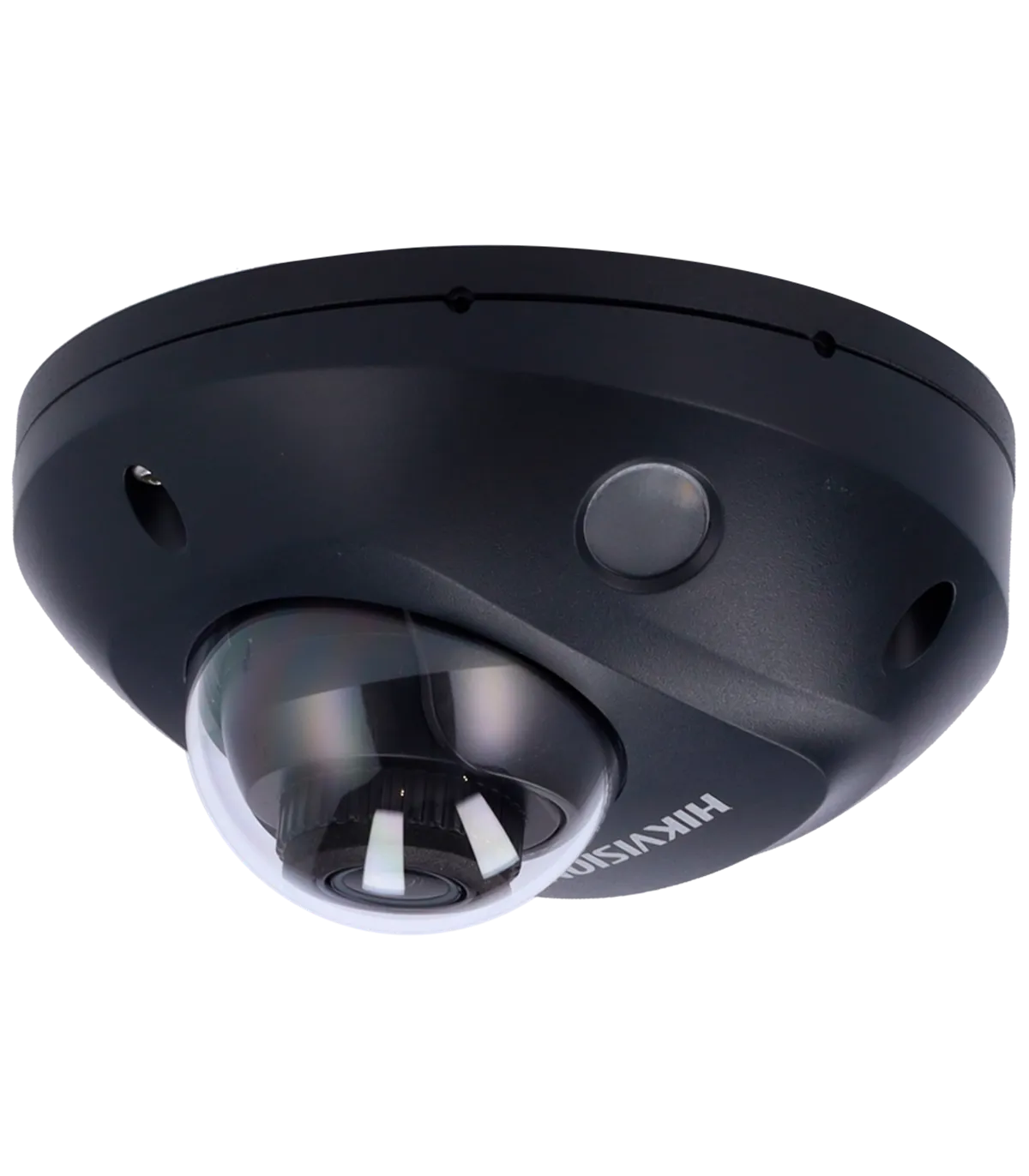

Description & Key Features: DS-2CD2543G2-LIS2U(2.8mm)/BLACK
The DS-2CD2543G2-LIS2U(2.8mm)/BLACK is a high-performance IP dome camera designed for advanced surveillance applications. Ideal for both indoor and outdoor environments, this camera features a 4 Megapixel resolution, ensuring clear and detailed images. With its hybrid light technology, it provides exceptional visibility in low-light conditions, making it suitable for various security needs. The device is equipped with AcuSense technology for enhanced motion detection, significantly reducing false alarms.
- Hikvision
- PRO Series
- IP Dome Camera
- 1/2.9" Progressive Scan CMOS
- 4 Megapixel (2688x1520)
- 2.8 mm Lens
- 0 Lux
- Hybrid Light: IR and White Light
- Hybrid Light Range 30 m
- Compression H.265+ / H.265 / H.264+ / H.264
- Motion Detection 2.0
- AcuSense, false alarm filter for vehicles and people (line crossing and area intrusion)
- WDR (120 dB)
- 3D-DNR
- Alarms
- Audio
- Integrated dual array microphone
- MicroSD card slot up to 512 GB
- WEB interface, CMS, Smartphone, and NVR
- ONVIF compatible
- PoE (IEEE802.3af)
- IP67 waterproof
- IK08 vandal-proof
- Black color
Specifications: DS-2CD2543G2-LIS2U(2.8mm)/BLACK
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920×1080, 1280×720, 640x480, 640×360) * Third Stream is supported under certain configurations |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 104°, V: 57°, D: 122° |
| DORI | 63 m (D), 25 m (O), 12 m (R), 6 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR |
| Supplementary Illumination | Hybrid Light: IR range 30 m White light range 30 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Alarms | 1 input / 1 output |
| Audio | 1 input / 1 output Integrated dual array microphone |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Environmental Noise Filtering | Yes |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S, G), ISAPI, SDK, ISUP |
| Power Supply | DC 12 V / 500 mA / 6 W max. PoE IEEE802.3af |
| Protection Rating | IP67 waterproof IK08 vandal-proof |
| Material | Base: Aluminum alloy Cover: Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 110 mm x 59.2 mm (H) |
| Base Dimensions | Ø base 110 mm / Ø between screws 96 mm / 3 screws |
| Weight | 390 g |
| Color | Black |
Package Contents
- Hikvision IP Dome Camera
- Installation materials
- User instructions
Use Case
The DS-2CD2543G2-LIS2U(2.8mm)/BLACK is perfect for a variety of surveillance scenarios, such as monitoring retail stores, parking lots, or residential areas. For instance, in a retail environment, this camera can be strategically placed at entrances and exits to provide comprehensive coverage. With its 4 Megapixel resolution, it captures clear images, allowing for effective identification of individuals. The hybrid light technology ensures visibility even in complete darkness, making it ideal for nighttime security. Additionally, the AcuSense technology minimizes false alarms by accurately distinguishing between humans and vehicles, enhancing the overall security system's efficiency. Furthermore, the camera's remote access capabilities allow users to monitor live feeds from anywhere, ensuring peace of mind. The robust IP67 rating guarantees durability against harsh weather conditions, making it a reliable choice for outdoor installations.
Data sheet
- Brand
- HIKVISION
- Resolution
- 4 Mpx
- Technology
- IP
- WDR
- WDR (120 dB)
- IR Distance
- 30 m
- Audio
- 1 Entrada / 1 Salida / Micrófono en array
- SD Slot
- Ranura MicroSD hasta 512 GB
- Wi-Fi
- No dispone
- IP Rating
- IP67
- IK Rating
- IK08
- Series
- PRO
- POE
- PoE (IEEE802.3af)
- Lens
- 2.8 mm
- Compatible models
- DS-1280ZJ-DM46-BLACK,DS-1280ZJ-DM46-BLACK,DS-1276ZJ-SUS,DS-1276ZJ-SUS,DS-1275ZJ-SUS-BLACK,DS-1275ZJ-SUS-BLACK,DS-1272ZJ-120B,DS-1272ZJ-120B,DS-1272ZJ-120-BLACK,DS-1272ZJ-120-BLACK,DS-1271ZJ-120-BLACK,DS-1271ZJ-120-BLACK
Specific References
- EAN13
- 6942160477862
