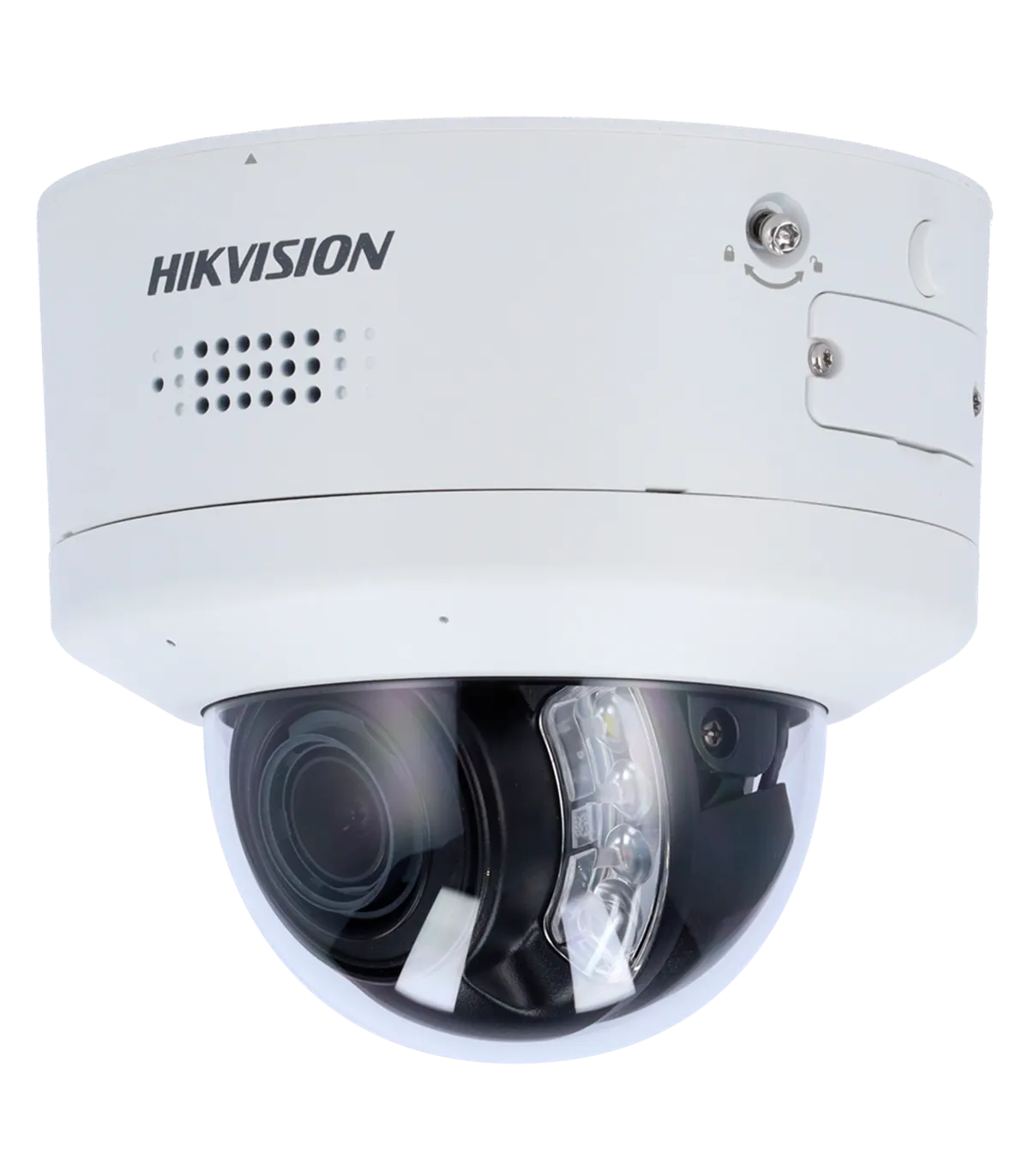

The DS-2CD2786G2H-IPTRZS2U/SL is a high-performance IP dome camera designed for advanced surveillance applications. With its 8 Megapixel resolution and motorized varifocal lens ranging from 2.8 to 12 mm, this camera is ideal for both indoor and outdoor environments, providing exceptional image quality even in low-light conditions. The device features smart detection capabilities, including AcuSense technology, which significantly reduces false alarms by distinguishing between humans and vehicles.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 25 fps (3840x2160, 3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280×720, 640x480, 640×360) * The third stream is supported under certain configurations |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Remote Adjustment | Horizontal rotation: 0~350° Vertical rotation: 0~85° Rotation: 0~350° |
| Field of View (FOV) | H: 112.3~41.2°, V: 58.1~23.1°, D: 137.4~47.3° |
| DORI | 89~220 m (D), 35~87 m (O), 18~44 m (R), 9~22 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.0008 Lux @(F1.2, AGC ON) 0 Lux with IR range 40 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Alarms | 1 input / 1 output |
| Deterrent Alarm | Integrated siren and deterrent flash in the camera |
| Audio | 1 input / 1 output Integrated dual array microphone Integrated speaker |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Environmental Noise Filtering | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, G, T), ISAPI, SDK |
| Power Supply | DC 12 V / 1350 mA / 16 W max. PoE+ IEEE802.3at |
| Protection Grade | IP66 waterproof IK10 vandal-proof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 155 mm x 140.4 mm (H) |
| Base Dimensions | Ø base 155 mm / Ø between screws 96 mm / 4 screws |
| Weight | 840 g |
The DS-2CD2786G2H-IPTRZS2U/SL is ideally suited for deployment in commercial and residential settings where high-definition surveillance is critical. For instance, in a retail environment, this camera can be strategically placed at entry points to monitor customer traffic and enhance security measures. With its motorized varifocal lens, installers can easily adjust the field of view to cover specific areas of interest, ensuring comprehensive coverage. The IR capabilities allow for effective monitoring even in complete darkness, making it a reliable choice for 24/7 surveillance. Additionally, the integration of AcuSense technology helps reduce false alarms, allowing security personnel to focus on genuine threats. This camera's remote access features enable users to monitor live feeds from anywhere, enhancing the overall security management process.
