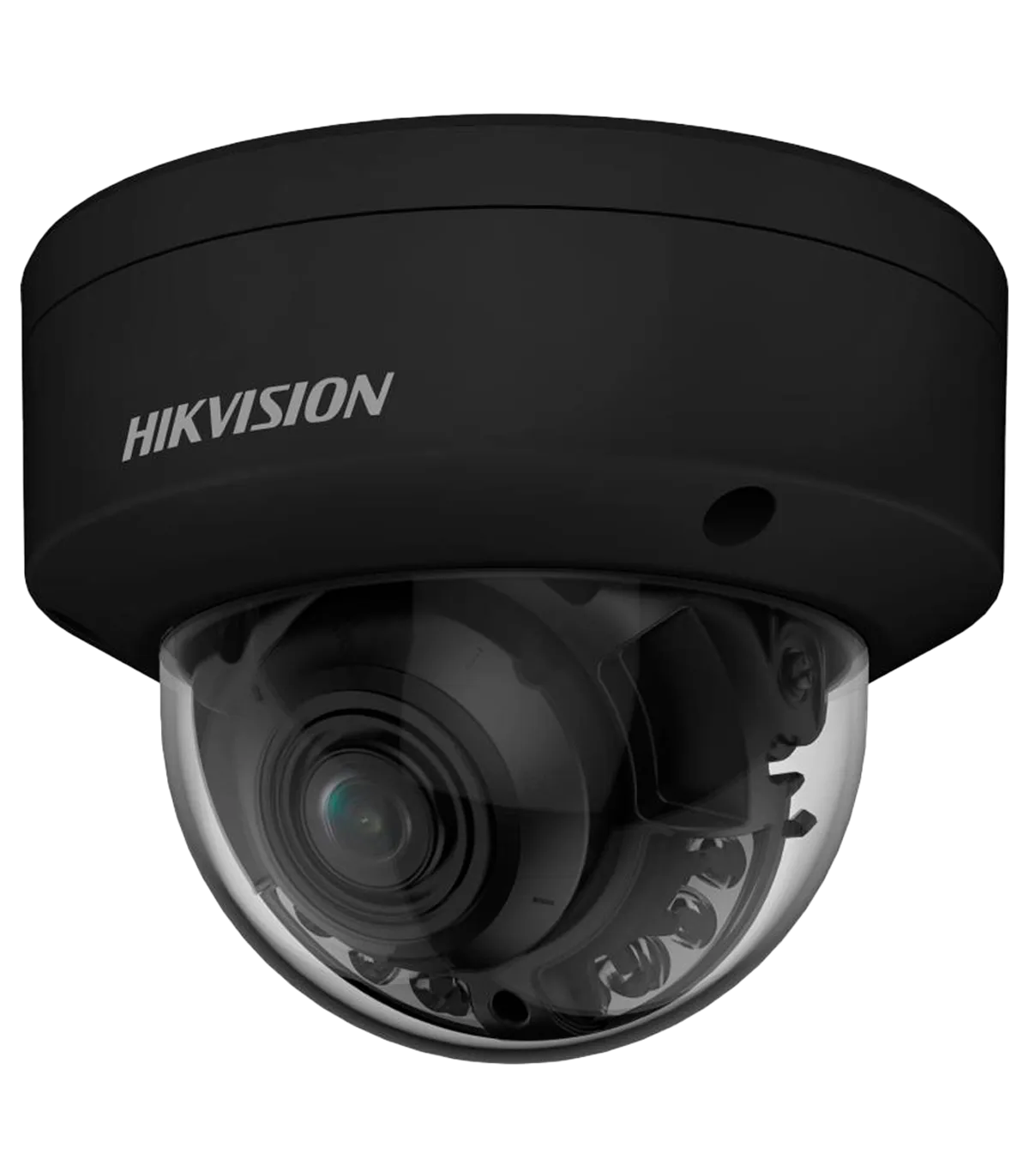

The DS-2CD2787G2HT-LIZS(2.8-12)/eF/BLK is a high-performance IP dome camera designed for advanced surveillance applications. Ideal for both indoor and outdoor environments, this camera features a robust design with IP67 waterproof and IK10 vandal-proof ratings, making it suitable for various security needs. With its 8 Megapixel resolution and ColorVu technology, it delivers exceptional image quality even in low-light conditions, ensuring reliable monitoring around the clock.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 25 fps (3840x2160, 3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280×720, 640x480, 640×360) The third stream is supported under certain configurations. |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Field of View (FOV) | H: 112.3~41.2°, V: 58.1~23.1°, D: 137.4~47.3° |
| DORI | 87~216 m (D), 35~86 m (O), 17~43 m (R), 9~22 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.0028 Lux @(F1.2, AGC ON) 0 Lux with white light range 40 m |
| Supplementary Lighting | Hybrid light: IR range 40 m White light range 40 m |
| Day/Night | ColorVu: color image 24 hours |
| Image Enhancements | WDR (130 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Alarms | 1 input / 1 output |
| Audio | 1 input / 1 output |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 900 mA / 10.8 W max. / PoE IEEE802.3af |
| Protection Grade | Waterproof IP67, vandal-proof IK10 |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 141 mm x 112 mm (H) |
| Base Dimensions | Ø base 141 mm / Ø between screws 130 mm / 3 screws |
| Weight | 820 g |
| Color | Black |
The DS-2CD2787G2HT-LIZS(2.8-12)/eF/BLK is ideally suited for a variety of surveillance applications, including retail stores, parking lots, and corporate offices. For instance, in a retail environment, this camera can be strategically placed at entrances and exits to provide comprehensive coverage. With its motion detection capabilities and AcuSense technology, it can effectively differentiate between human and vehicle movements, significantly reducing false alarms. The ColorVu feature ensures that the camera captures high-quality color images even in low-light conditions, enhancing security during nighttime operations. Additionally, the camera's remote monitoring capabilities allow users to access live feeds via a smartphone app or web browser, providing flexibility and peace of mind. The robust IP67 and IK10 ratings ensure that the camera remains operational in harsh weather conditions and is resistant to vandalism, making it a reliable choice for any security installation.
