- Hikvision
- PRO Series IP Dome Camera
- 8 Megapixel Resolution (3840x2160)
- 2.8 mm Lens | PoE | Integrated Microphone
- IR Range 30 m | Motion Detection 2.0
- AcuSense | Face Detection | IP67, IK10

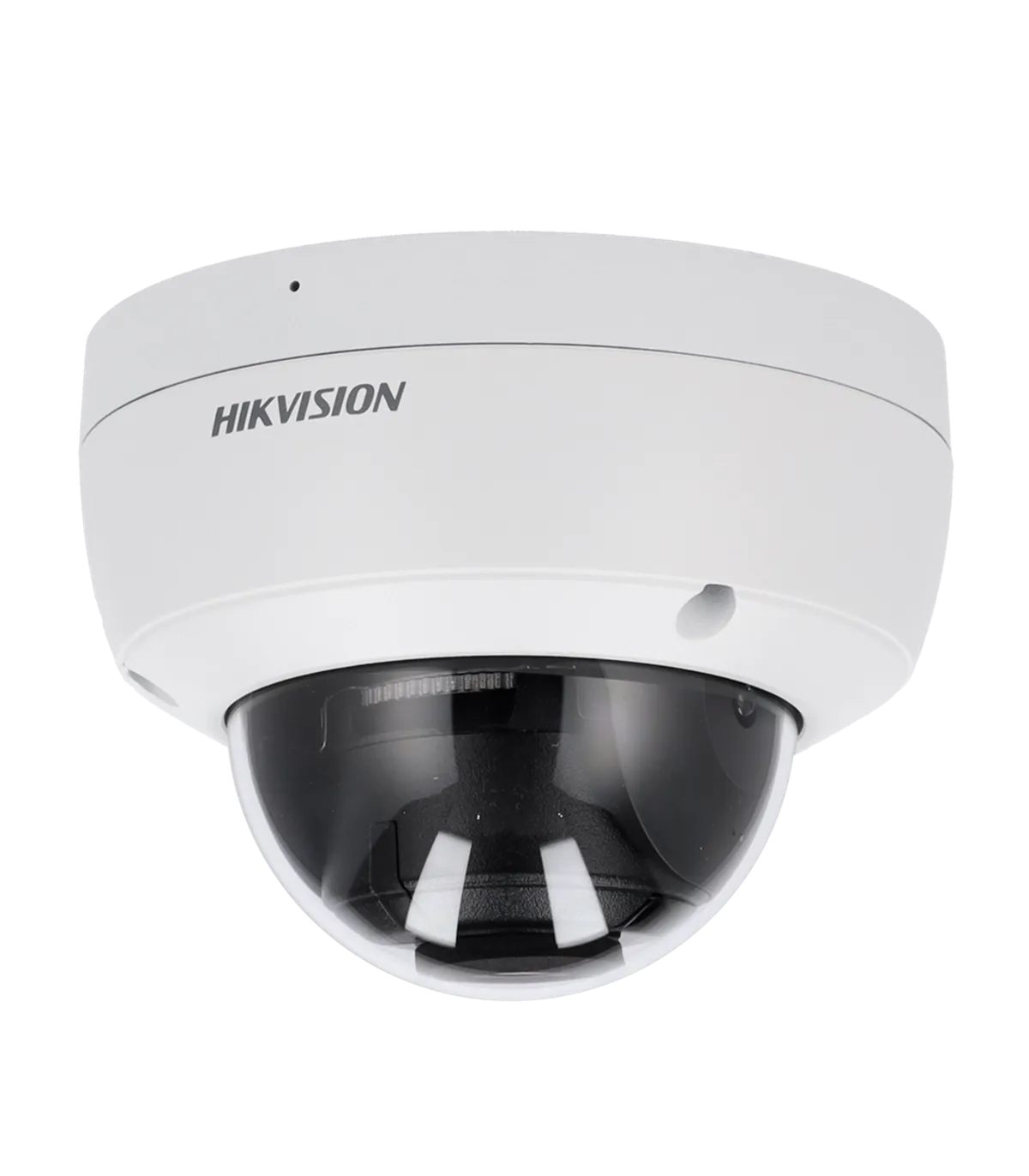

Description & Key Features: DS-2CD2183G2-IU(2.8mm)
The DS-2CD2183G2-IU(2.8mm) is a high-performance IP dome camera designed for comprehensive surveillance in various environments. With its 8 Megapixel resolution and advanced features, it is ideal for both indoor and outdoor applications, ensuring clear and detailed images. This camera is equipped with IR capabilities for low-light conditions, making it suitable for 24/7 monitoring. Its robust design includes IP67 waterproof and IK10 vandal-proof ratings, ensuring durability in challenging conditions.
- Hikvision
- PRO Series
- IP Dome Camera
- 1/2.8" Progressive Scan CMOS
- 8 Megapixel (3840x2160)
- 2.8 mm Lens
- 0 Lux
- IR Range 30 m
- Compression H.265+ / H.265 / H.264+ / H.264
- Motion Detection 2.0
- AcuSense, false alarm filter for vehicles and people (line crossing and area intrusion)
- Face Detection
- WDR (120 dB)
- 3D-DNR
- Integrated Microphone
- MicroSD card slot up to 256 GB
- WEB, CMS, Smartphone, and NVR interface
- ONVIF compatible
- PoE (IEEE802.3af)
- IP67 Waterproof
- IK10 Vandal-proof
Specifications: DS-2CD2183G2-IU(2.8mm)
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 20 fps (3840x2160), 25 fps (3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (640x480, 640×360) |
| Third Stream Rate | 10 fps (1920×1080, 1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 107°, V: 57°, D: 128° |
| DORI | 88 m (D), 35 m (O), 17 m (R), 9 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR range 30 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Face Detection | Yes |
| Audio | Integrated microphone |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
| Internal Storage | MicroSD card slot up to 256 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 500 mA / 6 W max. / PoE IEEE802.3af |
| Protection Grade | IP67 waterproof, IK10 vandal-proof |
| Material | Body: Aluminum alloy Dome: Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 121.4 mm x 92.2 mm (H) |
| Weight | 550 g |
Package Contents
- Hikvision IP Dome Camera
- Installation materials
- User manual
Use Case
The DS-2CD2183G2-IU(2.8mm) is an excellent choice for a variety of surveillance applications, particularly in retail environments, parking lots, and public spaces. For instance, a retail store can deploy this camera at entry points to monitor customer traffic and enhance security. With its high-resolution imaging and night vision capabilities, the camera ensures clear visibility even in low-light conditions. The motion detection feature, combined with AcuSense technology, allows for precise identification of human and vehicle movements, significantly reducing false alarms. Additionally, the integrated microphone enables audio monitoring, providing a comprehensive security solution. This camera's robust design ensures it withstands harsh weather conditions, making it ideal for outdoor installations. Overall, the DS-2CD2183G2-IU(2.8mm) offers a reliable and effective surveillance solution for both installers and end users.
Data sheet
- Brand
- HIKVISION
- Resolution
- 8 Mpx
- Technology
- IP
- WDR
- WDR (120 dB)
- IR Distance
- 30 m
- Audio
- Micrófono integrado
- SD Slot
- Ranura MicroSD hasta 256 GB
- Wi-Fi
- No dispone
- IP Rating
- IP67
- IK Rating
- IK10
- Series
- PRO
- POE
- PoE (IEEE802.3af)
- Lens
- 2.8 mm
- Compatible models
- DS-1280ZJ-DM46,DS-1280ZJ-DM46,DS-1276ZJ-SUS,DS-1276ZJ-SUS,DS-1275ZJ-SUS,DS-1275ZJ-SUS,DS-1272ZJ-120B,DS-1272ZJ-120B,DS-1272ZJ-120,DS-1272ZJ-120,DS-1271ZJ-120,DS-1271ZJ-120
Specific References
- EAN13
- 6941264095453
