- Hikvision
- PRO Series IP Dome Camera
- 4 Megapixel Resolution (2688x1520)
- 2.8 mm Lens | Integrated Microphone | PoE
- IR Range 30 m | Motion Detection 2.0
- AcuSense | Face Detection

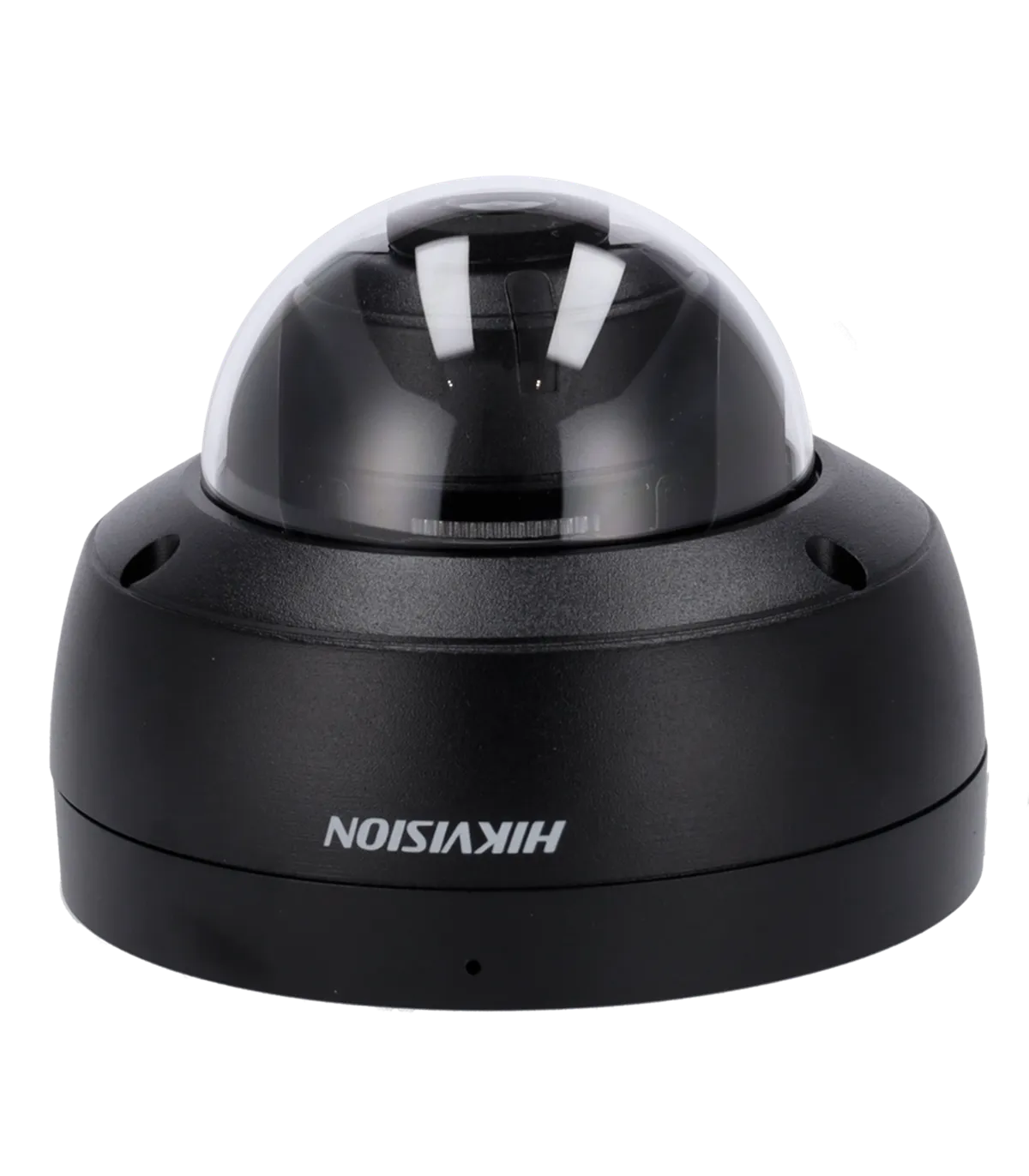

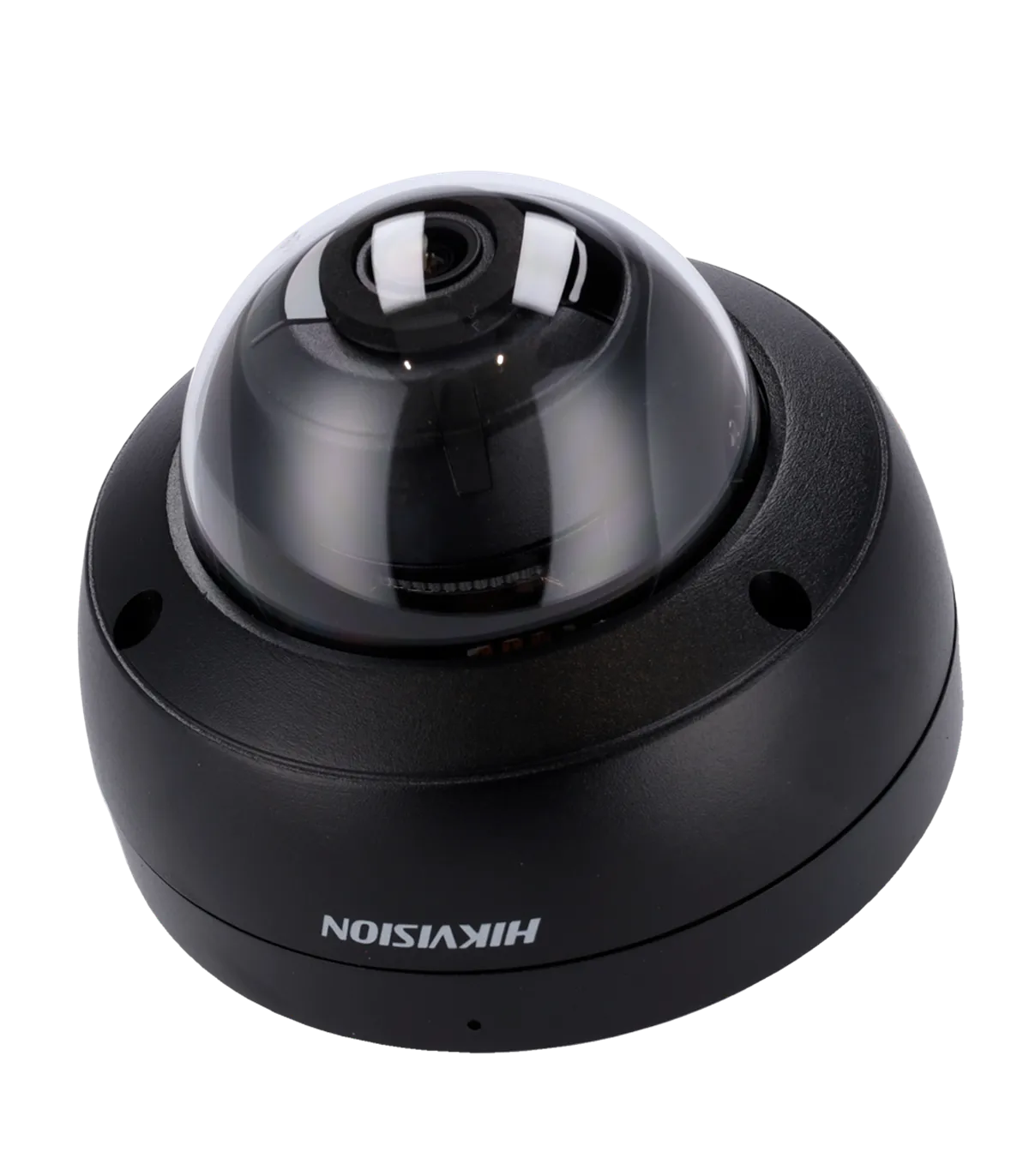

Description & Key Features: DS-2CD2143G2-IU(2.8mm)(BLACK)
The DS-2CD2143G2-IU(2.8mm)(BLACK) is a high-performance IP dome camera designed for effective surveillance in various environments. With its advanced 4 Megapixel resolution and 30m IR range, it is ideal for monitoring both indoor and outdoor areas, ensuring clear images even in low-light conditions. This camera features AcuSense technology for enhanced motion detection, making it suitable for security applications where accurate identification of people and vehicles is crucial.
- Hikvision
- PRO Series
- IP Dome Camera
- 1/3" Progressive Scan CMOS
- 4 Megapixel (2688x1520)
- 2.8 mm Lens
- 0 Lux
- IR Range 30 m
- Compression H.265+ / H.265 / H.264+ / H.264
- Motion Detection 2.0
- AcuSense, false alarm filter for vehicles and people (line crossing and area intrusion)
- Face Detection
- WDR (120 dB)
- 3D-DNR
- Integrated Microphone
- MicroSD Card Slot up to 256 GB
- WEB, CMS, Smartphone, and NVR Interface
- ONVIF Compatible
- PoE (IEEE802.3af)
- IP67 Waterproof
- IK10 Vandal Resistant
- Color: Black
Specifications: DS-2CD2143G2-IU(2.8mm)(BLACK)
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (640x480, 640×360) |
| Third Stream Rate | 10 fps (1920×1080, 1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 103°, V: 55°, D: 122° |
| DORI | 67 m (D), 26 m (O), 13 m (R), 6 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR range 30 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror Function, Privacy Masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Face Detection | Yes |
| Internal Storage | MicroSD Card Slot up to 256 GB |
| Audio | Integrated Microphone |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate | 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC)/32-192Kbps(MP2L2)/8-320Kbps(MP3) |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 400 mA / 5 W max. / PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof, IK10 Vandal Resistant |
| Material | Body: Aluminum Alloy Dome: Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 121.4 mm x 92.2 mm (H) |
| Weight | 570 g |
| Color | Black |
Package Contents
- Hikvision IP Dome Camera
- Installation Materials
- User Instructions
Use Case
The DS-2CD2143G2-IU(2.8mm)(BLACK) is ideally suited for a variety of surveillance applications, including retail stores, office buildings, and residential areas. For instance, in a retail environment, this camera can be strategically placed at entrances and exits to provide comprehensive coverage. With its high-resolution imaging and 30m IR capability, it ensures that all activities are captured clearly, even in complete darkness. The integrated microphone allows for audio monitoring, enhancing security measures. Additionally, the AcuSense technology minimizes false alarms by accurately distinguishing between human and vehicle movements, making it a reliable choice for busy locations. The camera's remote access feature enables users to monitor live feeds from their smartphones or PCs, providing peace of mind whether they are on-site or away. Overall, the DS-2CD2143G2-IU(2.8mm)(BLACK) offers a robust solution for effective surveillance and security management.
Data sheet
- Brand
- HIKVISION
- Resolution
- 4 Mpx
- Technology
- IP
- WDR
- WDR (120 dB)
- IR Distance
- 30 m
- Audio
- Micrófono integrado
- SD Slot
- Ranura MicroSD hasta 256 GB
- Wi-Fi
- No dispone
- IP Rating
- IP67
- IK Rating
- IK10
- Series
- PRO
- POE
- PoE (IEEE802.3af)
- Lens
- 2.8 mm
- Compatible models
- DS-1280ZJ-DM46-BLACK,DS-1280ZJ-DM46-BLACK,DS-1276ZJ-SUS,DS-1276ZJ-SUS,DS-1275ZJ-SUS-BLACK,DS-1275ZJ-SUS-BLACK,DS-1272ZJ-120B,DS-1272ZJ-120B,DS-1272ZJ-120-BLACK,DS-1272ZJ-120-BLACK,DS-1271ZJ-120-BLACK,DS-1271ZJ-120-BLACK
Specific References
- EAN13
- 6931847134013
