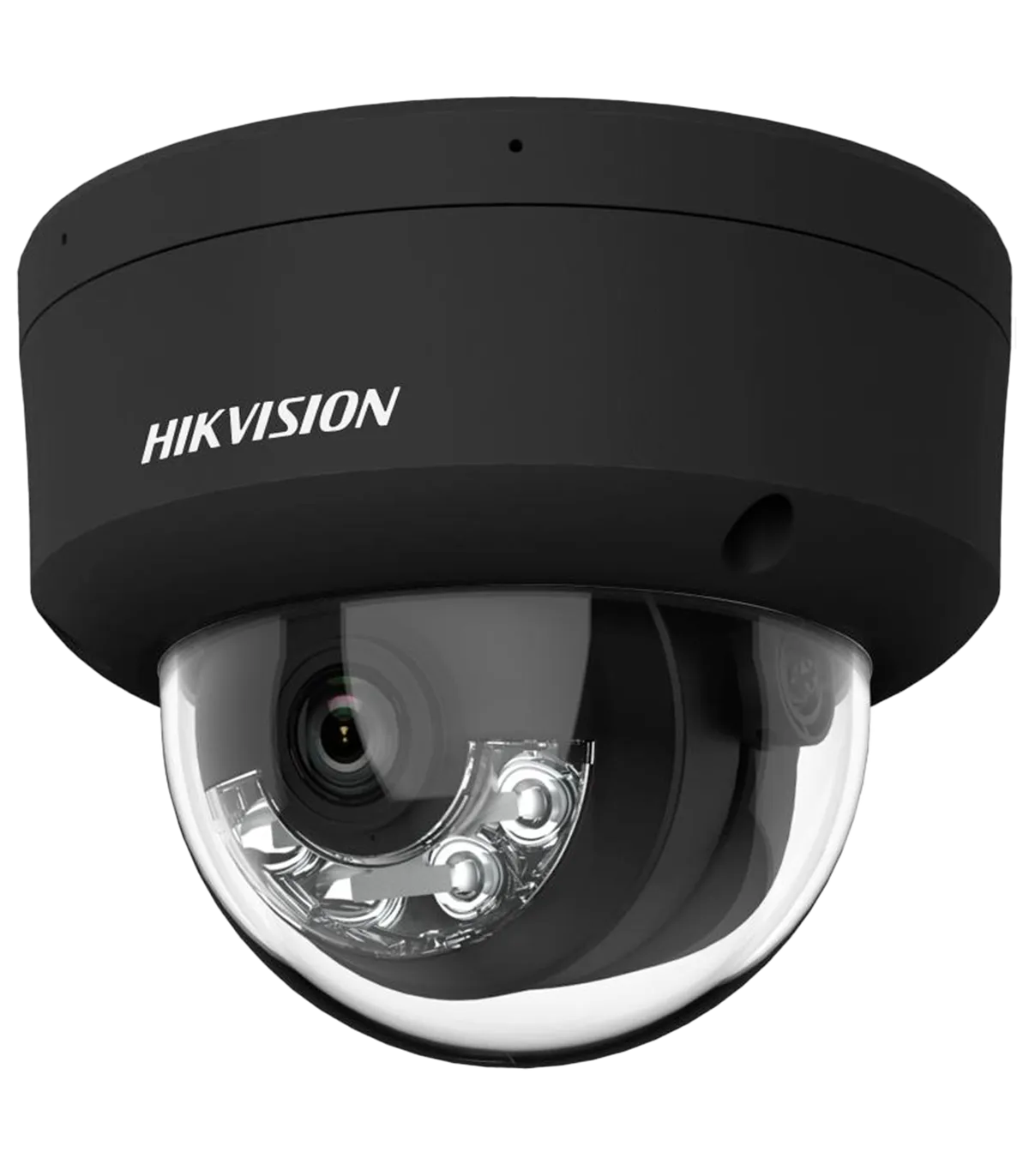

The DS-2CD2123G2-LIS2U(2.8mm)(BLACK) is a high-performance IP dome camera designed for effective surveillance in various environments. Ideal for both indoor and outdoor applications, this camera offers exceptional image quality with its 2 Megapixel resolution and advanced features such as motion detection and AcuSense technology. Its robust design ensures durability, making it suitable for commercial and residential security systems.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Maximum Resolution | 2 Megapixel (1920x1080) |
| Main Stream Rate | 25 fps (1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (640x480, 640×360) |
| Third Stream Rate | 10 fps (1920×1080, 1280×720, 640x480, 640×360) * The third stream is supported under certain configurations |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 112°, V: 61°, D: 132° |
| DORI | 42 m (D), 16 m (O), 8 m (R), 4 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with white light |
| Supplementary Illumination | Hybrid Light: IR range 30 m White light range 30 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Alarms | 1 input / 1 output |
| Audio | 1 input / 1 output Integrated dual array microphone |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Environmental Noise Filtering | Yes |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S and G), ISAPI, SDK |
| Power Supply | DC 12 V / 600 mA / 7.2 W max. PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof IK10 Vandal Resistant |
| Material | Aluminum Alloy |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 121.5 mm x 97.6 mm (H) |
| Base Dimensions | Ø base 121.5 mm / Ø between screws 104.7 mm / 3 screws |
| Weight | 600 g |
| Color | Black |
The DS-2CD2123G2-LIS2U(2.8mm)(BLACK) is an excellent choice for a variety of surveillance applications, including retail stores, parking lots, and residential areas. For instance, in a retail environment, this camera can be strategically placed at entrances and exits to provide comprehensive coverage. With its hybrid light capabilities, it ensures clear visibility even in low-light conditions, enhancing security during nighttime operations. The motion detection feature, combined with AcuSense technology, allows for precise identification of human and vehicle movements, significantly reducing false alarms. Additionally, the camera's remote monitoring capabilities enable users to access live feeds via smartphones or web browsers, ensuring constant vigilance. The robust IP67 waterproof and IK10 vandal-resistant ratings make it suitable for outdoor installations, providing peace of mind in various weather conditions. Overall, the DS-2CD2123G2-LIS2U is a reliable solution for enhancing security and surveillance in diverse settings.
