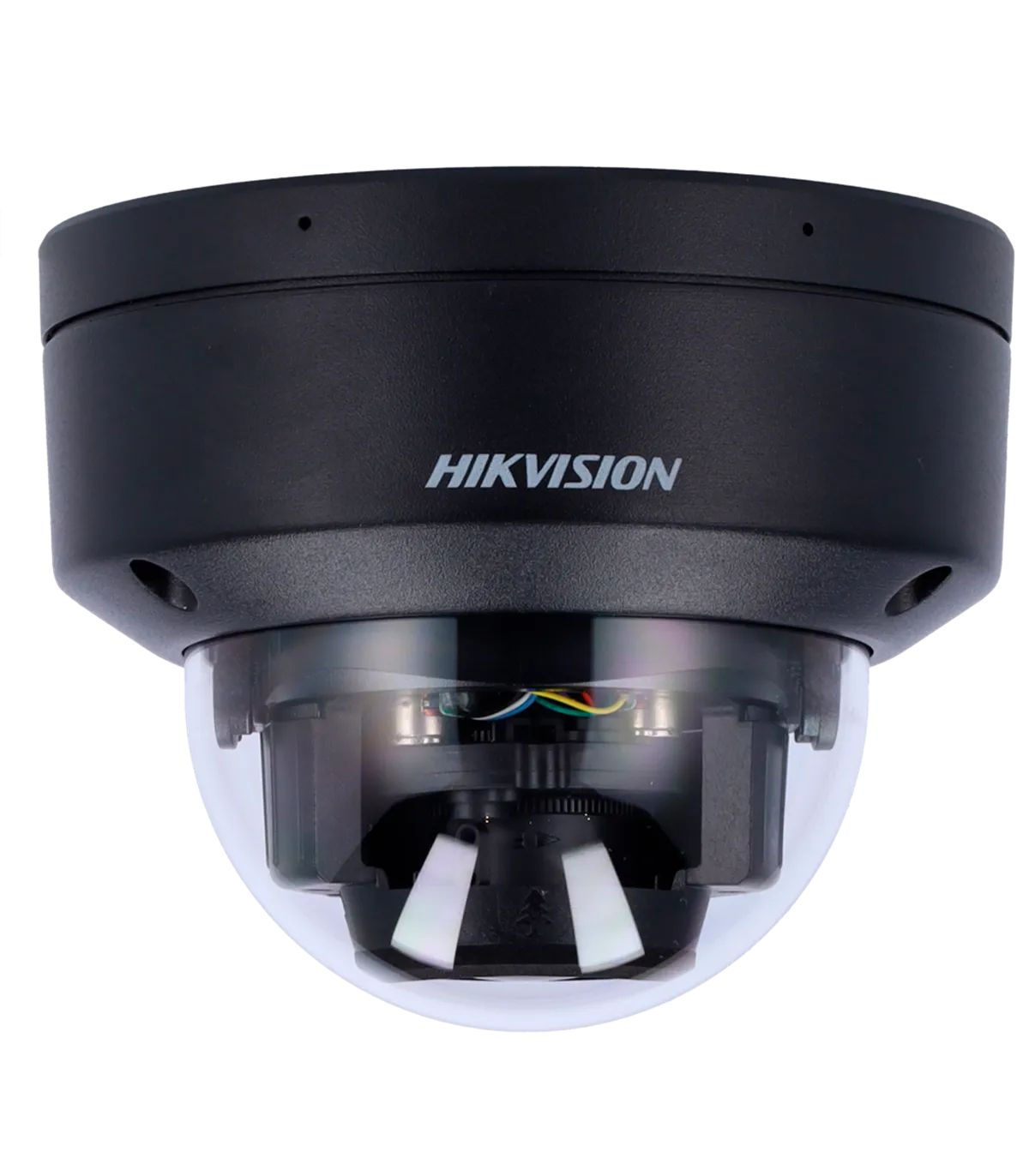

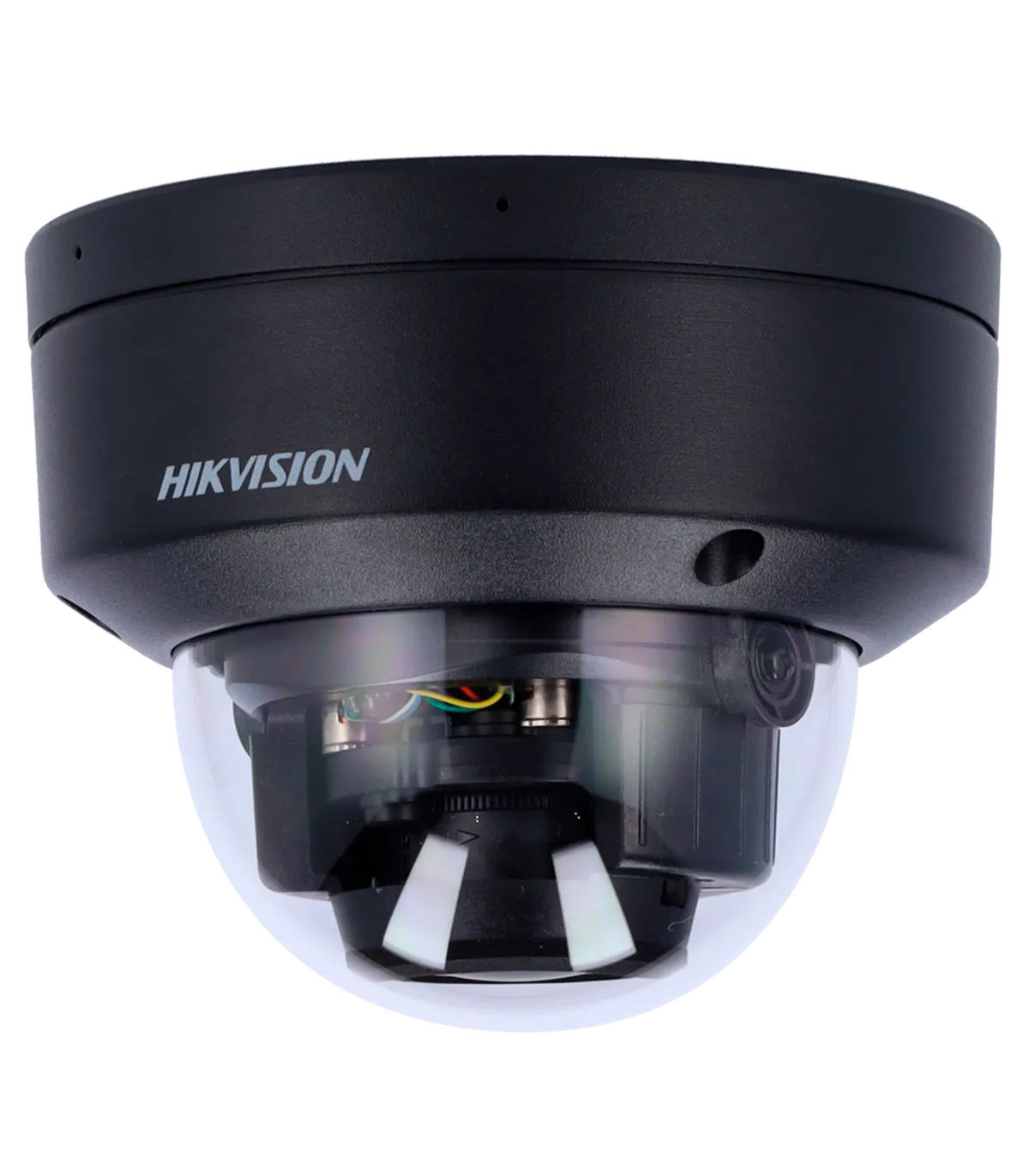

The DS-2CD2183G2-LIS2U(2.8mm)(BLACK) is a high-performance IP dome camera designed for advanced surveillance applications. With its 8 Megapixel resolution, this camera captures detailed images, making it ideal for both indoor and outdoor environments. The device features a 2.8 mm lens that provides a wide field of view, ensuring comprehensive coverage. Equipped with hybrid lighting technology, it operates effectively in low-light conditions, enhancing security in various settings.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 20 fps (3840x2160), 25 fps (3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920×1080, 1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 108°, V: 59°, D: 127° |
| DORI | 84 m (D), 33 m (O), 16 m (R), 8 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR |
| Supplementary Lighting | Hybrid Light: IR range 30 m White light range 30 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Alarms | 1 input / 1 output |
| Audio | 1 input / 1 output Integrated dual array microphone |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Environmental Noise Filtering | Yes |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S, G), ISAPI |
| Power Supply | DC 12 V / 700 mA / 8.4 W max. PoE IEEE802.3af |
| Protection Grade | IP67 waterproof IK10 vandal-proof |
| Material | Aluminum alloy |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 121.5 mm x 97.6 mm (H) |

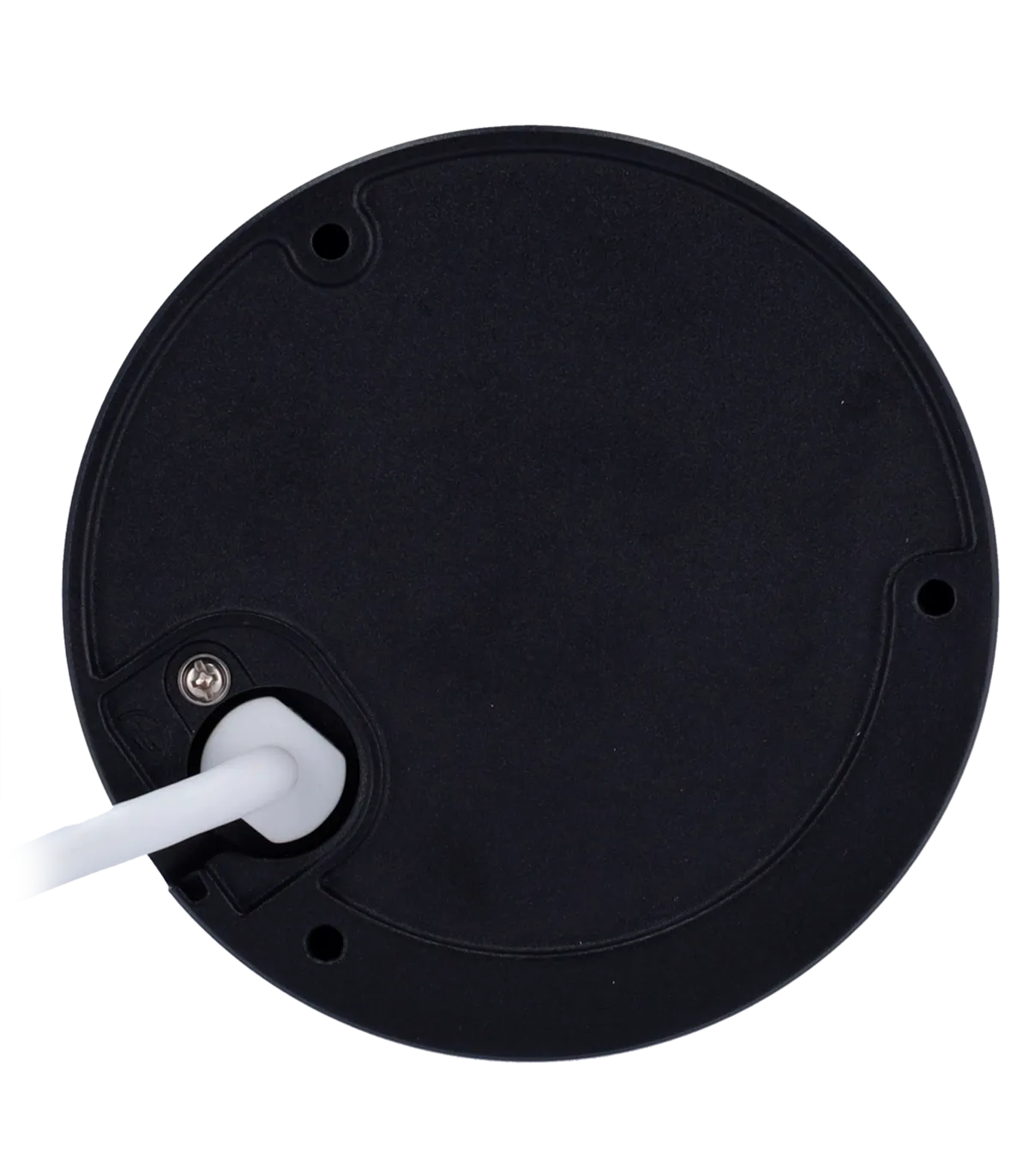

| Base Dimensions | Ø base 121.5 mm / Ø between screws 104.7 mm / 3 screws |
| Weight | 600 g |
| Color | Black |
The DS-2CD2183G2-LIS2U(2.8mm)(BLACK) is an excellent choice for various surveillance applications, including retail stores, parking lots, and office buildings. For instance, in a retail environment, this camera can be strategically placed at entrances and exits to monitor customer flow and deter theft. With its high-resolution imaging and advanced motion detection capabilities, it ensures that security personnel can quickly respond to any suspicious activity. The hybrid lighting technology allows for clear visibility even in low-light conditions, making it suitable for nighttime surveillance. Additionally, the camera's remote access feature enables users to monitor live feeds from their smartphones or computers, enhancing overall security management. The IK10 vandal-proof rating ensures durability against tampering, making it a reliable choice for outdoor installations.
