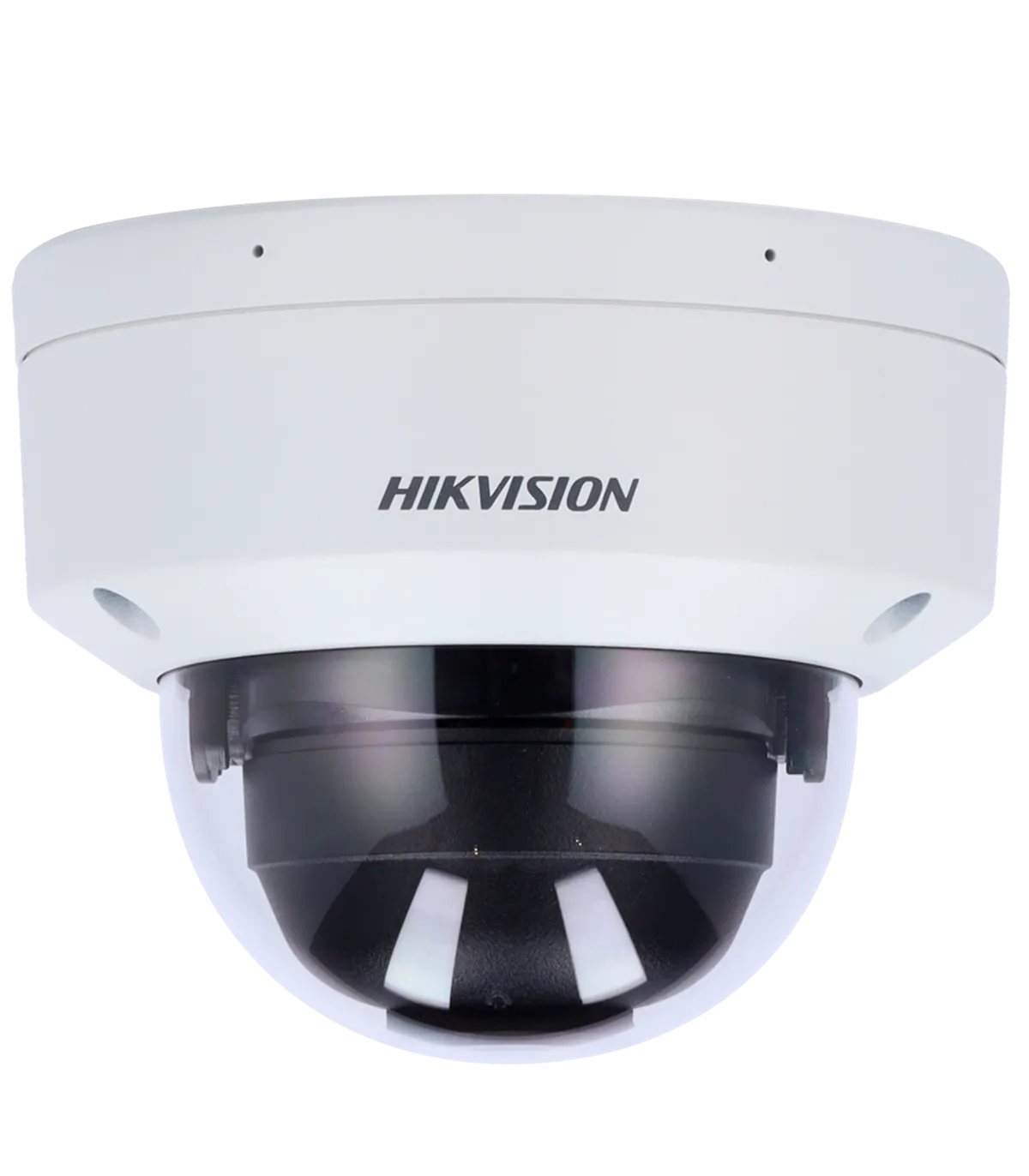

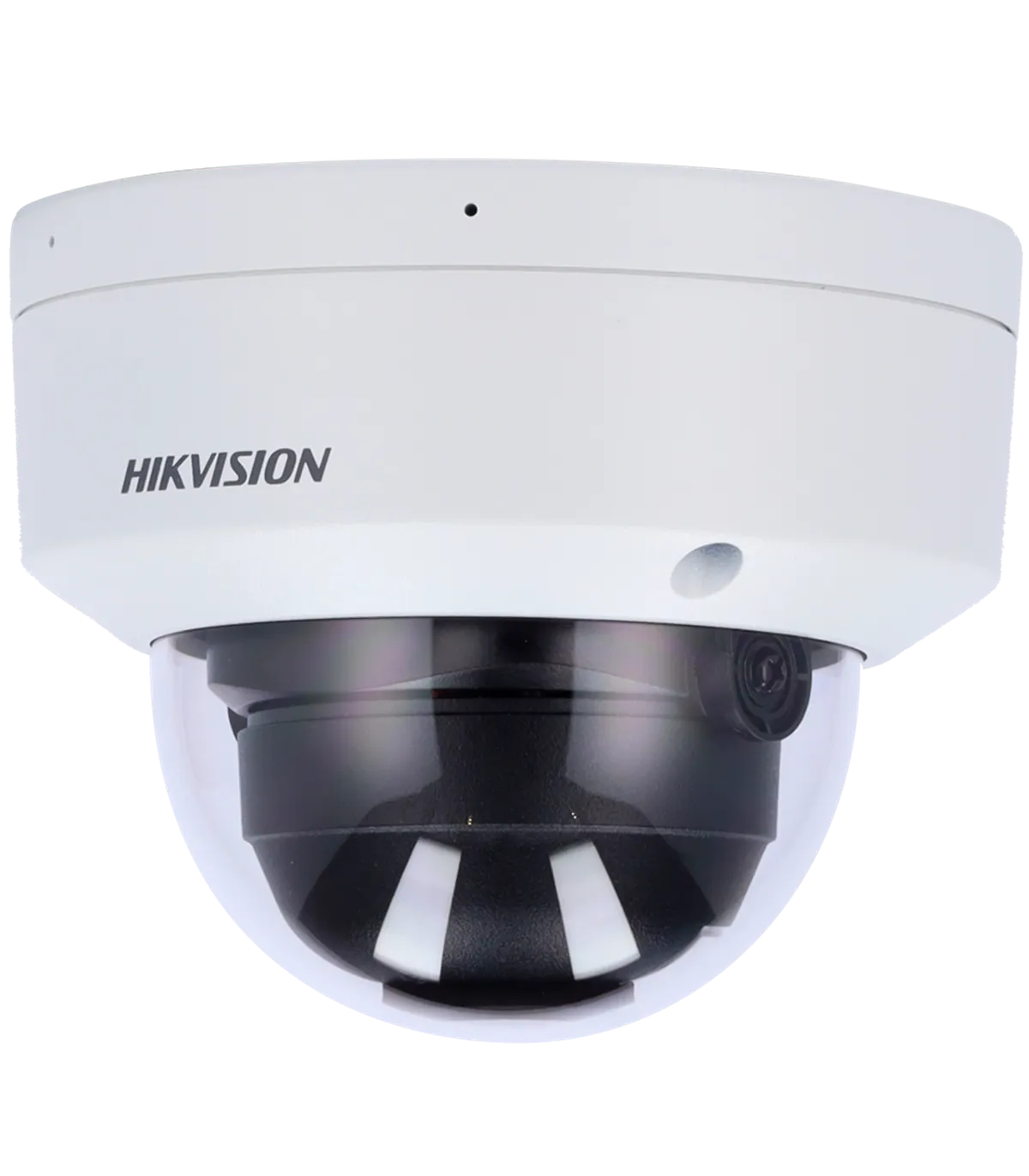

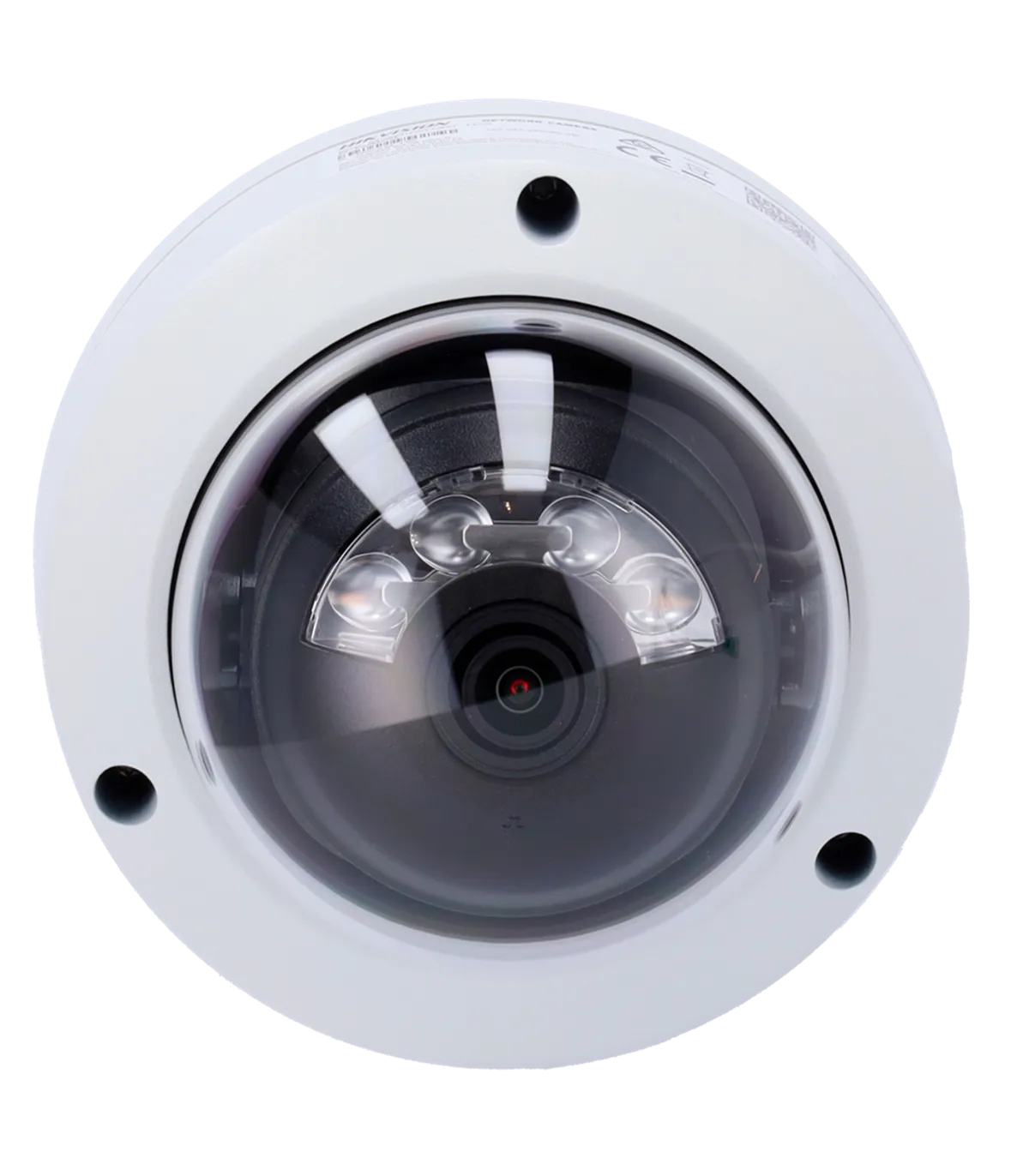

- Hikvision PRO Series IP Dome Camera
- 4 Megapixel Resolution (2688x1520)
- 4 mm Lens
- Hybrid Light Range 30 m | PoE | MicroSD
- Dual Array Microphone | Face Detection
- AcuSense | MD2.0 | Audio | Alarms | IP67 | IK10
Description & Key Features: DS-2CD2143G2-LIS2U(4mm)
The DS-2CD2143G2-LIS2U(4mm) is a high-performance IP dome camera designed for versatile surveillance applications. Ideal for both indoor and outdoor environments, this camera offers exceptional image quality with its 4 Megapixel resolution and advanced features such as motion detection and face detection. Its robust design ensures durability, making it suitable for various security needs.
- Hikvision
- PRO Series
- IP Dome Camera
- 1/2.9" Progressive Scan CMOS
- 4 Megapixel (2688x1520)
- 4 mm Lens
- 0 Lux
- Hybrid Light: IR and White Light
- Hybrid Light Range 30 m
- Compression H.265+ / H.265 / H.264+ / H.264
- Motion Detection 2.0
- AcuSense, false alarm filter for vehicles and people (line crossing and area intrusion)
- Face Detection
- WDR (120 dB)
- 3D-DNR
- Integrated dual array microphone
- Alarms
- Audio
- MicroSD card slot up to 512 GB
- WEB interface, CMS, Smartphone, and NVR
- ONVIF compatible
- PoE (IEEE802.3af)
- IP67 Waterproof
- IK10 Vandal-proof
Specifications: DS-2CD2143G2-LIS2U(4mm)
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920×1080, 1280×720, 640x480, 640×360) * The third stream is supported under certain configurations |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 4 mm |
| Field of View (FOV) | H: 84°, V: 45°, D: 100° |
| DORI | 78 m (D), 31 m (O), 15 m (R), 7 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR range 30 m |
| Supplementary Illumination | Hybrid Light: IR range 30 m White light range 30 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Smart Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Face Detection | Yes |
| Alarms | 1 input / 1 output |
| Audio | 1 input / 1 output Integrated dual array microphone |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Environmental Noise Filtering | Yes |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Interoperability | ONVIF (Profiles S and G), ISAPI, SDK |
| Power Supply | DC 12 V / 600 mA / 7.2 W max. PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof IK10 Vandal-proof |
| Material | Aluminum Alloy |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 121.5 mm x 97.6 mm (H) |
| Base Dimensions | Ø base 121.5 mm / Ø between screws 104.7 mm / 3 screws |
| Weight | 600 g |
Package Contents
- Hikvision IP Dome Camera
- Installation materials
- User manual
Use Case
The DS-2CD2143G2-LIS2U(4mm) is an excellent choice for security professionals looking to deploy a reliable surveillance solution in commercial or residential settings. For instance, in a retail environment, this camera can be strategically placed at entry points to monitor customer activity and deter theft. With its high-resolution imaging and advanced motion detection capabilities, users can receive real-time alerts for suspicious activities. The hybrid light technology ensures clear visibility even in low-light conditions, while the remote monitoring feature allows users to access live feeds from their smartphones or computers. Additionally, the camera's vandal-proof design makes it suitable for outdoor installations, providing peace of mind for business owners. Overall, the DS-2CD2143G2-LIS2U(4mm) combines cutting-edge technology with robust performance, making it a top choice for comprehensive security solutions.
Data sheet
- Brand
- HIKVISION
- Resolution
- 4 Mpx
- Technology
- IP
- WDR
- WDR (120 dB)
- IR Distance
- 30 m
- Audio
- 1 Entrada / 1 Salida / Micrófono en array
- SD Slot
- Ranura MicroSD hasta 512 GB
- Wi-Fi
- No dispone
- IP Rating
- IP67
- IK Rating
- IK10
- Series
- PRO
- POE
- PoE (IEEE802.3af)
- Lens
- 4 mm
- Compatible models
- DS-1280ZJ-DM46,DS-1280ZJ-DM46,DS-1276ZJ-SUS,DS-1276ZJ-SUS,DS-1275ZJ-SUS,DS-1275ZJ-SUS,DS-1272ZJ-120B,DS-1272ZJ-120B,DS-1272ZJ-120,DS-1272ZJ-120,DS-1271ZJ-120,DS-1271ZJ-120
Specific References
- EAN13
- 6942160459226
