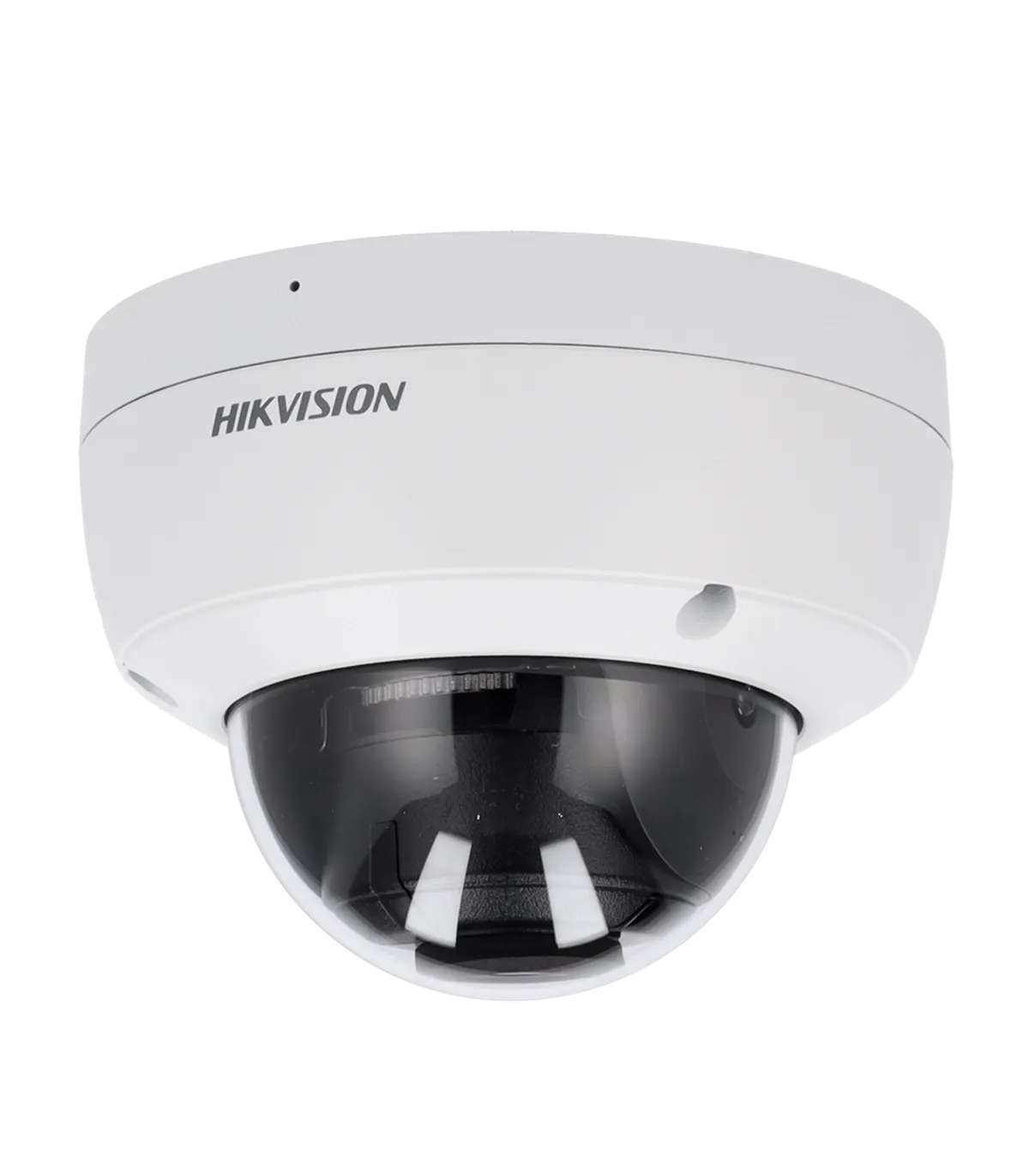

The DS-2CD2143G2-IU(4mm) is a high-performance IP dome camera designed for versatile surveillance applications. With its advanced features, it is ideal for both indoor and outdoor environments, providing reliable security solutions for commercial and residential settings. This camera offers a resolution of 4 Megapixels, ensuring clear and detailed images. Its IR range of 30 meters allows for effective night vision, making it suitable for 24/7 monitoring.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (640x480, 640×360) |
| Third Stream Rate | 10 fps (1920×1080, 1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 4 mm |
| Field of View (FOV) | H: 84°, V: 45°, D: 100° |
| DORI | 67 m (D), 26 m (O), 13 m (R), 6 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR range 30 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Face Detection | Yes |
| Internal Storage | MicroSD card slot up to 256 GB |
| Audio | Integrated microphone |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate | 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC)/32-192Kbps(MP2L2)/8-320Kbps(MP3) |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |

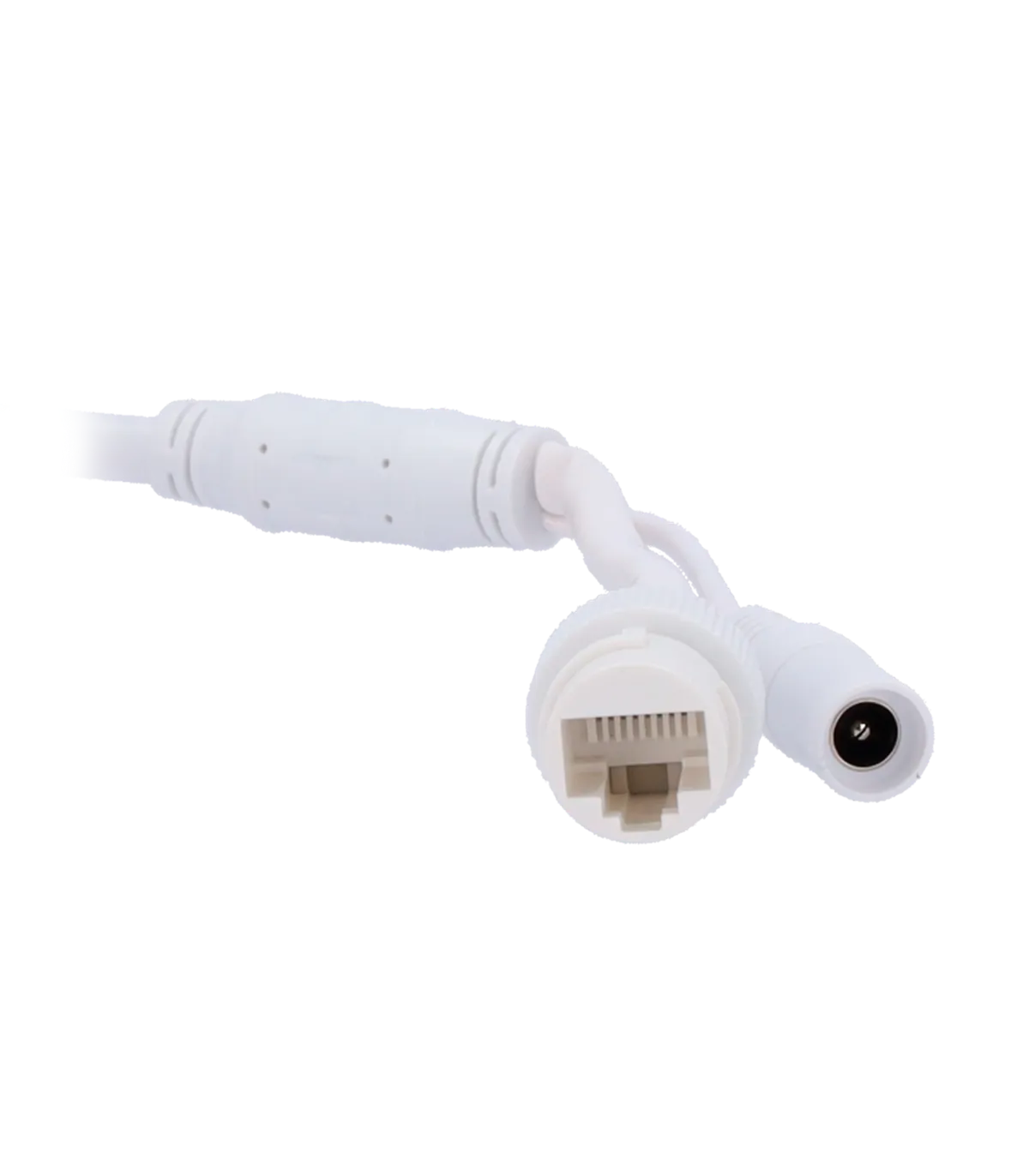

| Power Supply | DC 12 V / 400 mA / 5 W max. / PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof, IK10 Vandal Resistant |
| Material | Body: Aluminum Alloy Dome: Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 121.4 mm x 92.2 mm (H) |
| Weight | 570 g |
The DS-2CD2143G2-IU(4mm) is an excellent choice for a variety of surveillance scenarios, particularly in retail stores and office buildings. For instance, an installer can deploy this camera at the entrance of a store to monitor customer traffic and enhance security. With its 4 Megapixel resolution, the camera captures clear images, allowing for effective identification of individuals. The IR capabilities ensure that the area is monitored even in complete darkness, providing peace of mind for business owners. Additionally, the AcuSense technology significantly reduces false alarms by distinguishing between humans and vehicles, making it ideal for busy environments. The camera's remote monitoring features enable users to access live feeds via a smartphone app, ensuring that they can keep an eye on their premises from anywhere. Overall, the DS-2CD2143G2-IU(4mm) combines advanced technology with user-friendly features, making it a top choice for effective surveillance solutions.
