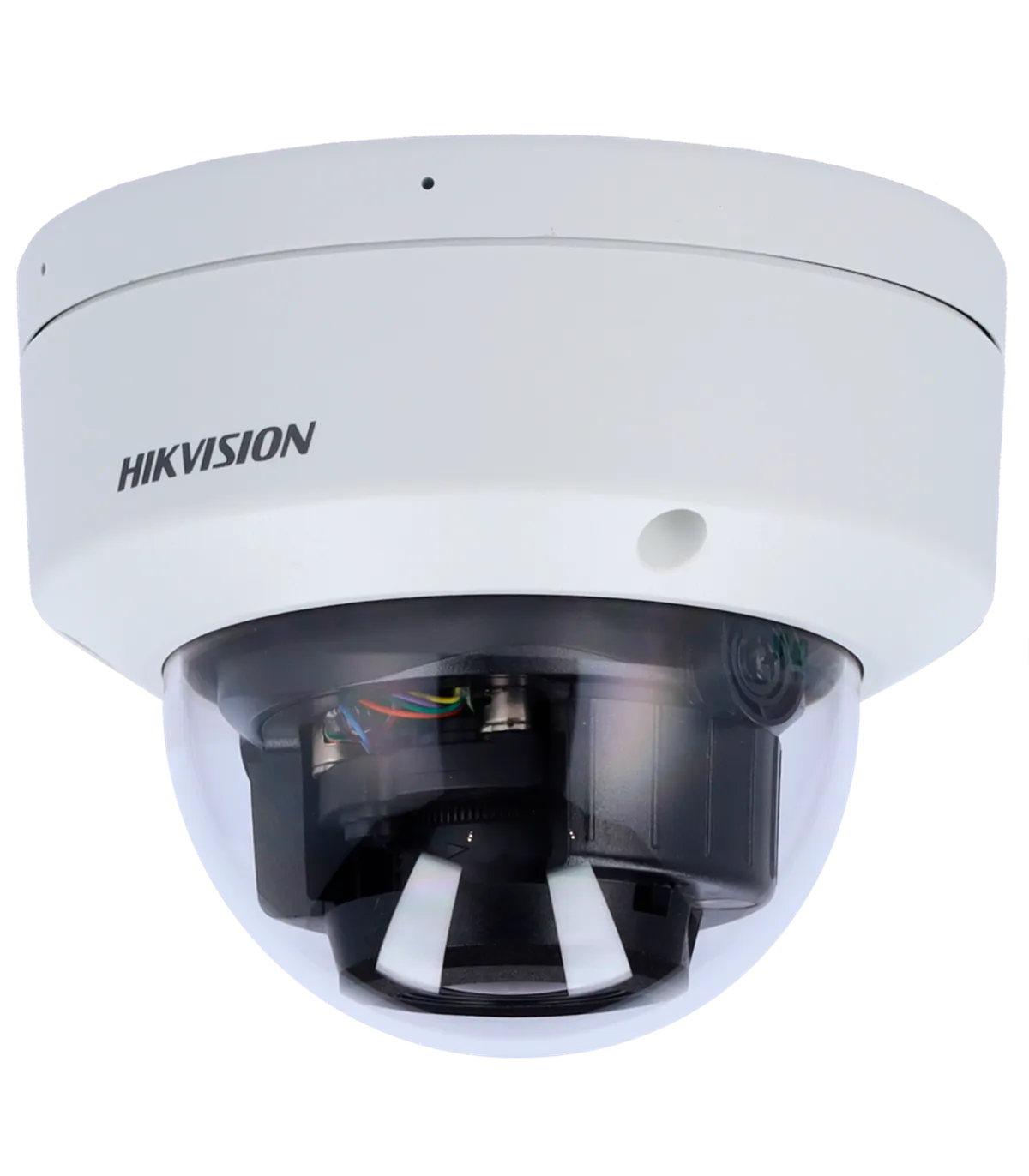

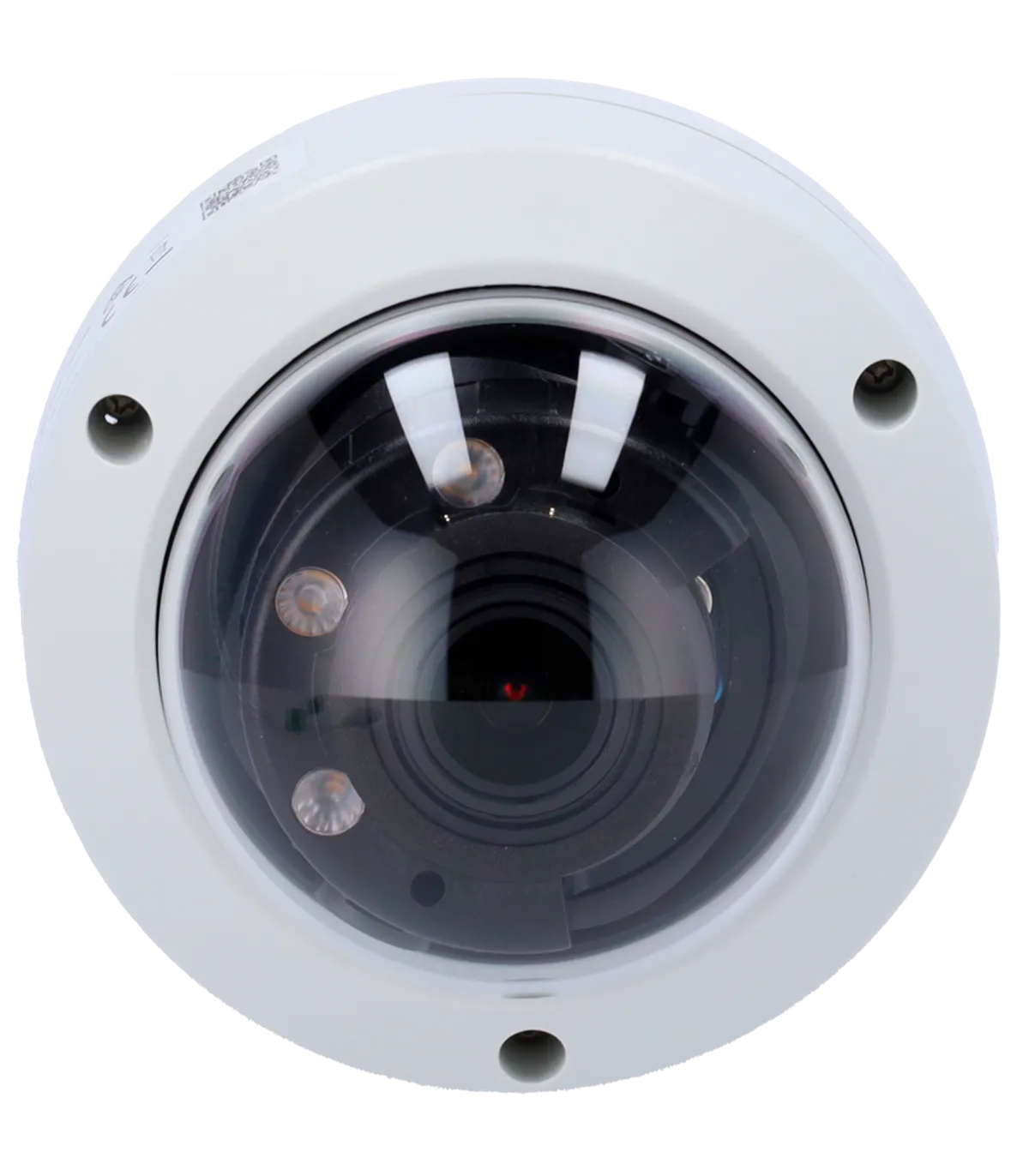

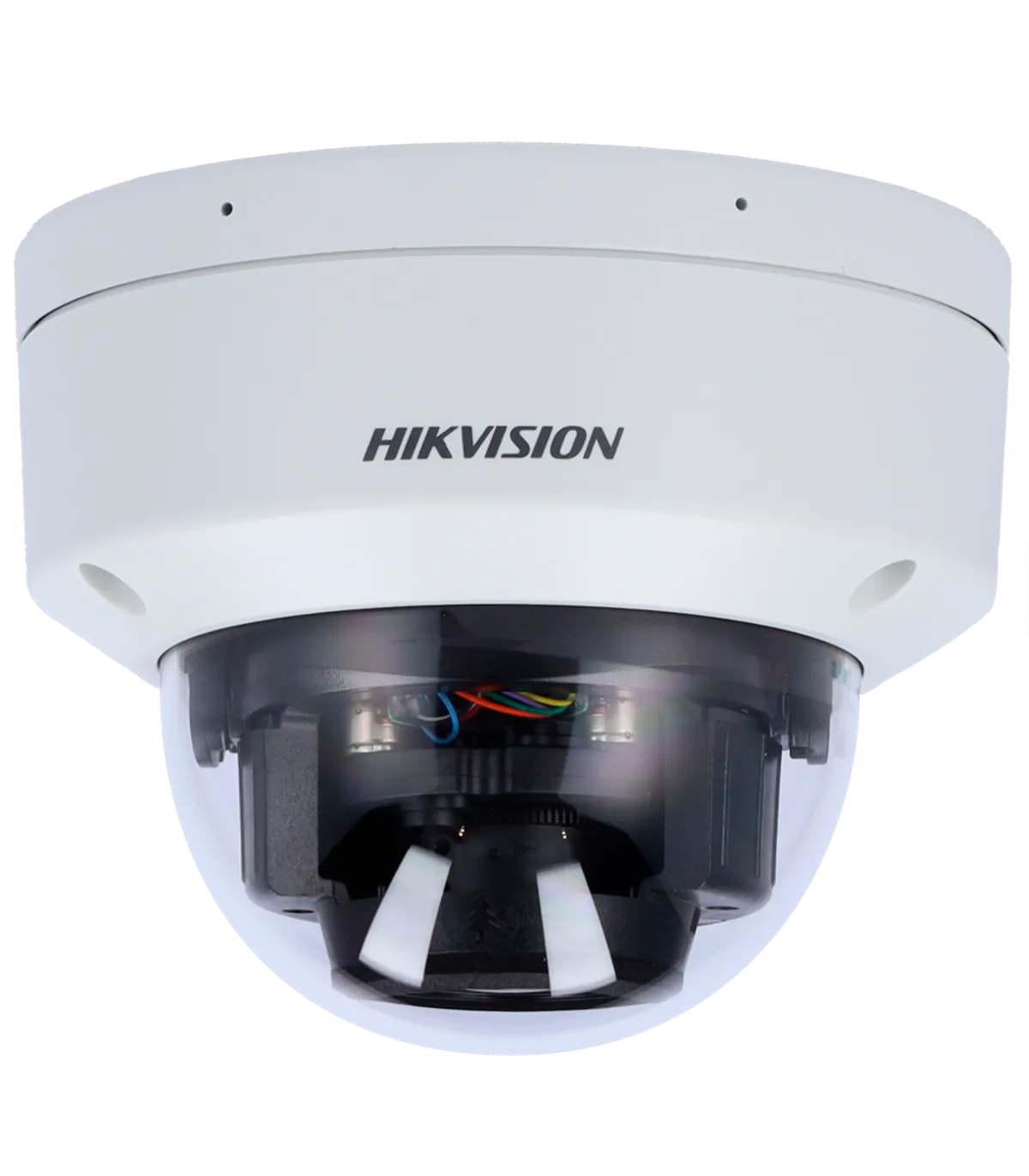

The DS-2CD1723G2-LIZSU(2.8-12mm) is a high-performance IP dome camera designed for versatile surveillance applications. With its 2 Megapixel resolution and a motorized varifocal lens ranging from 2.8 to 12 mm, this camera is ideal for both indoor and outdoor environments, providing clear images in various lighting conditions. The device features hybrid illumination with both IR and white light, ensuring visibility up to 30 meters. Its robust design includes IP67 weatherproofing and IK08 vandal resistance, making it suitable for challenging installations.
| Brand | HIKVISION |
| Series | VALUE |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Maximum Resolution | 2 Megapixel (1920x1080) |
| Main Stream Rate | 25 fps (1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Field of View (FOV) | H: 102.4~31.2°, V: 54.4~17.5°, D: 121.8~35.7° |
| DORI | 45.7~141.4 m (D), 18.1~56.1 m (O), 9.1~28.3 m (R), 4.6~14.1 m (I) |
| Electronic Shutter | 1/3~1/100.000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR |
| Supplementary Illumination | Hybrid light: IR and white light IR range: 30 m White light range: 30 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDWR, BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| Alarms | 1 input / 1 output |
| Audio | 1 input / 1 output Integrated microphone |
| Audio Type | Mono |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S, G, T), ISAPI, SDK |
| Power Supply | DC 12 V / 800 mA / 9.6 W max. PoE IEEE802.3af |
| Protection Grade | Waterproof IP67 Vandal-proof IK08 |
| Material | Metal and plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 121.5 mm x 97.6 mm (H) |

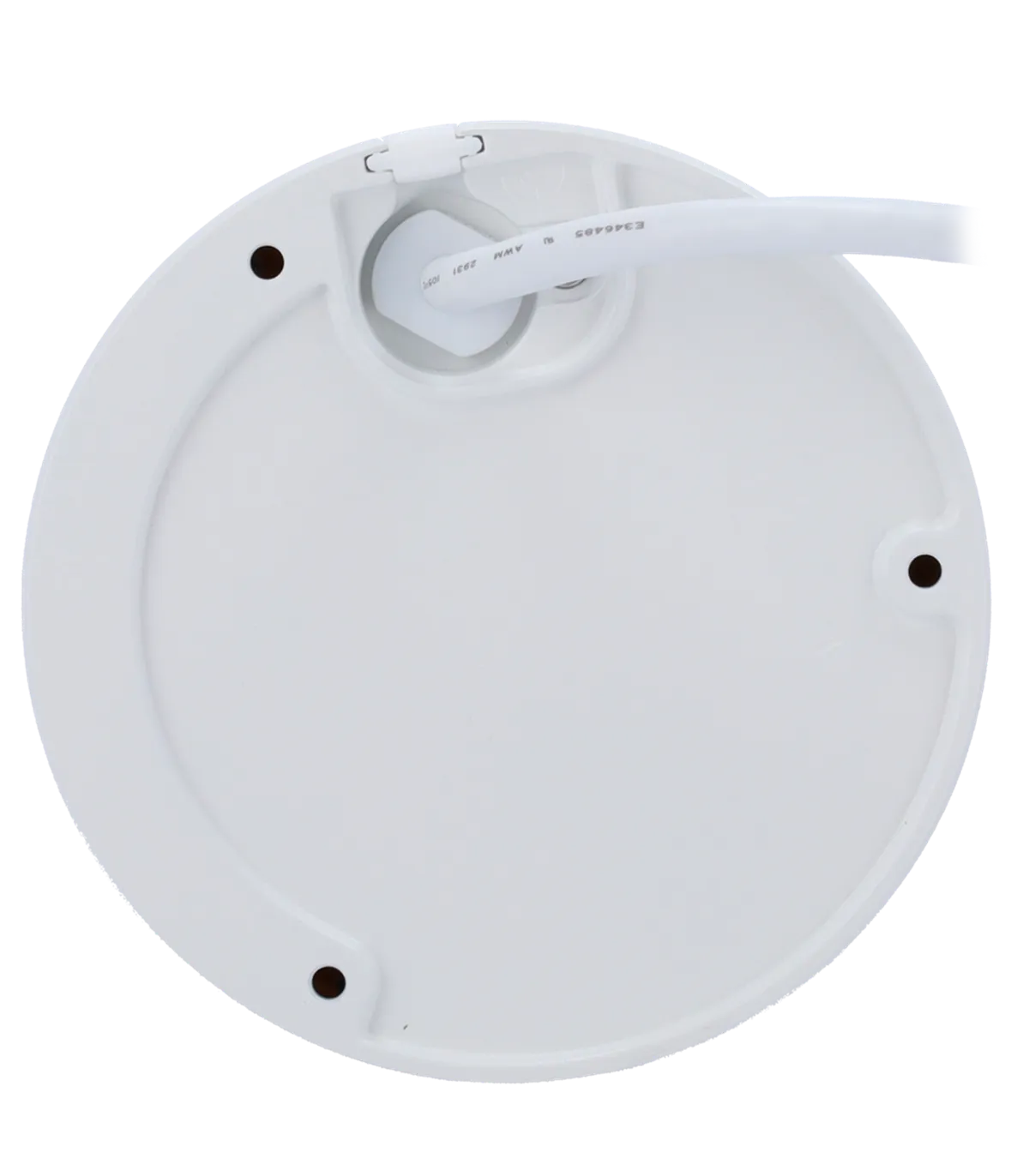

| Base Dimensions | Ø base 121.5 mm / Ø between screws 104.7 mm / 3 screws |
| Weight | 540 g |
The DS-2CD1723G2-LIZSU(2.8-12mm) is an excellent choice for various surveillance scenarios, particularly in retail and commercial environments. For instance, a retail store can deploy this camera at entry points and high-traffic areas to ensure comprehensive coverage. With its remote monitoring capabilities via the Hik-Connect app, store managers can easily keep an eye on activities in real-time, enhancing security and operational efficiency. The camera's motion detection feature, which classifies humans and vehicles, allows for timely alerts and reduces false alarms. Additionally, the IP67 rating ensures that the camera remains functional in adverse weather conditions, making it suitable for outdoor installations. The integrated microphone adds an extra layer of security by enabling audio monitoring, while the motorized varifocal lens allows for flexible field adjustments, ensuring optimal surveillance coverage. Overall, this camera is a reliable solution for enhancing security in various settings.
