| Brand | X-SECURITY |
| Image Sensor | 1/2.7” Progressive CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 3840x2160 (1~20fps) 2688×1520 (1~25/30fps) |
| Extra Stream Rate | 704×576 (1~25fps) 704×480 (1~30fps) |
| Compression | H.265/H.264+/H.264H/H.264B/MJPEG (supported by extra stream) |
| Video Bitrate | H.264: 32 kbps–8192 kbps H.265: 12 kbps–8192 kbps |
| Lens | 3.6 mm |
| Field of View (FOV) | H: 87°; V: 49°; D: 100° |
| DORI | 98.7 m (D), 39.5 m (O), 19.7 m (R), 9.9 m (I) |
| Lens Positioning | 3-axis |
| Minimum Illumination | 0.008 Lux @(F1.6, AGC ON) 0 light with dual light |
| Dual Light | IR Range 60m / Warm Light Range 50m |
| Day/Night | Removable ICR mechanical filter |
| Electronic Shutter | 1/3 s–1/100.000 s |
| Image Enhancements | WDR (120 dB), BLC, HLC, AWB, AGC, 3D-DNR, ROI, Smart Light, Flip, Mirror Function, Privacy Mask |
| SMD (Smart Motion Detection) | Advanced motion detection |
| IVS (Perimeter Protection) | Intrusion, line crossing (both functions support accurate classification and detection of vehicles and people) |
| Smart Search | Can work with NVR to refine smart search, event extraction, and event video merging |
| Alarms | 1 Input / 1 Output |
| Audio | 1 Input / 1 Output / Built-in Microphone |
| Audio Compression | G.711a; G.711Mu; G.726; PCM |
| Internal Storage | MicroSD card slot up to 256 GB |
| Remote Access | WEB Interface, CMS (DSS/PSS), Smartphone, and NVR |
| Network Interface | Ethernet 10/100 BaseT |
| Interoperability | ONVIF |
| Power | DC 12 V / 8.3 W maximum PoE IEEE802.3af |
| Operating Temperature | -40º C ~ +60º C |
| Material | Metal |
| Protection Rating | IP67 Waterproof |
| Dimensions | 238.5 mm (L) × 90.7 mm (H) ×90.7 mm (W) |

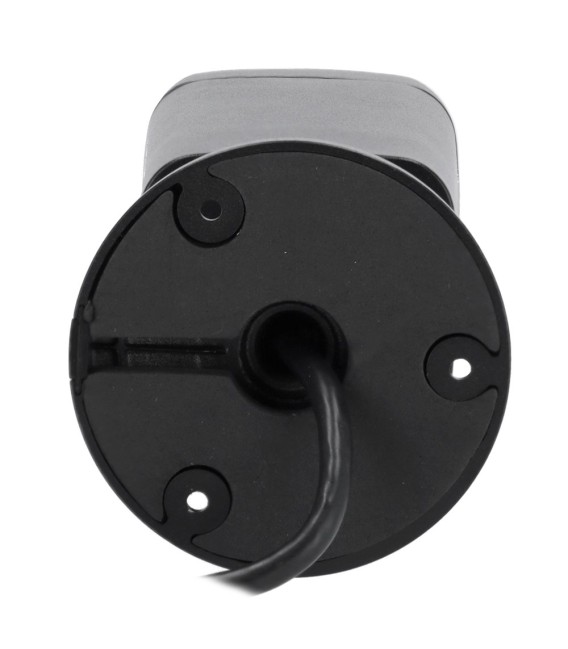

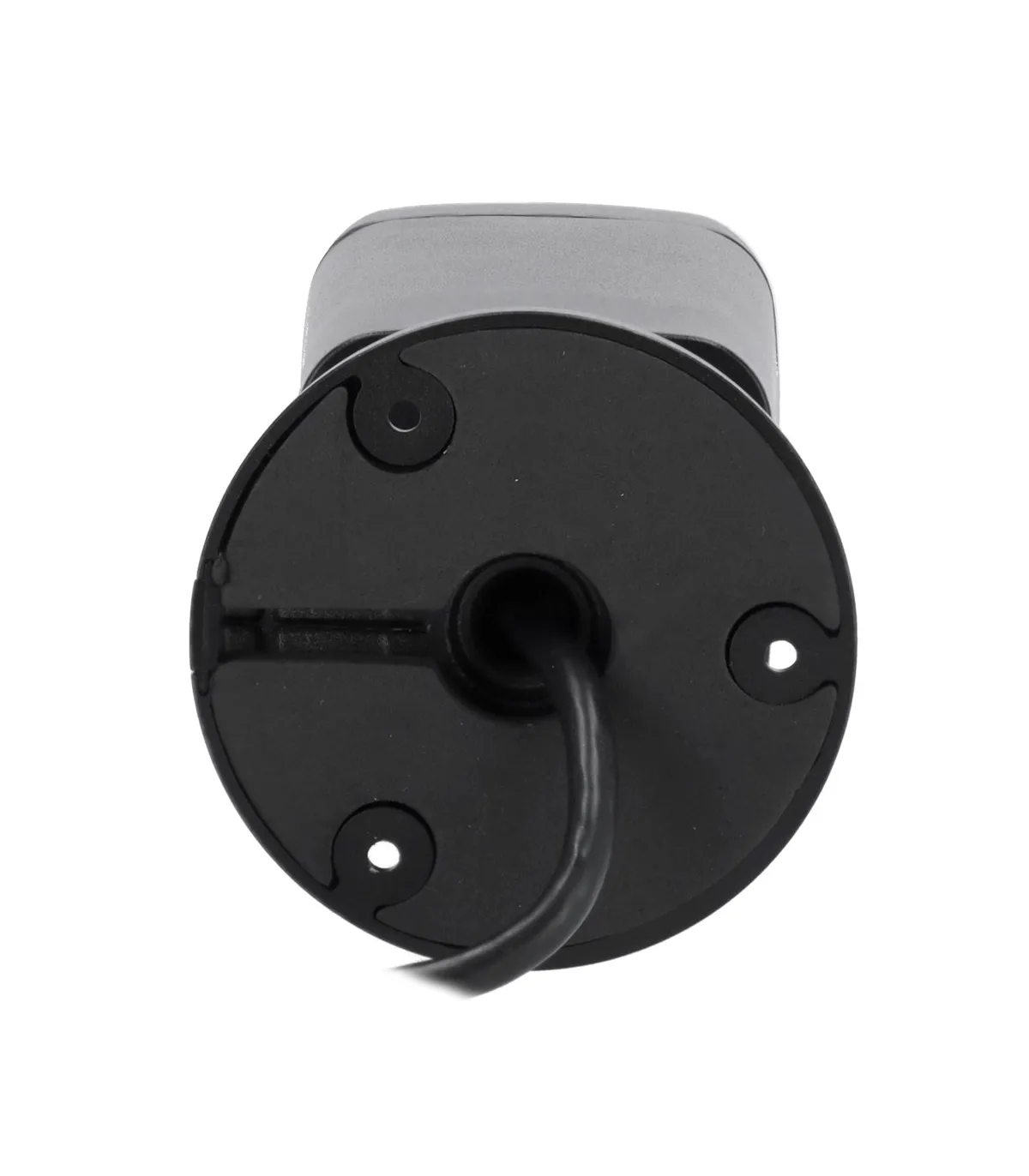

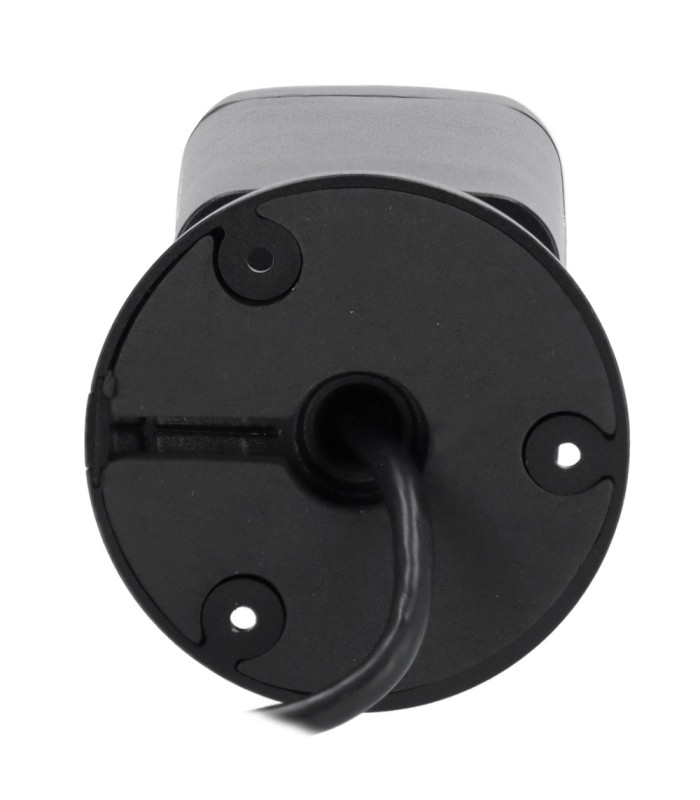

| Base Dimensions | Ø base 90.7 mm / Ø between screws 70 mm / 3 screws |
| Weight | 720 g |
| Color | Black |
