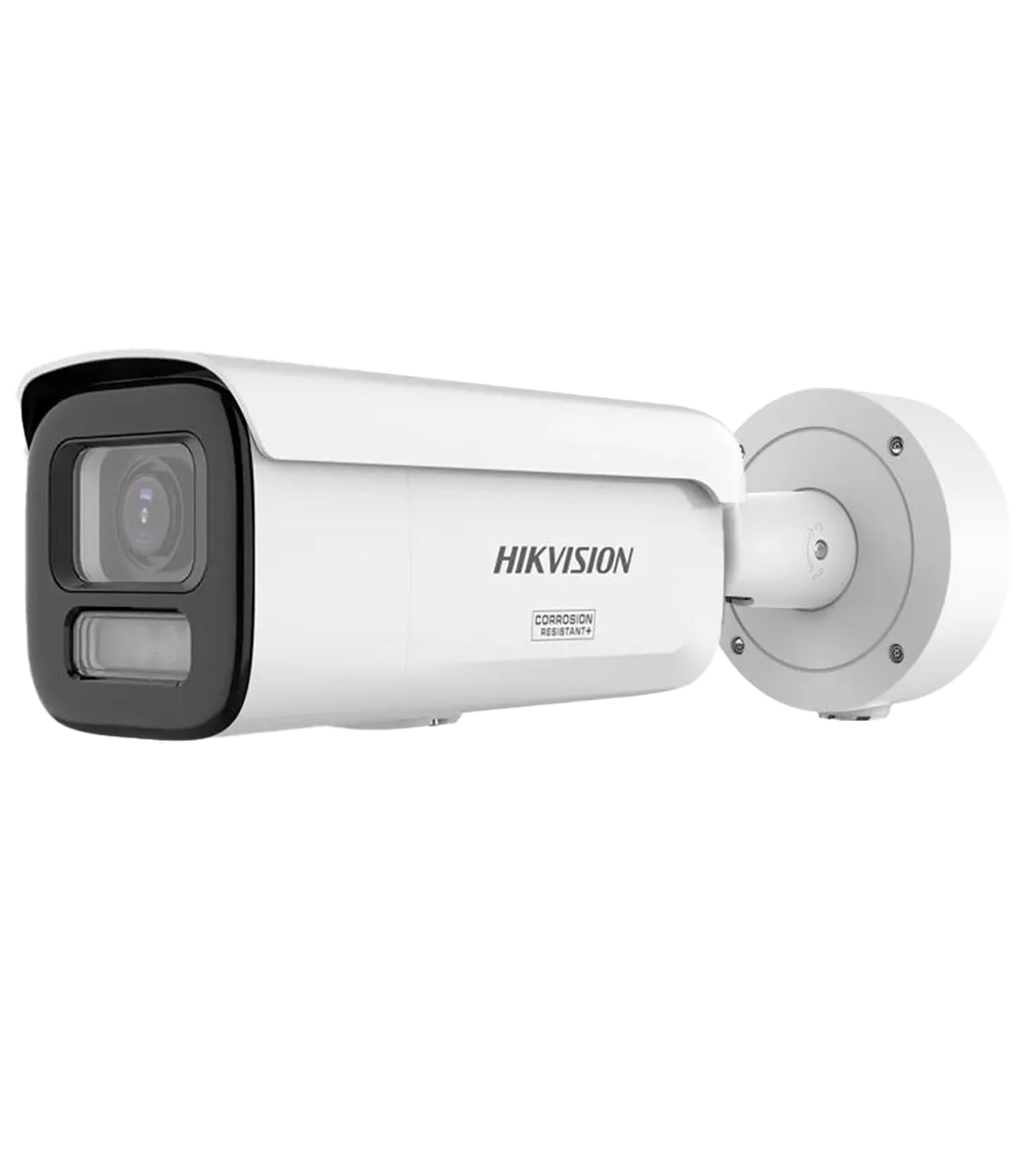

The Hikvision Pro Series with ColorVu 3.0 redefines video surveillance by providing full-color images even in low-light environments. This device is ideal for applications requiring high-quality surveillance, such as commercial security, residential monitoring, and public safety. Its advanced sensor and lens technology capture more light, ensuring greater clarity and detail without the need for additional lighting. The integration of HikAI-ISP, an intelligent image processor, optimizes visual quality by reducing noise and enhancing sharpness in challenging conditions.
The AcuSense 3.0 technology allows for precise detection of humans and vehicles, making it a valuable tool for security professionals.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280×720, 640×480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280x720, 640×480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Lens | Motorized 2.8~12 mm |
| Field of View (FOV) | H: 114.6-41.8°, V: 59.3-23.6°, D: 141.3-48.1° |
| DORI | WIDE: 61.5 m (D), 24.4 m (O), 12.3 m (R), 6.2 m (I) TELE: 151.7 m (D), 60.2 m (O), 30.3 m (R), 15.1 m (I) |
| Minimum Illumination | Color: 0.0005 Lux @(F1.2, AGC ON) 0 lux with illuminator |
| ColorVu 3.0 | 24/7 color image with HikAI-ISP, F1.2, and 1/1.8" sensor AI noise reduction offers the advantage of increased static brightness Dynamic motion blur reduction, providing sharp image quality even in low-light conditions |
| Hybrid Light | IR and white light up to 60 m |
| Day/Night | Auto / Manual / Programmable |
| Audio | 1 Input / 1 Output |
| Audio 2.0 | Dual integrated microphone (AUDIO 2.0: Enhancing detection range and eliminating background noise) |
| Deterrent Alarm | Integrated siren and strobe flash in the camera (White LED) |
| Image Enhancements | AI WDR (130 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| EIS (Electronic Image Stabilization) | Yes |
| Motion Detection | Motion Detection 2.0 with classification of humans and vehicles applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Intelligent Functions | AcuSense 3.0: Enhances detection effectiveness by analyzing the scene and generating alarms for objects that recently entered the scene, Deep Learning-based technology for classification of humans and vehicles with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Area, and Exit Area. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| AcuSearch | Yes (Requires recorder for searches) |
| Internal Storage | MicroSD card slot up to 512 GB |
| Alarms | 1 Input / 1 Output (max. 24 VDC/24 VAC, 1 A) |
| Network Interface | Ethernet 10/100M BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| Power Supply | DC 12 V / 1.21 A / 14.5 W max. PoE IEEE802.3at |
| Protection Grade | IP67 waterproof IK10 vandal-proof NEMA 4X (Corrosion protection) |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 140 mm (W) x 140 mm (H) x 333.8 mm (D) |
| Base Dimensions | Ø base 140 mm / Ø between screws 96 mm / 4 screws |
| Weight | 1555 g |
In a typical deployment scenario, the DS-2CD2647G3-LIZS2UY/SL(2.8-12mm) camera can be installed in a retail environment to enhance security monitoring. With its 24/7 color imaging capabilities, the camera provides clear visuals even in low-light conditions, making it ideal for nighttime surveillance. The integration of AcuSense 3.0 technology allows for accurate detection of human and vehicle movements, significantly reducing false alarms. This feature is particularly beneficial in busy shopping areas where foot traffic is high. Additionally, the camera's remote access capabilities enable security personnel to monitor live feeds from their smartphones or PCs, ensuring that they can respond promptly to any incidents. The built-in deterrent alarm, featuring a siren and strobe light, adds an extra layer of security, effectively discouraging potential intruders. Overall, this camera is a robust solution for enhancing safety and security in various commercial settings.
