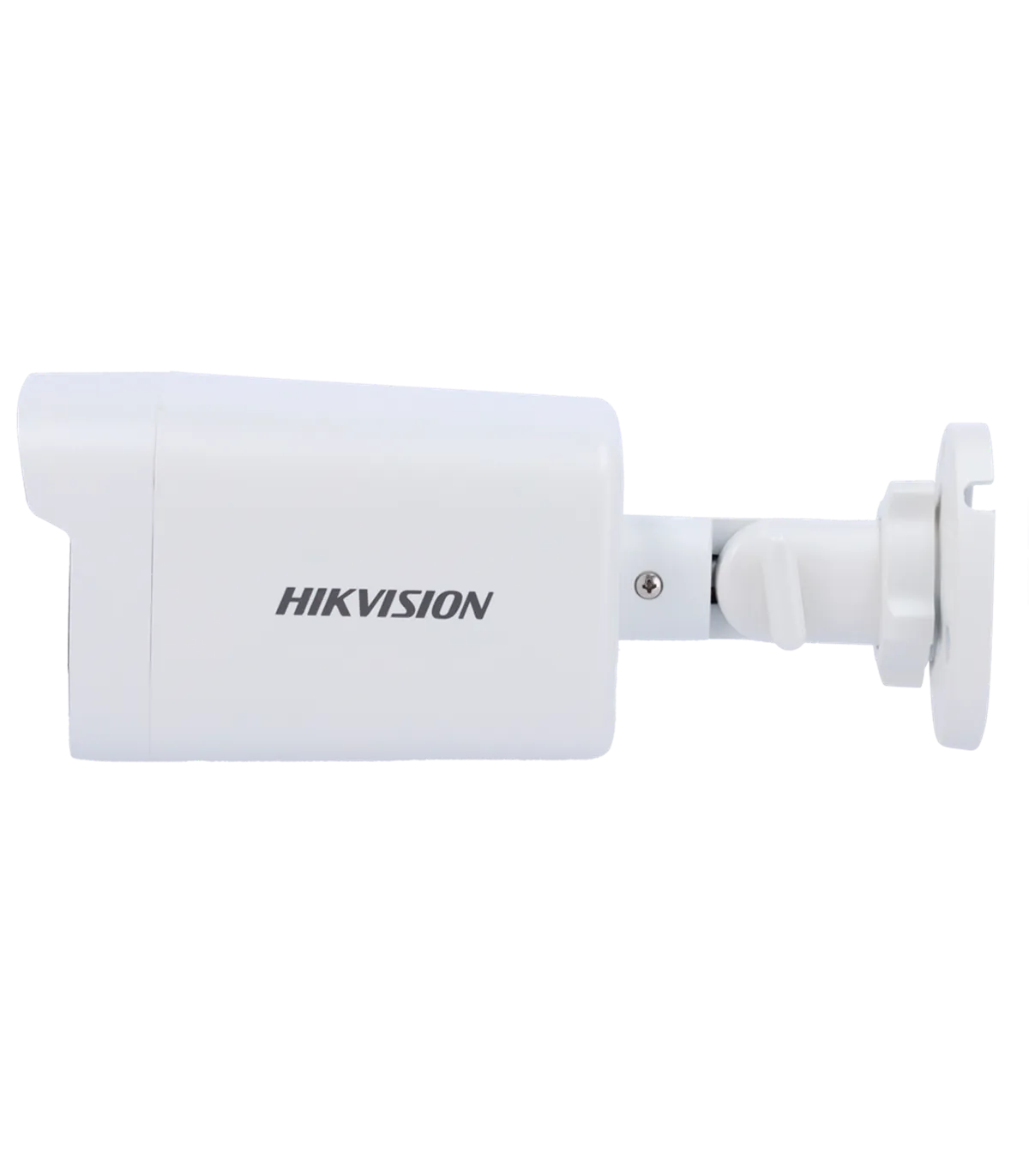

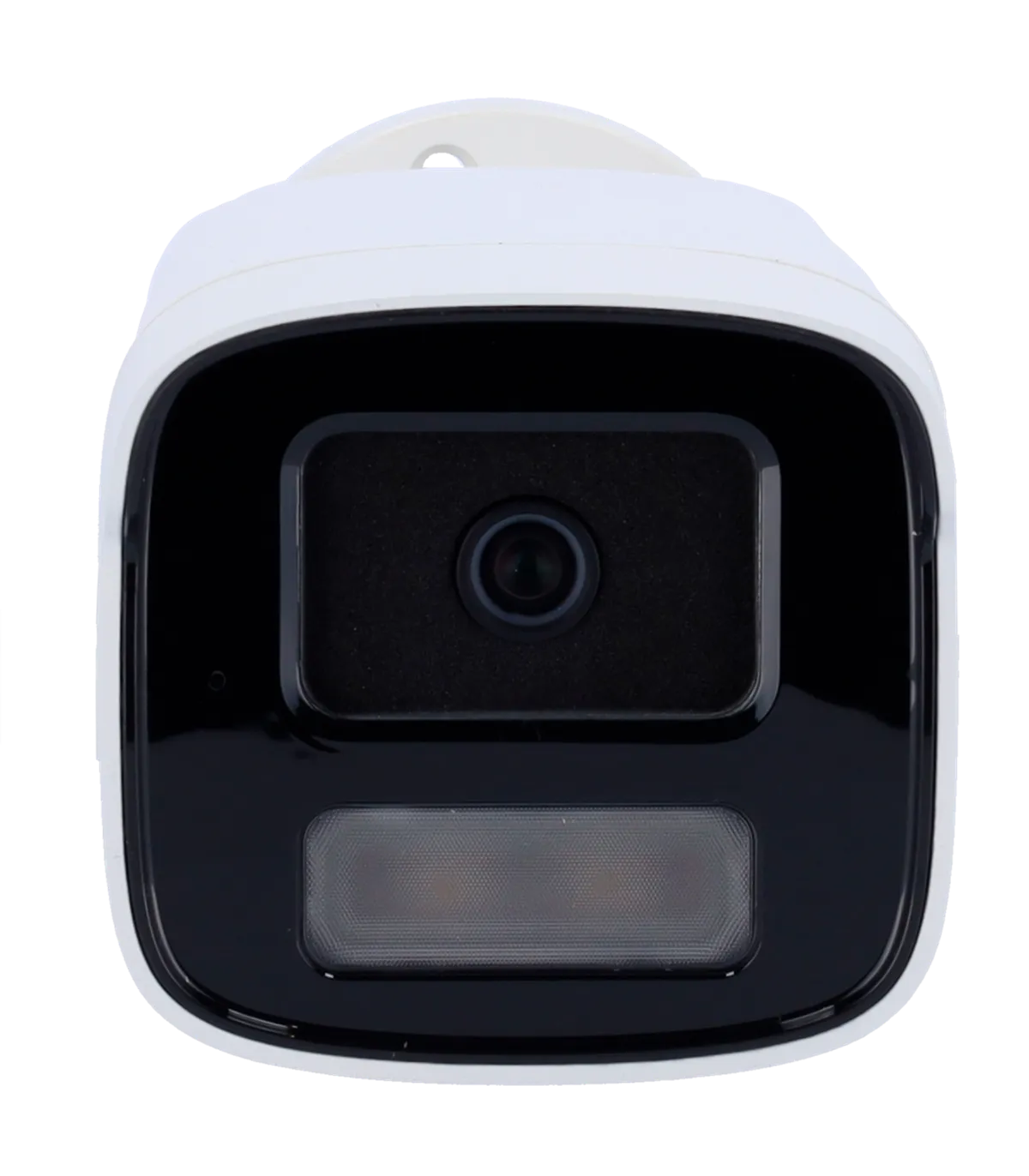

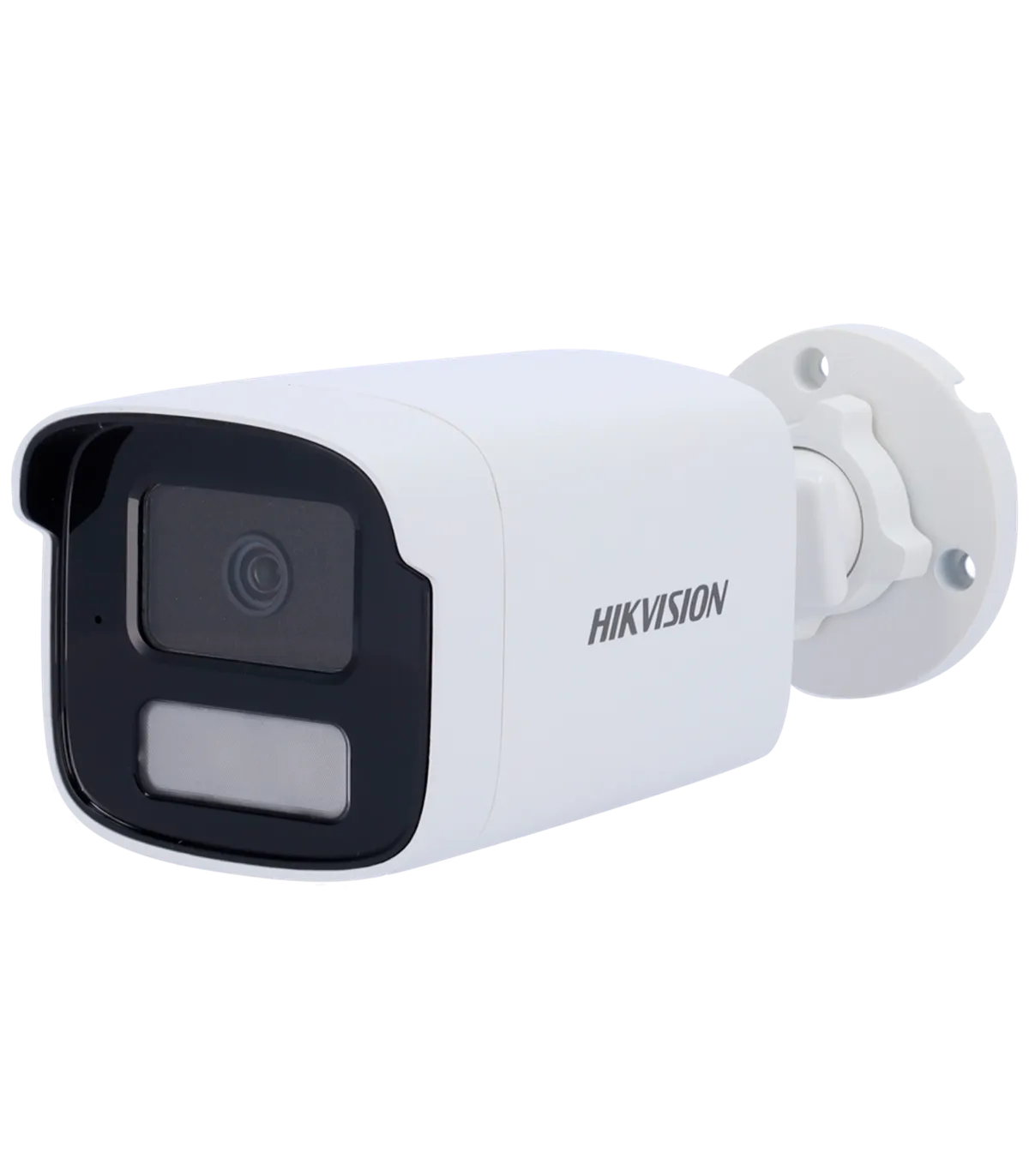

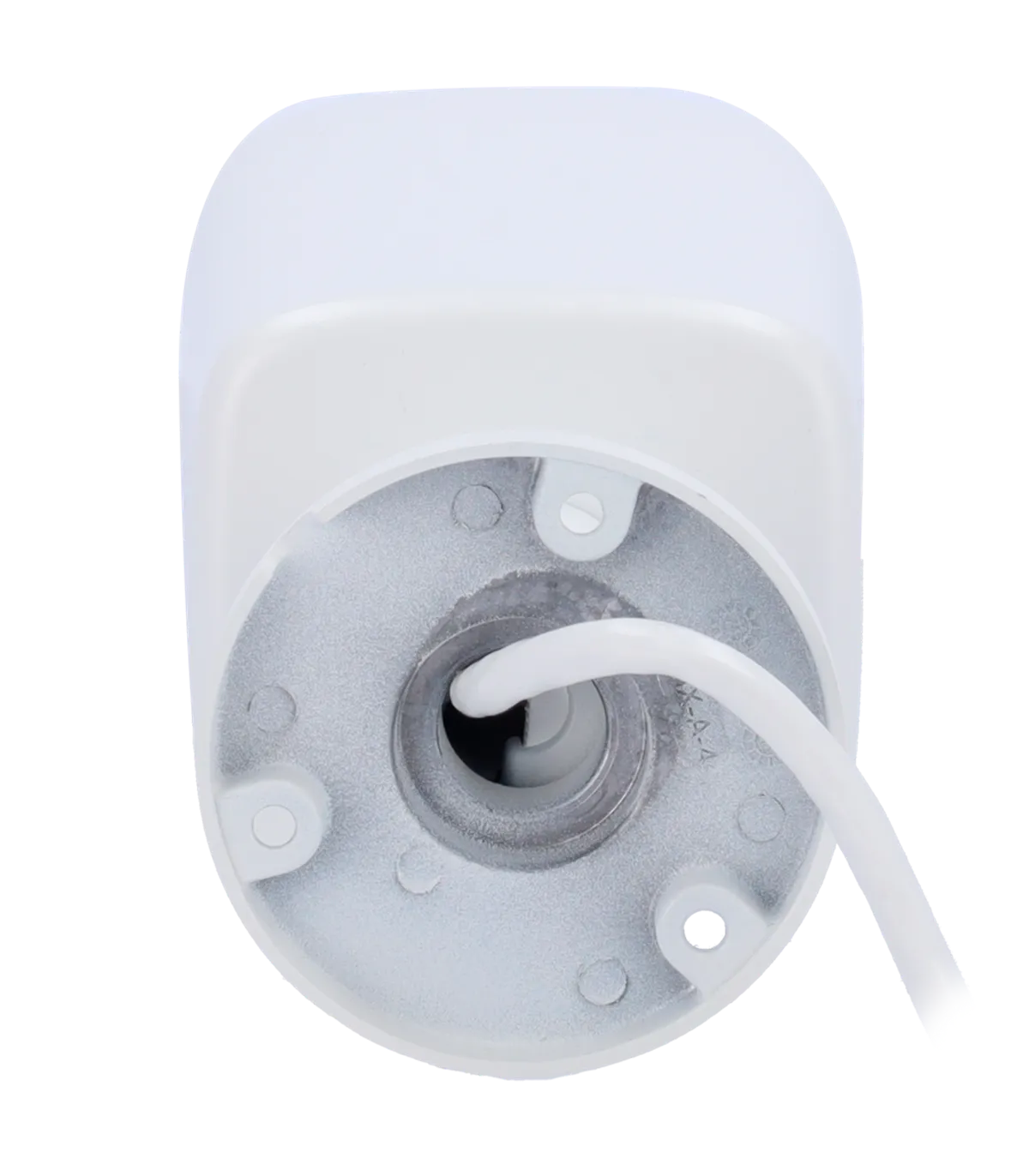

The DS-2CD1T63G2-LIU(6mm) is a high-performance IP bullet camera designed for effective surveillance in various environments. With its advanced 6 Megapixel resolution and hybrid lighting capabilities, it excels in both day and night conditions, making it ideal for outdoor installations. This camera is equipped with features such as motion detection and WDR technology, ensuring clear images even in challenging lighting situations.
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Maximum Resolution | 6 Megapixel (3200x1800) |
| Main Stream Rate | 20 fps (3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 20 fps (1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | 6 mm |
| Field of View (FOV) | H: 51°, V: 26°, D: 59° |
| DORI | 164 m (D), 65 m (O), 32 m (R), 16 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR up to 30 m |
| Supplementary Lighting | Hybrid Light: IR up to 50 m White Light up to 50 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror Function, Privacy Masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Audio | Integrated Microphone |
| Audio Type | Mono |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Network Interface | 1 RJ45 Ethernet 10 M/100 M self-adaptive |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 540 mA / 6.5 W max. / PoE IEEE802.3af |
| Protection Rating | IP67 Waterproof |
| Material | Metal and Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 80.7 mm (H) x 83.7 mm (W) x 205.6 mm (D) |
| Weight | 635 g |
The DS-2CD1T63G2-LIU(6mm) is an excellent choice for both residential and commercial surveillance applications. For instance, a retail store can utilize this camera to monitor entrances and exits, ensuring enhanced security. With its remote monitoring capabilities, store managers can access live feeds via the Hik-Connect app, allowing for real-time oversight. The camera's motion detection feature, which classifies human and vehicle movements, provides alerts for suspicious activities, enhancing overall safety. Additionally, the IP67 waterproof rating makes it suitable for outdoor installations, ensuring durability against harsh weather conditions. The integration of WDR technology ensures clear images in varying light conditions, making it a reliable choice for any security setup.
