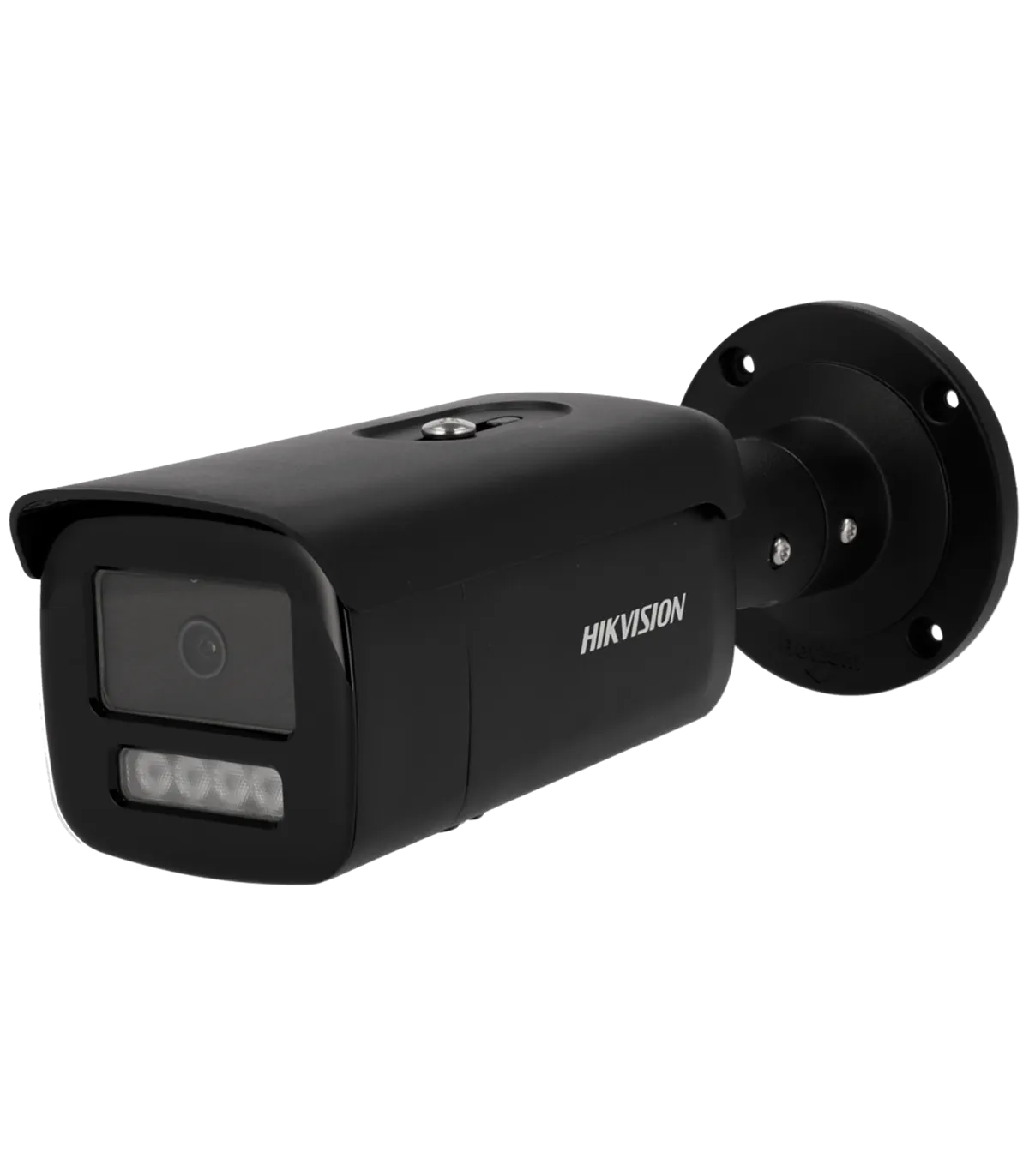

The DS-2CD2T46G2H-4I(2.8mm)(eF)/BLACK is a high-performance IP bullet camera designed for outdoor surveillance. It is ideal for monitoring large areas such as parking lots, building perimeters, and public spaces. With its advanced features, this camera provides exceptional image quality and reliable performance in various lighting conditions, making it a perfect choice for security systems in commercial and residential settings.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 81.1°, V: 44.7°, D: 94.6° |
| DORI | 78 m (D), 31 m (O), 15 m (R), 7 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.001 Lux @(F1.0, AGC ON) 0 Lux with IR range 80 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Smart Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 830 mA / 10 W max. / PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 93.1 mm (W) x 91.2 mm (H) x 286.7 mm (D) |
| Base Dimensions | Ø base 105 mm / Ø screw spacing 89 mm / 4 screws |
| Weight | 1085 g |
| Color | Black |
The DS-2CD2T46G2H-4I(2.8mm)(eF)/BLACK is ideally suited for installation in various environments, including retail stores, warehouses, and outdoor public areas. For instance, a retail store can utilize this camera to enhance security monitoring by providing clear images even in low-light conditions, thanks to its 0 Lux capability with infrared illumination. The motion detection feature, combined with the AcuSense technology, allows for precise identification of human and vehicle movements, significantly reducing false alarms. Additionally, the camera's remote access capabilities enable store managers to monitor live feeds from their smartphones, ensuring constant vigilance. With its robust IP67 waterproof rating, this camera can withstand harsh weather conditions, making it a reliable choice for outdoor surveillance. Overall, the DS-2CD2T46G2H-4I(2.8mm)(eF)/BLACK offers a comprehensive solution for enhancing security and operational efficiency in various settings.
