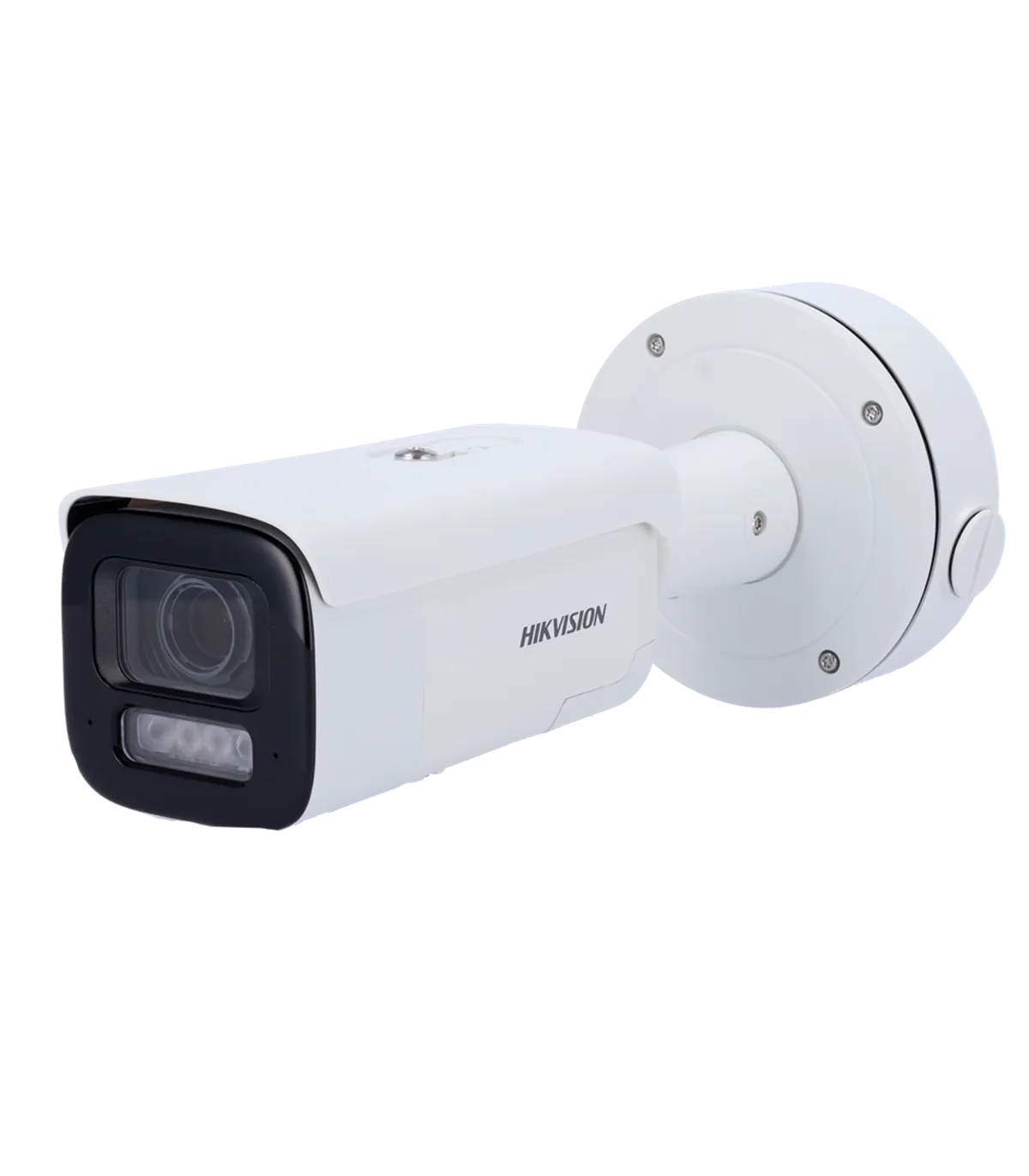

The DS-2CD2686G2H-IZS2U/SRB(2.8-12mm)eF is a high-performance IP bullet camera designed for advanced surveillance applications. With its 8 Megapixel resolution and varifocal motorized lens, this camera is ideal for monitoring large areas with exceptional clarity. It features advanced technologies such as AcuSense for reducing false alarms and Face Capture capabilities, making it suitable for both residential and commercial environments.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 25 fps (3840x2160, 3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280×720, 640x480, 640×360) * The third stream is supported under certain configurations |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Field of View (FOV) | H: 112.3~41.2°, V: 58.1~23.1°, D: 137.4~47.3° |
| DORI | 89.2~220 m (D), 35.4~87.3 m (O), 17.8~44 m (R), 8.9~22 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.0008 Lux @(F1.2, AGC ON) 0 Lux with IR range 60 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Alarms | 1 input / 1 output |
| Deterrent Alarm | Integrated red and blue light siren and flash in the camera |
| Audio | 1 input / 1 output 2 integrated microphones and speaker |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
| Motion Detection | Motion Detection 2.0 with classification of humans and vehicles applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Intelligent Functions | AcuSense Deep Learning-based technology for classification of humans and vehicles with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, T, G), ISAPI, SDK |
| Power Supply | DC 12 V / 1210 mA / 14.5 W max. PoE+ IEEE802.3at |
| Protection Grade | IP67 waterproof IK10 vandal-proof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 97.9 mm (W) x 95.7 mm (H) x 298 mm (D) |
| Base Dimensions | Ø base 105.1 mm / Ø screw spacing 89 mm / 4 screws |
| Weight | 1520 g |
The DS-2CD2686G2H-IZS2U/SRB(2.8-12mm)eF is ideally suited for a variety of surveillance scenarios, including retail stores, parking lots, and residential complexes. For instance, in a retail environment, the camera can be strategically placed at entry points to monitor customer flow and deter theft. With its high-resolution imaging and night vision capabilities, it ensures clear visibility even in low-light conditions. The remote monitoring feature allows store managers to keep an eye on operations from anywhere, enhancing security and operational efficiency. Additionally, the AcuSense technology significantly reduces false alarms, ensuring that security personnel are alerted only when necessary. This camera's robust build quality with IP67 and IK10 ratings makes it suitable for outdoor use, providing reliable performance in various weather conditions. Overall, the DS-2CD2686G2H-IZS2U/SRB(2.8-12mm)eF is an excellent choice for those seeking a comprehensive surveillance solution.
