The Hikvision Pro Series with ColorVu 3.0 redefines video surveillance by providing full-color images even in low-light environments. This device is ideal for various applications, including commercial security and residential monitoring, thanks to its advanced sensor and lens technology that captures more light for enhanced clarity and detail without the need for additional lighting. It features HikAI-ISP, an intelligent image processor that optimizes visual quality, reducing noise and improving sharpness in challenging conditions.
In terms of intelligence, AcuSense 3.0 allows for precise detection of humans and vehicles.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 25 fps (3840x2160, 3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280×720, 640×480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280x720, 640×480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Lens | Motorized 2.8-12 mm |
| Field of View (FOV) | H: 112.3-41.2°, V: 58.1-23.1°, D: 137.4-47.3° |
| DORI | WIDE: 89.2 m (D), 35.4 m (O), 17.8 m (R), 8.9 m (I) TELE: 220.0 m (D), 87.3 m (O), 44.0 m (R), 22.0 m (I) |
| Minimum Illumination | Color: 0.0005 Lux @(F1.2, AGC ON) |
| ColorVu 3.0 | Color image 24/7 with HikAI-ISP, F1.2, and 1/1.8" sensor AI noise reduction offers the advantage of higher static brightness Dynamic motion blur reduction, providing sharp image quality even in low light conditions |
| Hybrid Light | IR and White Light up to 60m |
| Day/Night | Auto / Manual / Programmable |
| Audio | 1 Input / 1 Output |
| Image Enhancements | AI WDR (130 dB), BLC, HLC, 3D-DNR, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one feature will disable the other two. |
| Smart Features | AcuSense 3.0: Enhances detection efficiency by analyzing the scene and generating alarms for objects that recently entered the scene, Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Area, and Exit Area. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one feature will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one feature will disable the other two. |
| AcuSearch | Yes (Requires recorder for searches) |
| Internal Storage | MicroSD card slot up to 512GB |
| Alarms | 1 Input / 1 Output (max. 24 VDC/24 VAC, 1 A) |
| Network Interface | Ethernet 10/100M BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| Power Supply | DC 12 V / 1.08A / 13W max. / PoE IEEE802.3at |
| Protection Grade | Waterproof IP67, Vandal-proof IK10, NEMA 4X (Corrosion protection) |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 140 mm (W) x 140 mm (H) x 333.8 mm (D) |
| Weight | 1540 g |

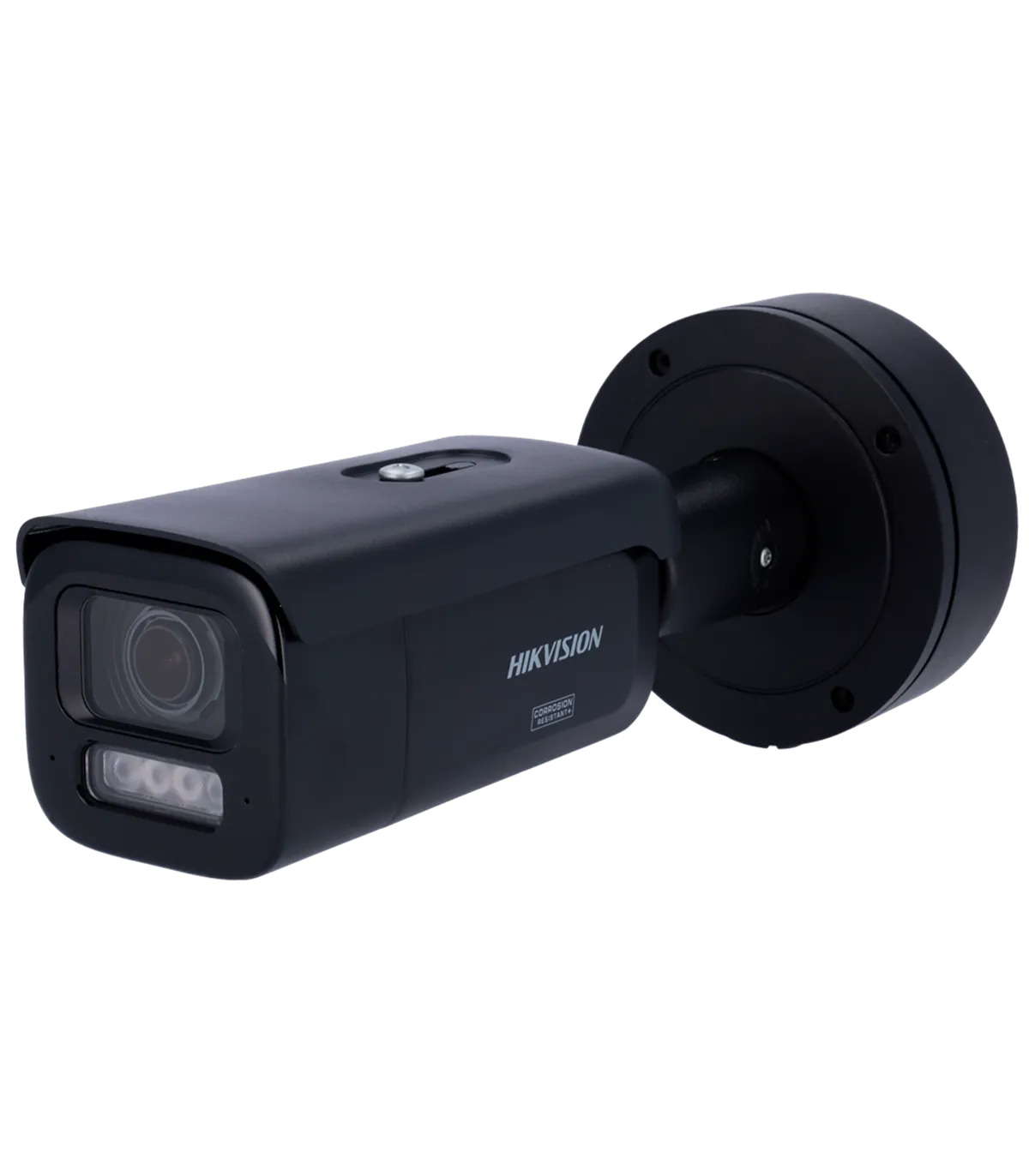

In a typical deployment scenario, the DS-2CD2687G3-LIZSY(2.8-12mm) camera can be installed in a retail environment to enhance security monitoring. With its full-color images provided by ColorVu 3.0, store owners can maintain visibility even during nighttime hours. The camera's motion detection capabilities, combined with AcuSense 3.0 technology, allow for accurate identification of human and vehicle movements, significantly reducing false alarms. This feature is particularly beneficial in busy shopping areas where foot traffic is high. Additionally, the camera's remote access capabilities enable store managers to monitor live feeds from their smartphones or PCs, ensuring peace of mind when away from the premises. The robust design, featuring IP67 waterproof and IK10 vandal-proof ratings, ensures that the camera remains operational in various environmental conditions, making it a reliable choice for outdoor installations.
