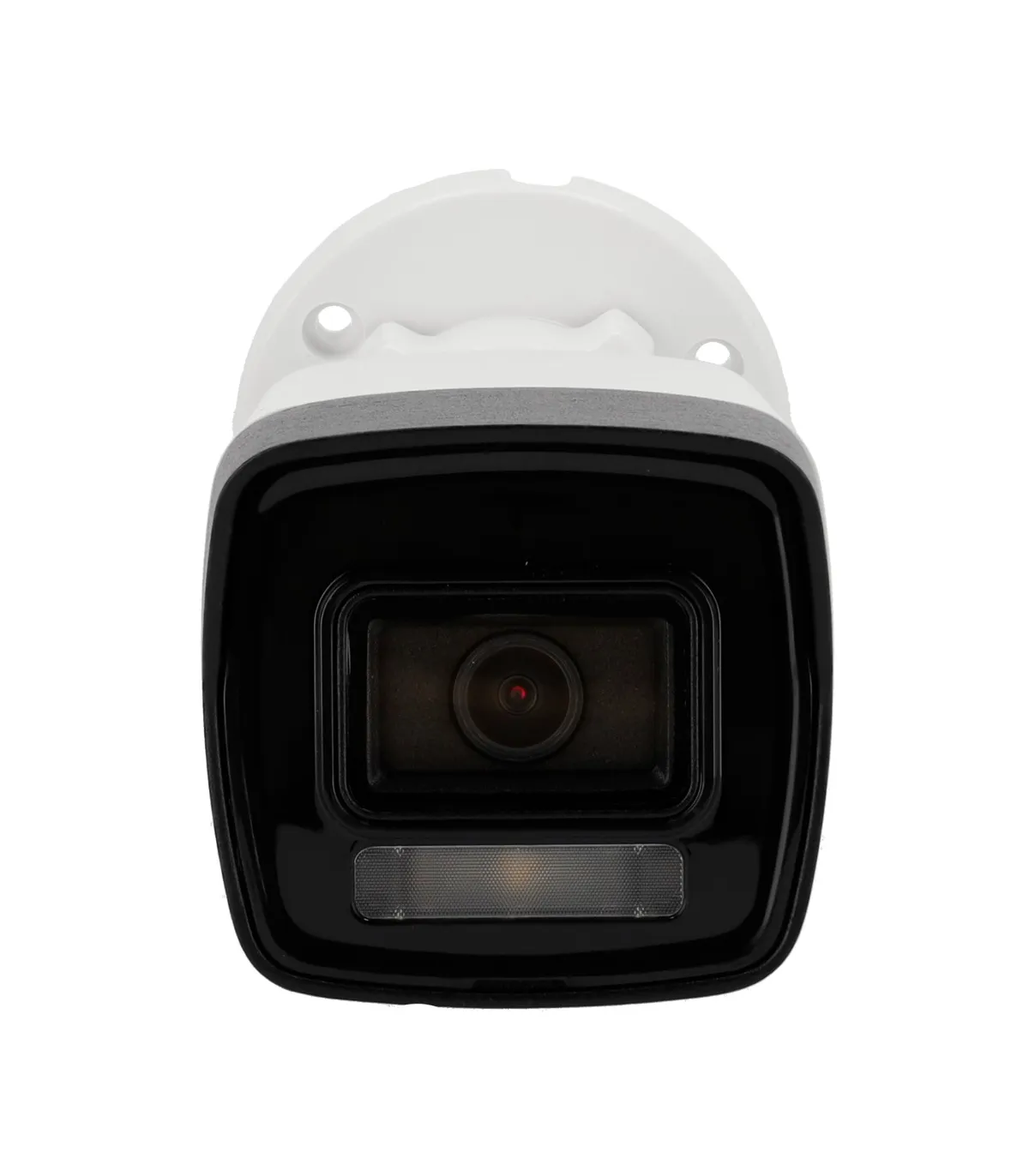

| Brand | HIKVISION |
| Range | Value |
| Sensor image | 1/2.7" Progressive Scan CMOS |
| Maximum resolution | 8 Megapixel (3840X2160) |
| Main Rate Stream | 12.5 fps (3840X2160, 3200x1800, 2688x1520, 1920x1080, 1280x720) |
| Extra Stream Rate | 12.5 fps (1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | 2.8 mm |
| Viewing angle (FOV) | H: 113°, V: 62°, D: 134° |
| DORI | 79 m (D), 31 m (W), 15 m (R), 7 m (L) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.01 Lux @(F2.0, AGC ON) 0 Lux with IR range 30 m |
| Complementary lighting | Hybrid light: IR range 30 m White light range 30 m |
| Day/night | Removable ICR mechanical filter |
| Image enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Audio | Built-in microphone |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC |
| Audio bitrate | 64 Kbps (G.711ulaw)/64 Kbps (G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |

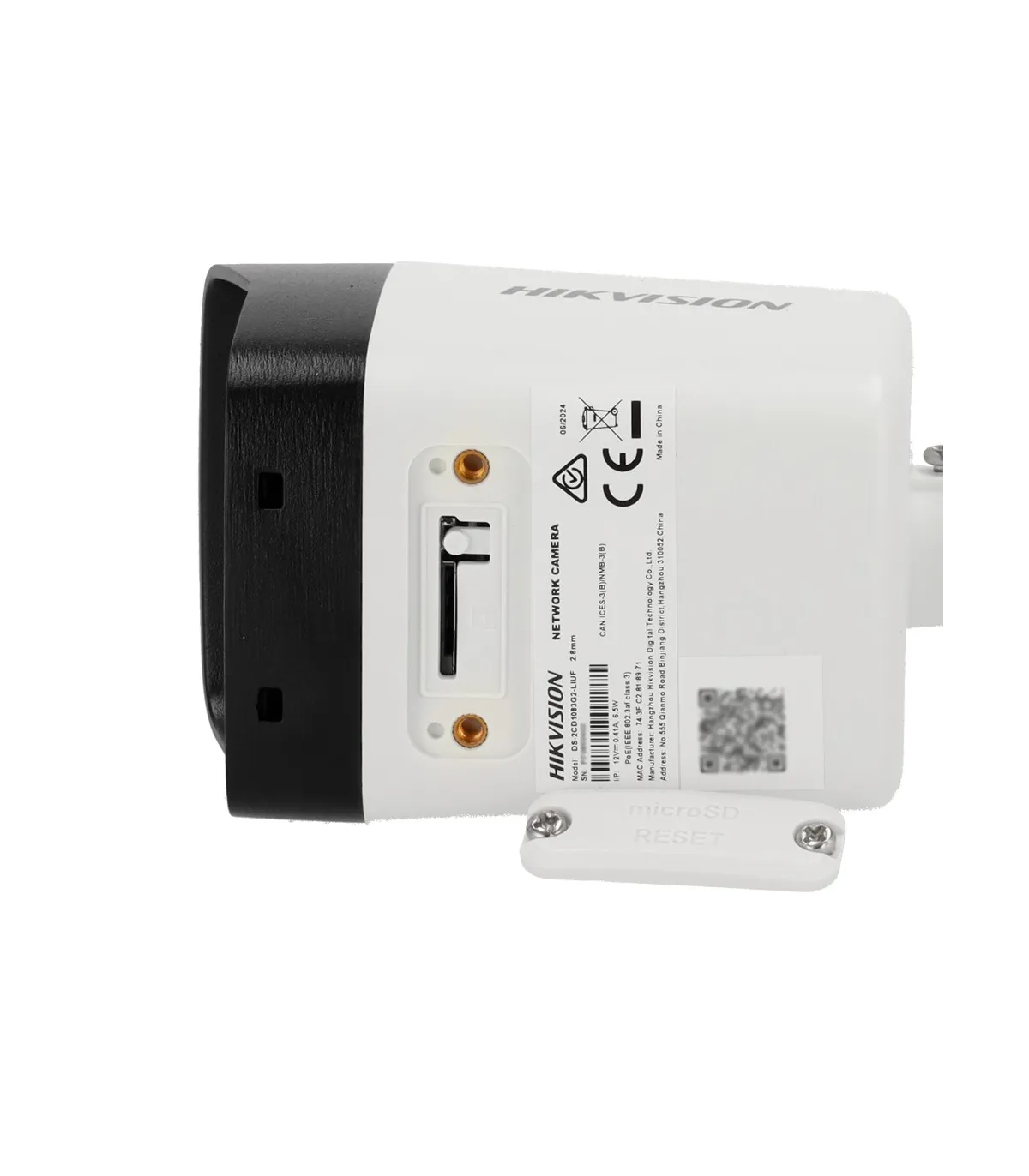

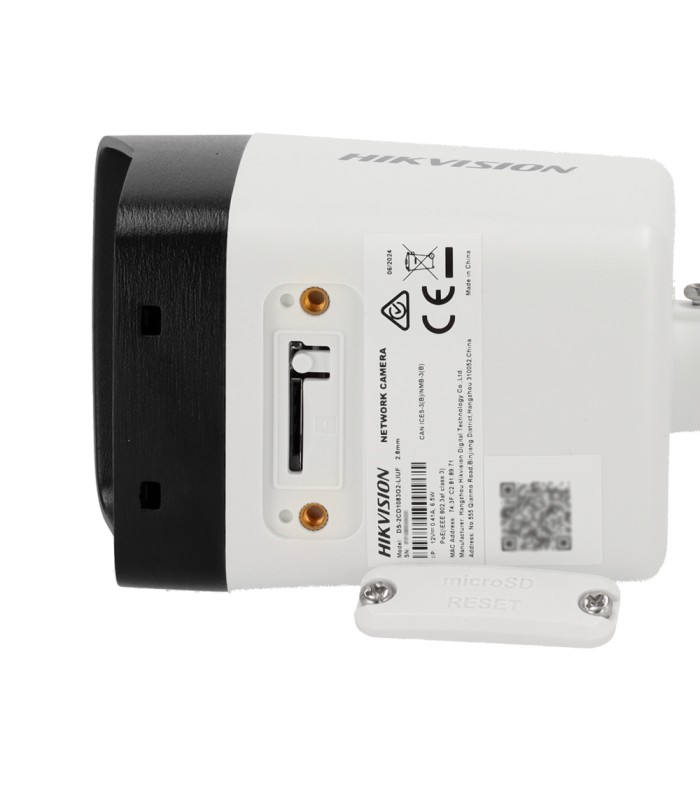

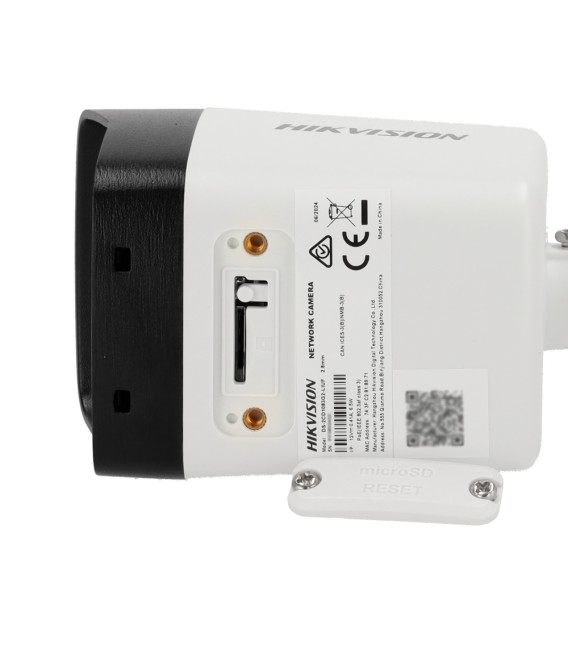

| Internal storage | MicroSD card slot up to 512 GB |

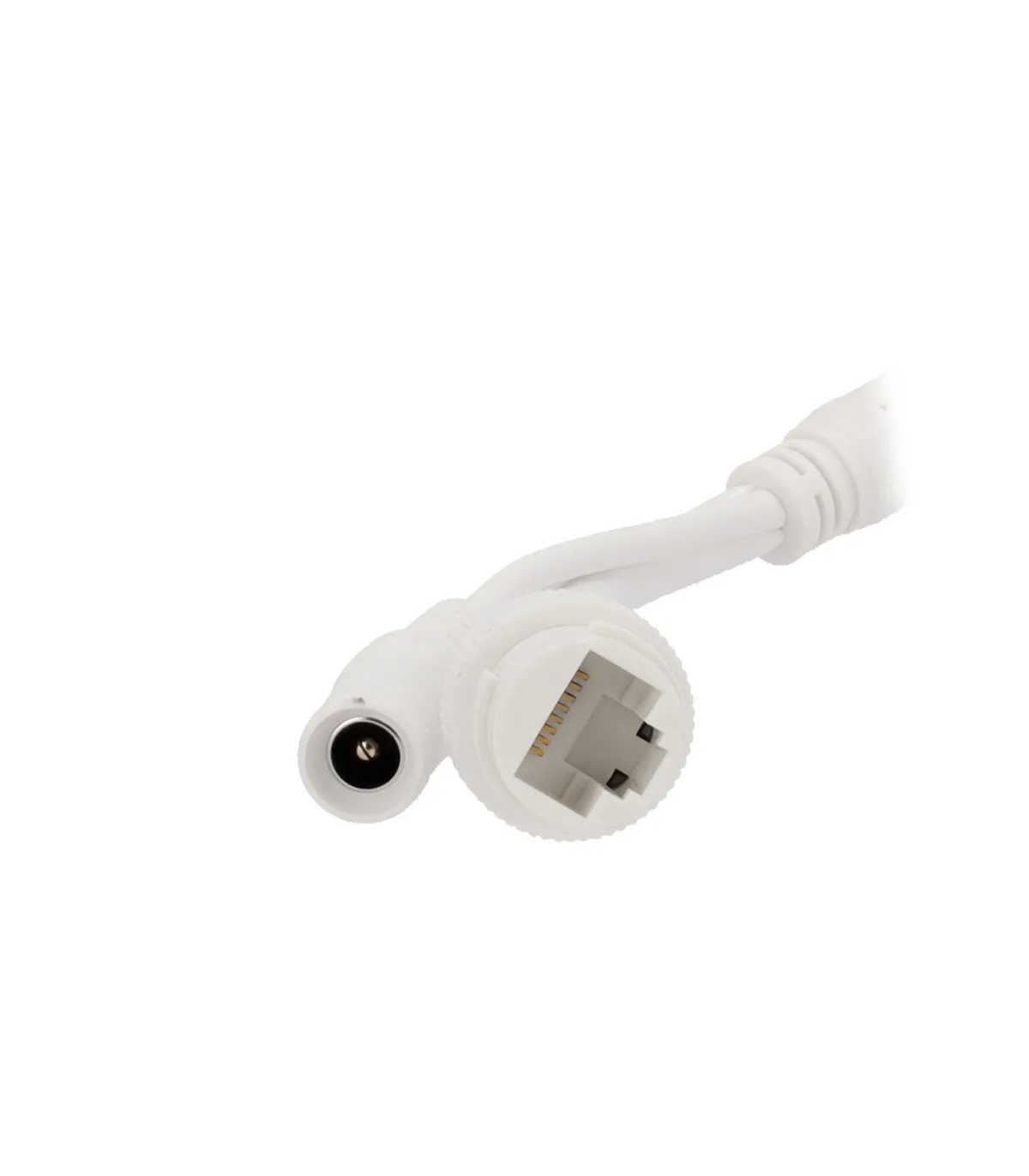

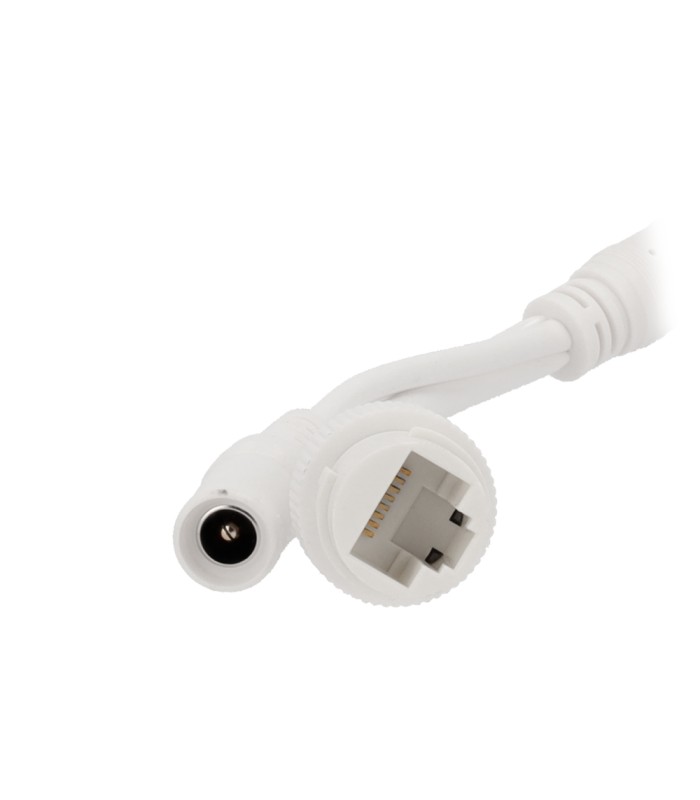

| Network interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, iVMS-4200 PC Software and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power | DC 12 V / 410 mA / 5 W max. / PoE IEEE802.3af |
| Protection grade | Waterproof IP67 |
| Material | Metal and plastic |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 66 mm (H) x 69.1 mm (W) x 170.8 mm (D) |

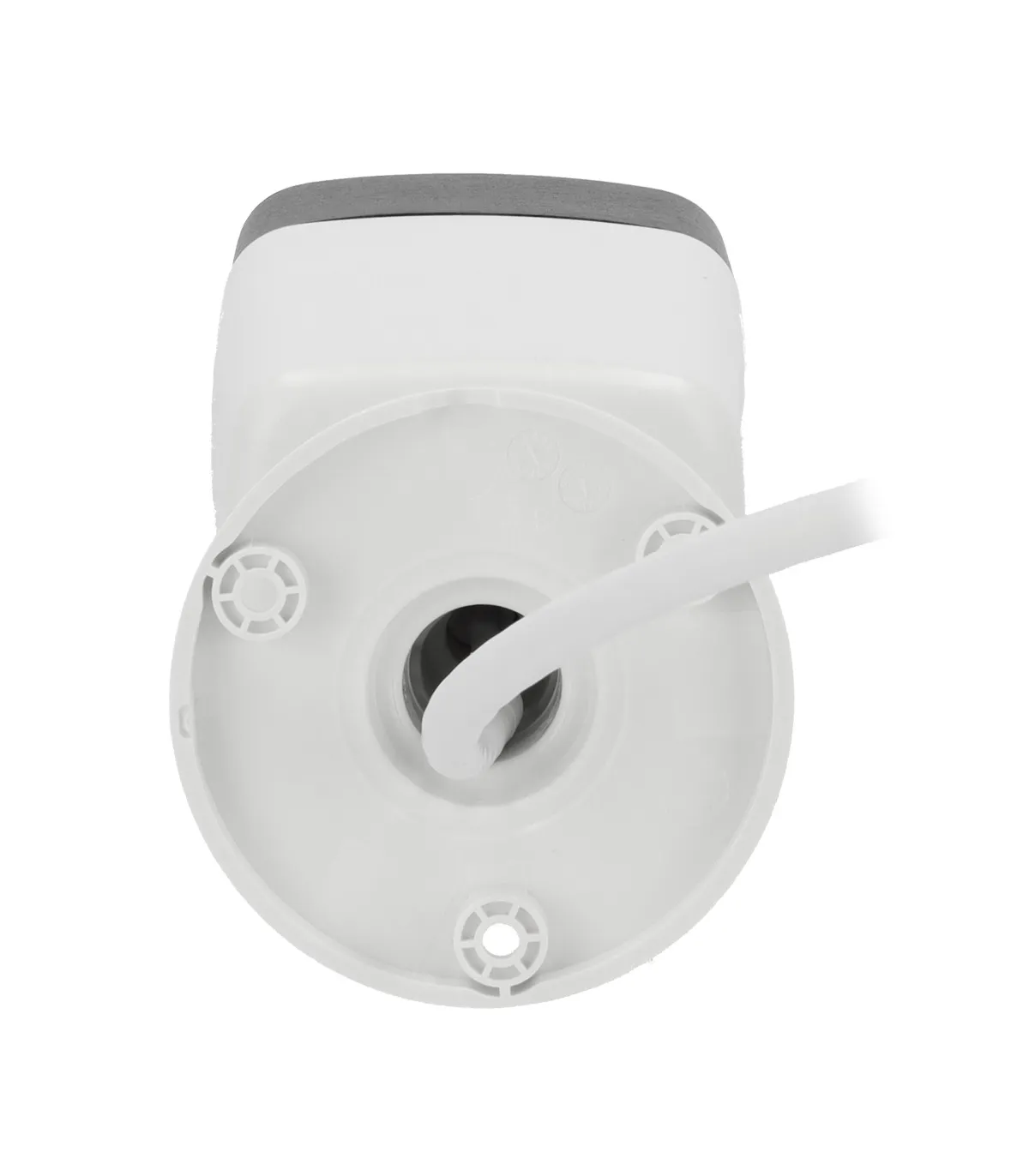

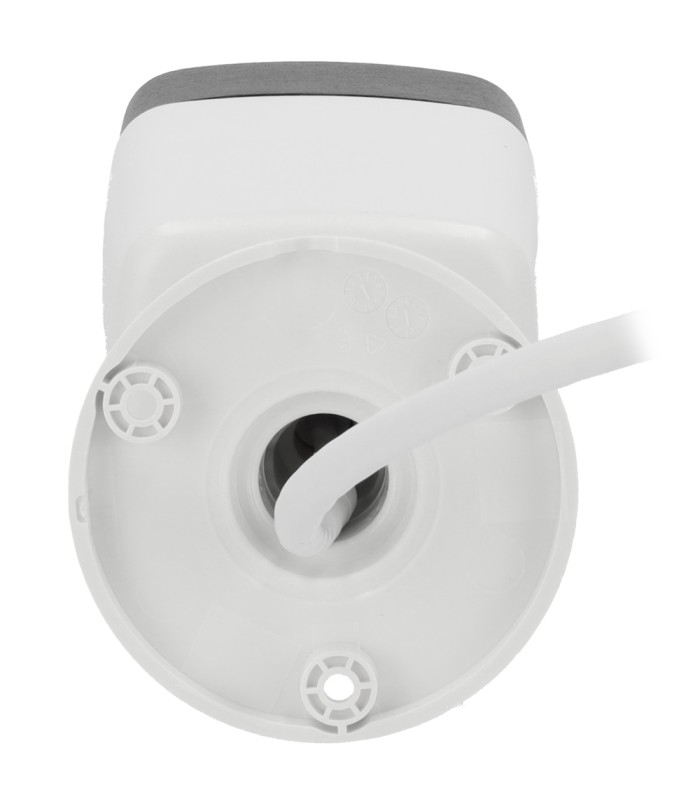

| Base dimensions | base Ø 70 mm / Ø between screws 55 mm / 3 screws |
| Weight | 285 g |
