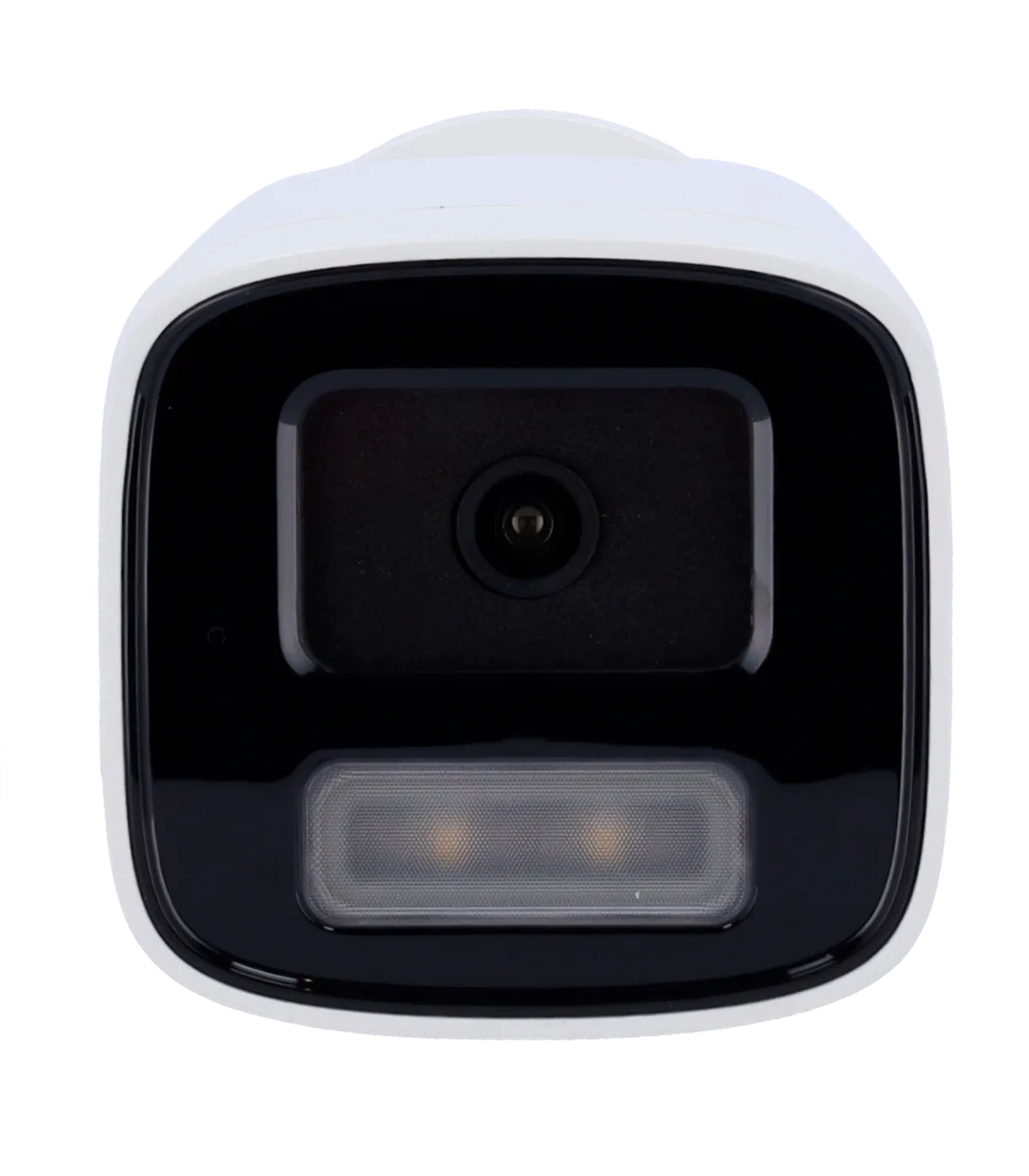

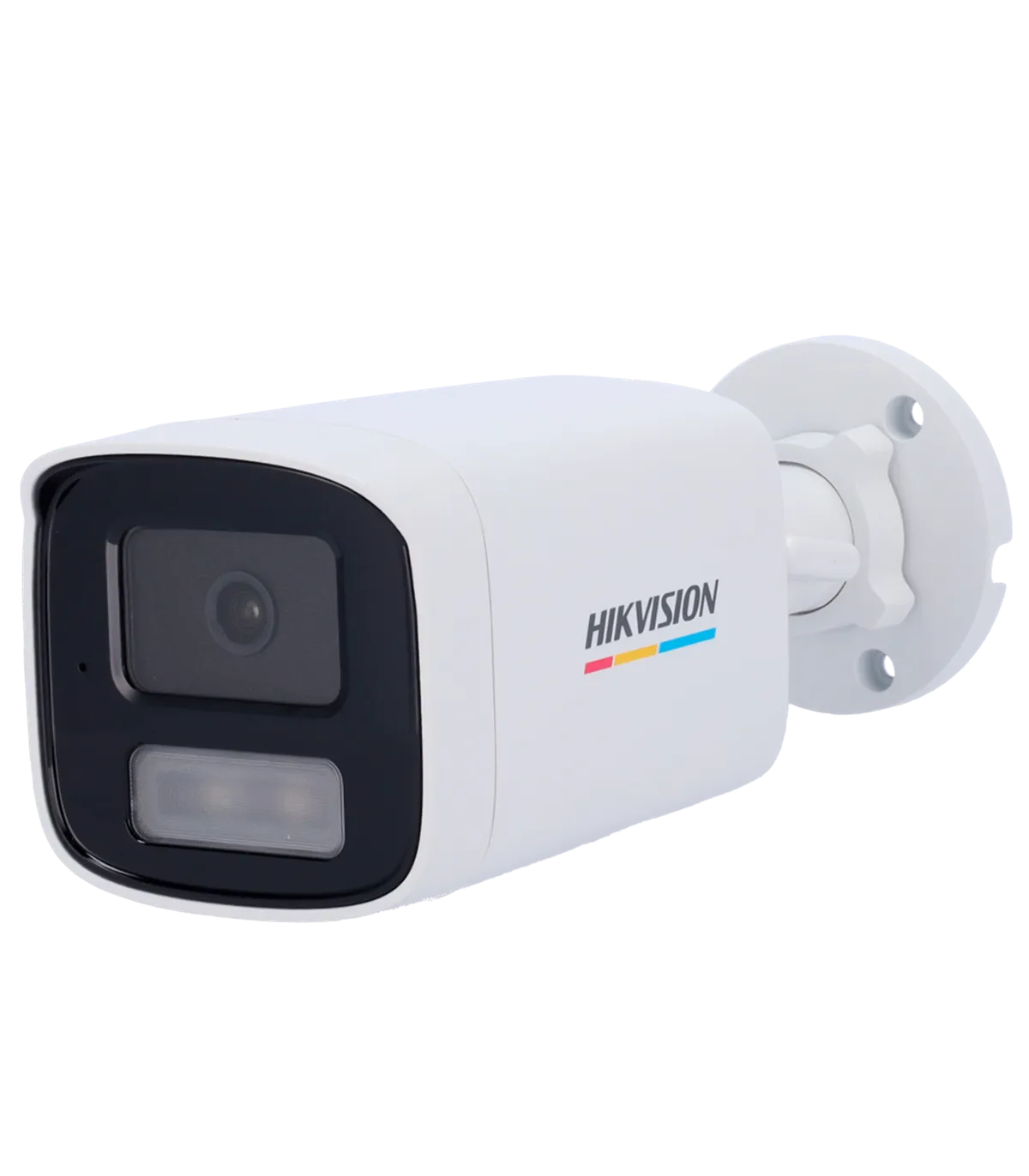

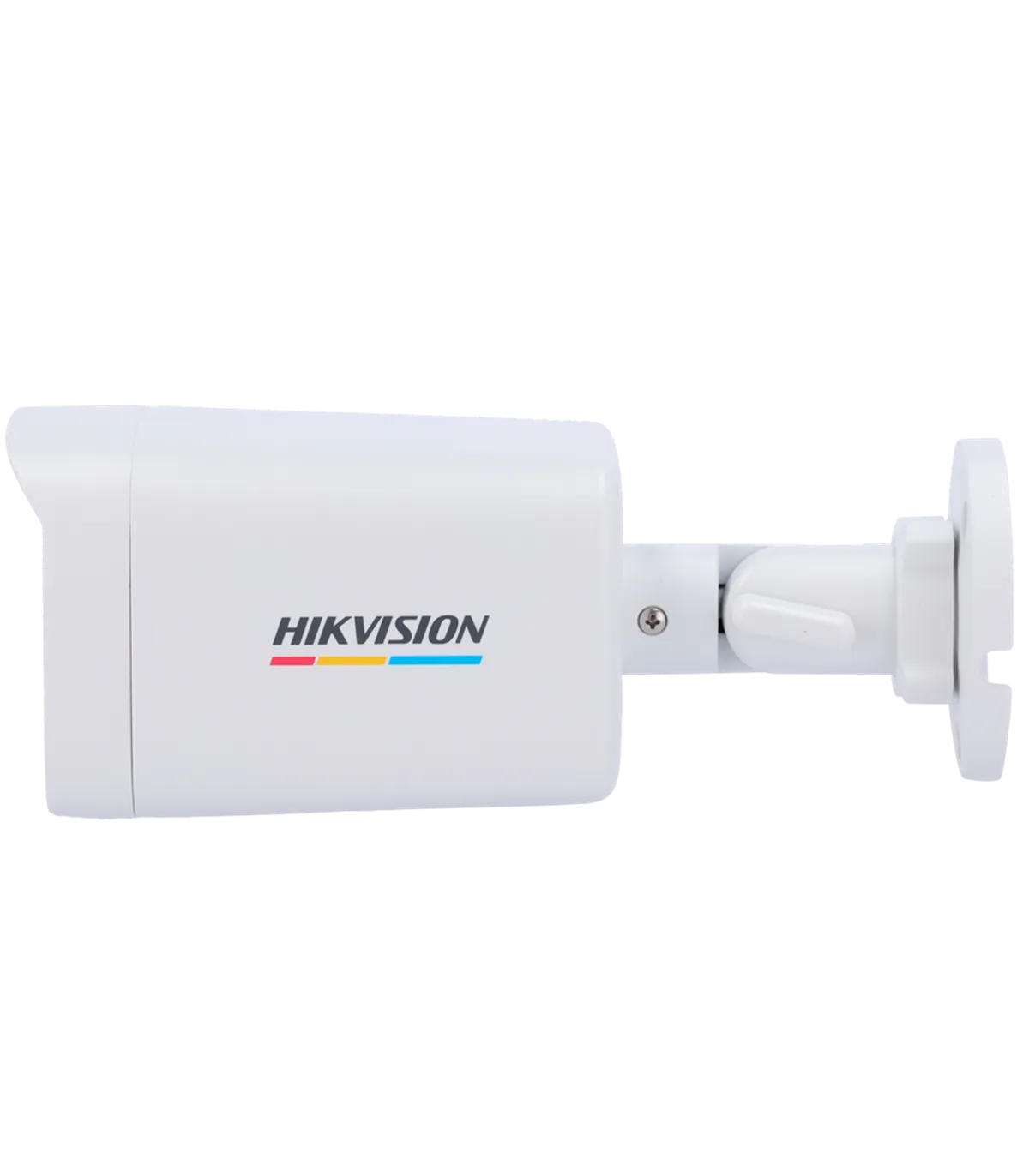

The DS-2CD1T47G2H-LIU(2.8mm) is a high-performance IP bullet camera designed for effective surveillance in various environments. With its advanced 4 Megapixel resolution and ColorVu technology, this camera provides clear color images even in low-light conditions, making it ideal for both day and night monitoring. The device is equipped with a 2.8 mm lens that offers a wide field of view, ensuring comprehensive coverage of the monitored area.
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2560x1440) |
| Main Stream Rate | 20 fps (2560x1440), 25 fps (1920x1080, 1280x720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640x360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Lens | 2.8 mm |
| Field of View (FOV) | H: 115°, V: 60°, D: 143° |
| DORI | 64 m (D), 25 m (O), 12 m (R), 6 m (I) |
| Minimum Illumination | Color: 0.001 Lux @(F1.0, AGC ON) 0 Lux with IR |
| Supplementary Lighting | Hybrid Light: IR range 50 m White light range 50 m |
| Day/Night | ColorVu: Color Image 24 Hours |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror Function, Privacy Masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Internal Storage | Not available |
| Audio | Integrated Microphone |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Network Interface | Ethernet 10/100M BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S, T), ISAPI, SDK |
| Power Supply | DC 12 V / 570 mA / 6.8 W max. PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof |
| Material | Front Cover: Metal Body: Plastic Mount: Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 81 mm (H) x 83.7 mm (W) x 201.96 mm (D) |

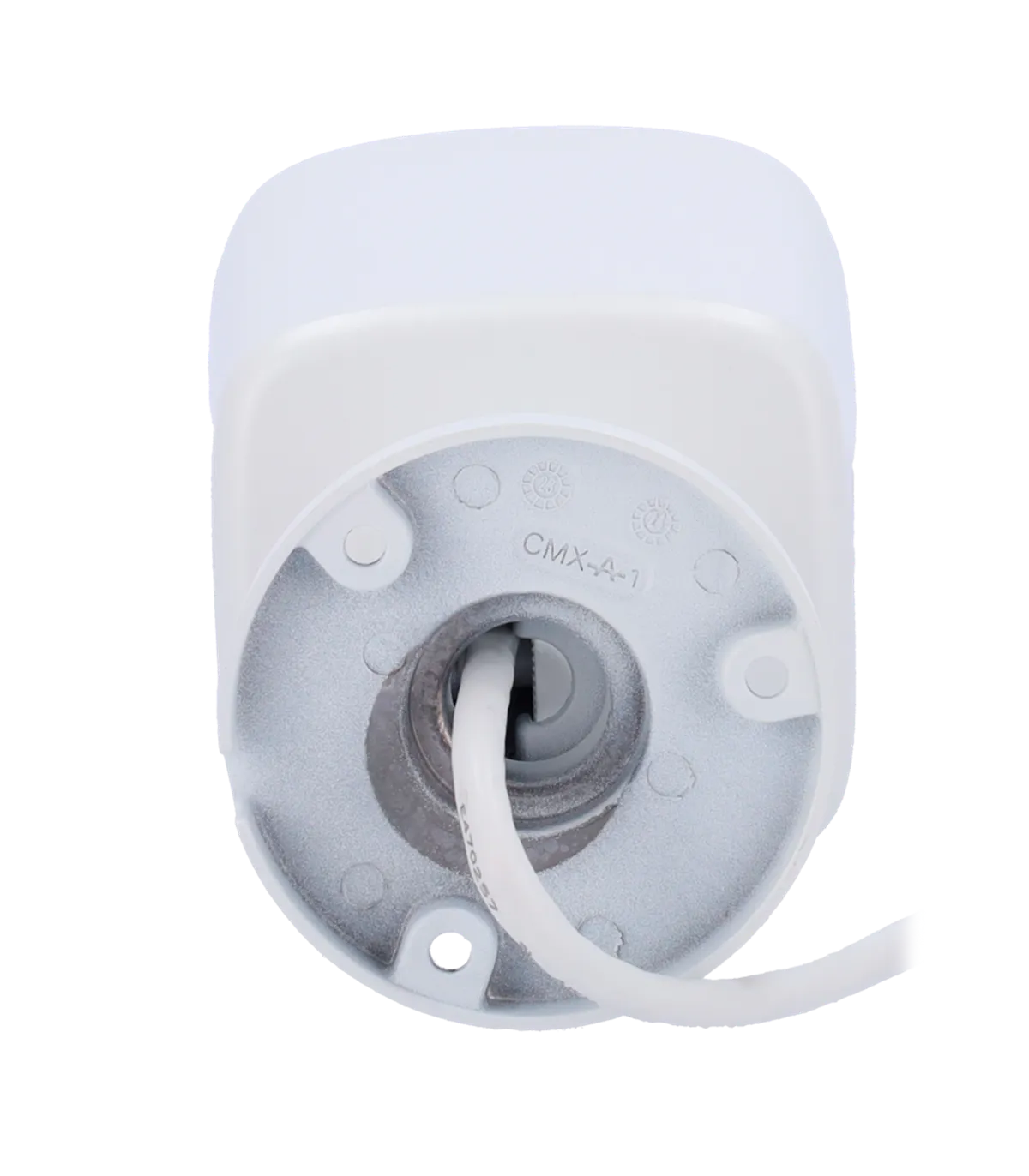

| Base Dimensions | Ø base 70.08 mm / Ø screw holes 55 mm / 3 screws |
| Weight | 550 g |
The DS-2CD1T47G2H-LIU(2.8mm) is an excellent choice for both residential and commercial surveillance applications. For instance, a retail store can deploy this camera at entry points to enhance security and monitor customer activity. With its motion detection capabilities, the camera can alert store managers to any suspicious behavior, ensuring a quick response. The IP67 waterproof rating allows for installation in various weather conditions, making it suitable for outdoor use. Additionally, the ColorVu technology ensures that the camera captures vibrant color images even at night, providing 24-hour surveillance. The integration with remote monitoring solutions enables users to access live feeds from their smartphones, enhancing convenience and security. Overall, this camera is a reliable solution for comprehensive surveillance needs.
