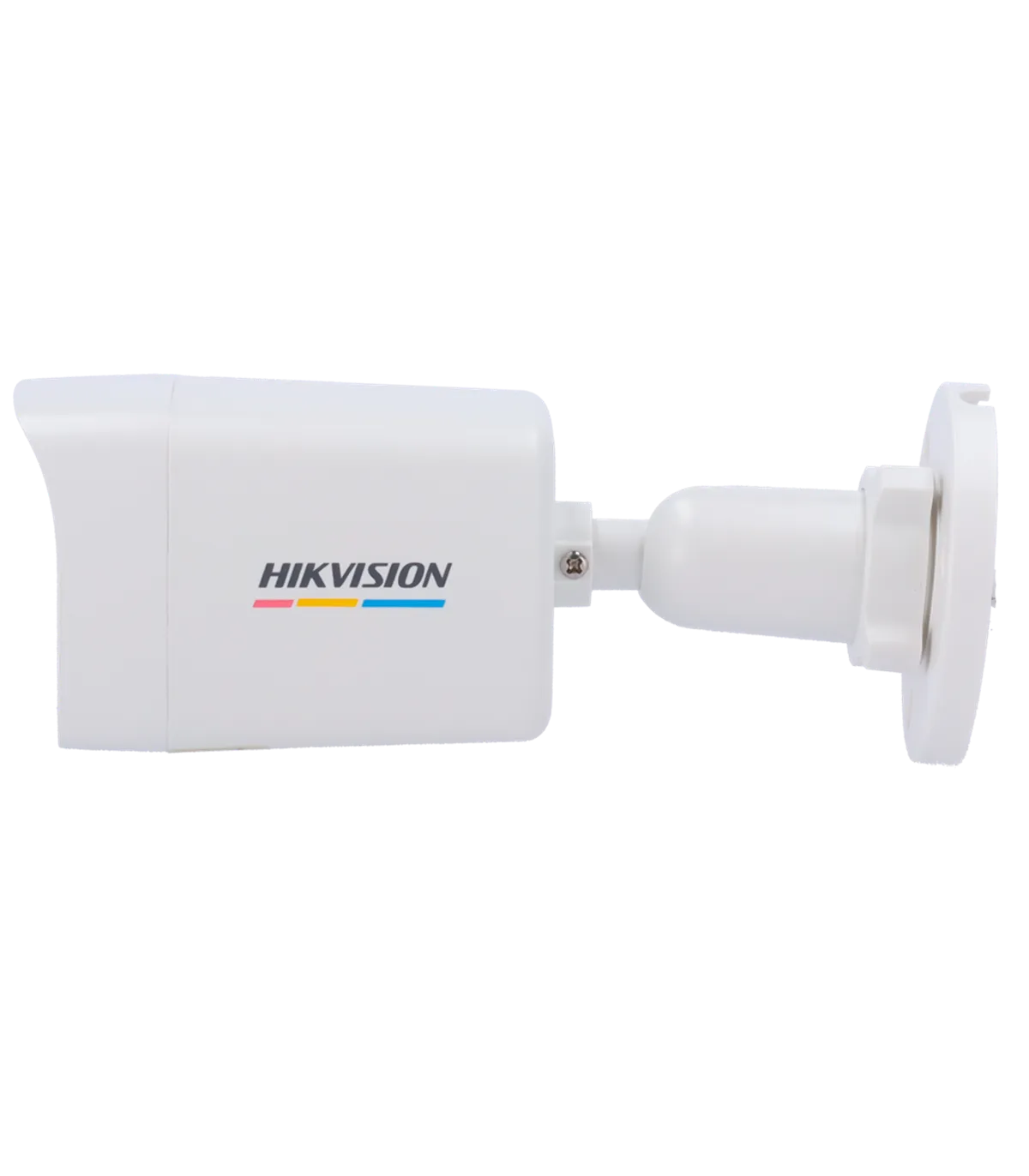

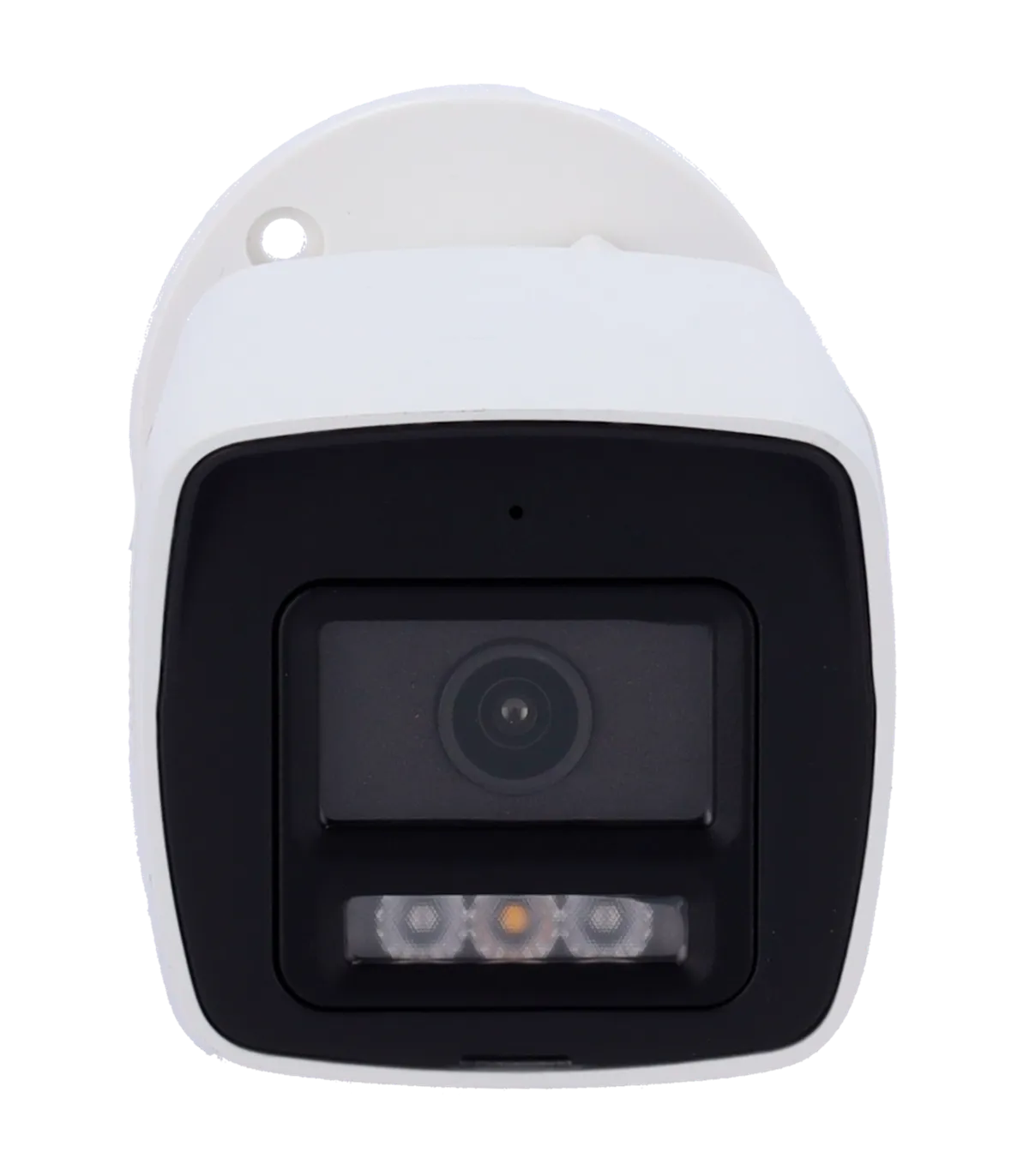

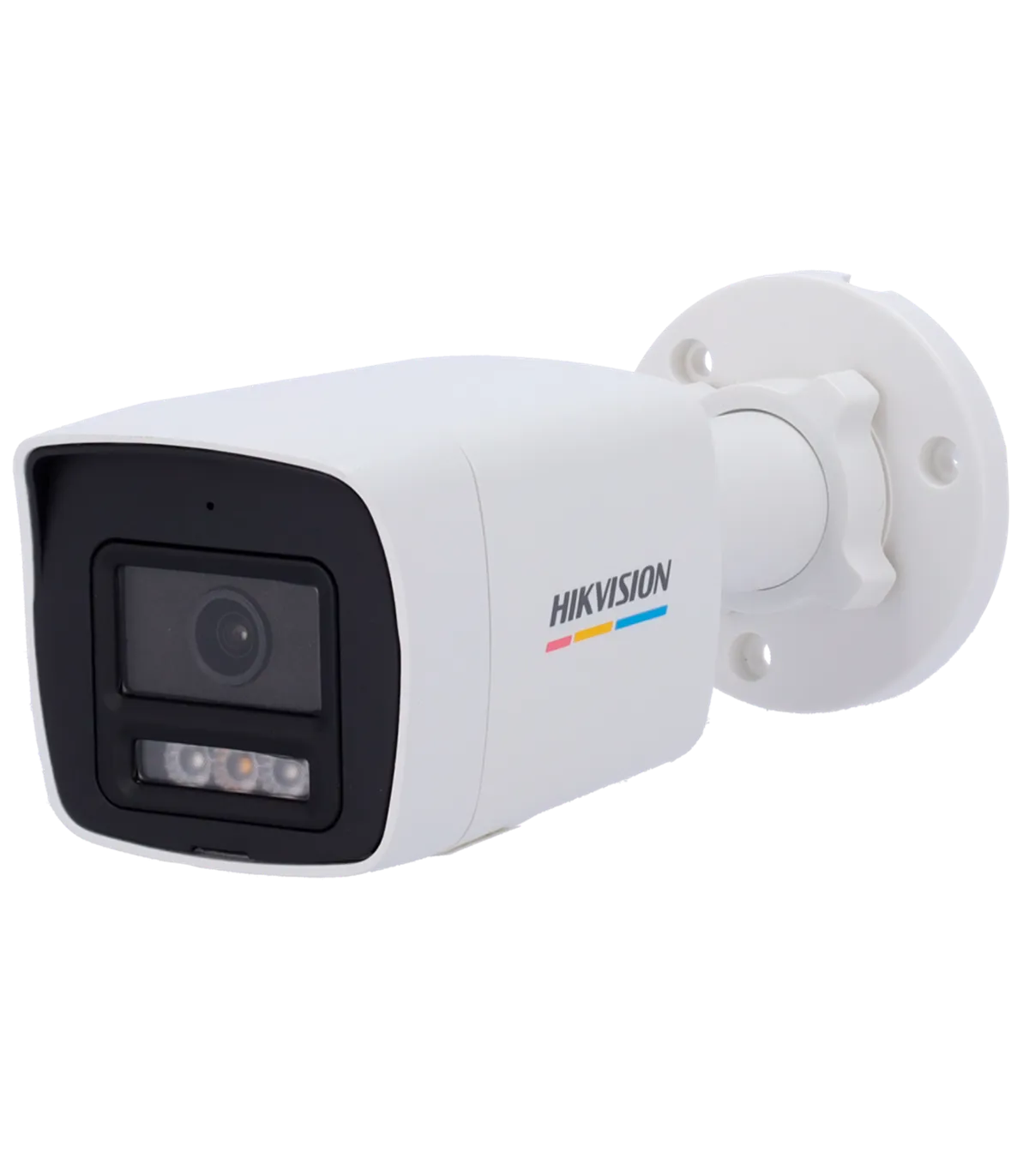

The DS-2CD1067G2H-LIU(2.8mm) is a high-performance IP bullet camera designed for versatile surveillance applications. Ideal for both indoor and outdoor environments, this camera offers exceptional image quality with its 6 Megapixel resolution, ensuring clear and detailed footage. Equipped with ColorVu technology, it provides vibrant color images even in low-light conditions, making it suitable for 24-hour monitoring. The device supports H.265+ compression, optimizing bandwidth and storage efficiency while maintaining high-quality video streams.
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Maximum Resolution | 6 Megapixel (3200x1800) |
| Main Stream Rate | 20 fps (3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 20 fps (1280×720, 640×480, 640x360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Lens | 2.8 mm |
| Field of View (FOV) | H: 115°, V: 60°, D: 143° |
| DORI | 64 m (D), 25 m (O), 12 m (R), 6 m (I) |
| Minimum Illumination | Color: 0.001 Lux @(F1.0, AGC ON) 0 Lux with IR |
| Supplementary Lighting | Hybrid Light: IR range 30 m White light range 30 m |
| Day/Night | ColorVu: 24-hour Color Imaging |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror Function, Privacy Masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Internal Storage | Not available |
| Audio | Integrated Microphone |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Network Interface | Ethernet 10/100M BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (profiles S, T, G), ISAPI, SDK |
| Power Supply | DC 12 V / 550 mA / 6.6 W max. PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof |
| Material | Cover: Metal Body: Plastic Bracket: Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 69.8 (W) x 67.9 (H) x 172.9 (D) mm |

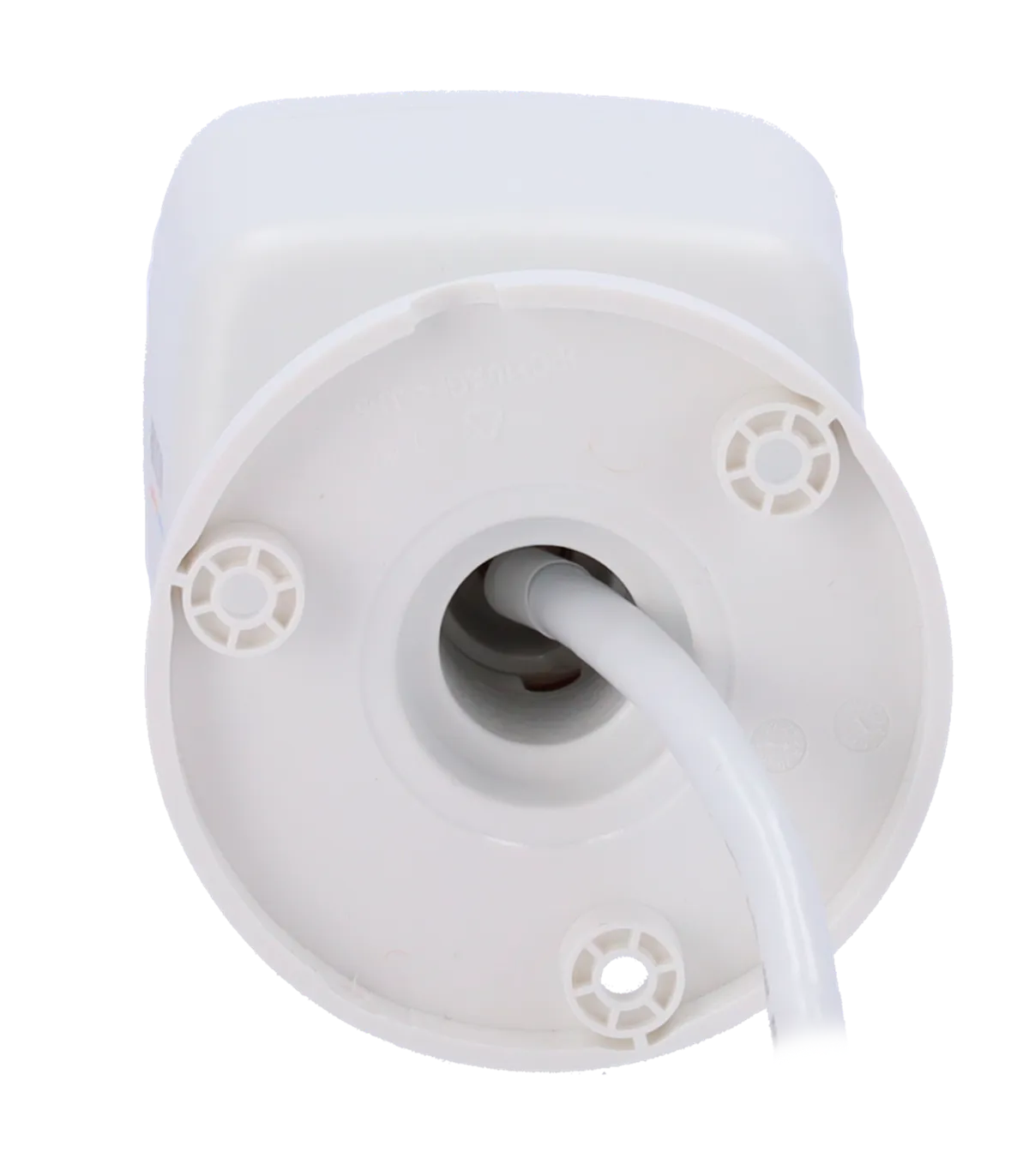

| Base Dimensions | Ø base 70 mm / Ø between screws 55 mm / 3 screws |
| Weight | 550 g |
The DS-2CD1067G2H-LIU(2.8mm) is perfect for a variety of surveillance scenarios, including retail stores, parking lots, and residential areas. For instance, in a retail environment, this camera can be strategically placed at entrances and exits to provide comprehensive coverage. With its motion detection capabilities, it can alert security personnel to any suspicious activity, ensuring a quick response. The IP67 waterproof rating allows for reliable outdoor use, even in harsh weather conditions. Additionally, the integrated microphone enhances security by capturing audio alongside video, providing a complete monitoring solution. The remote access feature enables users to view live feeds from their smartphones or computers, facilitating real-time monitoring from anywhere. Overall, the DS-2CD1067G2H-LIU(2.8mm) combines advanced technology with user-friendly features, making it an excellent choice for effective surveillance.
