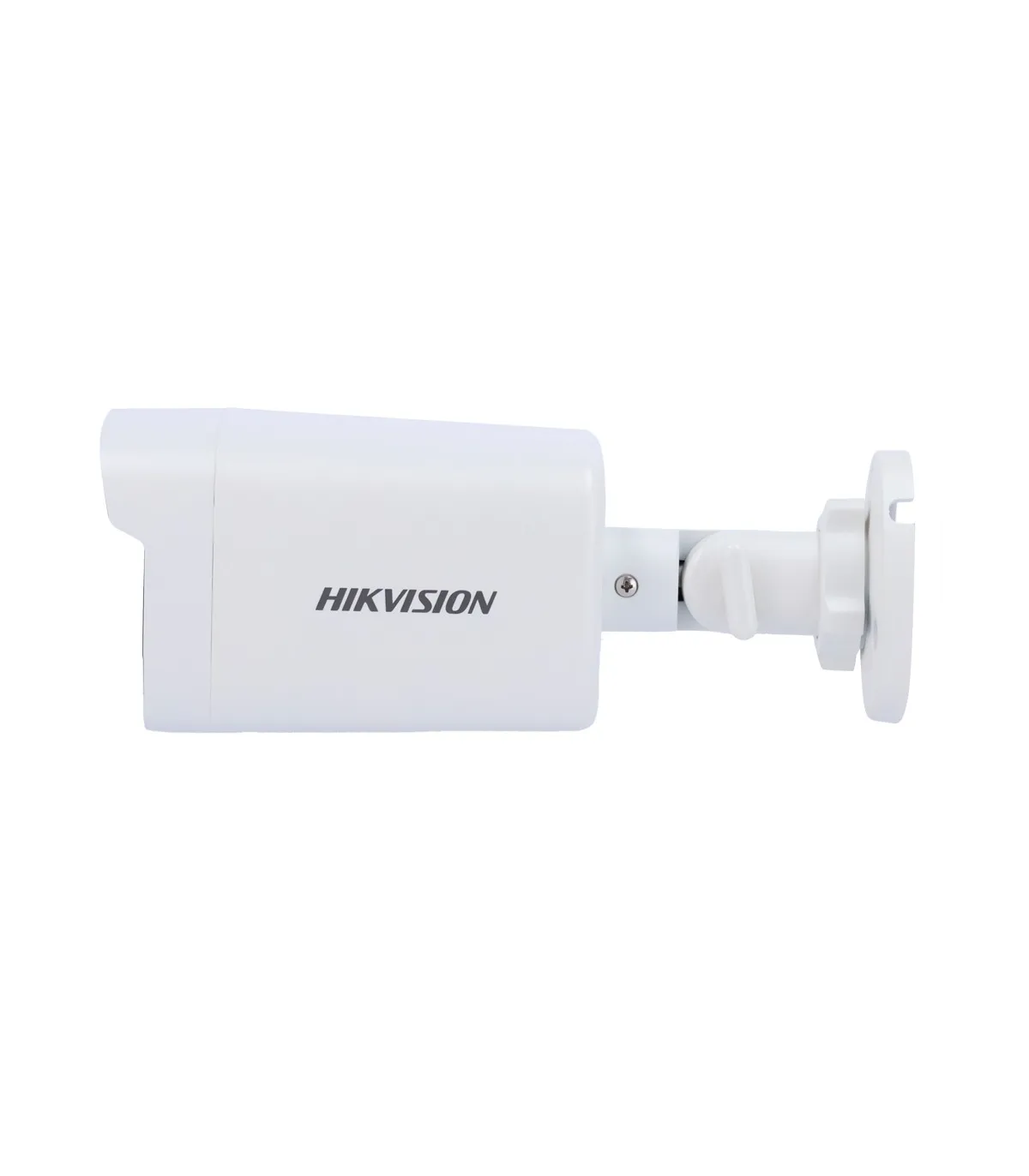

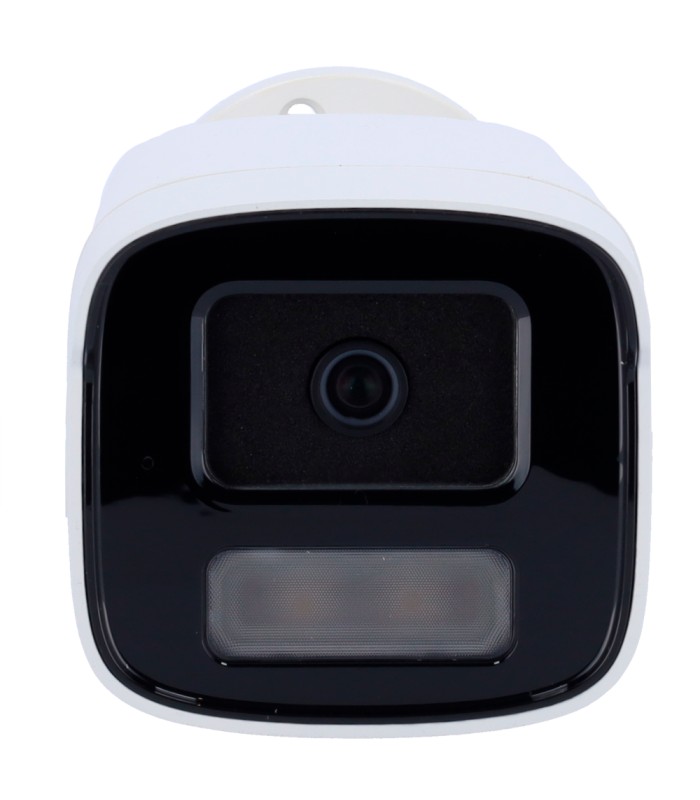

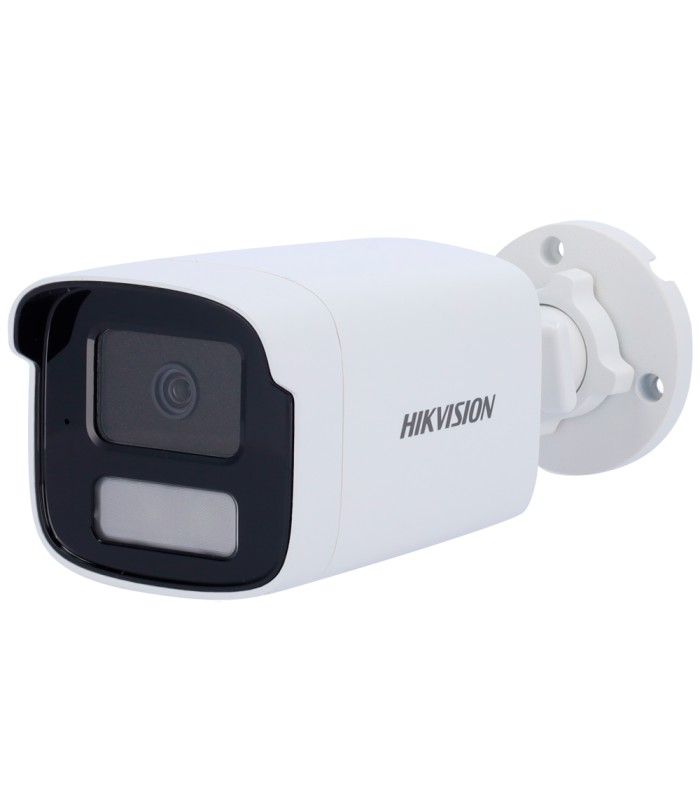

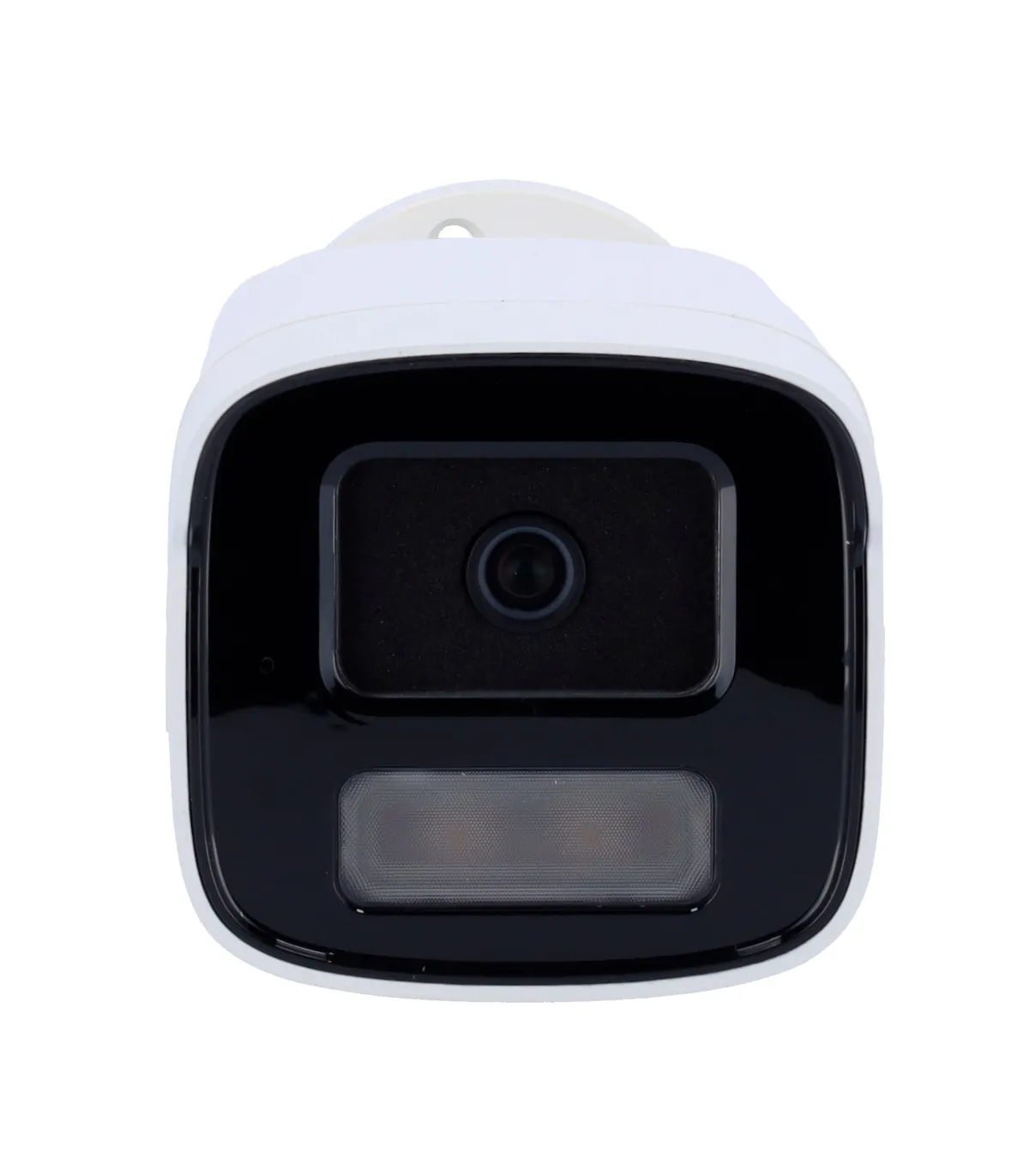

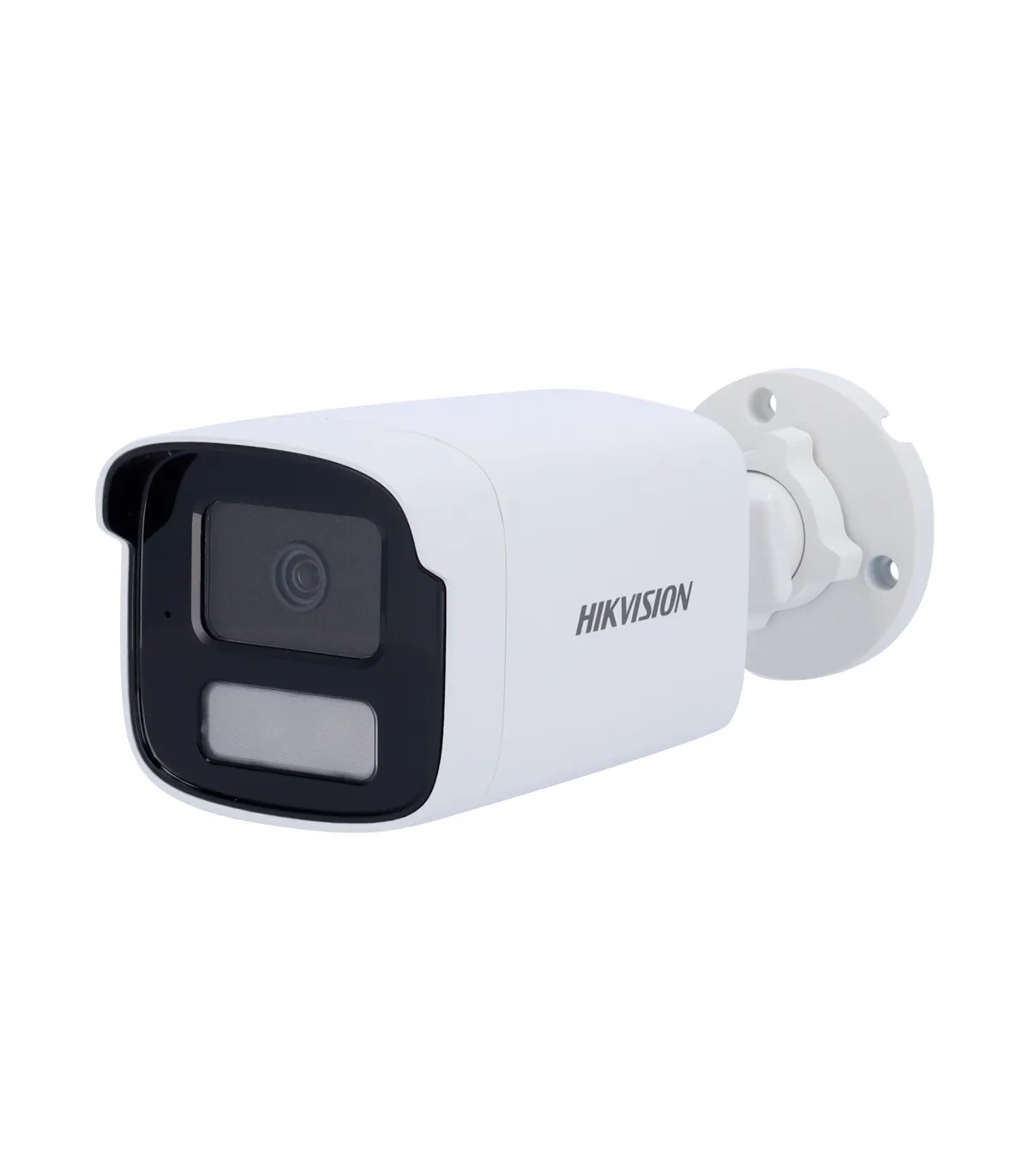

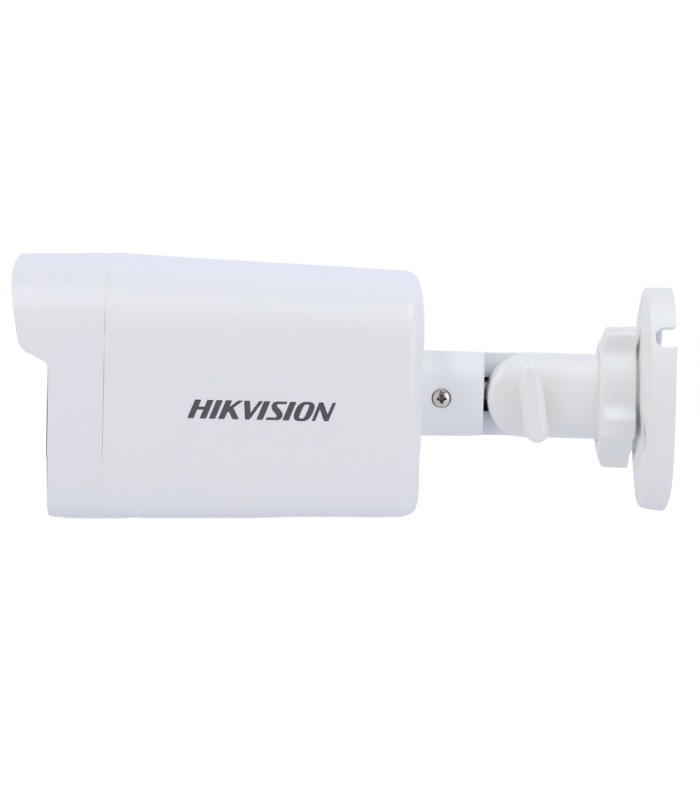

Hikvision DS-2CD1663G2-LIZSU IP Bullet Camera (2.8-12mm)
Brand: HIKVISION VALUE
- Hikvision IP Bullet Camera
- CORE Range | microSD 512 GB
- 6 MP | Motorized Lens 2.8~12 mm | Alarm/Audio
- IR 50 m | WDR 120 dB | Built-in Microphone
- PoE | H.265+ | IP67 | Motion Detection 2.0
- WEB, CMS Software, Smartphone, and NVR compatibility
Hikvision DS-2CD1663G2-LIZSU(2.8-12mm) IP Bullet Camera
- Hikvision
- CORE range
- IP Bullet Camera
- 1/2.4" Progressive Scan CMOS
- 6 Megapixel (3200x1800)
- Motorized varifocal lens 2.8~12 mm
- 0 Lux
- Hybrid light: IR and White light range 50 m
- Compression H.265+ / H.265 / H.264+ / H.264
- Motion detection 2.0
- WDR (120 dB)
- 3D-DNR
- Built-in microphone
- Alarms
- Audio
- MicroSD card slot up to 512 GB
- WEB interface, CMS, Smartphone and NVR
- ONVIF compatible
- PoE (IEEE802.3af)
- Waterproof IP67
Technical specifications
| Brand | HIKVISION |
| Gamma | CORE |
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Maximum resolution | 6 Megapixel (3200x1800) |
| Main Stream Rate | 20 fps (3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 20 fps (1280x720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Angle of view (FOV) | H: 106~35.6°, V: 55.9~20°, D: 127.4~40.8° |
| DORI | 68~200 m (D), 27~79 m (W), 13.6~40 m (R), 6.8~20 m (L) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR range 50 m |
| Illumination supplementary | Hybrid light: IR range 50 m White light range 50 m |
| Day/night | Removable ICR mechanical filter |
| Image improvements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI Mirror function, Privacy masking |
| Motion Detection | Motion Detection 2.0 with classification of humans and vehicles applied in the detection of movement. |
| Alarms | 1 input / 1 output |
| Audio | 1 input / 1 output Built-in microphone |
| Audio Type | Mono |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio bit rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Internal storage | MicroSD card slot up to 512 GB |
| Network interface | Ethernet 10 / 100 BaseT |
| Remote access | Web Browser, Hik-Connect Smartphone App, iVMS-4200 PC Software and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power | DC 12 V / 880 mA / 10.5 W max. / PoE IEEE802.3af |
| Protection degree | Waterproof IP67 |
| Temp. operation | -30º C ~ +60º C |
| Material | Metal and plastic |
| Dimensions | Ø 105 mm x 252 mm (Fo) |

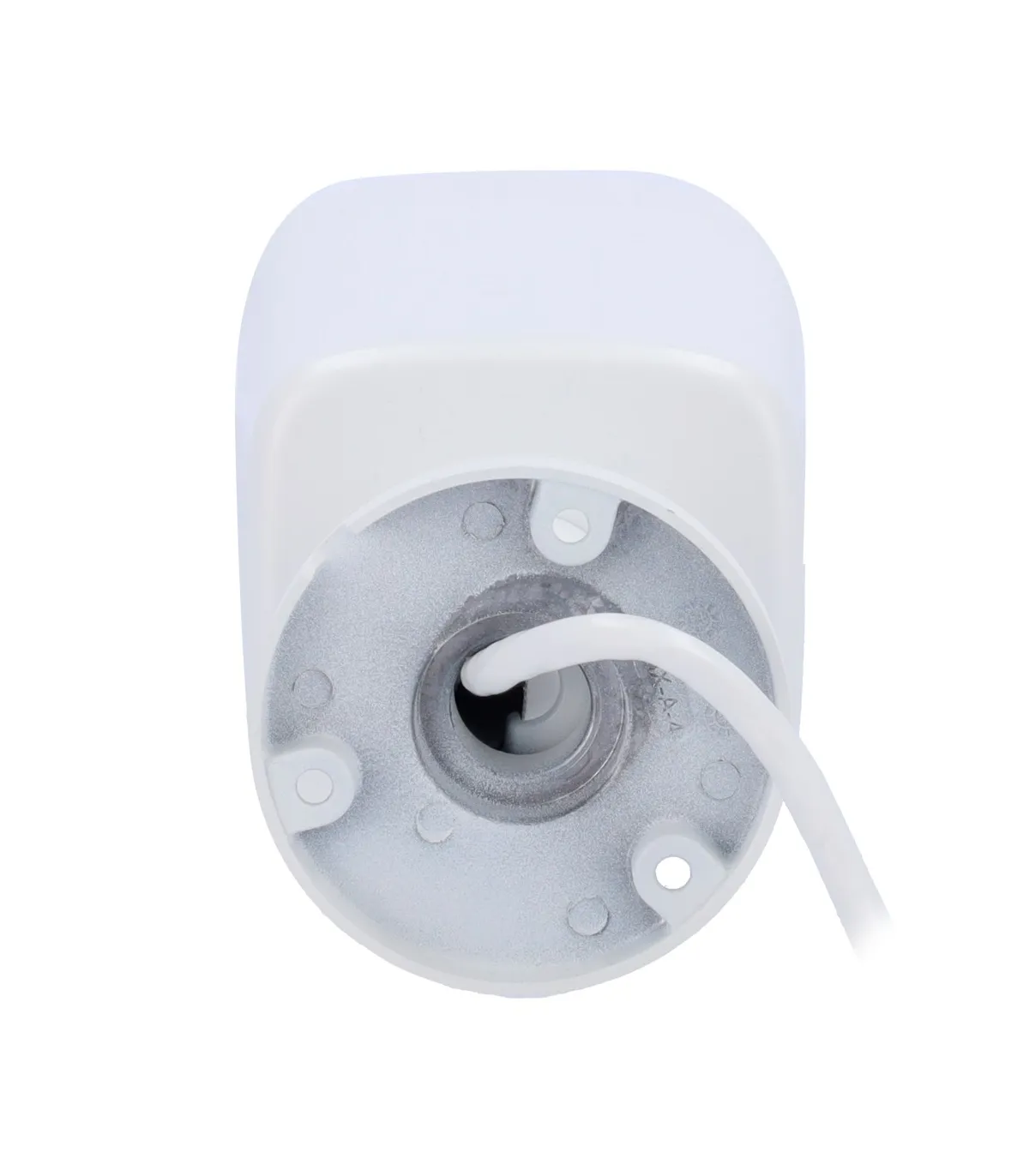

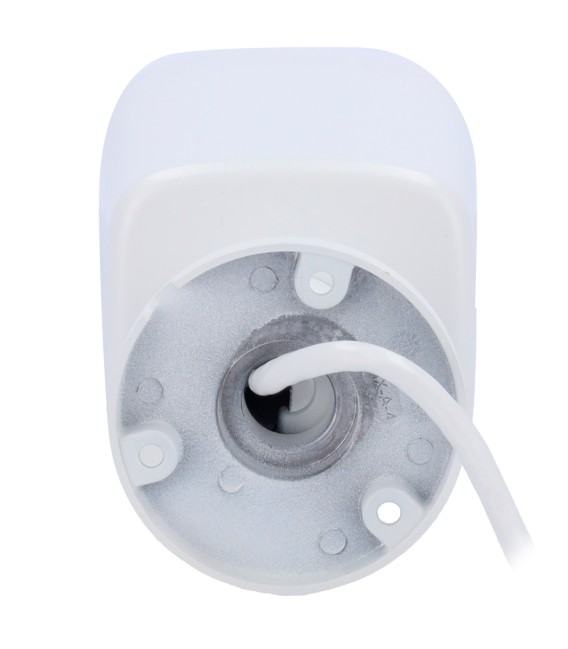

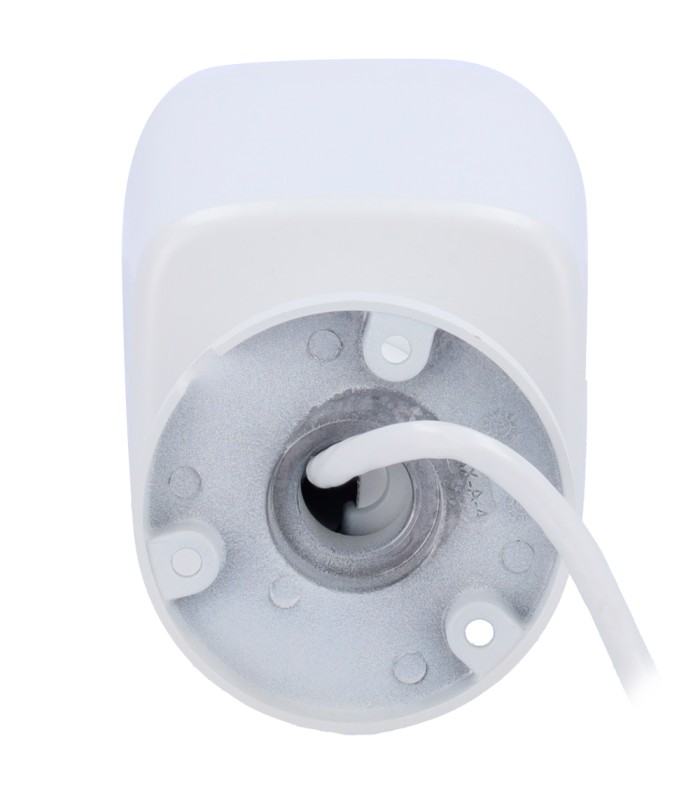

| Base dimensions | Ø base 105 mm / Ø between screws 89 mm / 4 screws |
| Weight | 750 g |
Contents
- Hikvision Value IP Camera
- Installation material
- Instructions for use
| Brand | Hikvision |
| Type of camera | Bullet |
| Max. Resolution | 6 Megapixel |
| Technology | IP |
| PoE powered | PoE |
