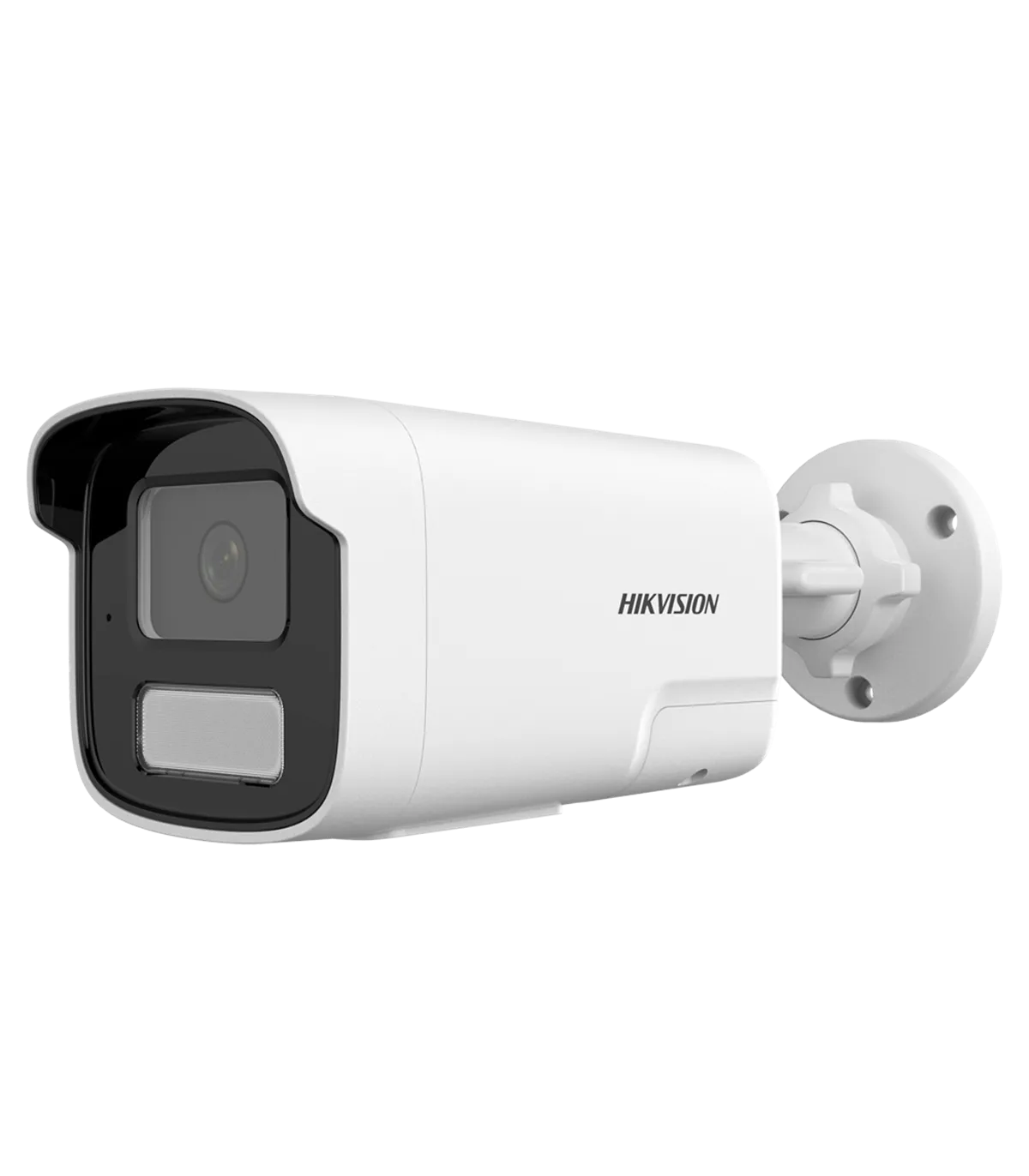

The DS-2CD1T63G2-LIUF/SL(6mm) is a high-performance IP bullet camera designed for effective surveillance in various environments. With its advanced 6 Megapixel resolution and hybrid lighting capabilities, it excels in both day and night conditions, making it ideal for security monitoring in commercial and residential settings. This camera features integrated audio, motion detection, and is compatible with ONVIF standards, ensuring seamless integration into existing security systems.
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Maximum Resolution | 6 Megapixel (3200x1800) |
| Main Stream Rate | 20 fps (3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 20 fps (1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | 6 mm |
| Field of View (FOV) | H: 51°, V: 26°, D: 59° |
| DORI | D: 164 m, O: 65 m, R: 32 m, I: 16 m |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR |
| Supplementary Lighting | Hybrid Light: IR range 50 m White light range 50 m |
| Deterrent Light | Deterrent Flash |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror Function, Privacy Masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Audio | Integrated Microphone and Speaker |
| Audio Type | Mono |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| MicroSD Slot | MicroSD card slot up to 512 GB |
| Network Interface | 1 RJ45 Ethernet 10 M/100 M self-adaptive |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S, T, G), ISAPI, SDK |
| Power Supply | DC 12 V / 750 mA / 9 W max. PoE IEEE802.3af |
| Protection Grade | Waterproof IP67 |
| Material | Metal and Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 80.7 mm (H) x 83.7 mm (W) x 221.1 mm (D) |
| Weight | 669 g |
The DS-2CD1T63G2-LIUF/SL(6mm) is ideally suited for a variety of surveillance applications, including retail stores, parking lots, and residential areas. For instance, in a retail environment, this camera can be strategically placed at entrances and exits to provide comprehensive coverage. With its high-resolution imaging and motion detection capabilities, it ensures that any suspicious activity is promptly captured and recorded. The integrated audio features allow for two-way communication, enhancing security measures. Additionally, the camera's IP67 waterproof rating ensures reliable performance in various weather conditions, making it a robust choice for outdoor installations. The remote access feature enables users to monitor live feeds from anywhere, providing peace of mind and enhancing overall security management.
