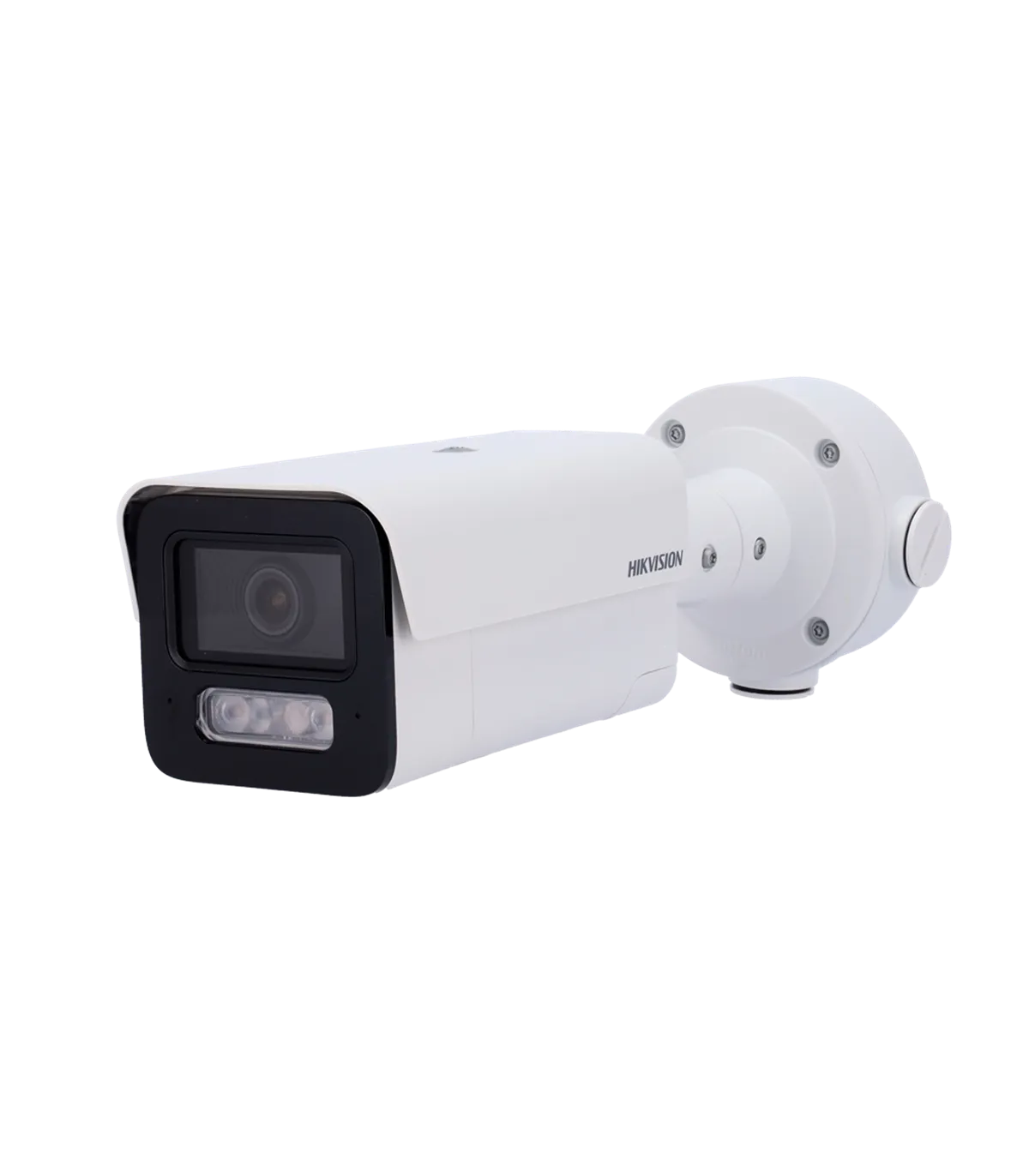

The iDS-2CD5T47G2/V-XHSY(2.8mm) is a high-performance IP bullet camera designed for advanced surveillance applications. It is ideal for both indoor and outdoor environments, providing exceptional image quality with a resolution of 4 MPx (2688x1520). This camera features a fixed lens of 2.8 mm, ensuring a wide field of view, making it suitable for monitoring large areas. With its hybrid light technology, it offers excellent visibility in low-light conditions, making it a reliable choice for security installations.
| Brand | HIKVISION |
| Series | SOLUTIONS |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 2560x1440, 1920x1080, 1280x720) |
| Extra Stream Rate | 25 fps (1280x720, 704x576, 640x480) |
| Third Stream Rate | 25 fps (1920x1080, 1280x720, 704x576, 640x480) |
| Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Lens | Fixed lens 2.8 mm |
| Field of View (FOV) | H: 104°, V: 54°, D: 127° |
| DORI | 61 m (D), 24 m (O), 12 m (R), 6 m (I) |
| Minimum Illumination | Color: 0.0014 Lux @ (F1.0, AGC ON) 0 Lux with IR, |
| Supplementary Illumination | Hybrid light White light: Up to 80 m IR: Up to 80 m |
| Shutter Time | 1 s ~ 1/100,000 s |
| Day/Night | Removable ICR mechanical filter Blue glass module (less ghosting phenomenon) |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| EIS (Image Stabilization) | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Smart Events | Line Crossing, Area Intrusion, Entry Region, Exit Region |
| AcuSense | Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry in area and Exit of area, Supports alarm trigger by specific target (human or vehicle) Large-scale AI model specific for perimeter protection, reducing false alarms by 90% compared to conventional AI cameras. VCA range: 4 mm models: 5 m to 80 m (day), 5 m to 60 m (night). 2.8 mm models: 3 m to 70 m (day), 3 m to 50 m (night). *Result based on standard configuration and test environment. |
| Alarms | 1 input / 1 output |
| Audio | 1 input / 1 output Integrated microphone and speaker |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Internal Storage | Micro SD card slot up to 1 TB |
| Network Interface | Ethernet 10/100M BaseT |
| Communication | 1 x RS-485 (half duplex) |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Interoperability | ONVIF (Profiles S, G, T, M), ISAPI, SDK, ISUP |
| Power Supply | DC 12 V ± 20% / 1400 mA / max. 16.8 W PoE+ IEEE802.3at |
| Power Output | DC 12 V / 100 mA |
| Protection Rating | Waterproof IP67 Vandal-proof IK10 Corrosion-resistant NEMA 4X |
| Material | Aluminum alloy |
| Operating Temperature | -30º C ~ +60º C |
| Heater | Yes |
| Dimensions | Ø 155 mm x 326.3 (Fo) mm |
| Base Dimensions | Ø base 155 mm / Ø between screws 126 mm / 4 screws |
| Weight | 1370 g |
The iDS-2CD5T47G2/V-XHSY(2.8mm) is perfect for a variety of surveillance scenarios, including retail stores, parking lots, and residential areas. For instance, in a retail environment, this camera can be strategically placed at entrances and exits to provide comprehensive coverage. With its hybrid light technology, it ensures clear images both day and night, enhancing security. The motion detection feature, combined with AcuSense technology, allows for precise identification of human and vehicle movements, significantly reducing false alarms. Additionally, the camera's remote monitoring capabilities enable users to access live feeds via smartphones or web browsers, ensuring constant vigilance. The robust design, featuring an IP67 waterproof rating and IK10 vandal-proof rating, makes it suitable for outdoor installations, providing peace of mind in various weather conditions. Overall, the iDS-2CD5T47G2/V-XHSY(2.8mm) is an excellent choice for those seeking reliable and advanced surveillance solutions.
