- Hikvision PRO Series Bullet IP Camera
- 4 Megapixel Resolution (2688x1520)
- Motorized Varifocal Lens 2.8~12 mm
- Hybrid Light 60 m | Motion Detection 2.0
- AcuSense | PoE+ | MicroSD | IP67 | IK10
- Alarms | Audio | Dual Array Microphone

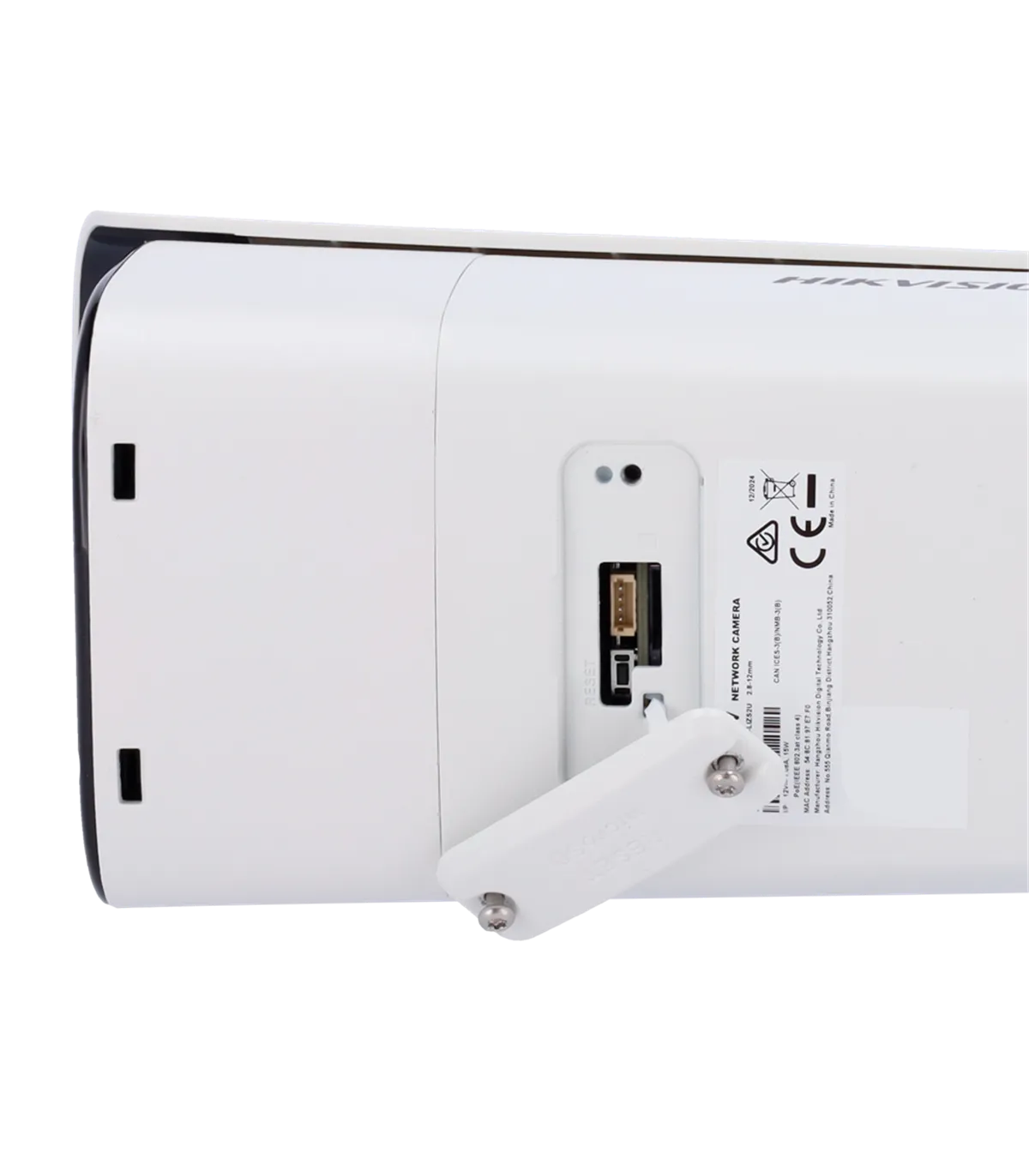

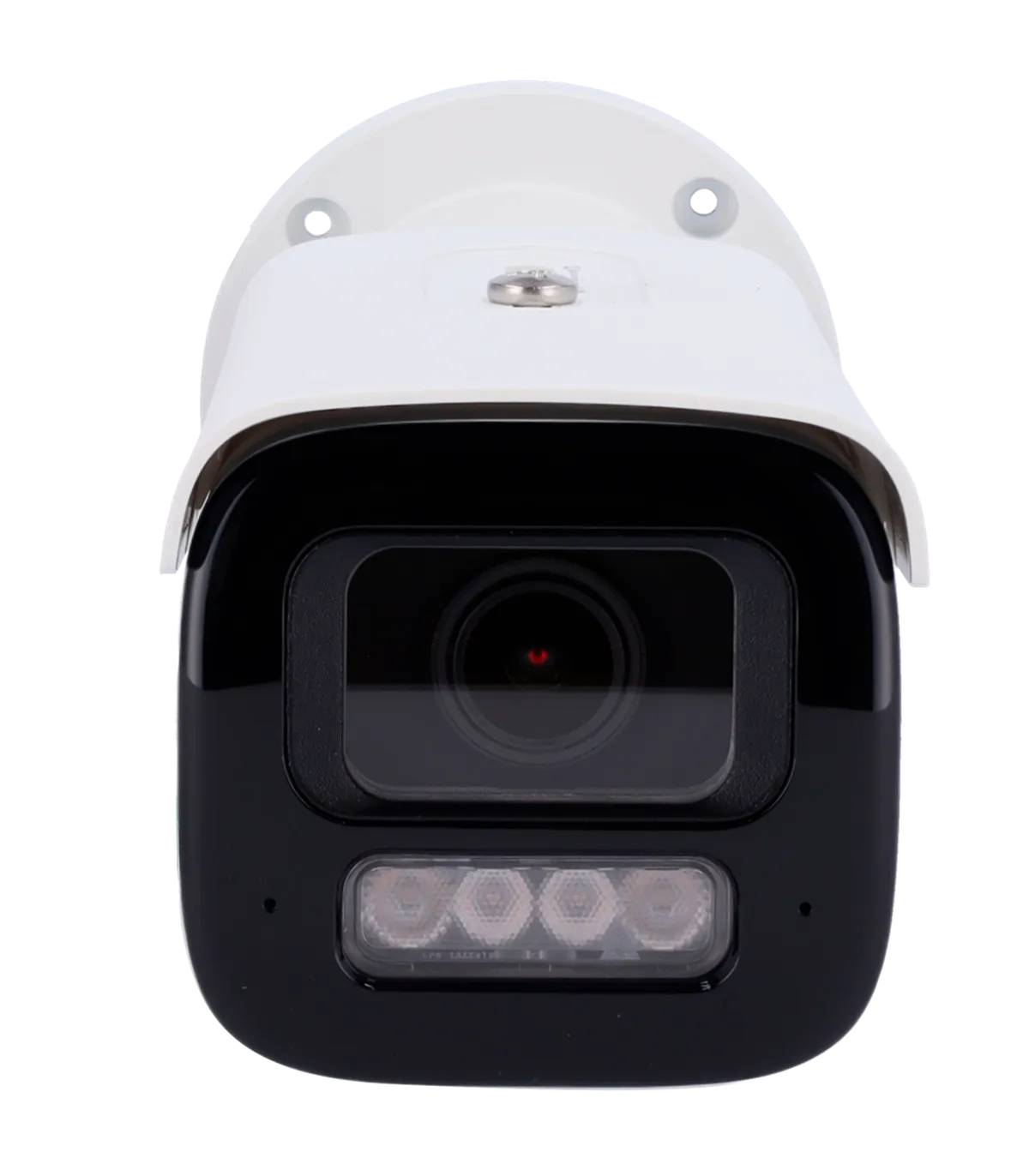

Description & Key Features: DS-2CD2643G2-LIZS2U(2.8-12mm)
The DS-2CD2643G2-LIZS2U(2.8-12mm) is a high-performance IP Bullet Camera designed for comprehensive surveillance in various environments. With its advanced features, this camera is ideal for both indoor and outdoor applications, providing exceptional image quality and reliable performance. The device is equipped with a 4 Megapixel resolution and a motorized varifocal lens, making it suitable for detailed monitoring in critical areas. Its hybrid light technology ensures visibility even in complete darkness, making it a versatile choice for security professionals.
- Hikvision
- PRO Series
- IP Bullet Camera
- 1/3" Progressive Scan CMOS
- 4 Megapixel (2688x1520)
- Motorized varifocal lens 2.8~12 mm
- 0 Lux
- Hybrid light: IR and white light
- Hybrid light range 60 m
- Compression H.265+ / H.265 / H.264+ / H.264
- Motion Detection 2.0
- AcuSense, false alarm filter for vehicles and people (line crossing and area intrusion)
- WDR (120 dB)
- 3D-DNR
- Alarms
- Audio
- Integrated dual array microphone
- MicroSD card slot up to 512 GB
- WEB interface, CMS, Smartphone, and NVR
- ONVIF compatible
- PoE+ (IEEE802.3at)
- IP67 waterproof
- IK10 vandal-proof
Specifications: DS-2CD2643G2-LIZS2U(2.8-12mm)
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280×720, 640x480, 640×360) * The third stream is supported under certain configurations |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Field of View (FOV) | H: 102.4~31.2°, V: 54.7~17.6°, D: 122.1~35.8° |
| DORI | 64~198 m (D), 25.4~78.6 m (O), 12.8~39.6 m (R), 6.4~19.8 m (I) |
| Electronic Shutter | 1/3~1/100.000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR |
| Supplementary Lighting | Hybrid light: IR range 60 m White light range 60 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, ROI Mirror function, Privacy masking |
| ANR | Yes |
| Alarms | 1 input / 1 output |
| Audio | 1 input / 1 output Integrated dual array microphone |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Ambient Noise Filtering | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, G), ISAPI, SDK |
| Power Supply | DC 12 V / 1080 mA / 13 W max. PoE+ IEEE802.3at |
| Protection Rating | IP67 waterproof IK10 vandal-proof |
| Material | Aluminum alloy |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 95.7 mm (H) x 97.9 mm (W) x 298 mm (D) |
| Base Dimensions | Ø base 105 mm / Ø between screws 88 mm / 4 screws |
| Weight | 1531 g |
Package Contents
- Hikvision IP Bullet Camera
- Installation materials
- User manual
Use Case
The DS-2CD2643G2-LIZS2U(2.8-12mm) is ideally suited for deployment in commercial and residential settings where security is paramount. For instance, a retail store can utilize this camera to monitor entrances and exits, ensuring a secure environment for customers and staff. The hybrid light technology allows for clear imaging both day and night, while the motion detection feature, enhanced by AcuSense technology, minimizes false alarms by accurately classifying human and vehicle movements. This capability is particularly beneficial in high-traffic areas, reducing unnecessary alerts. Additionally, the camera's remote access functionality enables security personnel to monitor live feeds from anywhere, enhancing overall situational awareness. With its robust IP67 waterproof and IK10 vandal-proof ratings, the camera is built to withstand harsh environmental conditions, making it a reliable choice for outdoor surveillance. Overall, the DS-2CD2643G2-LIZS2U(2.8-12mm) provides a comprehensive security solution that meets the demands of modern surveillance needs.
Data sheet
- Brand
- HIKVISION
- Resolution
- 4 Mpx
- Technology
- IP
- WDR
- WDR (120 dB)
- IR Distance
- 60 m
- Audio
- 1 Entrada / 1 Salida / Micrófono en array
- SD Slot
- Ranura MicroSD hasta 512 GB
- Wi-Fi
- No dispone
- IP Rating
- IP67
- IK Rating
- IK10
- Series
- PRO
- POE
- PoE+ (IEEE802.3at)
- Lens
- 2.8 ~ 12 mm Motorizada
- Compatible models
- DS-1280ZJ-S,DS-1280ZJ-S,DS-1276ZJ-SUS,DS-1276ZJ-SUS,DS-1275ZJ-SUS,DS-1275ZJ-SUS,DS-1275ZJ-S-SUS,DS-1275ZJ-S-SUS,DS-1260ZJ,DS-1260ZJ
Specific References
- EAN13
- 6942160462738
