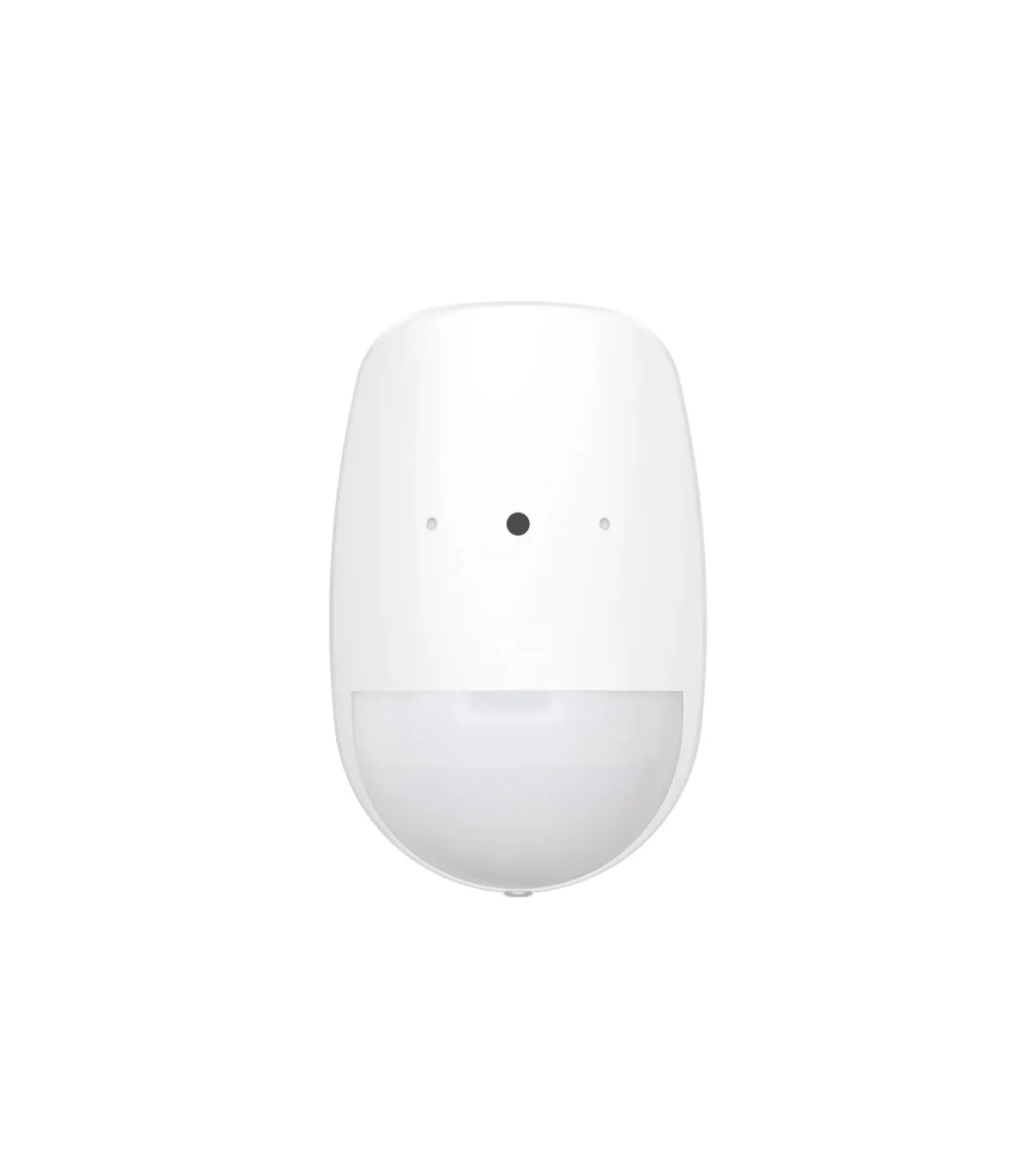

Hikvision DS-PDPG12P-EG2-WE IR Volumetric Detector

Characteristics of Detector Volumétrico IR Hikvision DS-PDPG12P-EG2-WE

The Detector Volumétrico IR Hikvision DS-PDPG12P-EG2-WE is an advanced security tool that offers effective perimeter protection. With a coverage of 12 meters in length and 85.9 degrees, this detector can detect movements on walls and windows, ensuring complete surveillance of your space.

Technical Characteristics:

• Bi-directional Tri-X transmission 868MHz
• Installation height: 2.4 to 3.6 meters
• Acoustic sensor for glass break detection (8 meters/120 degrees)
• Pet immunity and interference protection

Product Specifications:

• PIR detection range: 12 meters/85.9 degrees
• Glass break range: 8 meters/120 degrees
• Pet immunity up to 30 kg
• Remote configuration through the application
• Easy installation design and replaceable battery

Product Advantages and Use:

The Hikvision DS-PDPG12P-EG2-WE detector offers precise and reliable motion detection in your environment. With its pet immunity and interference protection, it ensures effective surveillance without false alarms. Its easy remote configuration and simple installation design make it an ideal choice for protecting your home or business.

Operation of the IR Detector:

When activated, the motion sensor performs an environment check, detecting variations in the infrared radiation emitted by objects. When a significant change in these variations occurs, an alarm is triggered, alerting you to the presence of movement in the monitored area.

Brand: Hikvision Intrusion
