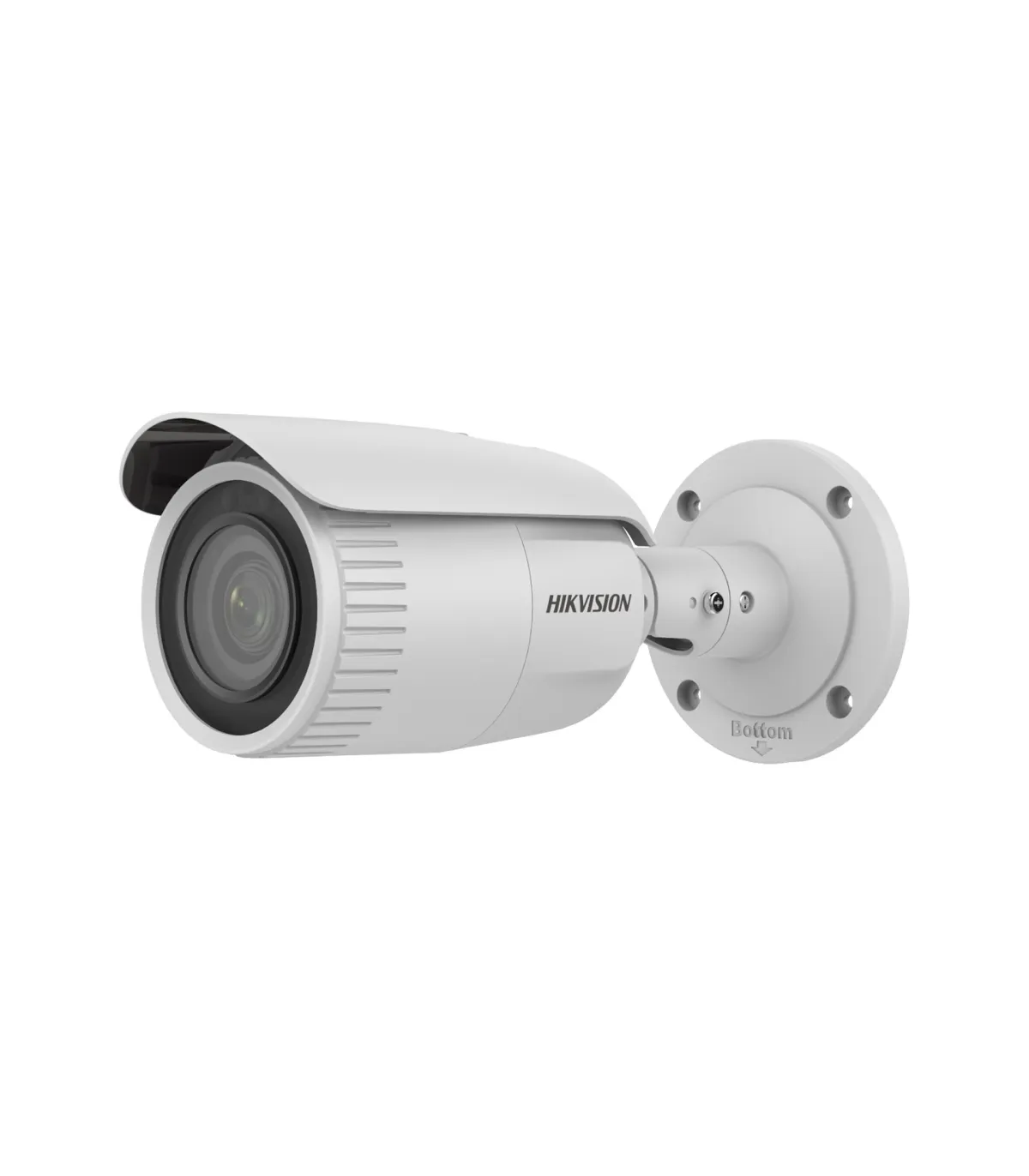

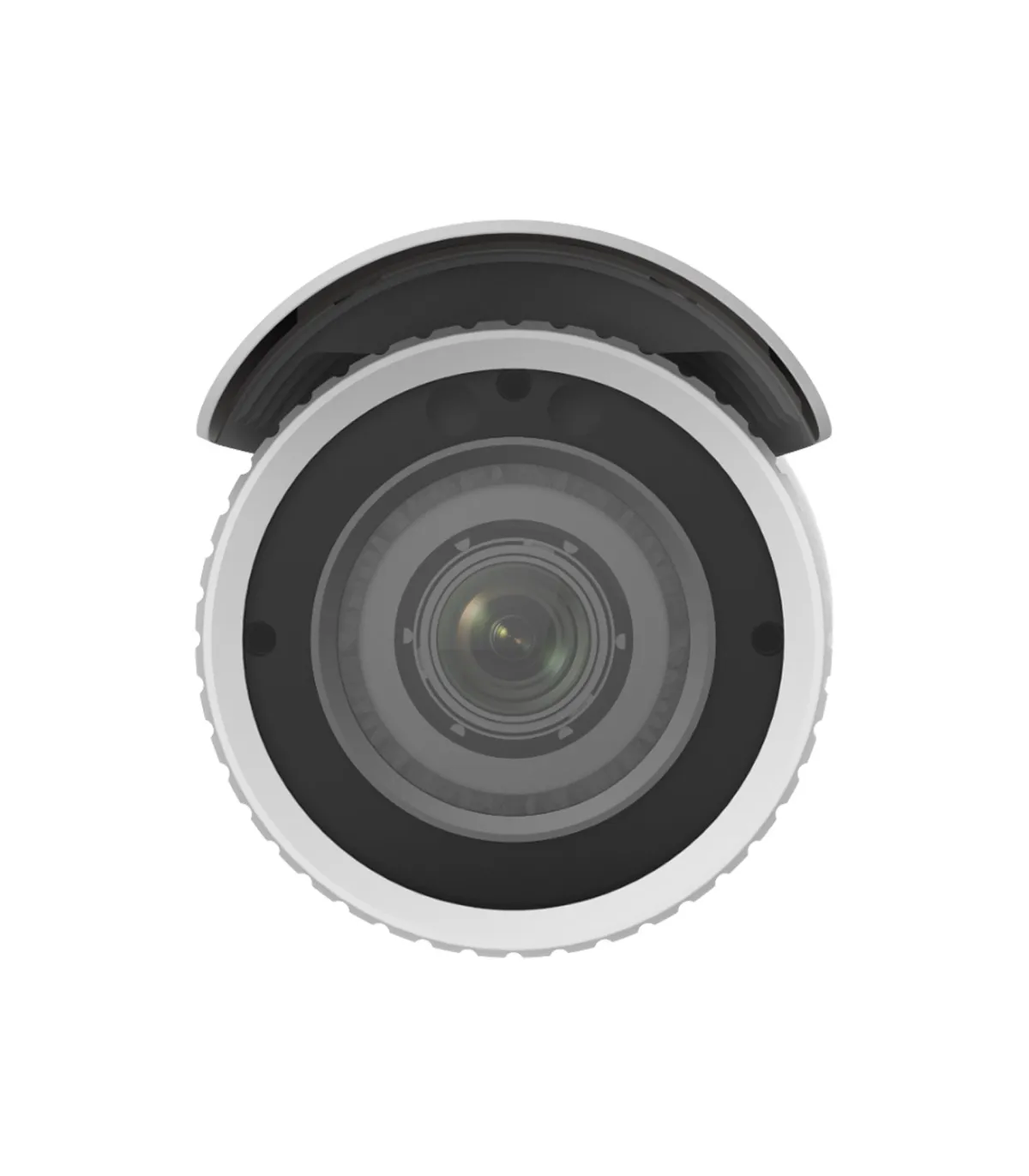

Hikvision IP Camera DS-2CD1643G0-IZ (2.8-12mm)

Image Sensor

1/3" Progressive Scan CMOS

Max. Resolution

2560 × 1440

Minimum Illumination

Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Wide Dynamic Range

120dB

Day & Night

IR Cut Filter

Angle Adjustment

Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°

Lens

Varifocal Lens, Motorized Lens, 2.8 to 12mm
Focal Length & Field of View:
- 2.8 to 12mm: Horizontal FOV 102° to 31°, Vertical FOV 55° to 18°, Diagonal FOV 122° to 36°
Lens Mount: Ø14
Iris Type: Fixed
Aperture: F1.6

Illuminator

Infrared Wavelength: 850 nanometer
IR Range: Up to 50 meters

Video

Main Stream
- 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720)
- 60 Hz: 20 fps (2560 × 1440), 30 fps (1920 × 1080, 1280 × 720)
Sub Stream
- 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression
- Main Stream: H.265+/H.265/H.264+/H.264
- Sub Stream: H.265/H.264/MJPEG
Video Bitrate: 32 Kbps to 8 Mbps
H.264 Type: Baseline/Main/High Profile
H.265 Type: Main Profile

Region of Interest (ROI)

1 fixed region for main stream

Audio

Audio Compression:
- S
