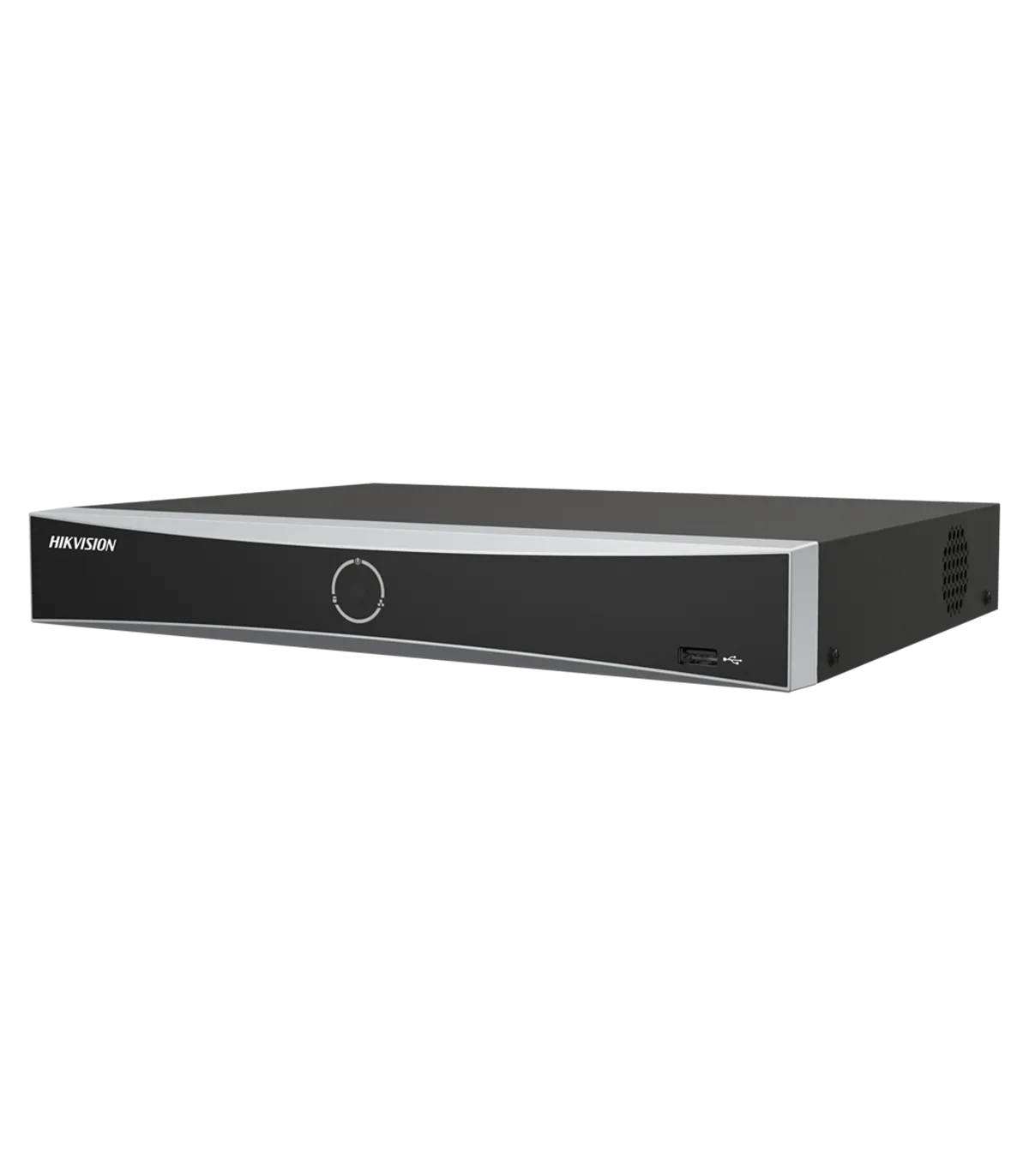

Hikvision AcuSense 8-Channel Integrated PoE NVR DS-7608NXI-K1/8P(D)
- Hikvision NVR 8 CH IP PoE PRO series recorder
- 8 CH PoE IEEE 802.3af/at 75 W max
- Maximum resolution 12MP@2ch
- Bandwidth 80 Mbps | Supports 1 hard drive
- AcuSense | Audio
- Motion Detection 2.0 | Face Recognition
Description & Key Features: DS-7608NXI-K1/8P(D)
The DS-7608NXI-K1/8P(D) is a professional-grade NVR designed for IP camera surveillance systems, making it ideal for both commercial and residential applications. This device supports up to 8 channels with PoE capabilities, ensuring efficient power delivery and data transmission. With a maximum resolution of 12 MP and advanced H.265+ compression, it provides high-quality video while optimizing storage space. The NVR features dual-stream access, allowing for remote monitoring via web interface or mobile applications, making it a versatile choice for modern security needs.
- Hikvision
- PRO Series
- NVR for IP cameras
- 8 CH PoE IEEE 802.3 af/at 75 W max.
- Supported incoming bandwidth 80 Mbps
- Maximum resolution 12 MP
- Compression H.265+/H.265/H.264+/H.264
- 4K HDMI and VGA output
- Motion detection 2.0 on all channels
- AcuSense, false alarm filter for vehicles and people (line crossing and area intrusion) on up to 1 channel
- Facial recognition
- Audio
- IP Access Dual Stream
- Mouse included
- Space for 1 HDD
- WEB interface, CMS, and Smartphone compatible
- ONVIF compliant
Specifications: DS-7608NXI-K1/8P(D)
| Brand | Hikvision |
| Series | PRO |
| IP Camera Inputs | LAN port up to 8 channels |
| PoE Power Supply | 8-port PoE switch IEEE802.3af/at (max. 75 W) |
| Compatible IP Cameras | HIKVISION (native protocol), ONVIF |
| Two-way Audio | 1 RCA input / 1 RCA output |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC |
| Video Outputs | 1xHDMI 4K, 1xVGA independent |
| Video Compression Format | H.265+ / H.265 / H.264+ / H.264 |
| Display Resolution | HDMI: 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720 |
| Total Bandwidth | 80 Mbps input / 80 Mbps output |
| Stream Type | Video / Video + Audio |
| Main Stream Recording | 12MP /8MP /6MP /5MP /4MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
| Decoding Capability | With AI enabled: 2CH@12MPx, 3CH@8MP, 6CH@4MP, 12CH@1080p With AI disabled: 2CH@12MPx, 4CH@8MP, 8CH@4MP, 16CH@1080p |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Motion Detection | Motion detection 2.0 with human and vehicle classification applied in motion detection For the NVR: Available on all channels up to 4 MP (up to 8 MP with SVC mode enabled). With cameras with motion detection 2.0: Available on all channels. |
| AcuSense | Rule-based VCA perimeter protection with false alarm filter for human and vehicle detection applied on: Line Crossing, Area Intrusion. For the NVR: Available on up to 1 channel of 4 MP. With AcuSense cameras: Available on all channels. |
| Facial Recognition | Face comparison, face capture, face search. Storage in up to 16 libraries with up to 20,000 faces in total (each image = 4 MB, total capacity = 1 GB). Facial detection and analysis tools on up to 1CH with 8 MP. Face comparison on up to 4 CH. |
| Object Drop Detection | Supported on all channels with cameras that have this function |
| Alarms | Not available |
| Recording Method | Manual, scheduled, motion detection |
| External Backup | USB memory / USB HDD / USB CD-RW / USB DVR-RW |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Remote Connections | 128 |
| Interoperability | ONVIF (Profile S, G), ISAPI, SDK |
| Internal Storage | 1 SATA 3.5" HDD up to 10 TB (not included) |
| Communication | 1 x USB 2.0 front, 1 x USB 2.0 rear / 1 x RJ45 10/100M (Ethernet) |
| Power Supply | DC 48 V / 1.875 A, ≤ 10 W (without HDD) |
| Operating Temperature | -10ºC ~ 55ºC (10%-90% Humidity) |
| Dimensions / Weight | 48 (H) x 320 (W) x 240 (D) mm / 1 Kg (without HDD) |
Package Contents
- Hikvision NVR
- Mouse
- Ethernet Cable
- User Manual
- Cabling for hard drive connection
- Power Adapter
Use Case
The DS-7608NXI-K1/8P(D) NVR is perfectly suited for a variety of surveillance applications, such as retail stores, office buildings, and residential complexes. In a retail environment, for instance, the device can be deployed to monitor customer interactions and prevent theft. With its motion detection 2.0 capabilities, the NVR can accurately identify human and vehicle movements, reducing false alarms and enhancing security. The facial recognition feature allows for efficient identification of individuals, which is particularly useful for access control in sensitive areas. Additionally, the device supports remote monitoring through web and mobile applications, enabling security personnel to keep an eye on premises from anywhere. The dual-stream access feature ensures that users can view live feeds while recording high-quality video, making it an essential tool for comprehensive security management.
Data sheet
- Brand
- HIKVISION PRO
- Wi-Fi
- No dispone
- Series
- Pro
Specific References
- EAN13
- 6942160489780
