- Hikvision Wifi Video Surveillance Kit
- 4 MP Bullet Camera + 4 MP PT Camera
- 6 MP IP 4 Channel NVR
- 2.8 mm Lens (both cameras)
- Bullet: IR 30 m | PT: IR 25 m, white light 25 m
- Integrated Microphone | MicroSD | 1 HDD | IP66

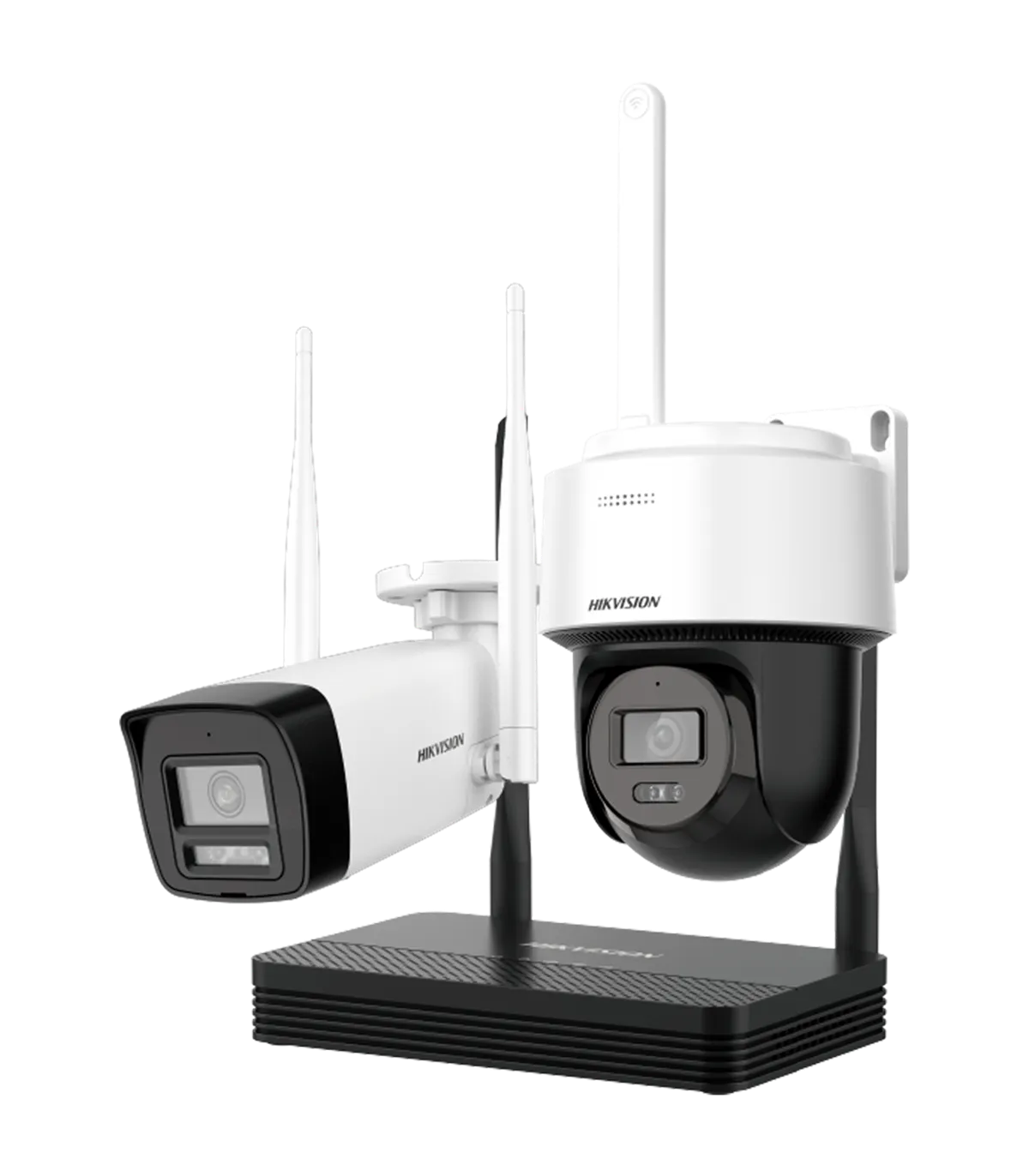

Description & Key Features: DS-J142I/NKS424W03H
The DS-J142I/NKS424W03H is a comprehensive WiFi surveillance kit designed for effective monitoring in various environments. This kit includes a bullet camera, a PT dome camera, and a 4-channel NVR, making it ideal for both residential and commercial applications. With its advanced features, this system ensures high-quality video capture and remote access capabilities, providing users with peace of mind and enhanced security.
- Hikvision
- WiFi surveillance kit
- Includes: Bullet camera, PT dome camera, and 4CH NVR recorder
- Bullet camera sensor: 1/2.7" Progressive Scan CMOS
- PT camera sensor: 1/2.7" Progressive Scan CMOS
- Bullet camera resolution: 4 Mpx
- PT camera resolution: 4 Mpx
- Bullet camera lens: 2.8 mm
- PT camera lens: 2.8 mm
- Bullet camera illumination: IR range 30 m
- PT camera illumination: Hybrid light (IR range 25 m, white light range 25 m)
- Bullet camera video compression: H.265, H.264, MJPEG
- PT camera video compression: H.265, H.264, MJPEG
- Motion detection 2.0
- Integrated microphone
- MicroSD card slot up to 512 GB
- Bullet camera protection: IP66
- PT camera protection: IP66
- NVR recorder for IP cameras 4 CH
- Supported incoming bandwidth on the recorder: 20 Mbps
- Maximum resolution of the recorder: 6 Mpx
- Space for 1 HDD
- Compatible with WiFi 802.11b/g/n/ax
- WEB, CMS, Smartphone, and NVR interface
Specifications: DS-J142I/NKS424W03H
Bullet Camera | |
| Brand | Hikvision |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Resolution | 4 Mpx (2560x1440) |
| Main Stream Rate | 25 fps (2560x1440, 1920x1080, 1280x720) |
| Extra Stream Rate | 25 fps (768x432) |
| Compression | H.265, H.264, MJPEG |
| Bitrate | 32 Kbps to 8 Mbps |
| Optics | Fixed lens 2.8 mm |
| Field of View | H: 94°, V: 49°, D: 114° |
| Minimum Illumination | Color: 0.005 Lux @ (F1.6, AGC ON) B/W: 0 Lux with IR (range 30 m) |
| Day/Night | Removable ICR mechanical filter |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Image Enhancements | DWDR, 3D-NR, BLC, HLC, Mirror effect, Privacy masking |
| Audio | Integrated microphone and speaker |
| Audio Compression | G.711ulaw/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC) |
| Environmental Noise Reduction | Yes |
| Network Interface | Ethernet 10/100 BaseT WiFi IEEE 802.11b/g/n/ax |
| Internal Storage | MicroSD card slot up to 512 GB |
| Power Supply | DC 12 V / 0.5 A / 6 W max. |
| Operating Temperature | -30º C ~ +60º C |
| Protection Grade | Waterproof IP66 |
| Dimensions | 67.4 mm (H) x 113.9 mm (W) x 260.9 mm (D) |
| Weight | 305 g |
PT Dome Camera | |
| Brand | Hikvision |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Resolution | 4 Mpx (2560x1440) |
| Main Stream Rate | 25 fps (2560x1440, 1920x1080, 1280x720) |
| Extra Stream Rate | 25 fps (768x432) |
| Bitrate | 32 Kbps to 8 Mbps |
| Compression | H.265, H.264, MJPEG |
| Optics | Fixed lens 2.8 mm |
| Field of View | H: 94°, V: 49°, D: 114° |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR |
| Supplementary Illumination | Hybrid light: IR range 25 m White light range 25 m |
| Day/Night | Removable ICR mechanical filter |
| Pan/Tilt Range | Horizontal: 0~345°, Vertical: 0°~80° |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Image Enhancements | DWDR, 3D-NR, BLC, HLC, Privacy masking |
| Audio | Integrated microphone and speaker |
| Audio Compression | G.711ulaw/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC) |
| Environmental Noise Reduction | Yes |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10/100 BaseT WiFi IEEE 802.11b/g/n/ax |
| Power Supply | DC 12 V / 0.75 A / 9 W max. |
| Operating Temperature | -10º C ~ +40º C |
| Protection Grade | Waterproof IP66 |
| Dimensions | 124 mm (Ø) x 119 mm (H) |
| Weight | 600 g |
NVR | |
| Brand | Hikvision |
| IP Camera Inputs | LAN port up to 4 channels WiFi IEEE 802.11b/g/n/ax |
| Wi-Fi Frequency | 2.4 GHz |
| Wi-Fi Transmission Speed | 150 Mbps |
| Video Compression Format | H.265, H.264, MJPEG |
| Total Bandwidth | 20 Mbps input / 20 Mbps output |
| Main Stream Recording | 6 Mpx / 5 Mpx / 4 Mpx / 3 Mpx / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Simultaneous Multifunction | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Recording Method | Manual, scheduled, motion detection |
| Internal Storage | 1 SATA HDD |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Operating Temperature | -10º C ~ +55º C |
| Power Supply | DC 12 V / 6 W |
| Dimensions | 26 (H) x 163 (W) x 125 (D) mm |
| Weight | 500 g (without hard drive) |
Package Contents
- 4 CH NVR recorder
- 4 Mpx bullet camera
- 4 Mpx PT dome camera
- Power adapters
- 1 m RJ45 cat5e cable
- User manual
Use Case
The DS-J142I/NKS424W03H surveillance kit is perfect for small to medium-sized businesses looking to enhance their security measures. For instance, a retail store can deploy this system to monitor entrances and exits effectively. The bullet camera provides clear images even in low light conditions, while the PT dome camera offers flexible viewing angles with its pan and tilt capabilities. This setup allows for remote monitoring via a smartphone app, enabling store owners to keep an eye on their premises from anywhere. Additionally, the integrated microphone and speaker facilitate two-way audio communication, enhancing customer service and security. With features like motion detection and high-resolution recording, this kit ensures that every detail is captured, providing valuable evidence if needed. Overall, the DS-J142I/NKS424W03H is an ideal solution for businesses aiming to improve their surveillance and security infrastructure.
Data sheet
- Brand
- HIKVISION
- Technology
- IP
Specific References
- EAN13
- 6942160476353
