- Hikvision Wifi Video Surveillance Kit
- 2 Bullet Cameras 4 MP
- NVR 4 Channel IP 6 MP (2560x1440)
- 2.8 mm Lens
- IR Range 30 m
- Integrated Microphone | MicroSD | IP66
Description & Key Features: DS-J142I/NKS424W0H

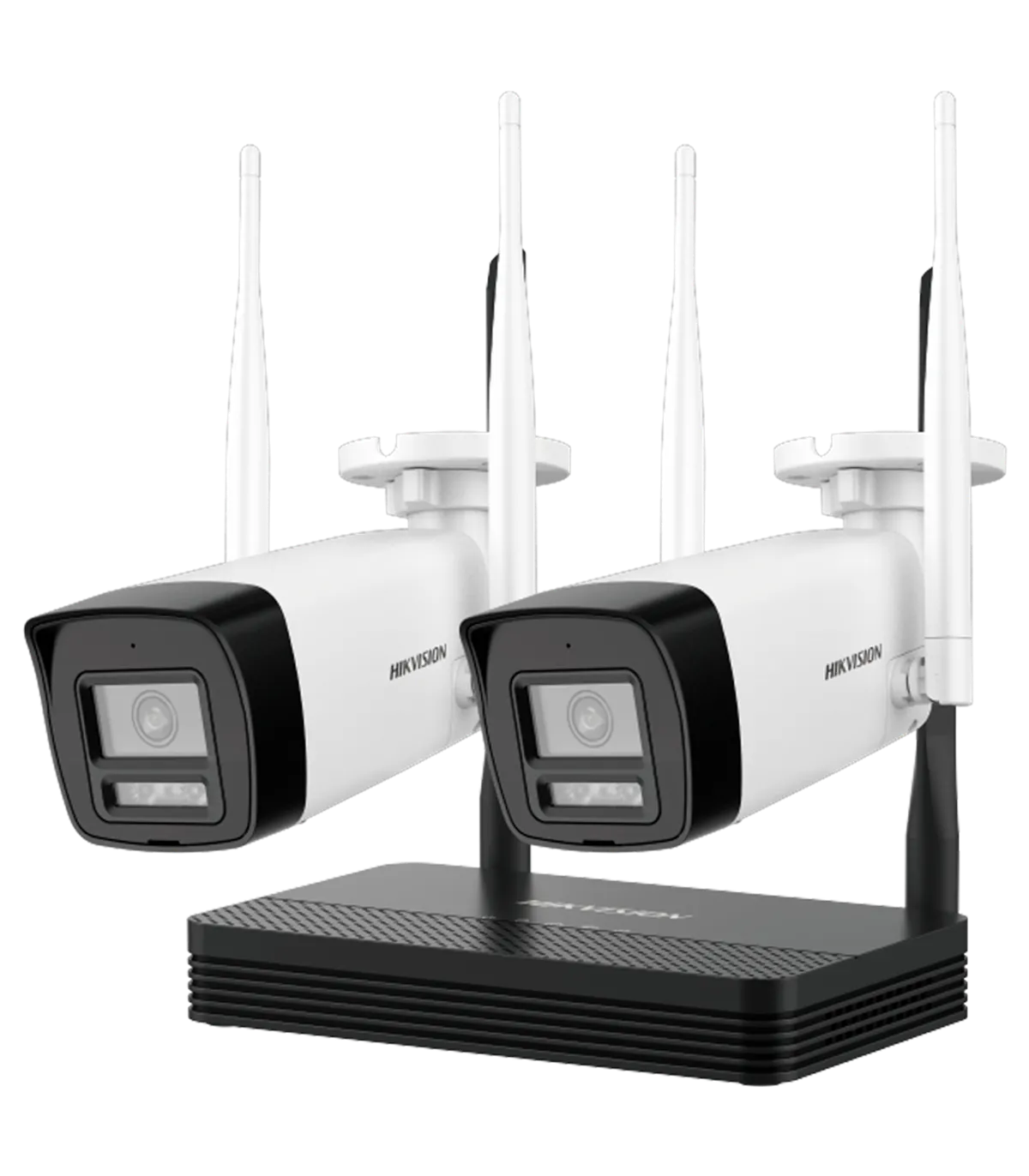

The DS-J142I/NKS424W0H is a comprehensive WiFi surveillance kit designed for effective monitoring in various environments. This system includes two bullet cameras and a 4-channel NVR, making it ideal for both residential and commercial applications. With features such as 4 MP resolution and IR illumination up to 30 meters, it ensures high-quality video capture even in low-light conditions. The kit is compatible with WiFi 802.11b/g/n/ax, allowing for flexible installation and easy integration into existing networks.
- Hikvision
- WiFi surveillance kit
- Includes: 2 bullet cameras and 4CH NVR recorder
- Bullet camera sensor 1/2.7" Progressive Scan CMOS
- Bullet camera resolution 4 MP
- Bullet camera lens 2.8 mm
- Bullet camera illumination: IR range 30 m
- Bullet camera video compression H.265, H.264, MJPEG
- Motion detection 2.0
- Integrated microphone and speaker
- Bullet camera protection IP66
- NVR recorder for IP cameras 4 CH
- Supported incoming bandwidth on the recorder 20 Mbps
- Maximum resolution of the recorder 6 MP
- MicroSD card slot up to 512 GB
- Compatible with WiFi 802.11b/g/n/ax
- WEB, CMS, Smartphone, and NVR interface
Specifications: DS-J142I/NKS424W0H
Bullet Cameras | |
| Brand | Hikvision |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Resolution | 4 MP (2560x1440) |
| Main Stream Rate | 25 fps (2560x1440, 1920x1080, 1280x720) |
| Extra Stream Rate | 25 fps (768x432) |
| Compression | H.265, H.264, MJPEG |
| Bitrate | 32 Kbps to 8 Mbps |
| Optics | Fixed lens 2.8 mm |
| Field of View | H: 94°, V: 49°, D: 114° |
| Minimum Illumination | Color: 0.005 Lux @ (F1.6, AGC ON) B/W: 0 Lux with IR (range 30 m) |
| Day/Night | Removable ICR mechanical filter |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Image Enhancements | DWDR, 3D-NR, BLC, HLC, Mirror effect, Privacy masking |
| Audio | Integrated microphone and speaker |
| Audio Compression | G.711ulaw/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC) |
| Environmental Noise Reduction | Yes |
| Network Interface | Ethernet 10/100 BaseT WiFi IEEE 802.11b/g/n/ax |
| Power Supply | DC 12 V / 0.5 A / 6 W max. |
| Operating Temperature | -30º C ~ +60º C |
| Protection Grade | Waterproof IP66 |
| Dimensions | 67.4 mm (H) x 113.9 mm (W) x 260.9 mm (D) |
| Weight | 305 g |
NVR | |
| Brand | Hikvision |
| IP Camera Inputs | LAN port up to 4 channels WiFi IEEE 802.11b/g/n/ax |
| Wi-Fi Frequency | 2.4 GHz |
| Wi-Fi Transmission Speed | 150 Mbps |
| Video Compression Format | H.265, H.264, MJPEG |
| Total Bandwidth | 20 Mbps input / 20 Mbps output |
| Main Stream Recording | 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Simultaneous Multifunction | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Recording Method | Manual, scheduled, motion detection |
| Internal Storage | MicroSD card slot up to 512 GB |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Operating Temperature | -10º C ~ +55º C |
| Power Supply | DC 12 V / 6 W |
| Dimensions | 26 (H) x 163 (W) x 125 (D) mm |
| Weight | 500 g (without hard drive) |
Package Contents
- 4 CH NVR recorder
- 2 Bullet cameras 4 MP
- Power adapters
- 1 m RJ45 cat5e cable
- User manual
Use Case
The DS-J142I/NKS424W0H surveillance kit is perfect for small to medium-sized businesses looking to enhance their security measures. For instance, a retail store can deploy this system to monitor entrances and high-traffic areas. The plug-and-play setup allows for quick installation, while the remote monitoring capabilities enable store owners to keep an eye on their premises from anywhere. The motion detection feature ensures that any suspicious activity is promptly recorded, providing peace of mind. Additionally, the integrated microphone and speaker facilitate two-way communication, making it easier to manage customer interactions or address security concerns in real-time. With its IP66 waterproof rating, the bullet cameras can be installed both indoors and outdoors, ensuring comprehensive coverage. This system not only enhances security but also helps in loss prevention and operational efficiency.
Data sheet
- Brand
- HIKVISION
- Technology
- IP
- Channels
- 4
Specific References
- EAN13
- 6942160474670
