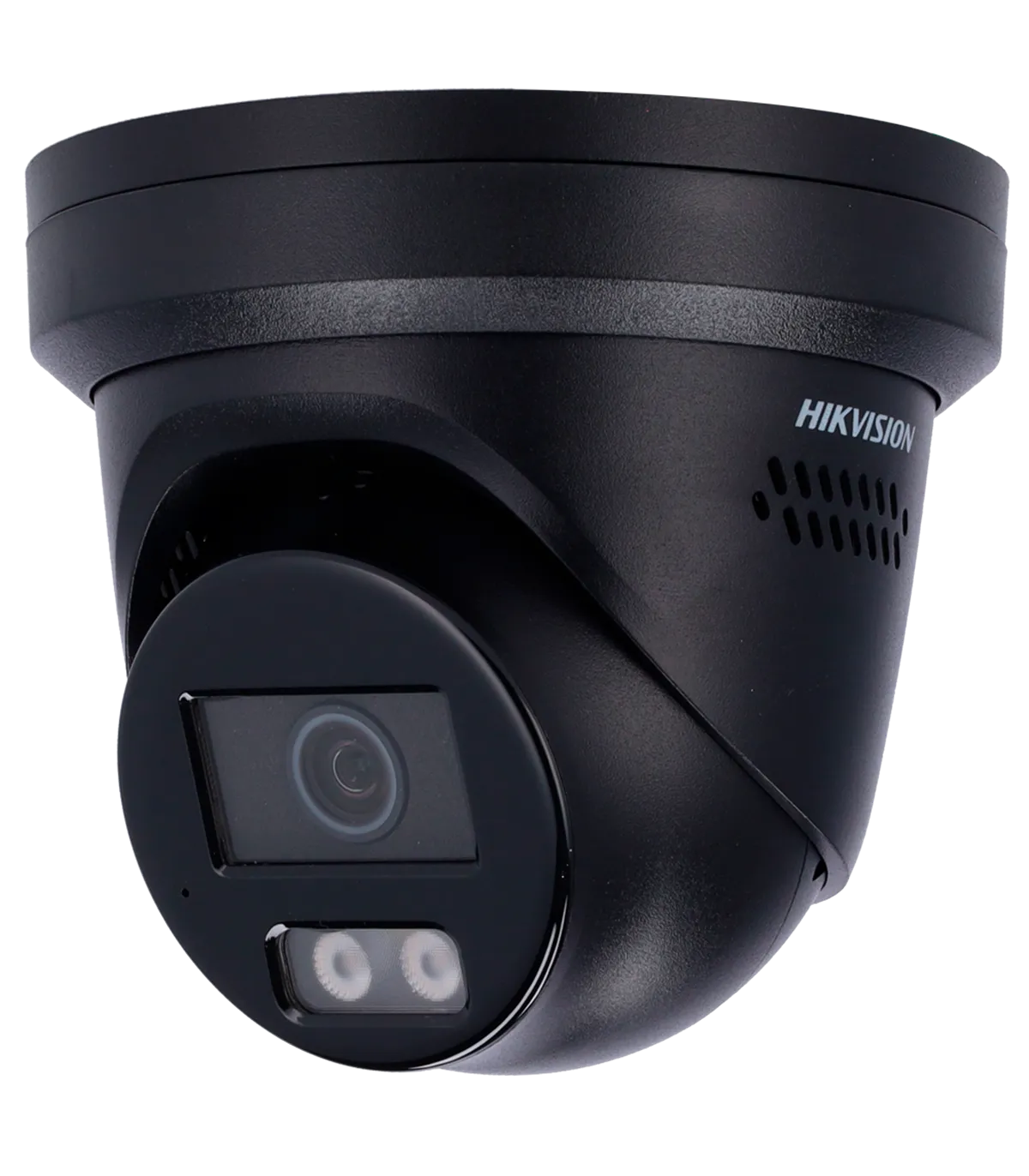

- Hikvision PRO Series IP Turret Camera
- 8 MP Resolution
- 2.8 mm Lens | MicroSD
- Hybrid Light 30 m | PoE | Alarms | ColorVu
- DM 2.0 | AcuSense | Facial Recognition
- Microphone | Siren and Strobe | IP67 | Audio
Description & Key Features: DS-2CD2387G2H-LISU/SL(2.8)/eF//BLK
The DS-2CD2387G2H-LISU/SL(2.8)/eF//BLK is a high-performance IP turret camera designed for advanced surveillance applications. This device is ideal for both indoor and outdoor environments, providing exceptional image quality with its 8 Megapixel resolution and ColorVu technology, which ensures vibrant color images even in low-light conditions. With features such as motion detection and AcuSense technology, this camera effectively reduces false alarms while enhancing security monitoring.
- Hikvision
- PRO Series
- IP Turret Camera
- 1/1.8" Progressive Scan CMOS
- 8 Megapixel (3840x2160)
- 2.8 mm Lens
- 0 Lux
- Hybrid Light: IR and white light
- Hybrid light range 30 m
- ColorVu: 24-hour color image
- Compression H.265+ / H.265 / H.264+ / H.264
- Motion Detection 2.0
- AcuSense, false alarm filter for vehicles and people (Line Crossing, Area Intrusion, Entry Region, Exit Region)
- Face Capture
- WDR (130 dB)
- 3D DNR
- Integrated microphone and speaker
- Alarms
- Audio
- Integrated deterrent siren and flash
- MicroSD card slot up to 512 GB
- RJ-45 10/100M BaseT
- PoE IEEE802.3af
- WEB interface, CMS, Smartphone, and NVR
- ONVIF compatible
- IP67 waterproof
- Eco-friendly packaging
- Black color
Specifications: DS-2CD2387G2H-LISU/SL(2.8)/eF//BLK
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 25 fps (3840x2160, 3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640×480, 640x360) |
| Third Stream Rate | 10 fps (1920x1080, 1280x720, 640×480, 640x360) * (The third stream is only available under certain configurations) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Lens | 2.8 mm |
| Field of View (FOV) | H: 108.8°, V: 56.4°, D: 134.3° |
| DORI | 89 m (D), 35 m (O), 17 m (R), 8 m (I) |
| Minimum Illumination | Color: 0.0008 Lux @(F1.0, AGC ON) 0 Lux with IR range 30 m |
| Supplementary Illumination | Hybrid light: IR range 30 m White light range 30 m |
| Day/Night | ColorVu: 24-hour color image |
| Alarms | 1 input / 1 output |
| Deterrent Alarm | Integrated siren and strobe flash in the camera |
| Audio | 1 input / 1 output Integrated microphone and speaker |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Environmental Noise Filtering | Yes |
| Image Enhancements | WDR (130 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Smart Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Area, and Exit Area. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10/100M BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, G, T), ISAPI, SDK |
| Power Supply | DC 12 V / 750 mA / 9 W max. PoE IEEE802.3af |
| Protection Grade | IP67 waterproof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 138.3 mm × 115.4 mm (H) |
| Base Dimensions | Ø base 138.3 mm / Ø between screws 96 mm / 3 screws |
| Weight | 820 g |
| Color | Black |
Package Contents
- Hikvision IP Turret Camera
- Installation materials
- User instructions
Use Case
The DS-2CD2387G2H-LISU/SL(2.8)/eF//BLK is perfectly suited for a variety of surveillance applications, including retail stores, parking lots, and residential areas. For instance, in a retail environment, this camera can be strategically placed at entry points to provide remote monitoring capabilities, ensuring that store owners can keep an eye on customer activity and potential theft. The motion detection feature, enhanced by AcuSense technology, allows for precise alerts when human or vehicle movement is detected, significantly reducing false alarms. Additionally, the integrated microphone and speaker facilitate two-way audio communication, enhancing security measures. With its robust IP67 waterproof rating, this camera can withstand harsh weather conditions, making it ideal for outdoor installations. Overall, the DS-2CD2387G2H-LISU/SL(2.8)/eF//BLK offers a comprehensive solution for effective surveillance and security management.
Data sheet
- Brand
- HIKVISION
- Resolution
- 8 Mpx
- Technology
- IP
- WDR
- WDR (130 dB)
- IR Distance
- 30 m
- Audio
- 1 Entrada / 1 Salida / Micrófono / Altavoz disuasorio
- SD Slot
- Ranura MicroSD hasta 512 GB
- Wi-Fi
- No dispone
- IP Rating
- IP67
- IK Rating
- No dispone
- Series
- PRO
- POE
- PoE (IEEE802.3af)
- Lens
- 2.8 mm
- Compatible models
- DS-1280ZJ-PT6,DS-1280ZJ-PT6,DS-1276ZJ-SUS,DS-1276ZJ-SUS,DS-1275ZJ-SUS-BLACK,DS-1275ZJ-SUS-BLACK,DS-1273ZJ-140B-BLACK,DS-1273ZJ-140B-BLACK,DS-1273ZJ-140,DS-1273ZJ-140,DS-1271ZJ-140,DS-1271ZJ-140
Specific References
- EAN13
- 6942160440088
