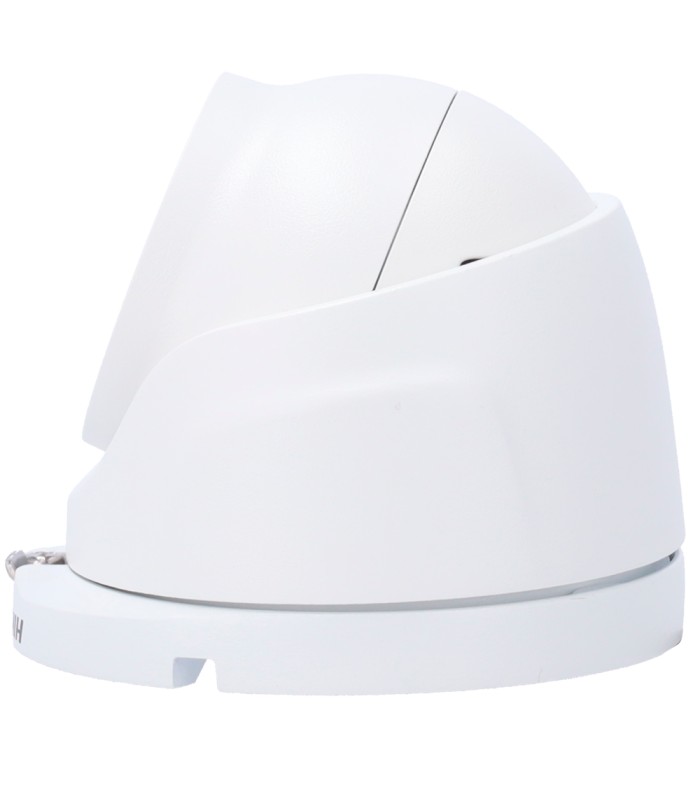

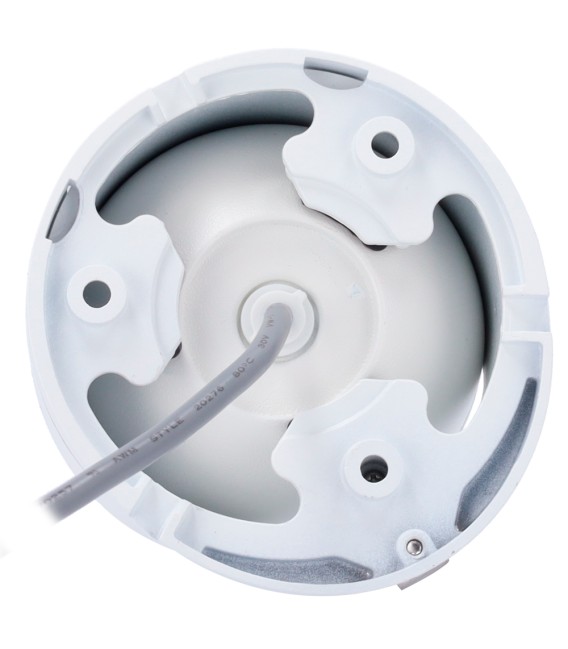

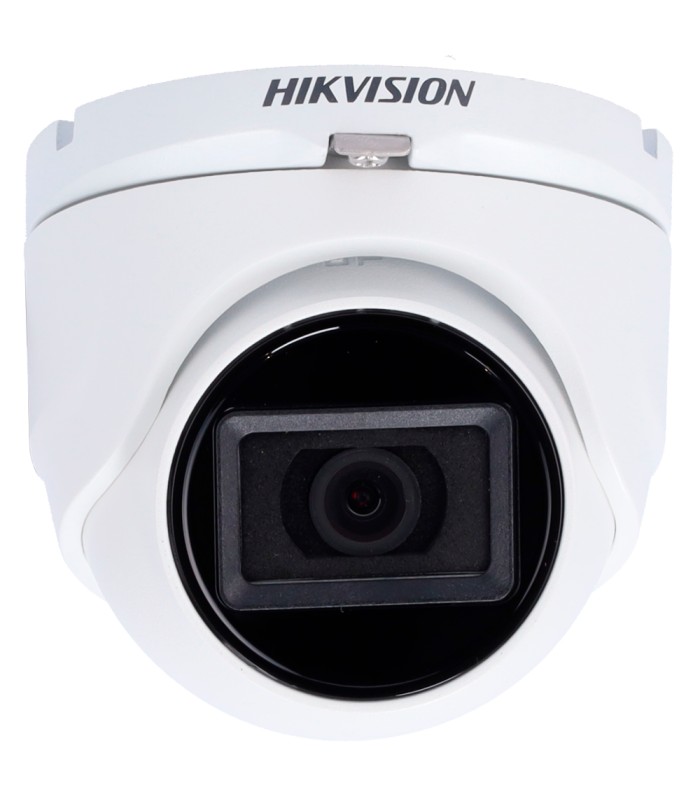

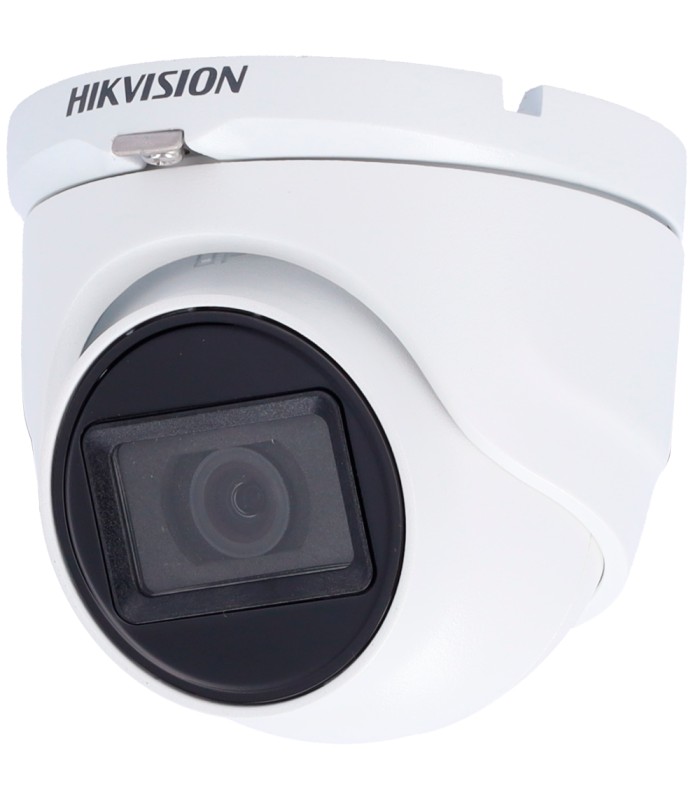

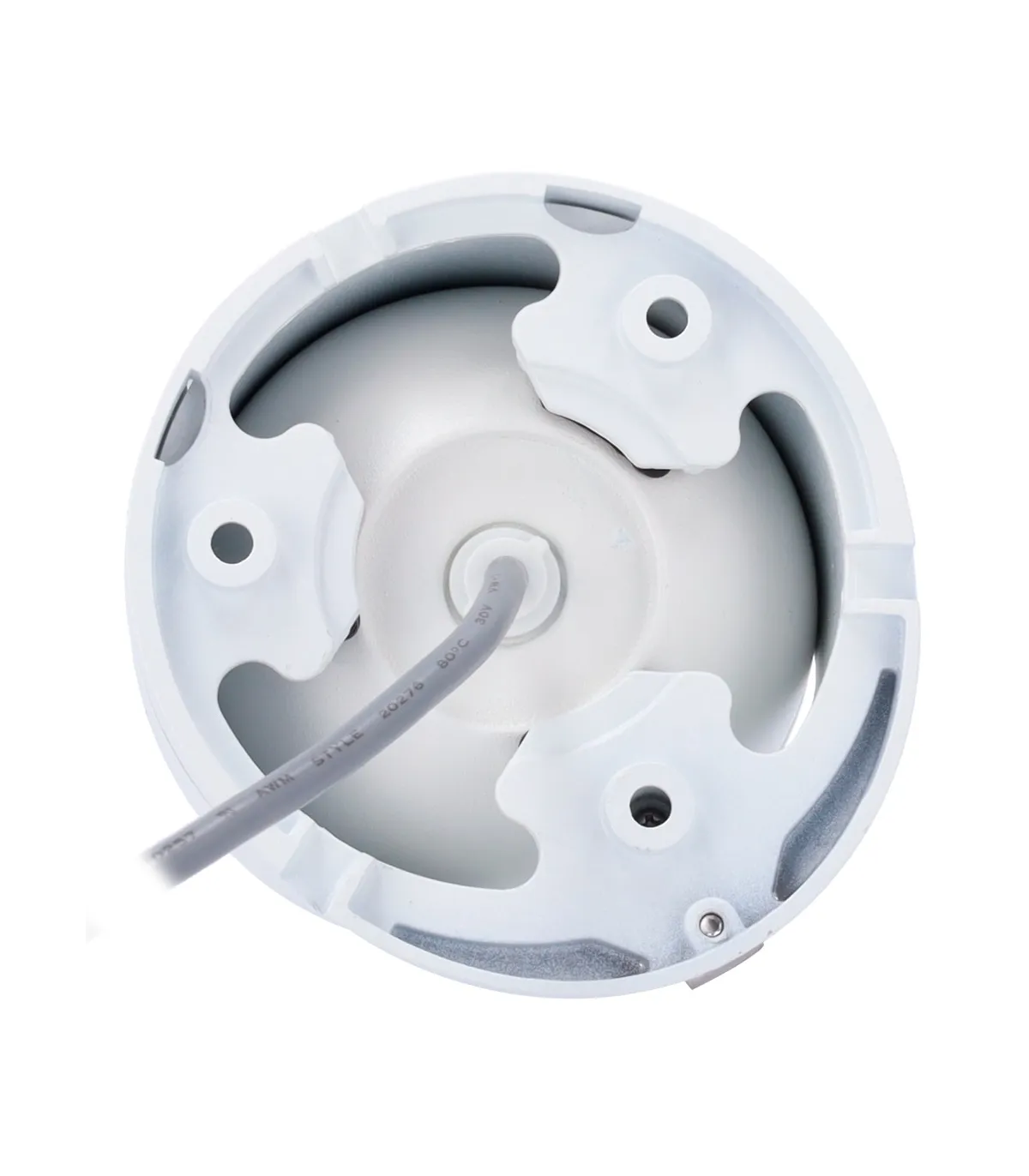

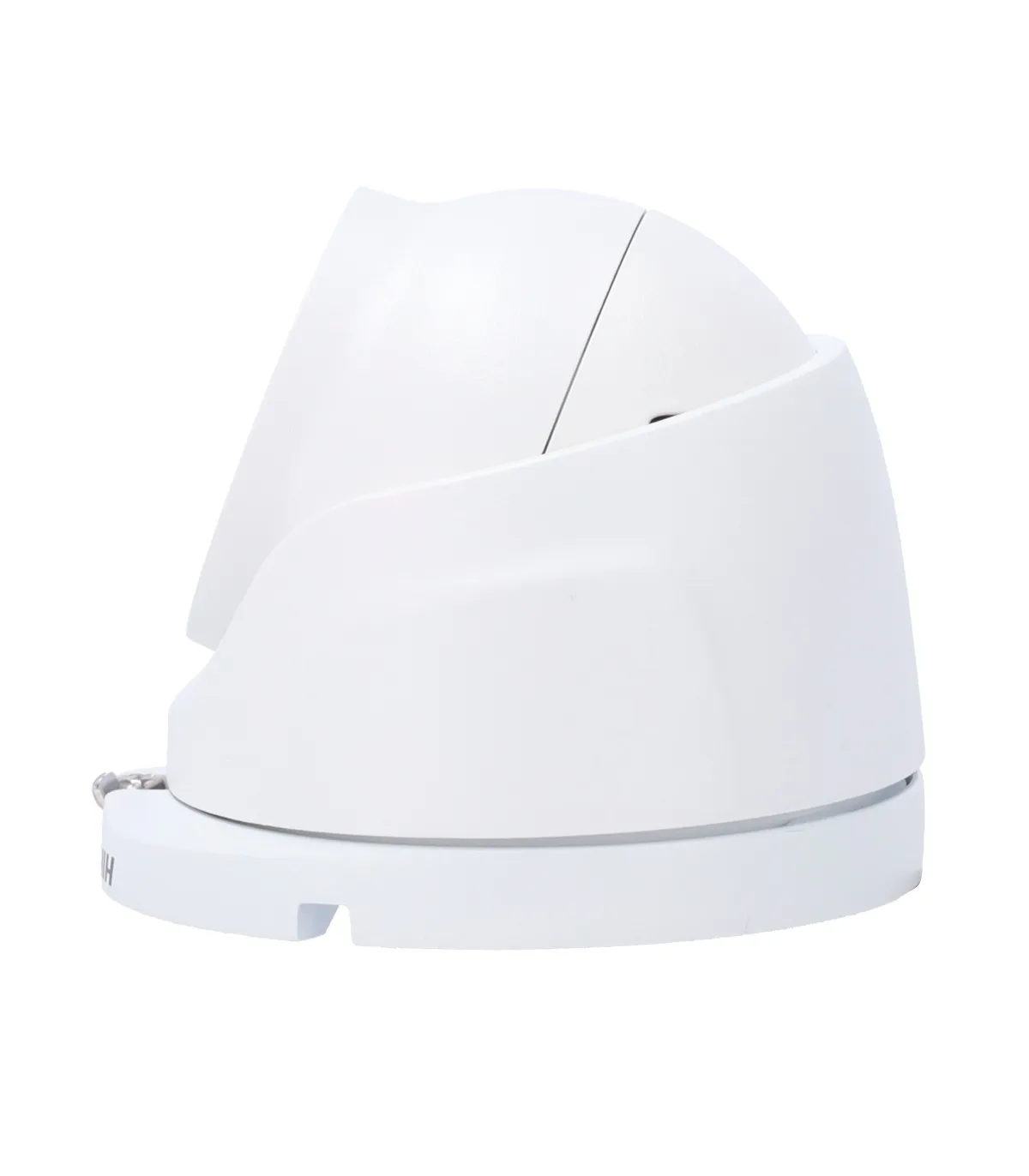

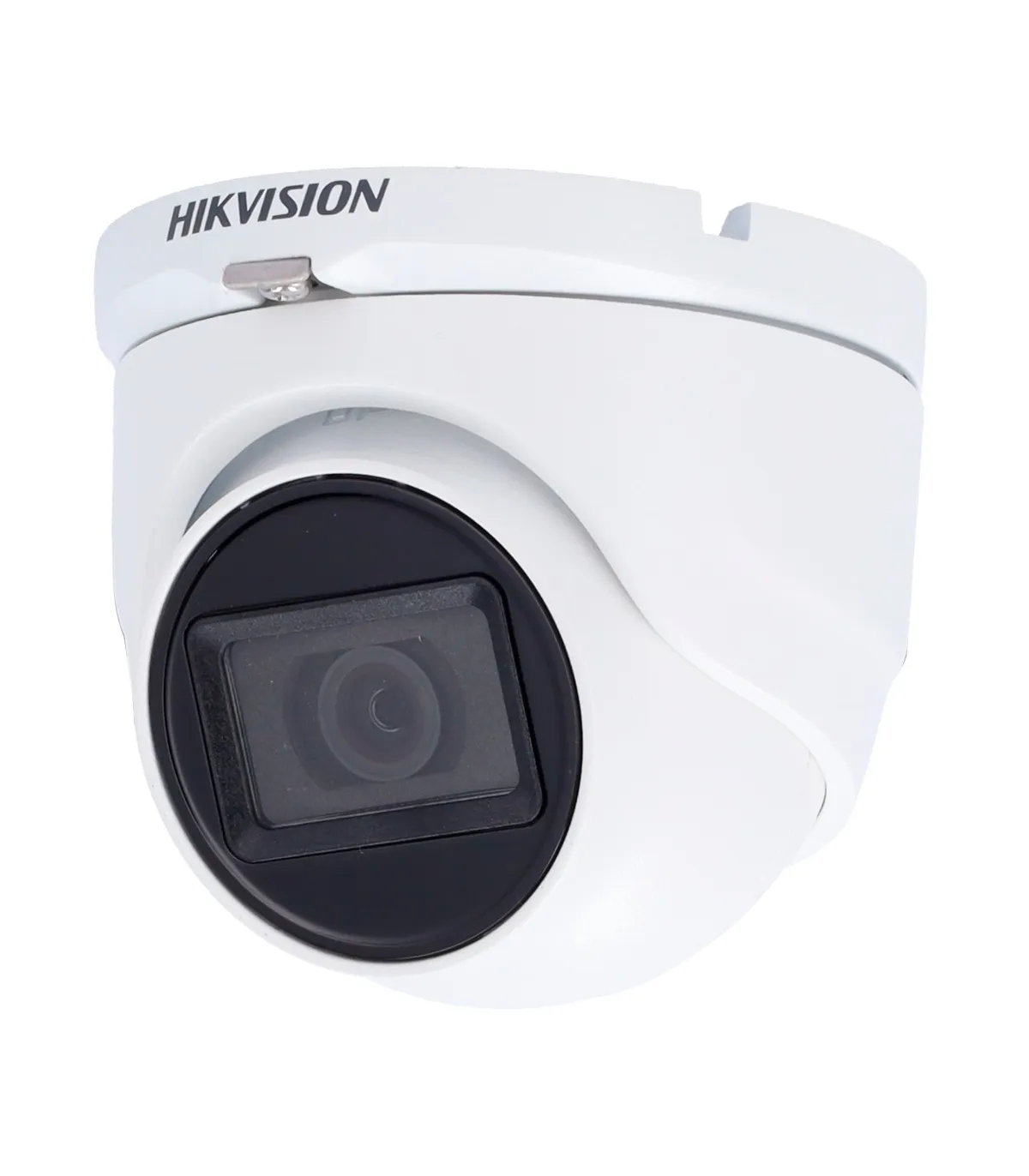

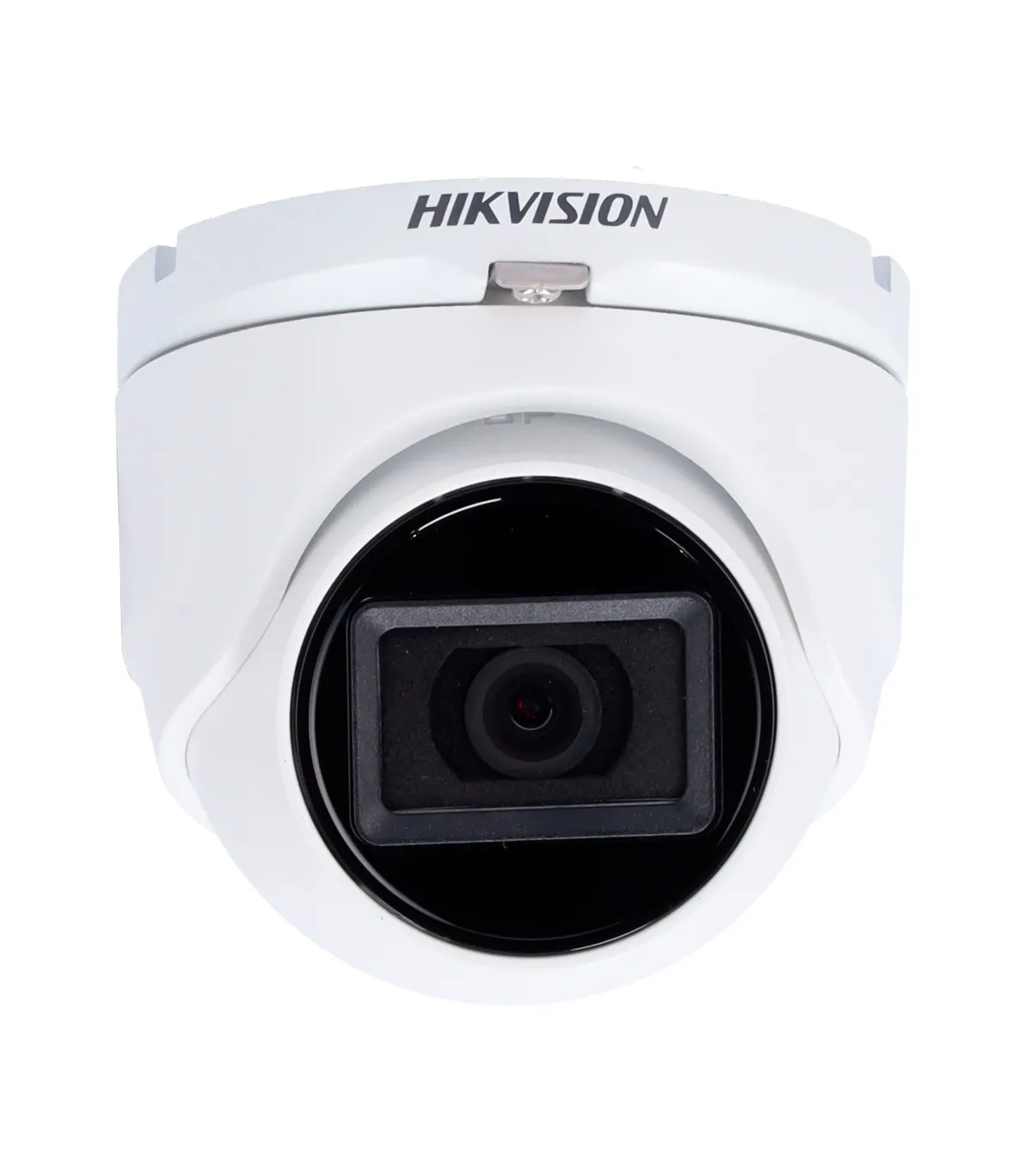

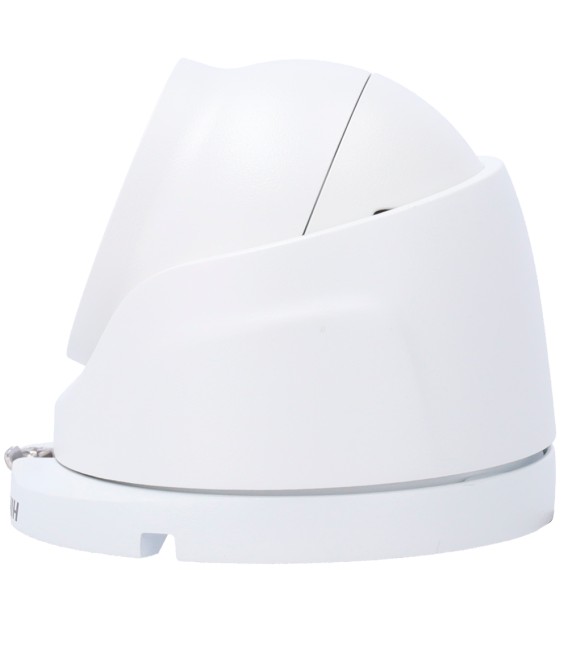

4in1 Dome Camera Core Range Hikvision DS-2CE76D0T-ITMF(2.8mm)(C)
Brand: HIKVISION CORE
- Hikvision
- 4in1 CORE Range Dome Camera
- Resolution 1080p (1920x1080)
- 2.8mm Lens
- EXIR IR Range 30m
- Waterproof IP67
4in1 Dome Camera Core Range Hikvision DS-2CE76D0T-ITMF(2.8mm)(C)
- Hikvision
- CORE Range
- HDTVI, HDCVI, AHD and CVBS Dome Camera
- High Performance CMOS
- HD 1080p (1920x1080)
- 4 in 1 output
- Lens 2.8 mm
- 0 Lux
- EXIR IR Range 30 m
- 2D DNR
- IR CUT
- Waterproof IP67
Technical specifications
| Brand | Hikvision |
| Range | CORE |
| Image Sensor | High Performance CMOS |
| Maximum resolution | 1080p (1920x1080) at 30 fps |
| Resolution | TVI: 1080p (25~30 fps) CVI: 1080p (25~30 fps) AHD: 1080p (25~30 fps) CVBS: PAL/NTSC |
| Lens | 2.8 mm |
| Angle of view (FOV) | 101º (H), 60º (V), 122º (D) |
| Minimum illumination | 0.01 Lux @ (F1.2, AGC ON) |
| Infrared illumination | 0 Lux / (Smart EXIR IR range 30 m) |
| Day / Night | Auto / Color / Black and White (ICR) |

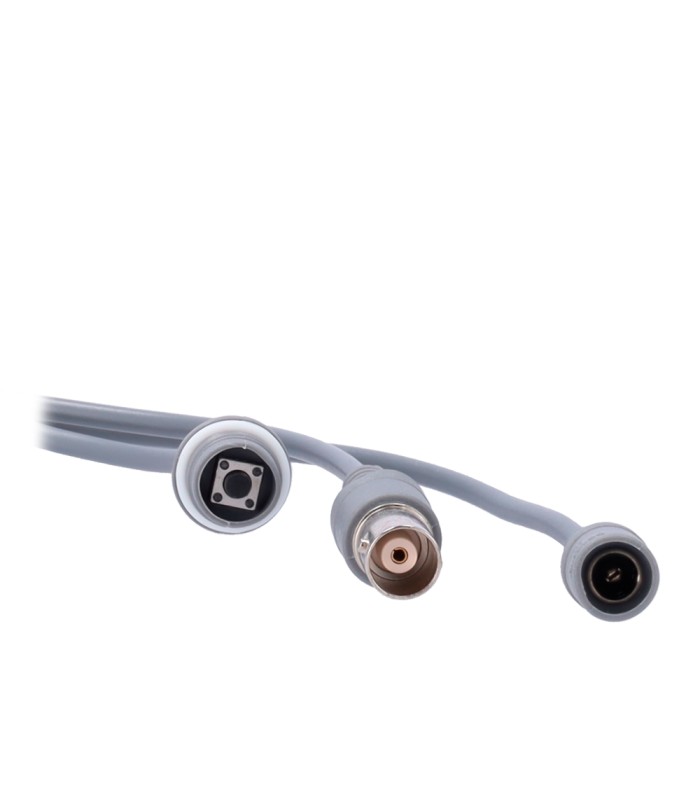

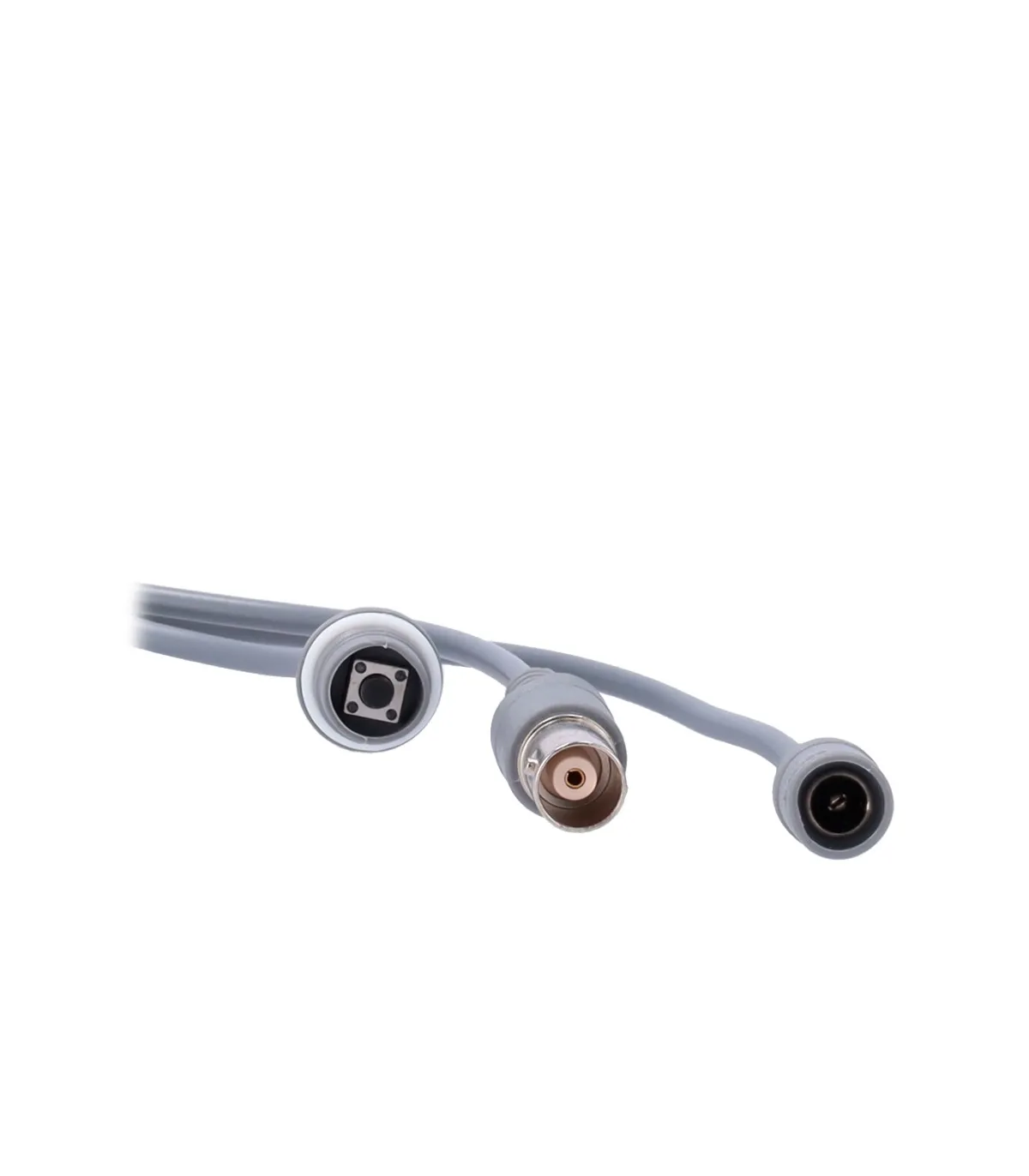

| Video output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Using Switch |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR, BLC, HLC, 2DNR, AGC, AWB, AE, Mirror function |
| Communication | HIKVISION-C |
| Lens Positioning | 3 Axis |
| Power | DC 12 V / 3 W max. |
| Grade of protection | Waterproof IP67 |
| Temp. operation | -40º C ~ +60º C |
| Material | Metal |
| Dimensions | 79.4 mm (H) x 82.6 mm (w) g |
Contents
- Hikvision 4N1 Dome Camera
- Mounting material
- Instructions for use
