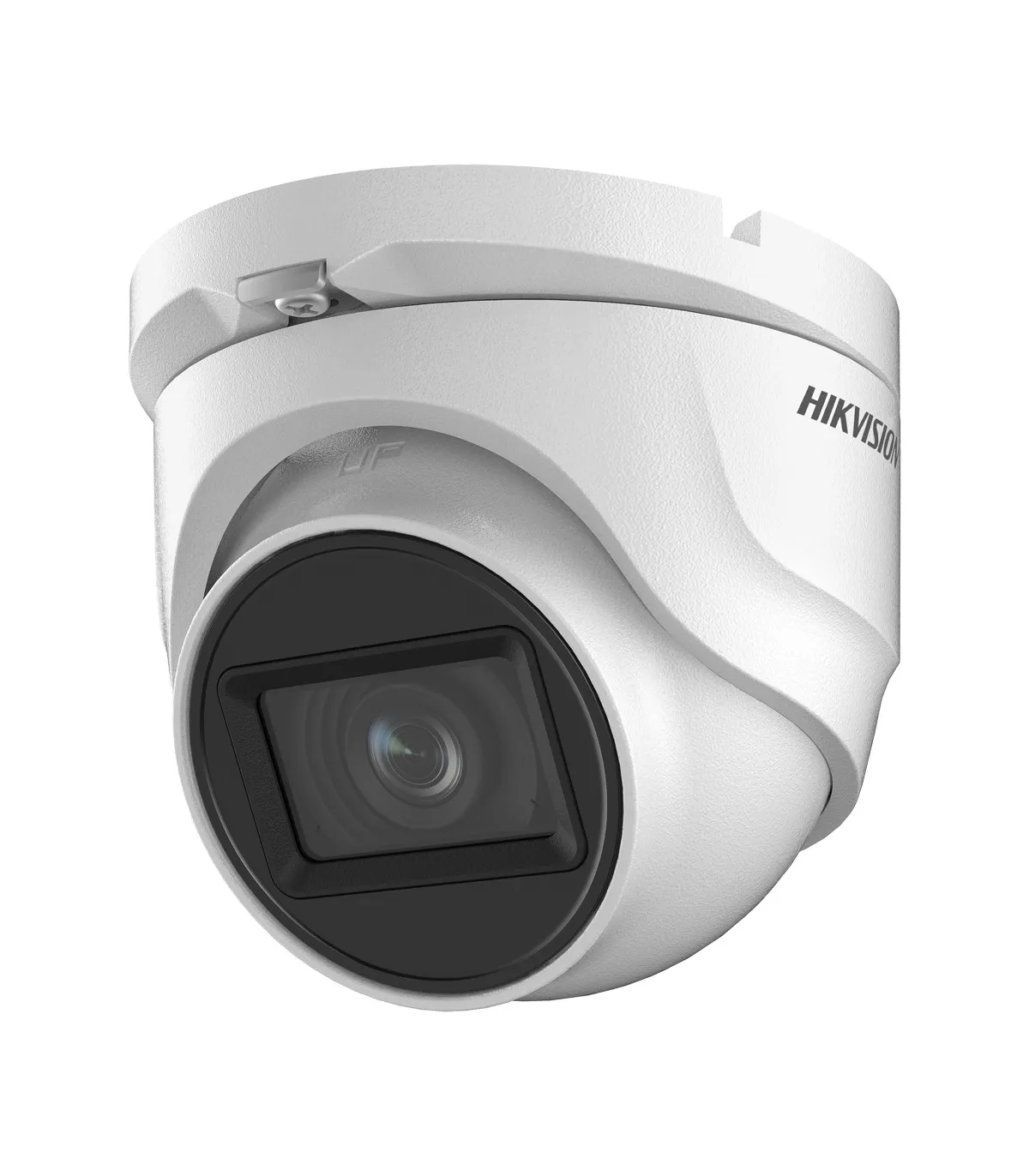

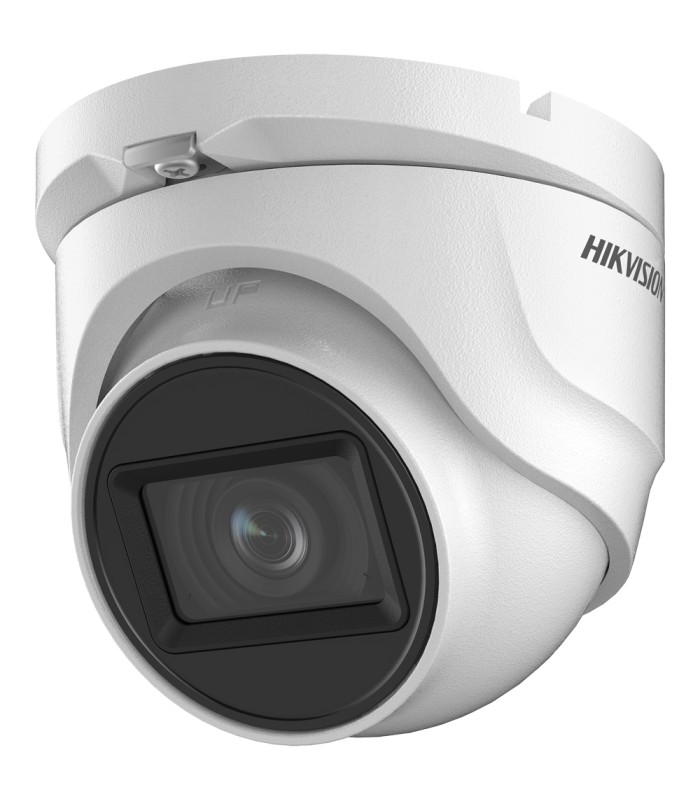

Hikvision DS-2CE76U1T-ITMF Value Range 4in1 Dome Camera (2.8mm)
Brand: HIKVISION VALUE
- Hikvision
- 4-in-1 Value Range Dome Camera
- 8 Megapixel (3480 x 2160)
- 2.8mm Lens
- EXIR IR Range up to 30m
- IP67 Waterproof
4in1 Dome Camera Value Range Hikvision DS-2CE76U1T-ITMF(2.8mm)
- Hikvision
- VALUE Range
- HDTVI, HDCVI, AHD and CVBS Dome Camera
- 8.29 megapixel progressive scan CMOS
- 8 Megapixel (3480x2160)
- 4 in 1 output
- Lens 2.8 mm
- 0 Lux
- EXIR IR Range 30 m
- IR CUT
- Waterproof IP67
Technical specifications
| Brand | Hikvision |
| Range | Value |
| Image sensor | 8.29 megapixel progressive scan CMO |
| Maximum resolution | 8 Megapixel (3480 x 2160) at 12.5 fps |
| Resolution | TVI: 8 Mpx (12.5~15 fps), 4 Mpx (25~30 fps), 2 Mpx (25~30 fps) CVI: 8 Mpx (12.5~15 fps) AHD: 8 Mpx (12.5~15 fps) CVBS: PAL/NTSC |
| Lens | 2.8 mm |
| Angle of view (FOV) | 102.2º (H) |
| Minimum illumination | 0.01 Lux @ (F1.2, AGC ON) |
| Infrared illumination | 0 Lux / Smart EXIR IR scope 30 m |
| Day / Night | Auto / Color / Black and White (ICR) |
| Video output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Using Switch |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR (105 dB), BLC, HLC, DNR, AGC, AWB, Smart IR |
| Communication | HIKVISION-C |
| Lens Positioning | 3 Axis |
| Power | DC 12 V / 5.3 W max. |
| Protection degree | Waterproof IP67 |
| Temp. operation | -40º C ~ +60º C |
| Material | Metal |
| Dimensions | Ø 90 mm × 79.37 mm (H) |
| Base diameter | Ø base 90 mm / Ø between screws 82.6 mm / 3 screws |
| Weight | 310 g |
Contents
- Hikvision Value 4N1 Bullet Camera
- Mounting material
- Instructions for use
