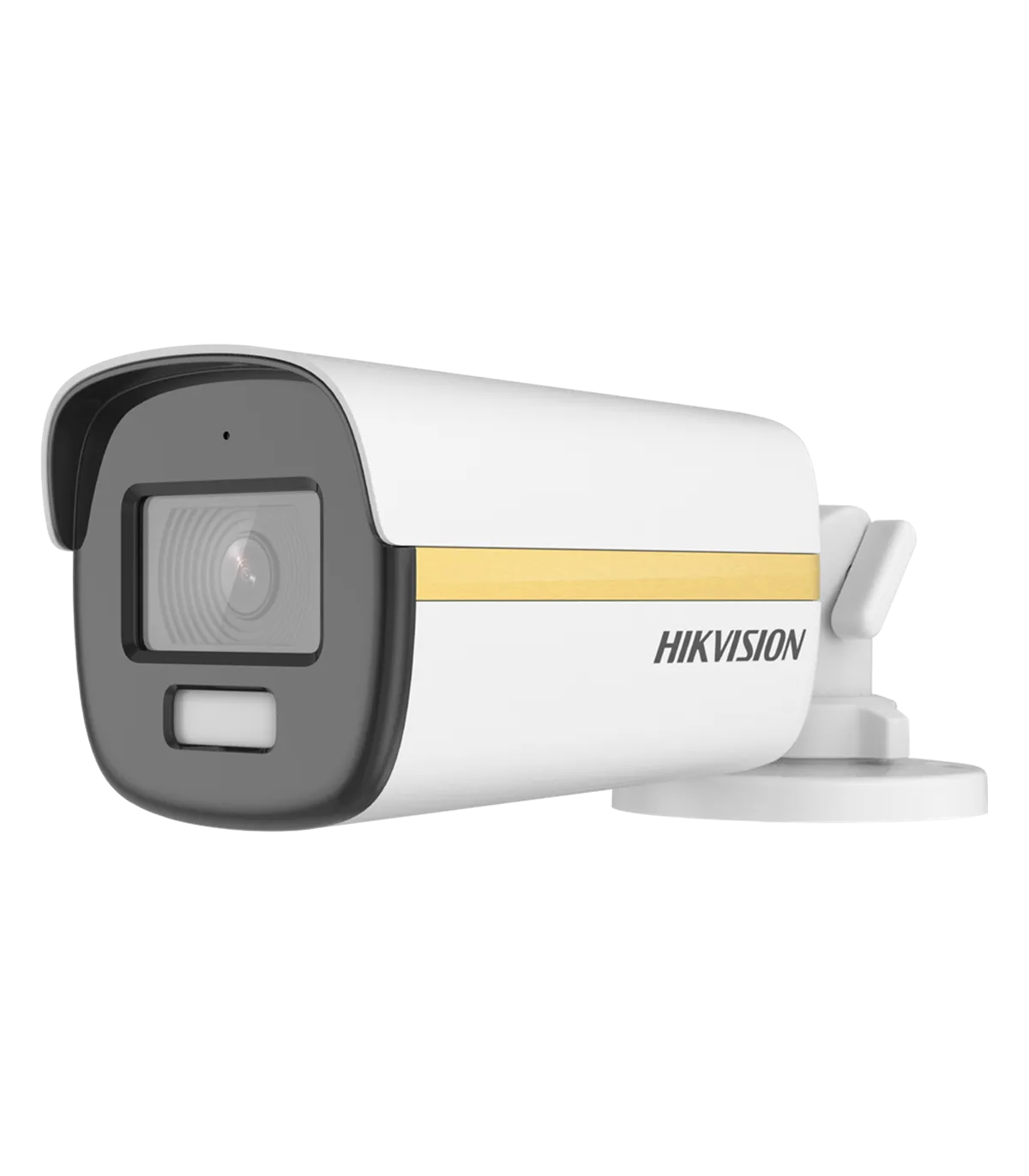

- Hikvision Bullet Camera 4-in-1 PRO Series
- Resolution 1080p (1920x1080)
- 2.8 mm Lens
- ColorVu: Full Color Night Vision 24/7
- White Light Range 40 m | Strobe Alarm
- IP67 | Integrated Microphone | Audio over Coaxial
Description & Key Features: DS-2CE12DF3T-FS(2.8mm)
The DS-2CE12DF3T-FS(2.8mm) is a high-performance bullet camera designed for versatile surveillance applications. Ideal for both residential and commercial environments, this camera offers exceptional image quality with its 2 MP resolution and ColorVu technology, ensuring clear color images even in low-light conditions. With features such as motion detection and IP67 waterproof rating, it is well-suited for outdoor installations, providing reliable security around the clock.
- Hikvision
- PRO Series
- Bullet Camera HDTVI, HDCVI, AHD, and CVBS
- High Performance CMOS
- Resolution 2 MP (1920x1080)
- 4-in-1 Output
- Lens 2.8 mm
- ColorVu: 24-hour color image
- 0 Lux
- White light range 40 m
- WDR (130 dB)
- 3D DNR
- Motion detection
- Integrated microphone
- Audio over coaxial
- Visual alarm
- Waterproof IP67
Specifications: DS-2CE12DF3T-FS(2.8mm)
| Brand | Hikvision |
| Series | PRO |
| Image Sensor | 2 MP CMOS |
| Maximum Resolution | 1080p (1920x1080) at 30 fps |
| Resolution | TVI: 1080p (25~30 fps) CVI: 1080p (25~30 fps) AHD: 1080p (25~30 fps) CVBS: PAL/NTSC |
| Lens | 2.8 mm |
| Field of View (FOV) | 98º (H), 52º (V), 116º (D) |
| Minimum Illumination | 0.0005 Lux @ (F1.0, AGC ON) 0 Lux with white light, range 40 m |
| Day/Night | ColorVu: 24-hour color image |
| Video Output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video Output Switching | Via Switch |
| Basic Functions | OSD menu (remote) |
| Configurable OSD Functions | WDR (130 dB), BLC, HLC, 3DNR/2DNR, AGC, AWB, Smart Light, Mirror effect, Privacy mask |
| Audio | Integrated microphone Audio over coaxial |
| Alarm | Visual alarm |
| Motion Detection | Yes |
| Communication | HIKVISION-C |
| Lens Positioning | 3 Axis |
| Power Supply | DC 12 V / 5.7 W max. |
| Protection Rating | Waterproof IP67 |
| Operating Temperature | -40º C ~ +60º C |
| Material | Metal |
| Dimensions | 74.5 mm (H) x 78 mm (W) x 194.2 mm (D) |
| Base Diameter | Ø base 70 mm / Ø between screws 55 mm / 3 screws |
| Weight | 515 g |
Package Contents
- Hikvision 4-in-1 Dome Camera
- Mounting materials
- User instructions
Use Case
The DS-2CE12DF3T-FS(2.8mm) camera is an excellent choice for a variety of surveillance scenarios, particularly in retail and outdoor settings. For instance, a retail store can deploy this camera at entry points to monitor customer activity and deter theft. With its high-resolution imaging and ColorVu technology, the camera provides clear visuals even in low-light conditions, ensuring that every detail is captured. The motion detection feature enhances security by alerting staff to any unusual activity. Additionally, the camera's IP67 waterproof rating makes it suitable for outdoor installations, allowing it to withstand harsh weather conditions. This makes it a reliable option for businesses looking to enhance their security measures while maintaining a professional appearance.
Data sheet
- Brand
- HIKVISION
- Resolution
- 2 Mpx
- Technology
- HD-Coaxial
- WDR
- WDR (130dB)
- Audio
- Micrófono integrado
- Lens
- 2.8 mm
- Compatible models
- DS-1280ZJ-XS,DS-1280ZJ-XS
Specific References
- EAN13
- 6941264047452
