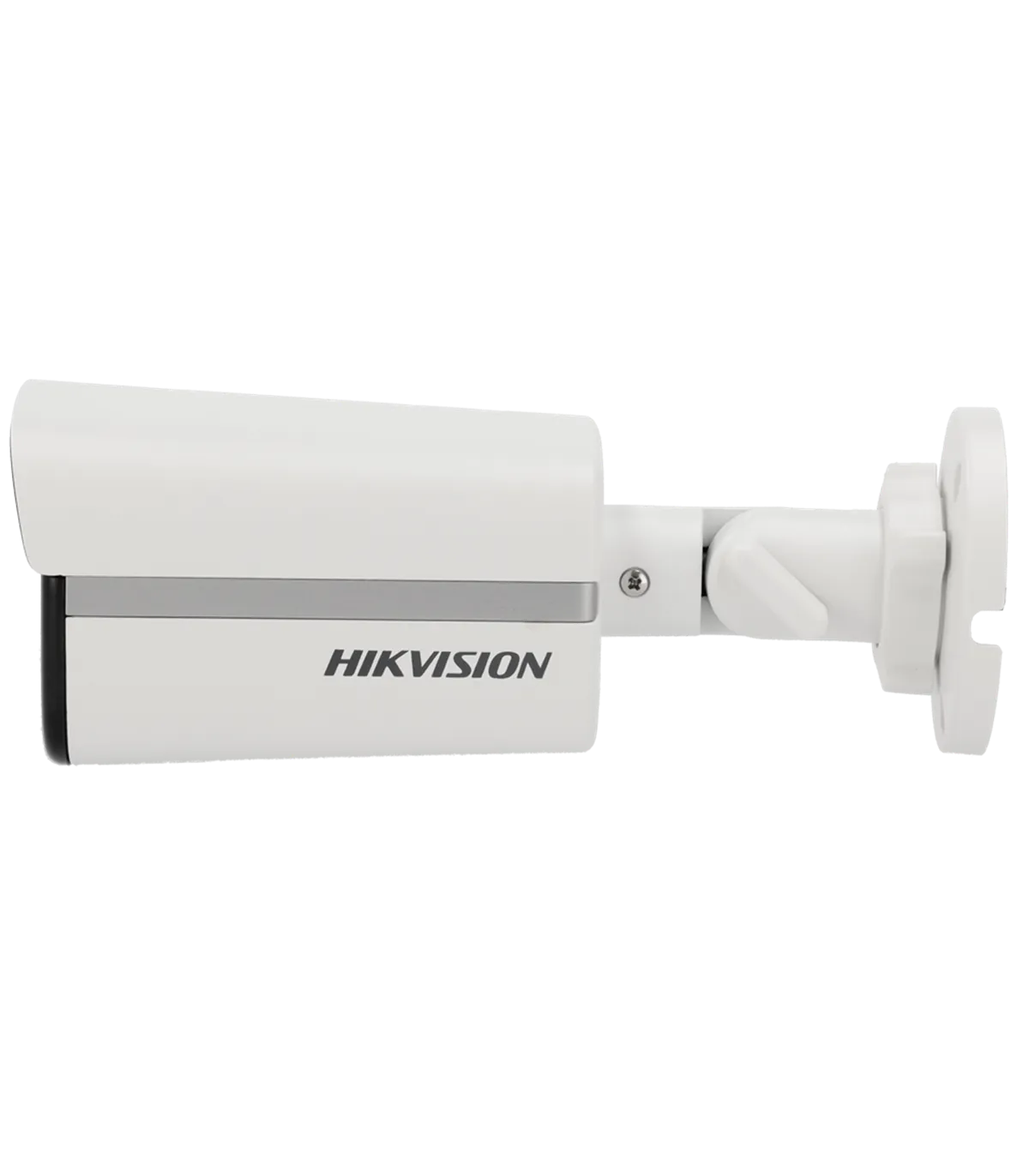

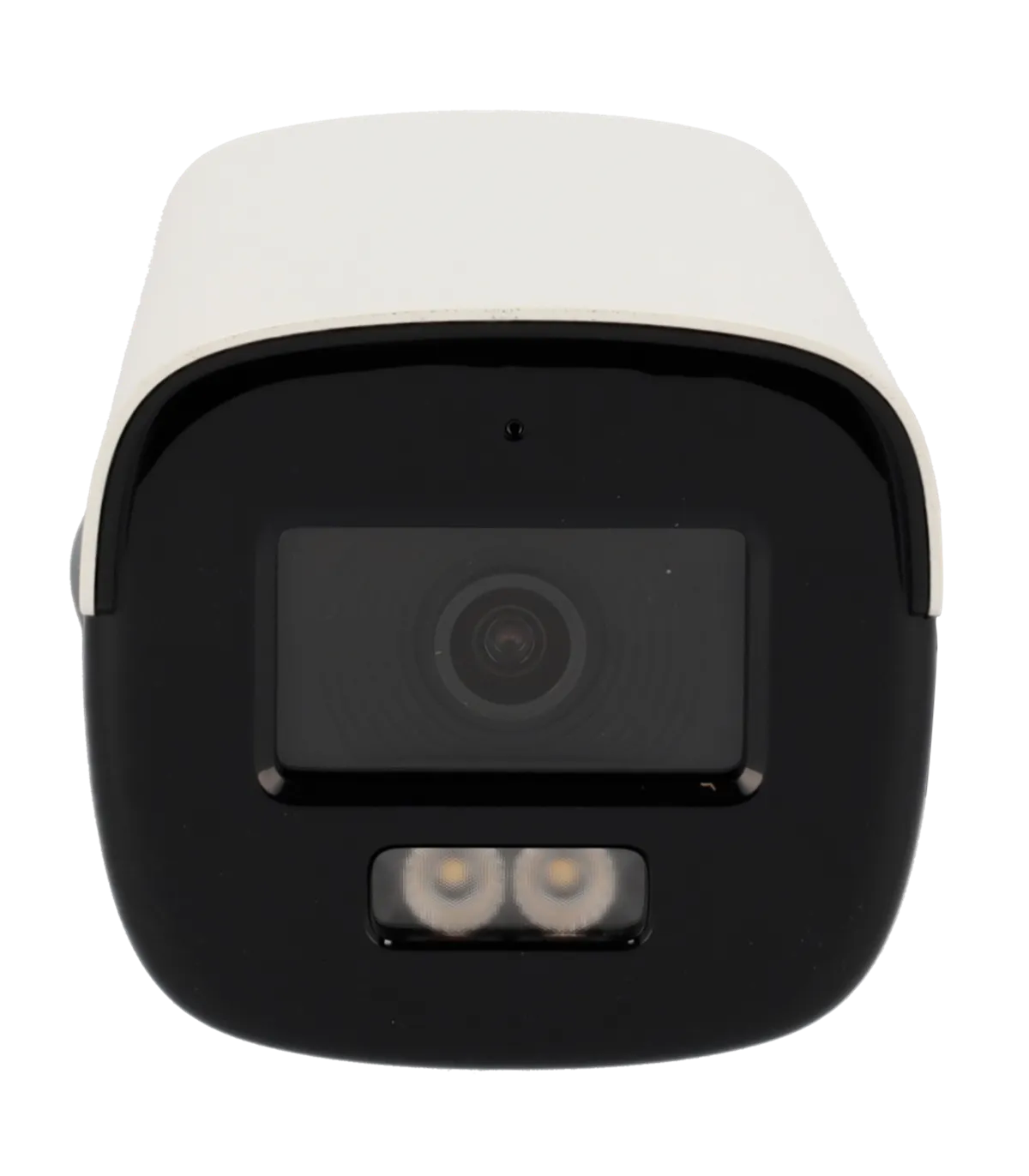

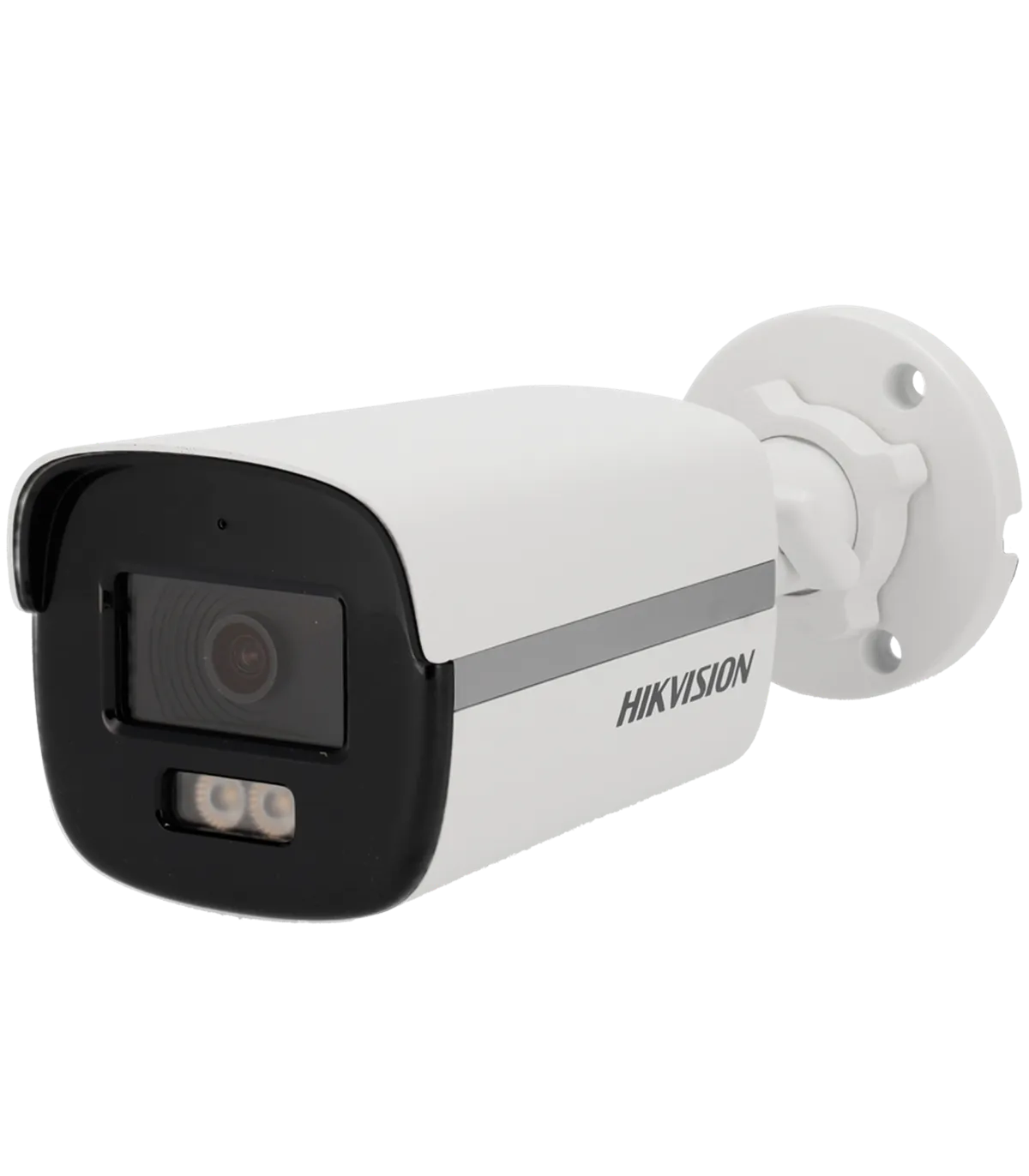

The DS-2CE12DF0T-LFS(3.6mm) is a versatile bullet camera designed for high-definition surveillance in various environments. This device is ideal for both residential and commercial applications, providing exceptional image quality with its HD 1080p resolution. Equipped with a 3.6 mm lens, it offers a wide field of view, making it suitable for monitoring large areas. The camera features advanced technologies such as ColorVu for 24-hour color imaging and hybrid lighting capabilities, ensuring clear visibility even in low-light conditions.
| Brand | Hikvision |
| Series | VALUE |
| Image Sensor | High Performance CMOS |
| Maximum Resolution | 1080p (1920x1080) at 30 fps |
| Resolution | TVI: 1080p (25~30 fps) CVI: 1080p (25~30 fps) AHD: 1080p (25~30 fps) CVBS: PAL/NTSC |
| Lens | 3.6 mm |
| Field of View (FOV) | 84º (H), 46º (V), 98º (D) |
| Minimum Illumination | 0.001 Lux @ (F1.0, AGC ON) 0 Lux with IR |
| Supplementary Lighting | Hybrid Light: IR Range 40 m White Light Range 40 m |
| Day/Night | ColorVu: 24-hour Color Imaging |

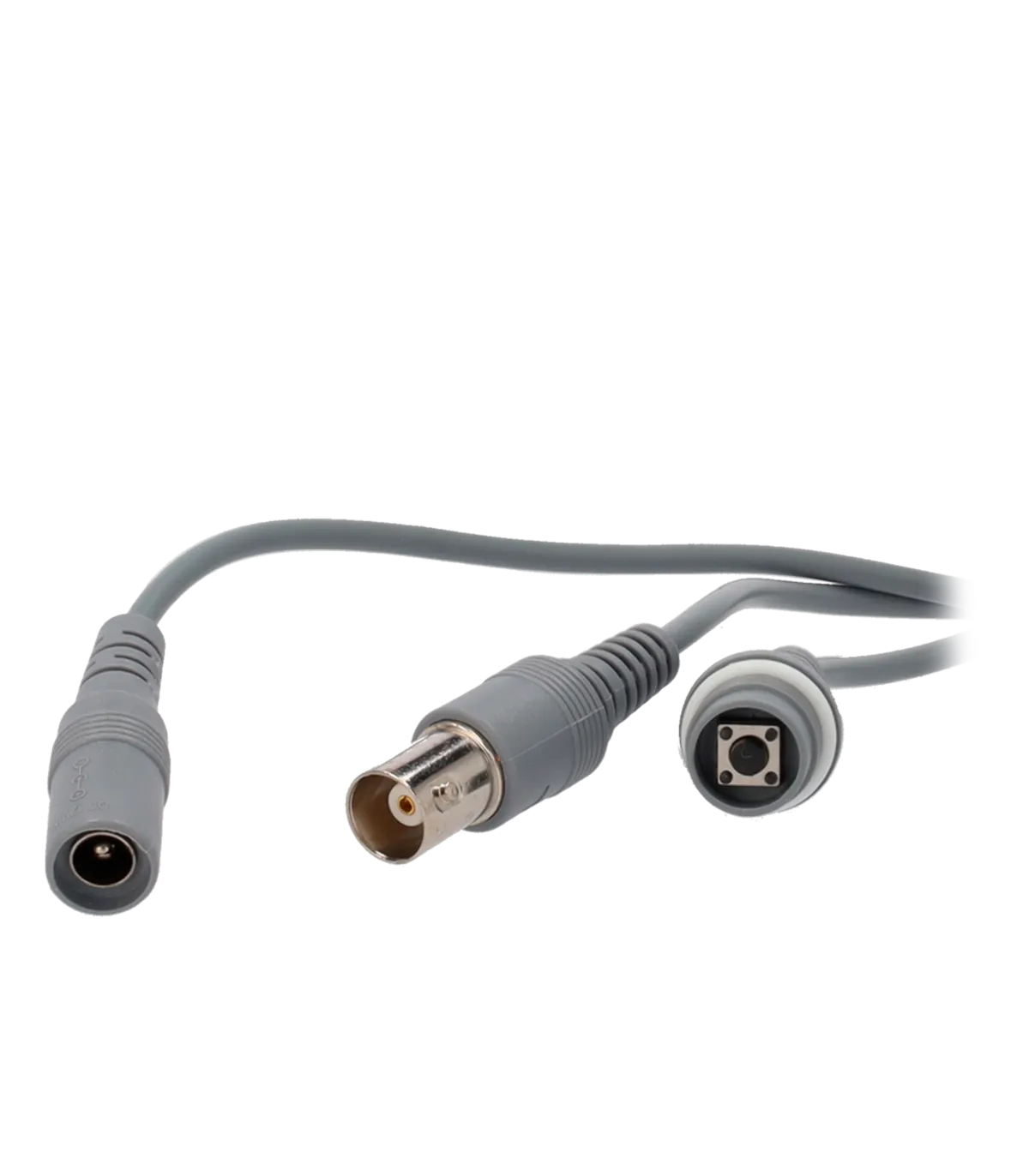

| Video Output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video Output Switching | Via Switch |
| Basic Functions | OSD Menu (Remote) |
| Configurable OSD Functions | DWDR, BLC, HLC, 3DNR/2DNR, AGC, AWB, Smart Light |
| Audio | Integrated Microphone Audio over Coaxial |
| Communication | HIKVISION-C |
| Lens Positioning | 3 Axis |
| Power Supply | DC 12 V / 4.2 W max. |
| Protection Rating | IP67 Waterproof |
| Operating Temperature | -40º C ~ +60º C |
| Material | Metal |
| Dimensions | 74.5 mm (H) x 78 mm (W) x 192.2 mm (D) |

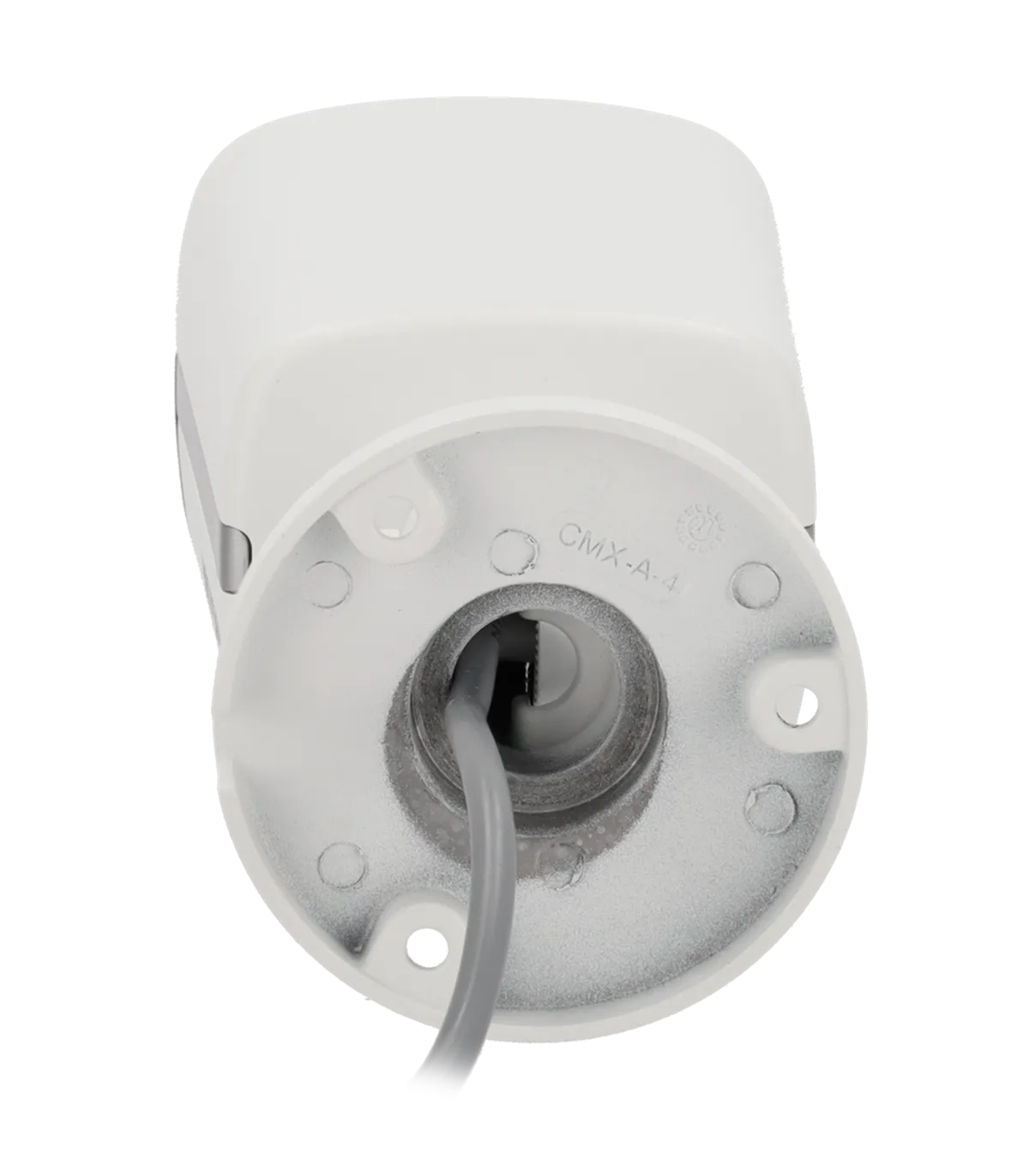

| Base Diameter | Ø base 70 mm / Ø between screws 55 mm / 3 screws |
| Weight | 525 g |
The DS-2CE12DF0T-LFS(3.6mm) camera is an excellent choice for security installers looking to enhance surveillance in retail stores, parking lots, or residential areas. With its IP67 waterproof rating, this camera can withstand harsh weather conditions, making it suitable for outdoor installations. The ColorVu technology ensures that users receive vibrant color images even at night, providing a significant advantage in identifying potential threats. Additionally, the integrated microphone allows for audio surveillance, enhancing the overall security system. The camera's 3-axis lens positioning enables precise adjustments during installation, ensuring optimal coverage of the monitored area. Furthermore, the hybrid light capability allows for effective illumination up to 40 meters, ensuring that no detail goes unnoticed. This makes the DS-2CE12DF0T-LFS(3.6mm) a reliable solution for comprehensive security monitoring.
