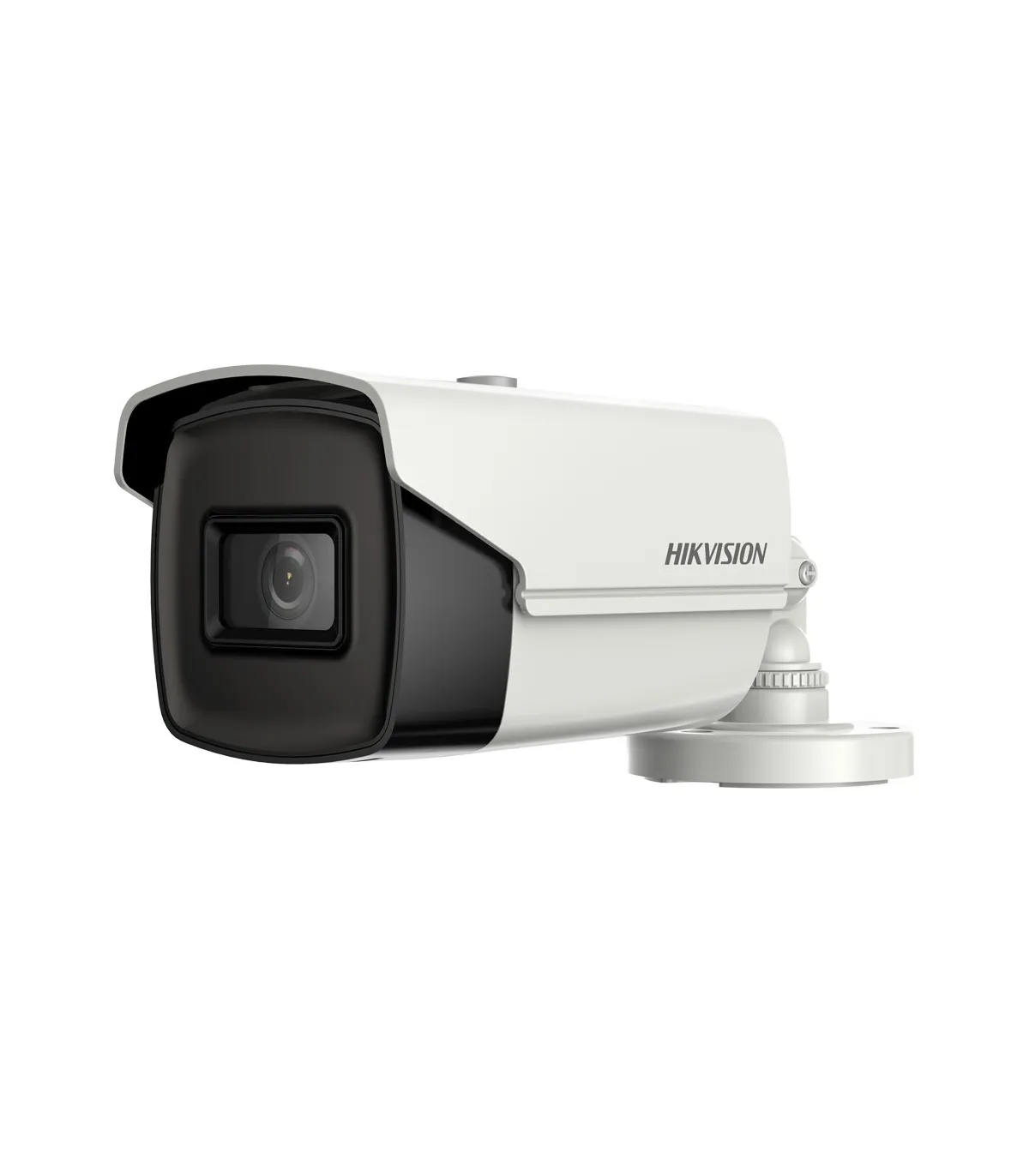

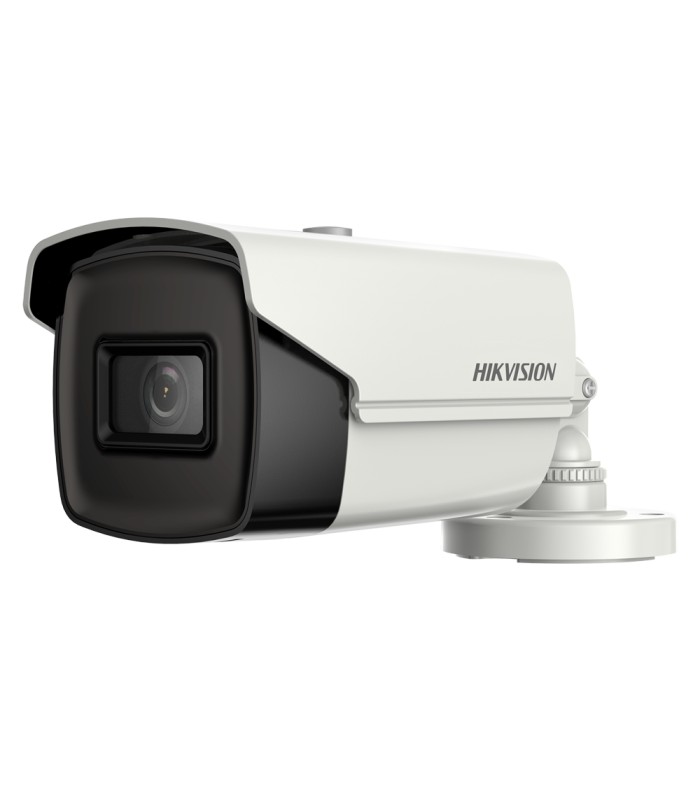

| Brand | Hikvision |
| Range | Value |
| Image sensor | 8.29 megapixel progressive scan CMO |
| Maximum resolution | 8 Megapixel (3480 x 2160) at 12.5 fps |
| Resolution | TVI: 8 Mpx (12.5~15 fps), 4 Mpx (25~30 fps), 2 Mpx (25~30 fps) CVI: 8 Mpx (12.5~15 fps) AHD: 8 Mpx (12.5~15 fps) CVBS: PAL/NTSC |
| Lens | 3.6 mm |
| Angle of view (FOV) | 79º (H) |
| Minimum illumination | 0.01 Lux @ (F1.2, AGC ON) |
| Infrared illumination | 0 Lux / Smart EXIR IR scope 80 m |
| Day / Night | Auto / Color / Black and White (ICR) |
| Video output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Using Switch |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR (105 dB), BLC, HLC, DNR, AGC, AWB, Smart IR |
| Communication | HIKVISION-C |
| Lens Positioning | 3 Axis |
| Power | DC 12 V / 5.9 W max. |
| Protection degree | Waterproof IP67 |
| Temp. operation | -40º C ~ +60º C |
| Material | Front cover: Metal Main body: Plastic Support: Metal |
| Dimensions | 81.9 mm (H) x 86.7 mm (W) × 217.9 mm (D) |
| Base diameter | Ø base 70 mm / Ø between screws 55 mm / 3 screws |
| Weight | 435 g |
