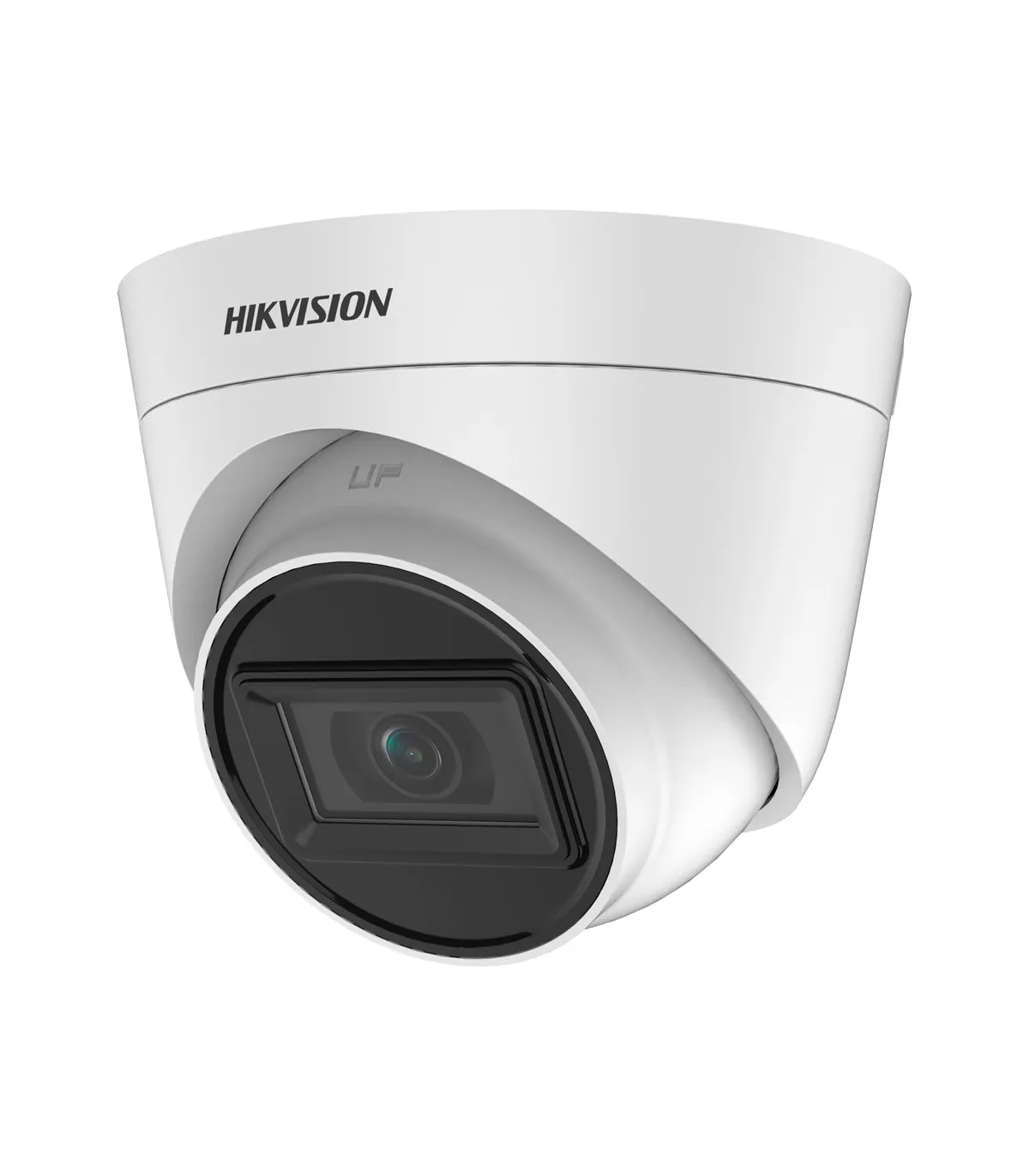

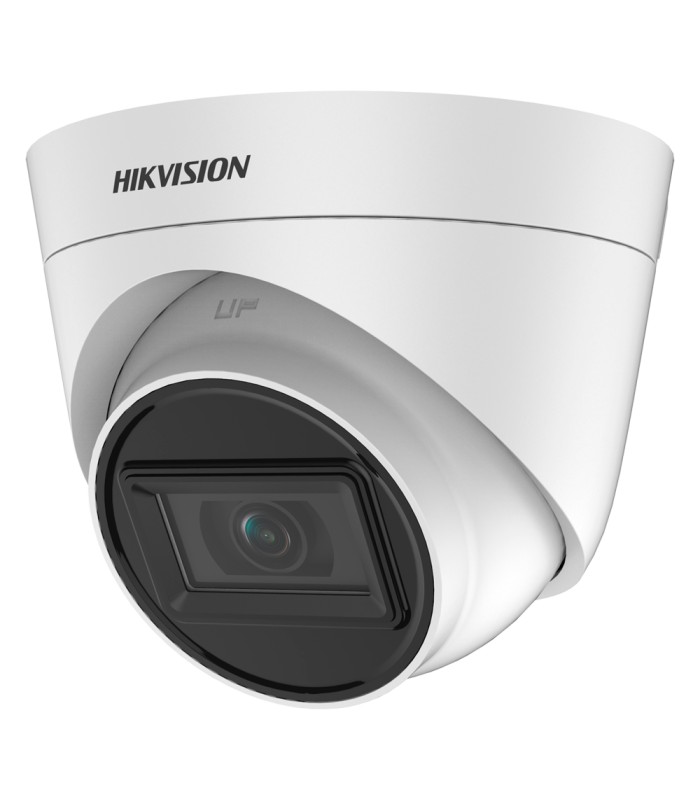

Value Range 4in1 Dome Camera Hikvision DS-2CE78H0T-IT3F(3.6mm)(C)
Brand: HIKVISION VALUE
- Hikvision
- 4-in-1 Value Range Dome Camera
- 5 Megapixel Resolution (2560x1944)
- 3.6mm Lens
- Smart IR with 40m Range
- IP67 Waterproof
4in1 Dome Camera Value Range Hikvision DS-2CE78H0T-IT3F(3.6mm)(C)
- Hikvision
- VALUE Range
- HDTVI, HDCVI, AHD and CVBS Dome Camera
- High Performance CMOS
- 5 Megapixel (2560x1944)
- 4 in 1 output
- 3.6 mm lens
- 0 Lux
- Smart IR Range 40 m
- 2D DNR
- IR CUT
- Waterproof IP67
Technical specifications
| Brand | Hikvision |
| Range | Value |
| Image Sensor | High Performance CMOS |
| Maximum resolution | 5 Megapixel (2560x1944) at 20 fps |
| Resolution | TVI: 5Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps) CVI: 4Mpx (25~30 fps) AHD: 5Mpx (20 fps), 4Mpx (25~30 fps) CVBS: PAL/NTSC |
| Lens | 3.6 mm |
| Angle of view (FOV) | 80º (H), 63º (V), 105º (D) |
| Minimum illumination | 0.01 Lux @ (F1.2, AGC ON) |
| Infrared illumination | 0 Lux / (Smart IR Range 40 m) |
| Day / Night | Auto / Color / Black and White (ICR) |
| Video output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Using Switch |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR, BLC, HLC, 2DNR, AGC, AWB, Mirror function, Smart IR |
| Communication | HIKVISION-C |
| Lens Positioning | 3 Axis |
| Power | DC 12 V / 4.3 W max. |
| Protection grade | Waterproof IP67 |
| Temp. operation | -40º C ~ +60º C |
| Material | Cover: Plastic Body: Metal |
| Dimensions | Ø 109.82 mm x 91.03 mm (H) |
| Base diameter | base Ø 109.82 mm / Ø between screws 85 mm / 3 screws |
| Weight | 303 g |
Contents
- Hikvision Value 4N1 Dome Camera
- Mounting material
- Instructions for use
