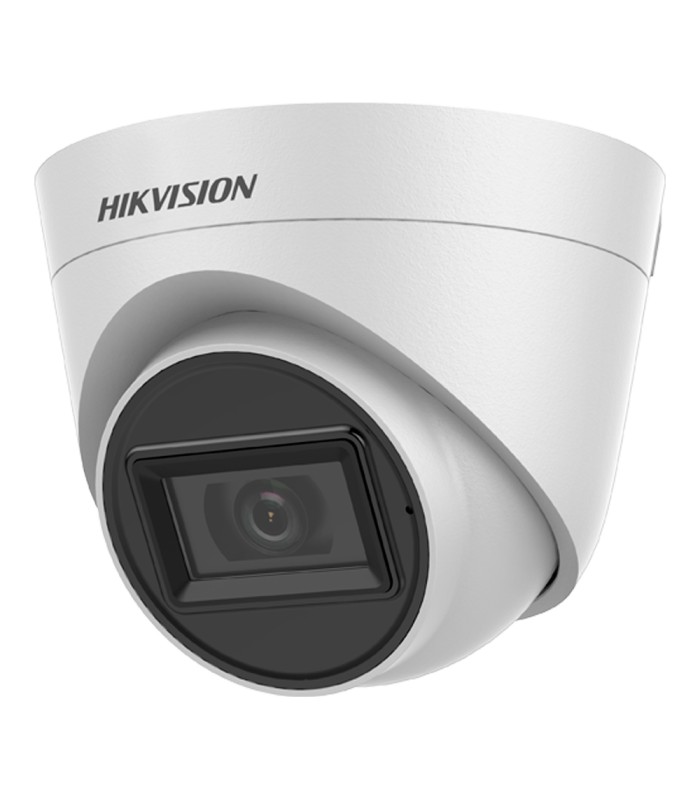

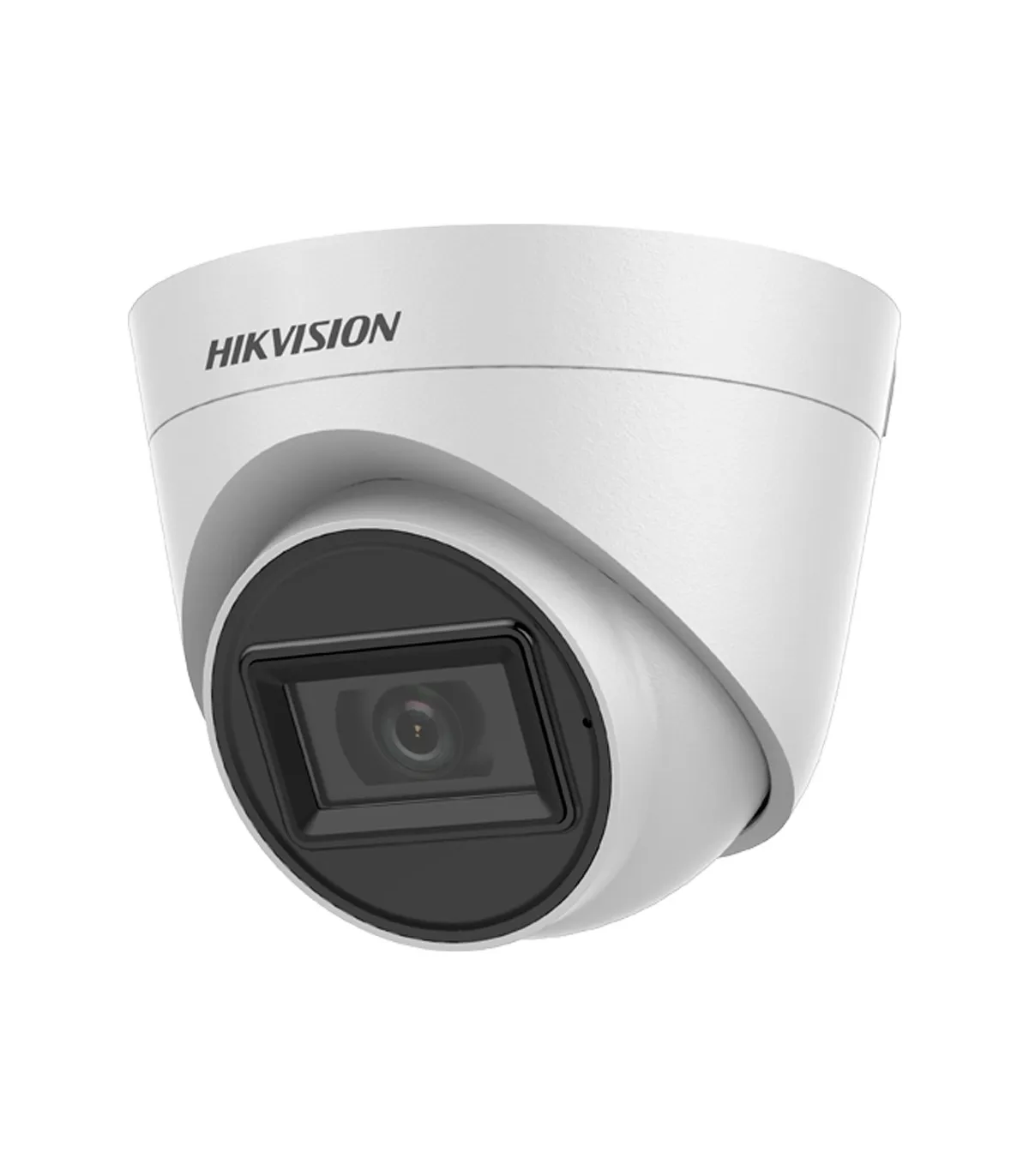

Hikvision DS-2CE78H0T-IT3FS Value Range 4in1 Turret Camera (2.8mm)
Brand: HIKVISION VALUE
- Hikvision
- Turret Camera 4in1 Value Range
- Resolution 5 Megapixel (2560x1944)
- Lens 2.8 mm | Smart IR range 40 m
- Integrated microphone | Audio over coaxial
- Waterproof IP67
4in1 Turret Camera Hikvision Value Range DS-2CE78H0T-IT3FS(2.8mm)
- Hikvision
- VALUE Range
- HDTVI, HDCVI, AHD and CVBS Turret Camera
- 5 MP high Performance CMOS
- 5 Megapixel (2560x1944)
- 4 in 1 output
- 2.8 mm lens
- 0 Lux
- Smart IR range 40 m
- Audio over coaxial
- Built-in microphone
- 2D DNR
- IR CUT
- Waterproof IP67
Specifications techniques
| Brand | Hikvision |
| Range | Value |
| Image Sensor | 5Mpx CMOS |
| Maximum resolution | 5 Megapixel (2560x1944) at 20 fps |
| Resolution | TVI: 5Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps) CVI: 4Mpx (25~30 fps) AHD: 5Mpx (20 fps), 4Mpx (25~30 fps) CVBS: PAL/NTSC |
| Lens | 2.8 mm |
| Viewing angle (FOV) | 85.5º (H), 63.7º (V), 110.7º (D) |
| Minimum illumination | 0.01 Lux @ (F2.0, AGC ON) |
| Infrared illumination | 0 Lux / (Smart IR range 40 m) |
| Day / Night | Auto / Color / Black and white (ICR) |
| Video output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Via Switch |
| Audio | Built-in microphone Audio over coaxial |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR, BLC, HLC, 2DNR, AGC, Mirror function, Smart IR |
| Communication | HIKVISION-C |
| Lens Positioning | 3 Axis |
| Power | DC 12 V / 3.7 W max. |
| Degree of protection | Waterproof IP67 |
| Temp. operation | -40º C ~ +60º C |
| Material | Body: Metal Cover: Plastic |
| Dimensions | Ø 109.82 mm x 91.03 (H) mm |
| Base diameter | base Ø 109.82 mm / Ø between screws 85 mm / 3 screws |
| Weight | 300 g |
Contents
- Hikvision Value 4N1 Turret Camera
- Mounting material
- Instructions for use
