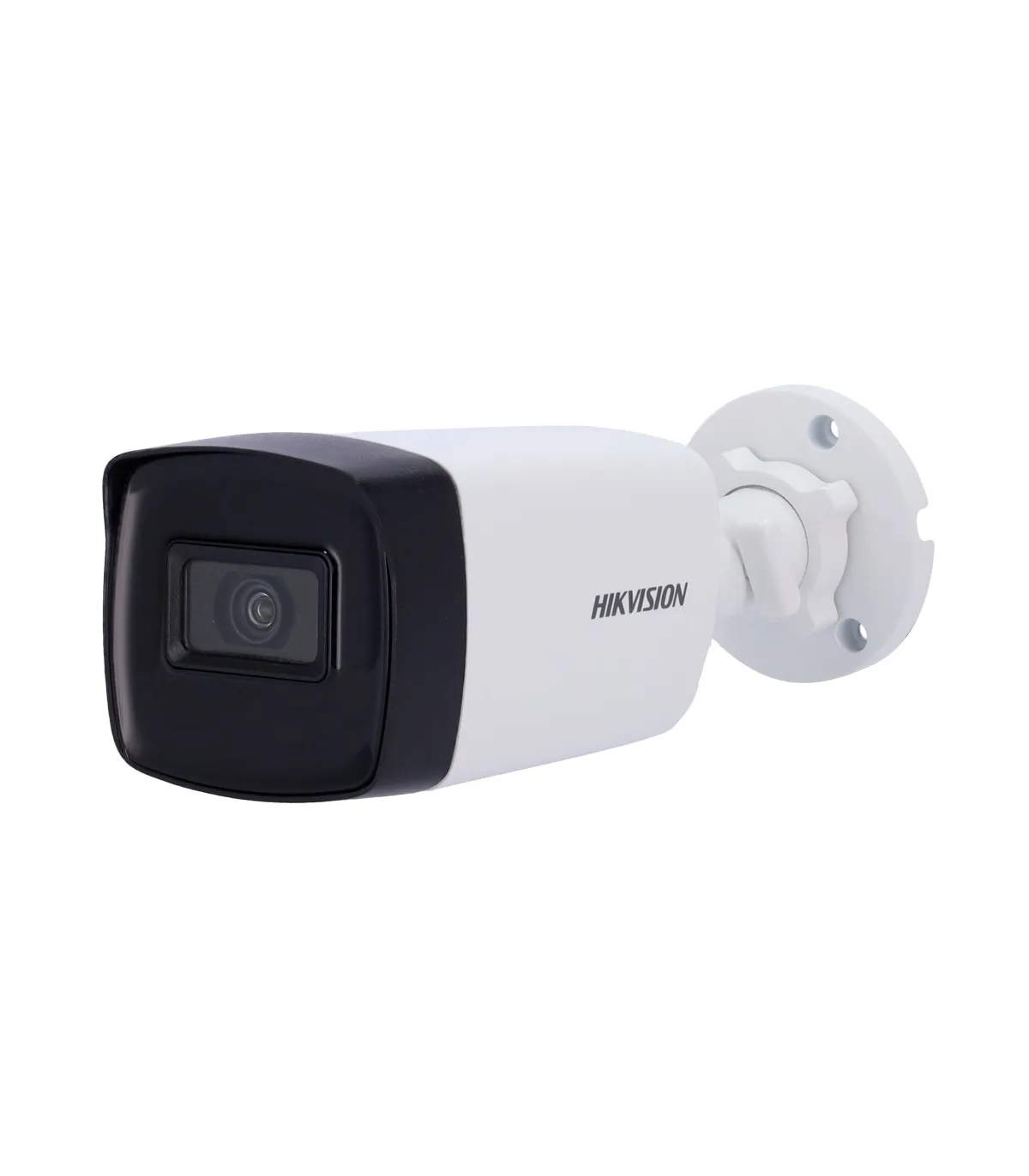

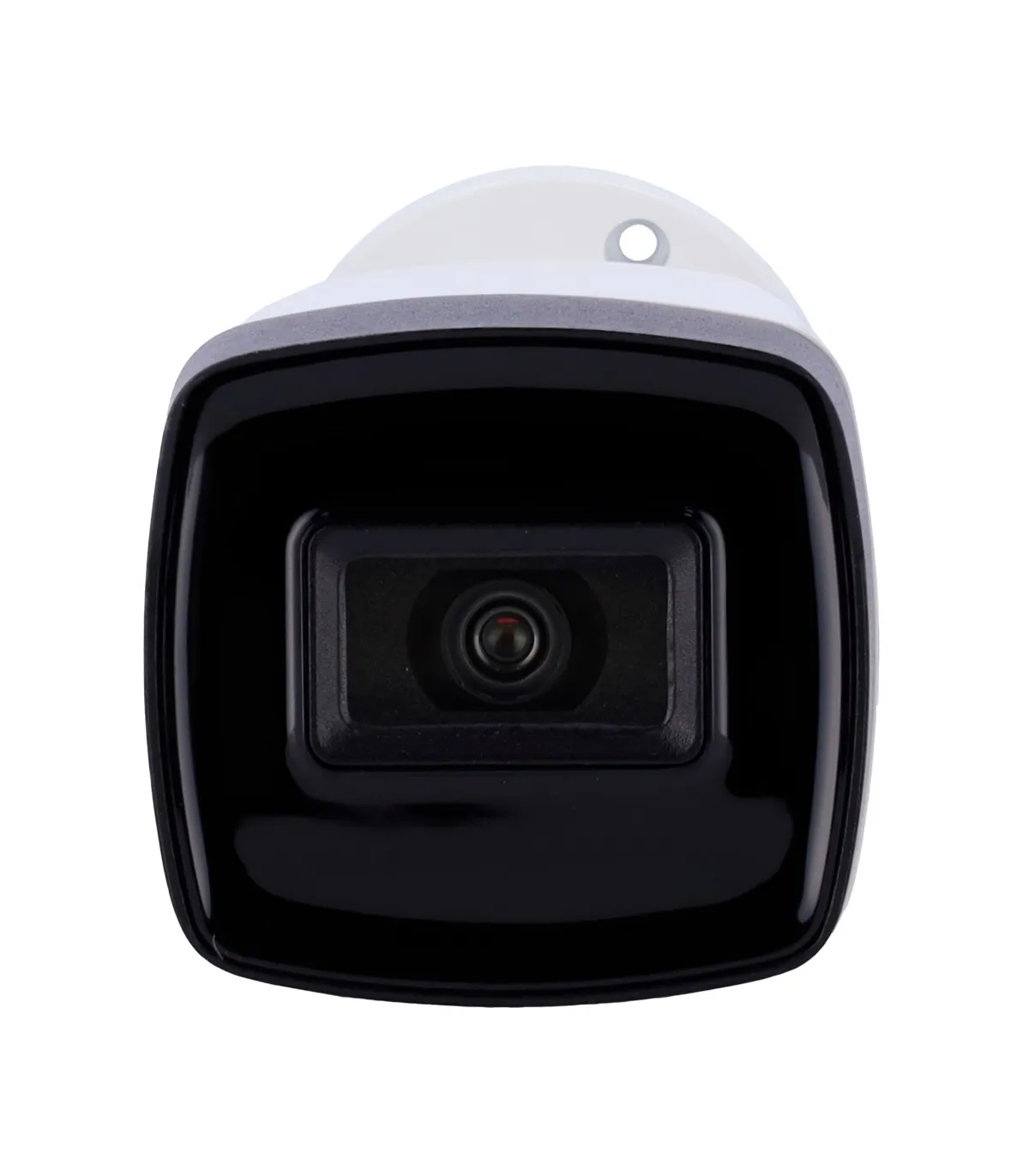

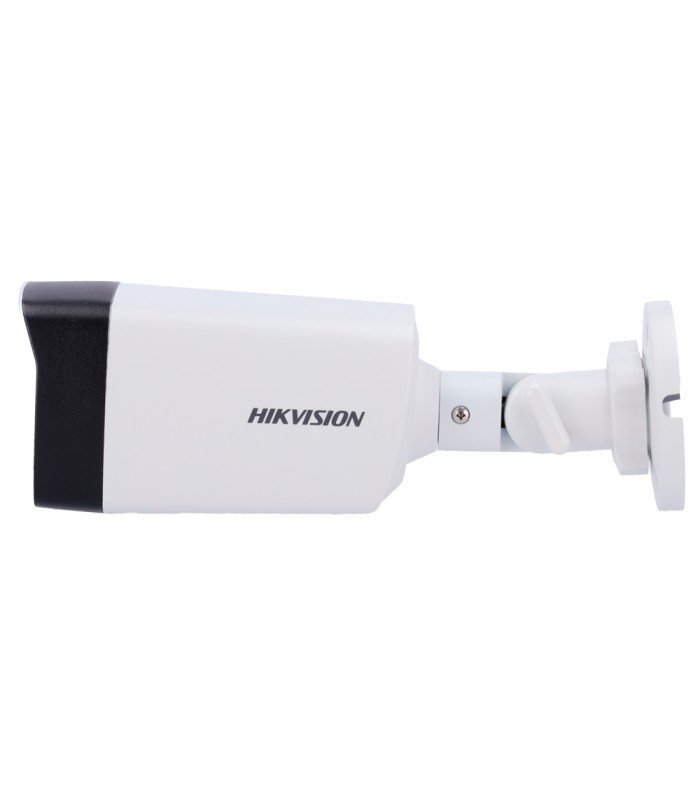

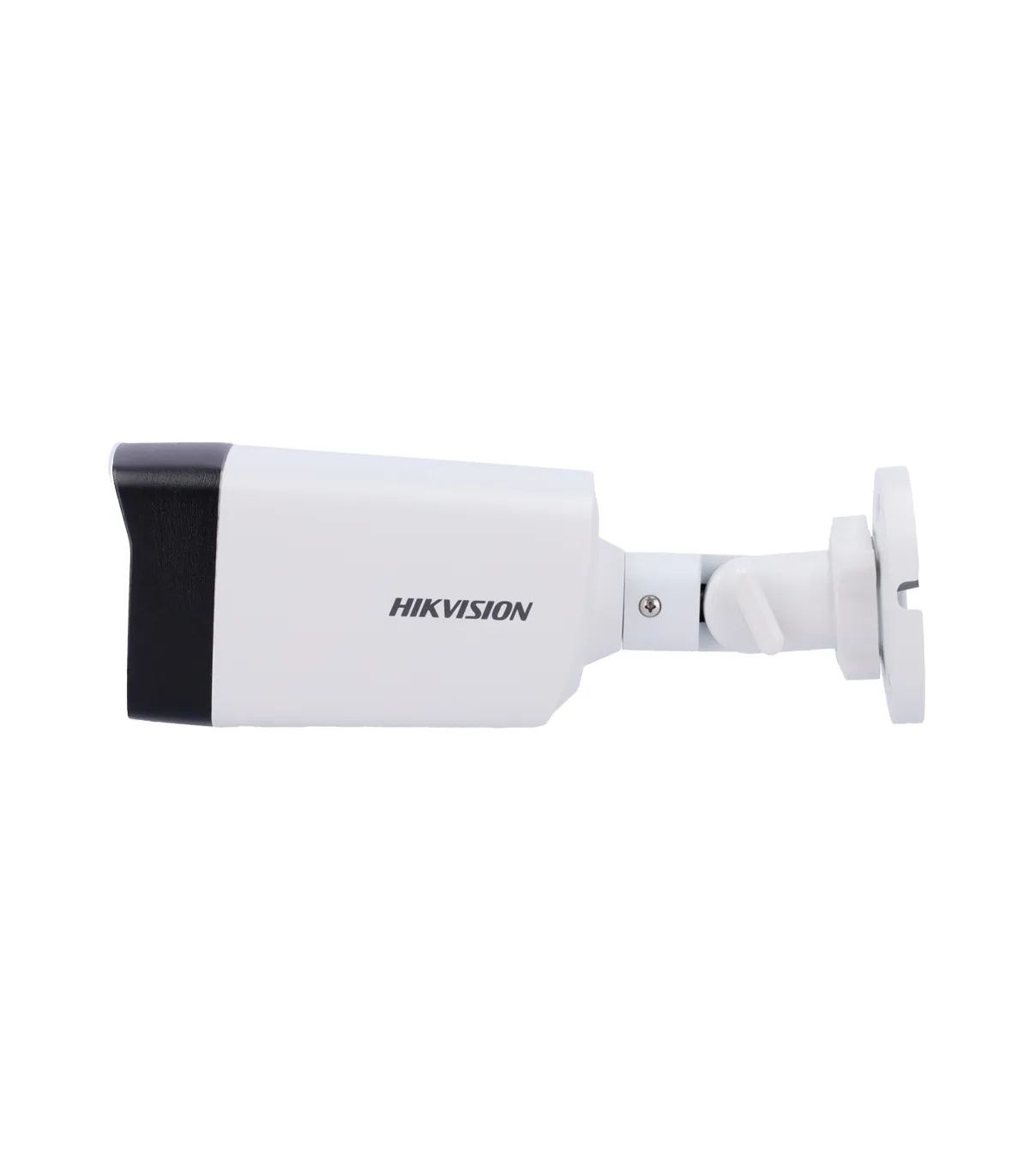

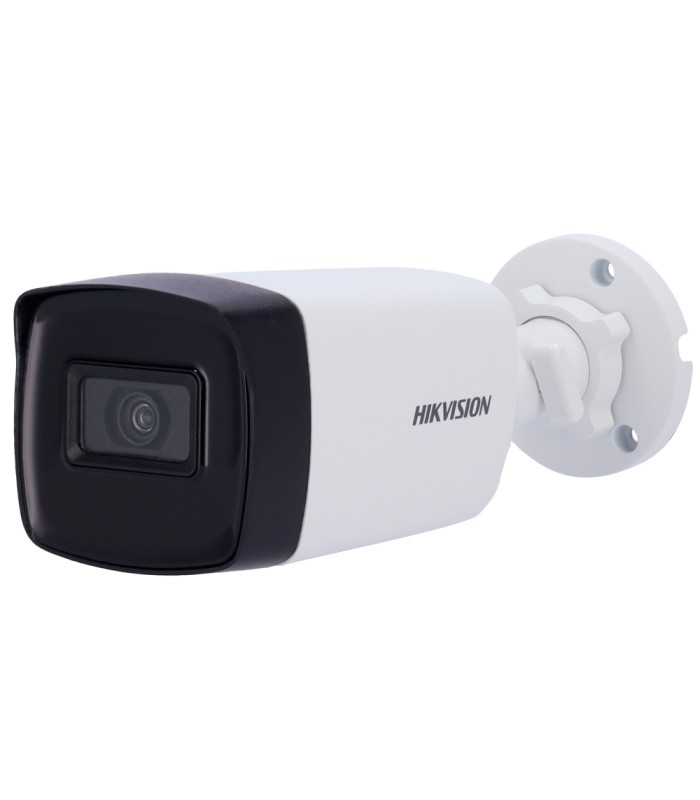

Hikvision Core Range 4in1 Bullet Camera DS-2CE17H0T-IT3FS(2.8mm)
Brand: HIKVISION CORE
- Hikvision
- 4in1 CORE Range Bullet Camera
- 5 Megapixel Resolution (2560x1944)
- 2.8mm Lens
- IR Range 40m | Waterproof IP67
- Audio over coaxial | Built-in microphone
4in1 Bullet Camera Core Range Hikvision DS-2CE17H0T-IT3FS(2.8mm)
- Hikvision
- CORE Range
- HDTVI, HDCVI, AHD and CVBS Bullet Camera
- High Performance CMOS
- 5 Megapixel (2560x1944)
- 4 in 1 output
- Lens 2.8 mm
- 0 Lux
- IR Range 40 m
- 2D DNR
- IR CUT
- Audio over coaxial
- Built-in microphone
- Waterproof IP67
Specifications techniques
| Brand | Hikvision |
| Range | CORE |
| Image Sensor | High Performance CMOS |
| Maximum resolution | 5Mpx (2560x1944) a 20fps |
| Resolution | TVI: 5 Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps) CVI: 4Mpx (25~30 fps) AHD: 5 Mpx (20 fps), 4Mpx (25~30 fps) CVBS: PAL/NTSC |
| Lens | 2.8 mm |
| Viewing angle (FOV) | 85º (H), 63º (V), 110º (D) |
| Minimum illumination | 0.01 Lux @ (F1.2, AGC ON) |
| Infrared Illumination | 0 Lux / (Smart IR Range 40 m) |
| Day / Night | Auto / Color / Black and white (ICR) |

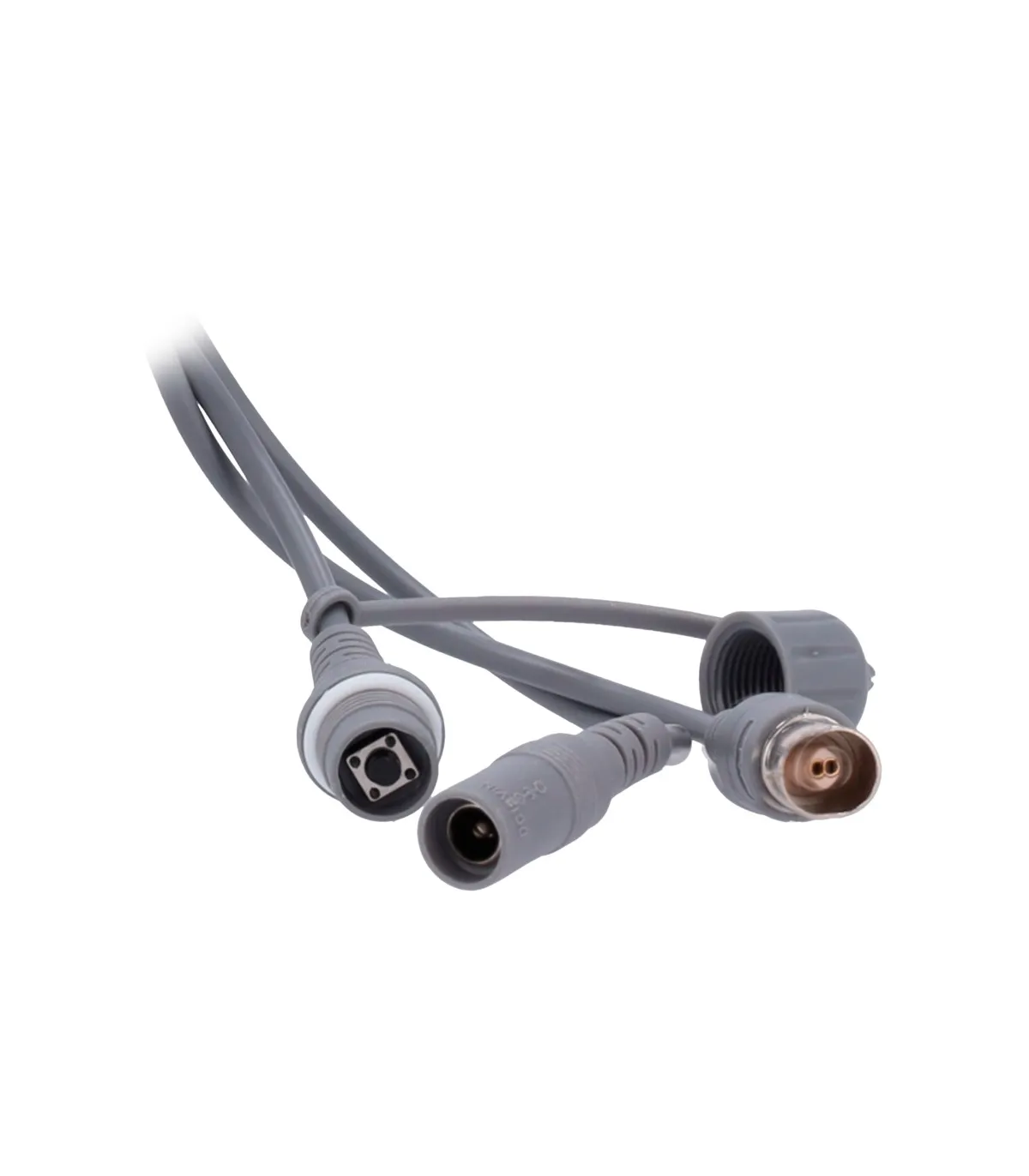

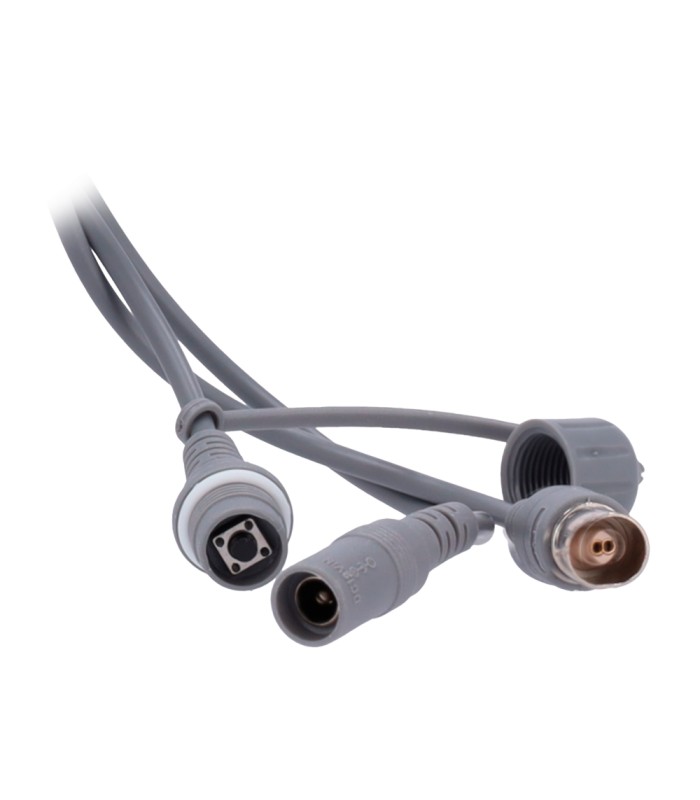

| Video output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Via Switch |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR, BLC, HLC, 2DNR, AGC, AWB, Mirror function, Smart IR |
| Audio | Audio over coaxial Built-in microphone |
| Communication | HIKVISION-C |
| Lens Positioning | 3 Axis |
| Power | DC 12 V / 4.5 W max |
| Protection degree | Waterproof IP67 |
| Temp. operation | -40º C ~ +60º C |
| Material | Front Cover: Metal Camera body: Plastic |
| Dimensions | 75.4 mm (H) × 78.9 mm (W) × 216.6 mm (D) |

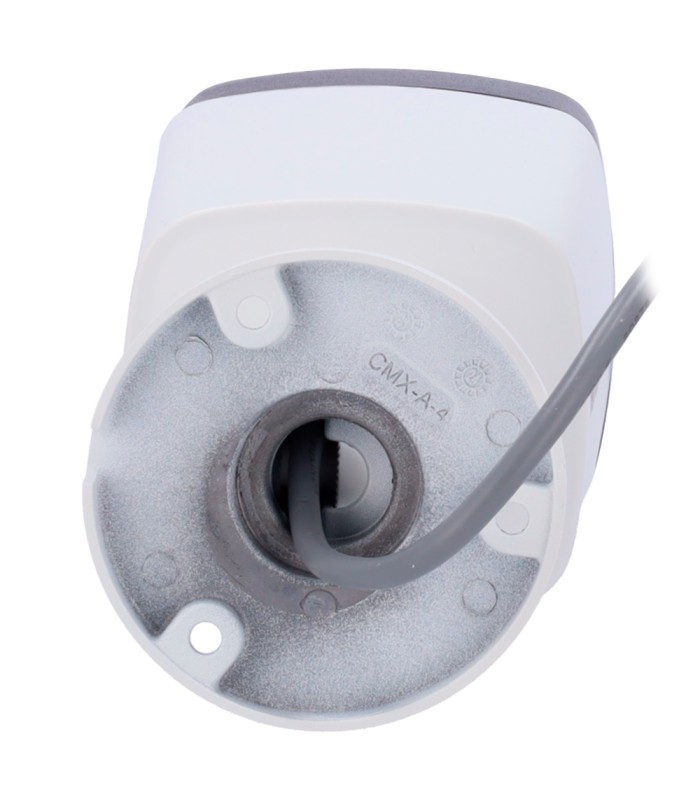

| Base diameter | Ø base 70 mm / Ø between screws 55 mm / 3 screws |
| Weight | 338 g |
Contents
- Hikvision 4N1 Bullet Camera
- Mounting material
- Instructions for use
