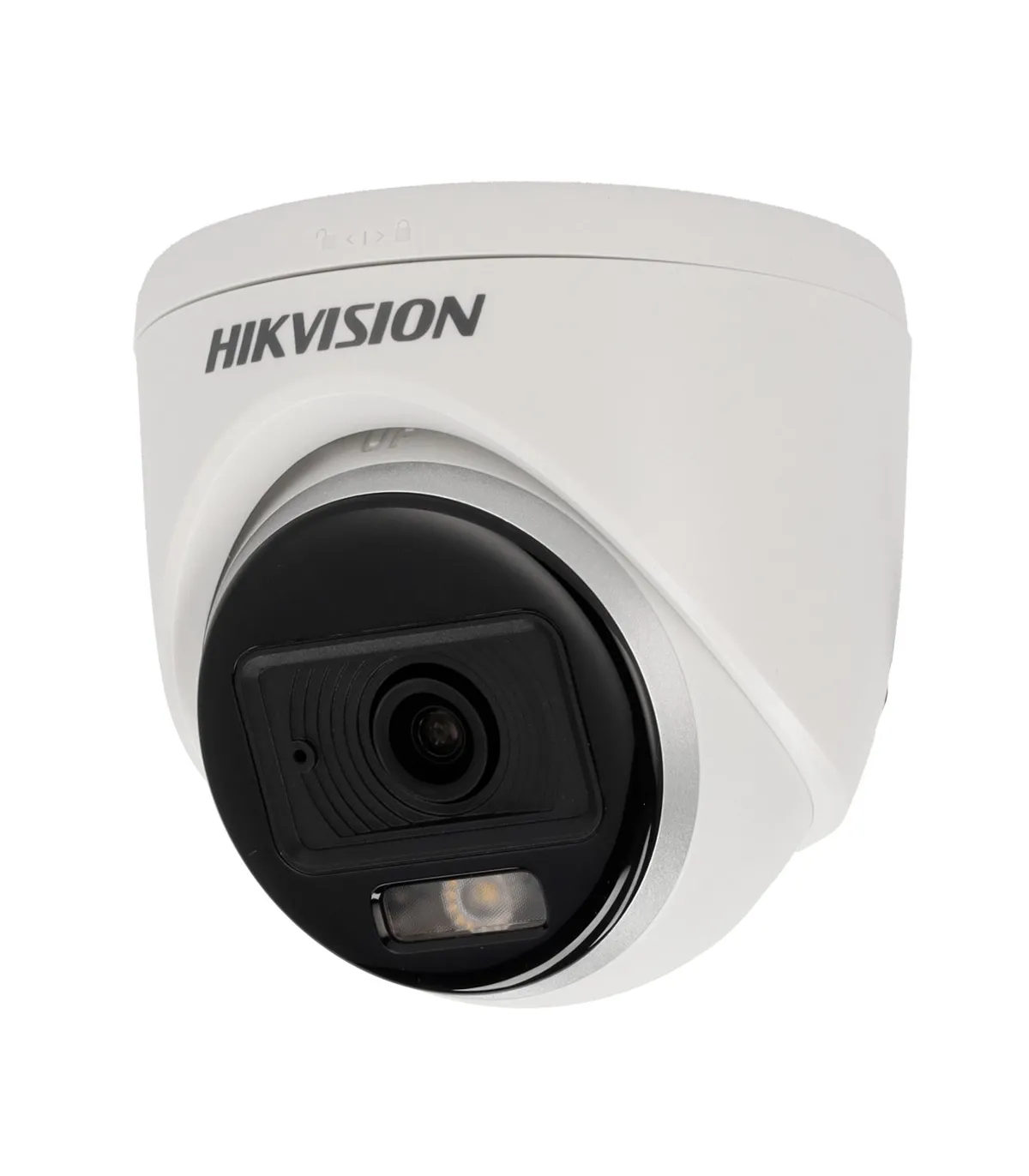

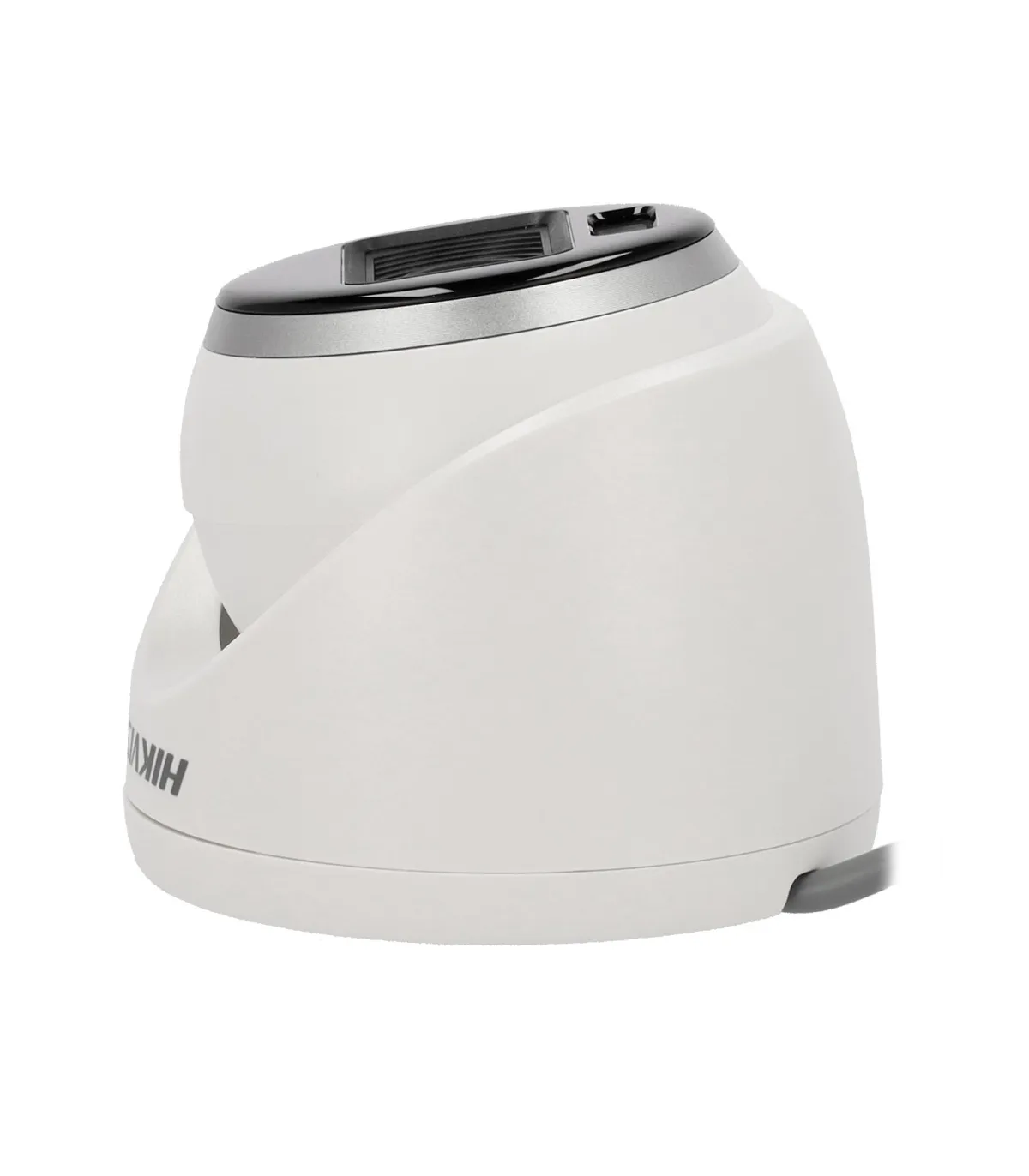

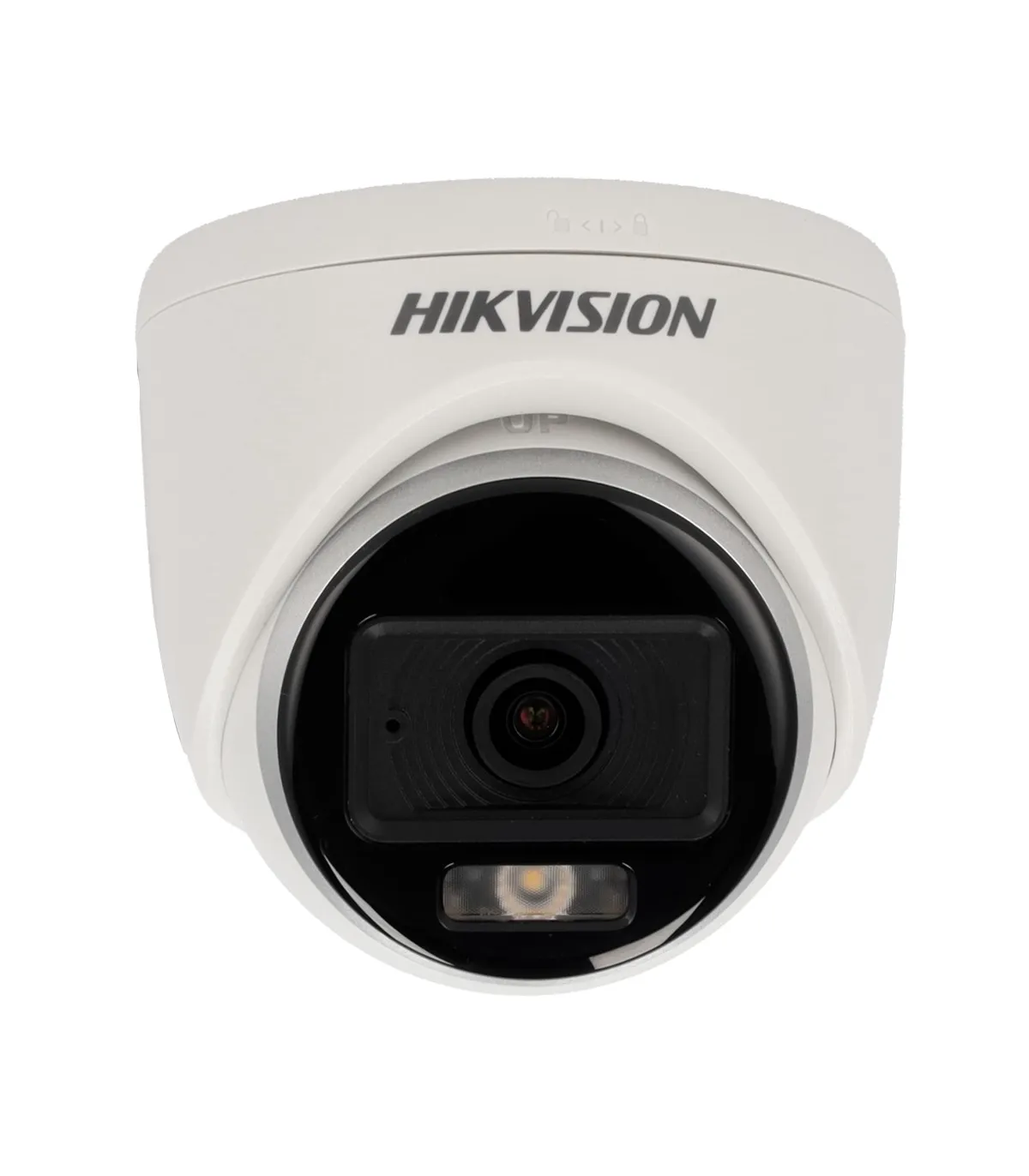

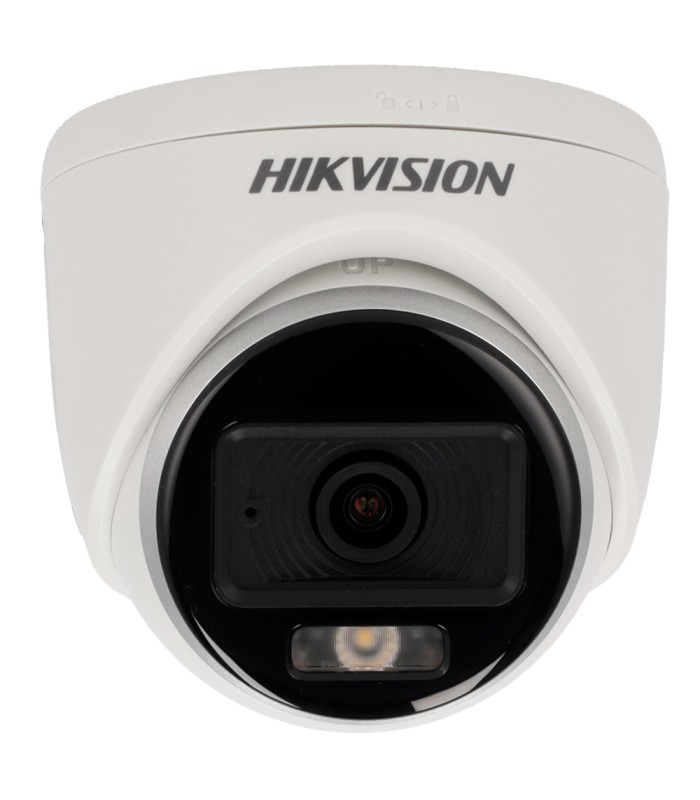

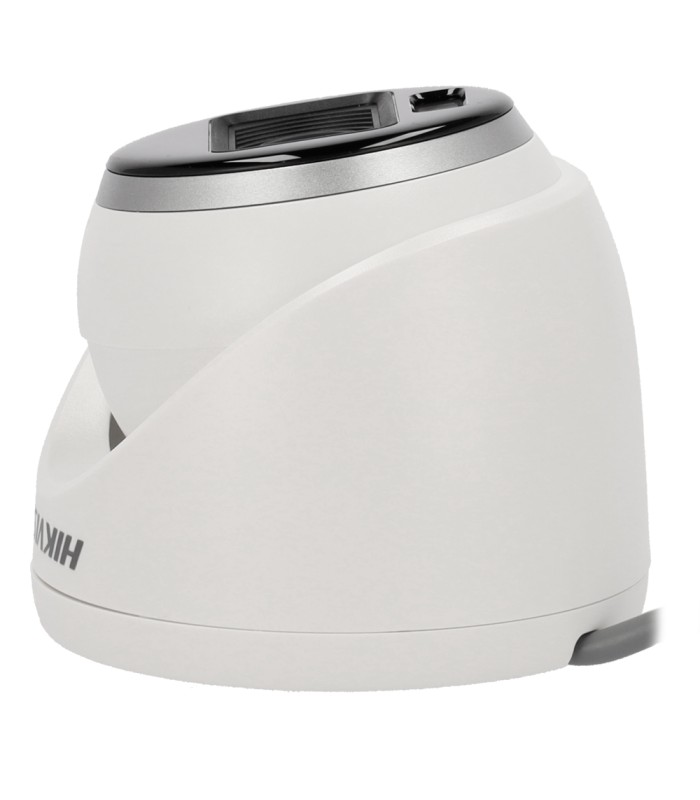

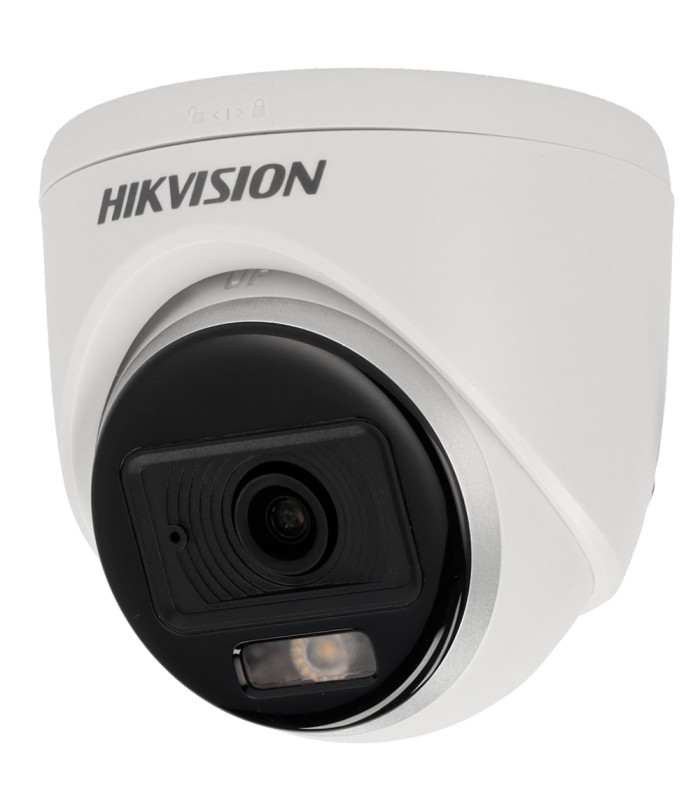

Hikvision DS-2CE70DF0T-LPFS Value Range 4in1 Dome Camera (2.8mm)
Brand: HIKVISION VALUE
- Hikvision
- 4-in-1 Value Range Dome Camera
- Resolution 1080p (1920x1080)
- 2.8mm Lens | Hybrid Light with 20m Range
- ColorVu: 24-hour Color Image
- Suitable for Indoor Use | Integrated Microphone
Hikvision DS-2CE70DF0T-LPFS(2.8mm) Value Range 4in1 Dome Camera
- Hikvision
- Value Range
- HDTVI, HDCVI, AHD and CVBS Turret Camera
- 2 MPx CMOS
- 1080p resolution (1920x1080)
- 4 in 1 output
- 2.8 mm lens
- 0 Lux
- Hybrid light: IR and White Light range 20 m
- ColorVu: 24-hour color image
- DWDR
- 3D DNR
- Built-in microphone
- Audio over coaxial
- Suitable for indoors
Technical specifications
| Brand | Hikvision |
| Range | Value |
| Image Sensor | 2 MPx CMOS |
| Maximum resolution | 1080p (1920x1080) at 30 fps |
| Resolution | TVI: 1080p (25~30 fps) CVI: 1080p (25~30 fps) AHD: 1080p (25~30 fps) CVBS: PAL/NTSC |
| Lens | 2.8 mm |
| Angle of view (FOV) | 105º (H), 56º (V), 126º (D) |
| Minimum illumination | 0.001 Lux @ (F1.0, AGC ON) 0 lux with white light range 20 m |
| Supplementary lighting | Hybrid light: IR range 20 m White light range 20 m |
| Day / Night | ColorVu: 24-hour color image |

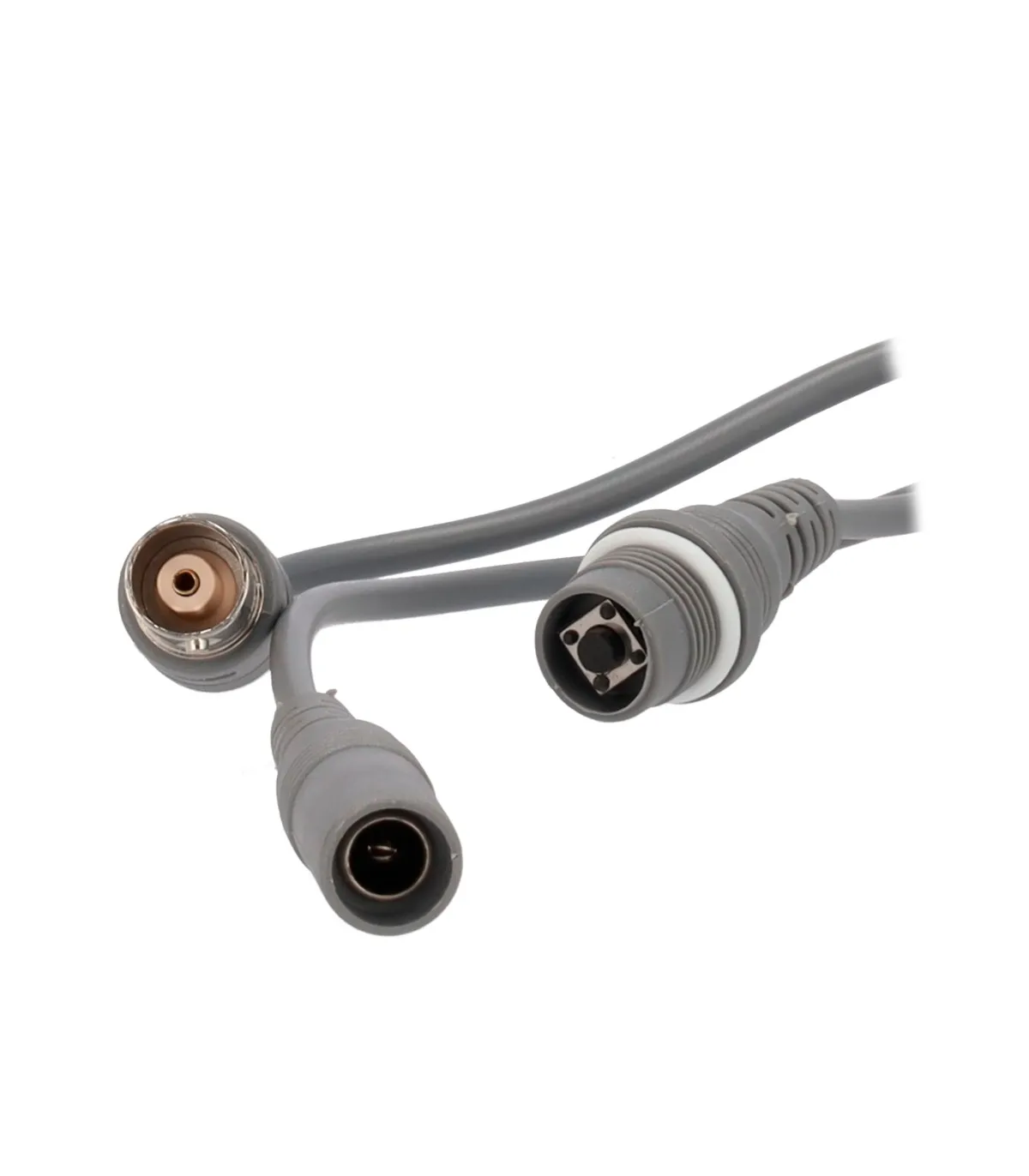

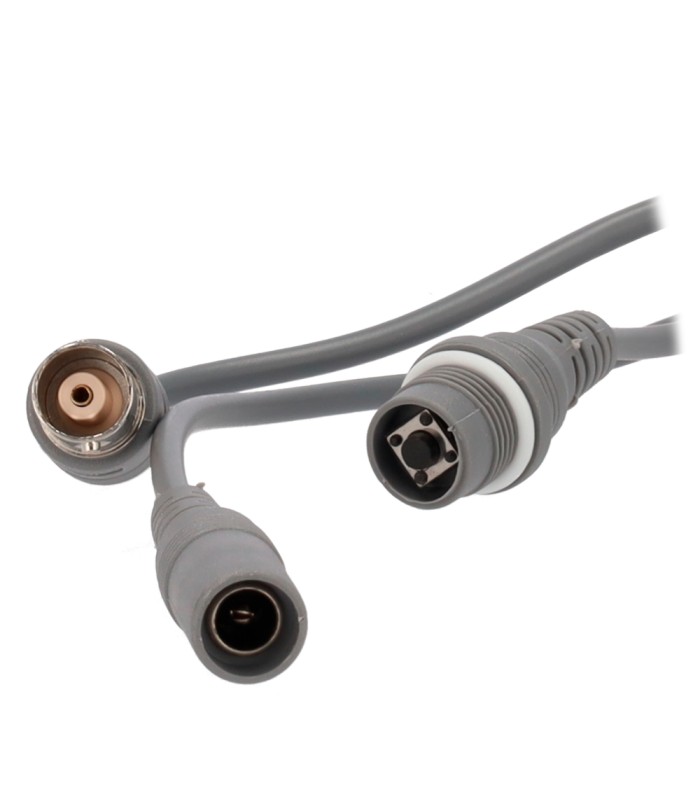

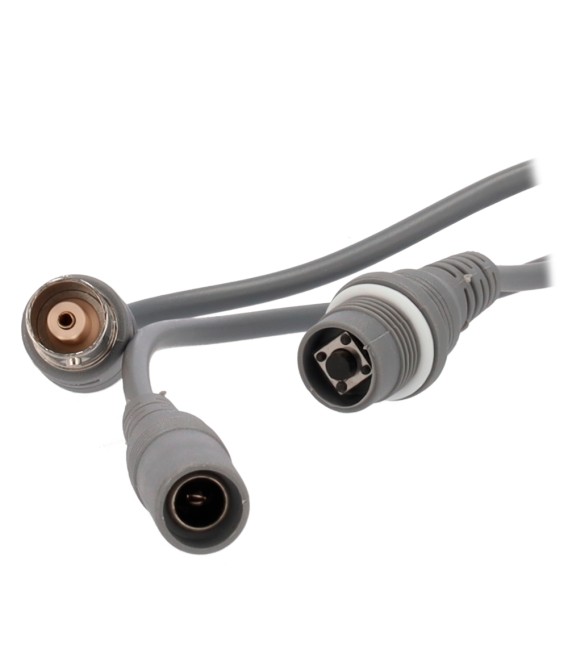

| Video output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Via Switch |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR, BLC, HLC, 3DNR/2DNR, AGC, AWB, Smart Light |
| Audio | Audio over coaxial Built-in microphone |
| Communication | HIKVISION-C |
| Lens Positioning | 3 Axis |
| Power | DC 12 V / 2.9 W max. |
| Protection degree | Suitable for indoors |
| Temp. operation | -40º C ~ +60º C |
| Material | Plastic |
| Dimensions | Ø 85.02 mm x 81.25 mm (H) |

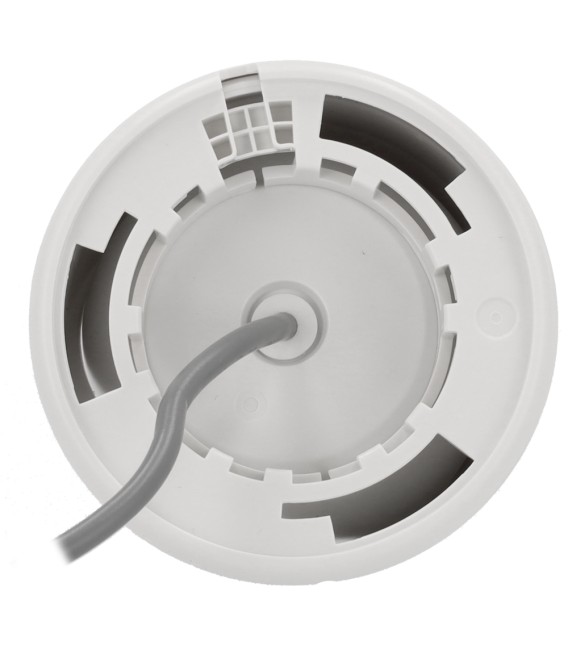

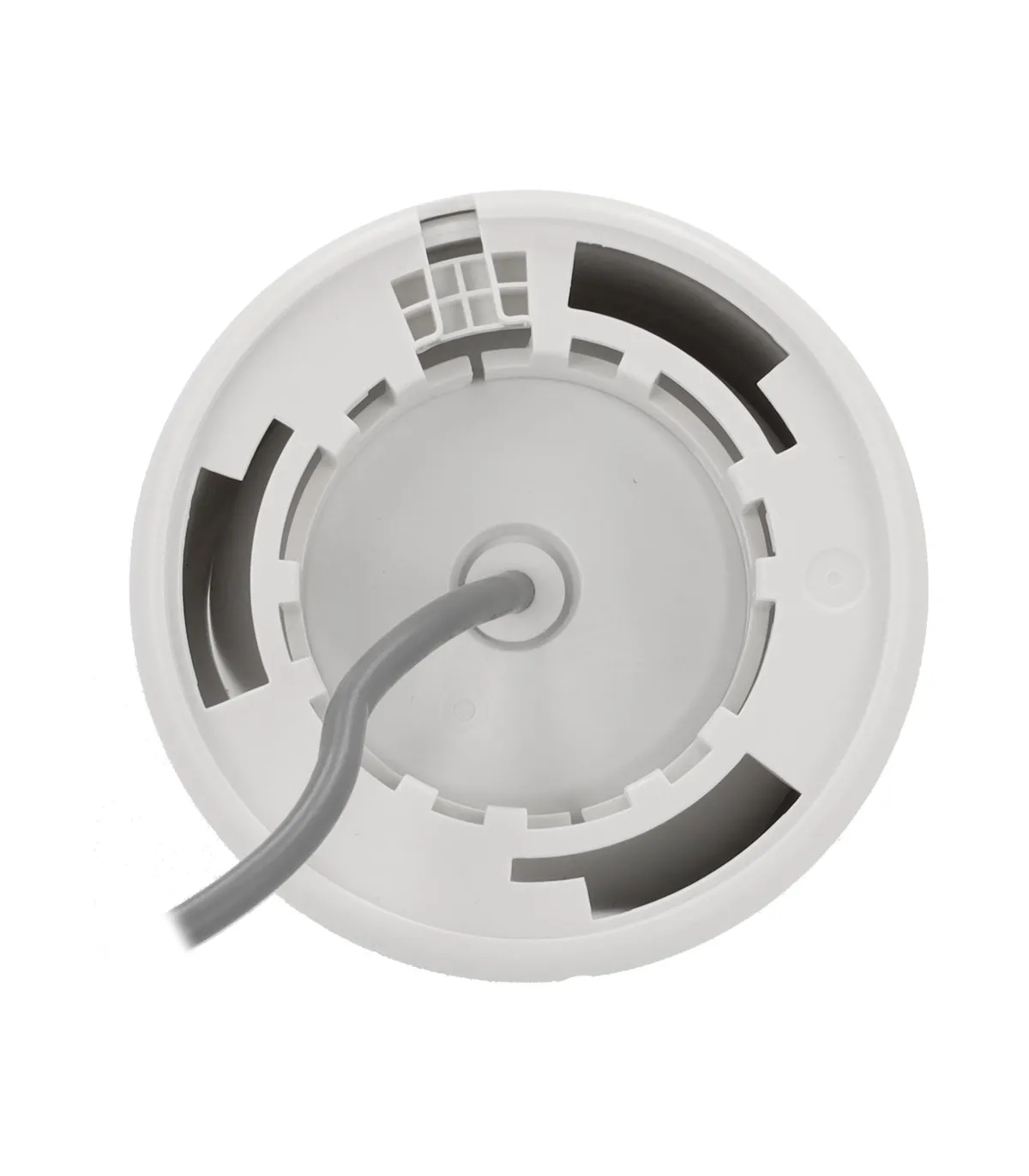

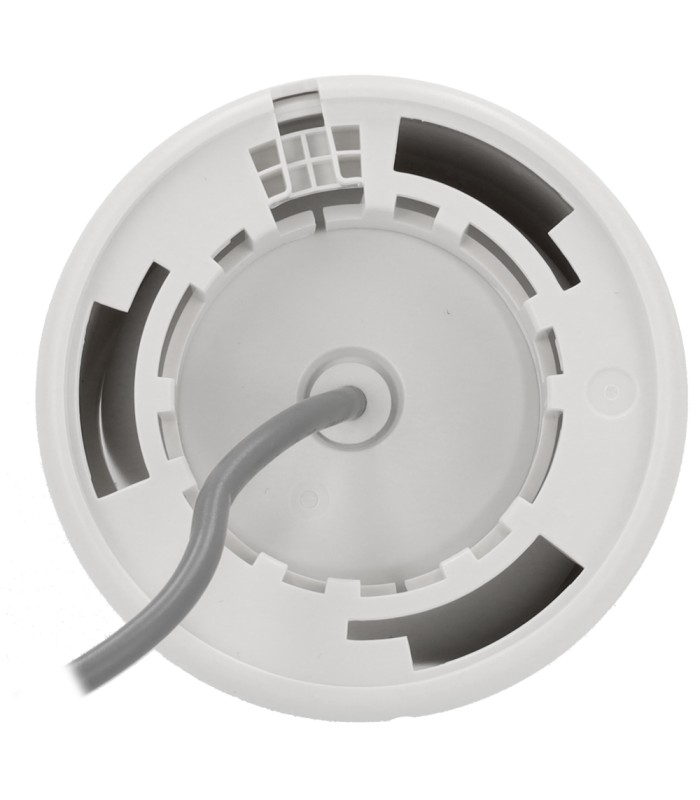

| Base diameter | Ø base 85.02 mm / Ø between screws 60 mm / 3 screws |
| Weight | 155 g |
Contents
- Hikvision ColorVu 4N1 Dome Camera
- Mounting material
- Instructions for use
