| Brand | Hikvision |
| Range | VALUE |
| Image Sensor | 3K CMOS |
| Maximum resolution | 3K (2960x1665) at 20 fps |
| Resolution | TVI: 3K (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps) CVI: 4 Mpx (25~30 fps) AHD: 5Mpx (20 fps), 4 Mpx (25~30 fps) CVBS: PAL/NTSC |
| Lens | 3.6 mm |
| Angle of view (FOV) | 94º (H), 50º (V), 112º (D) |
| Minimum illumination | 0.001 Lux @ (F1.0, AGC ON) 0 lux with white light, range 40 m |
| Supplementary lighting | Hybrid light: IR range 40 m White light range 40 m |

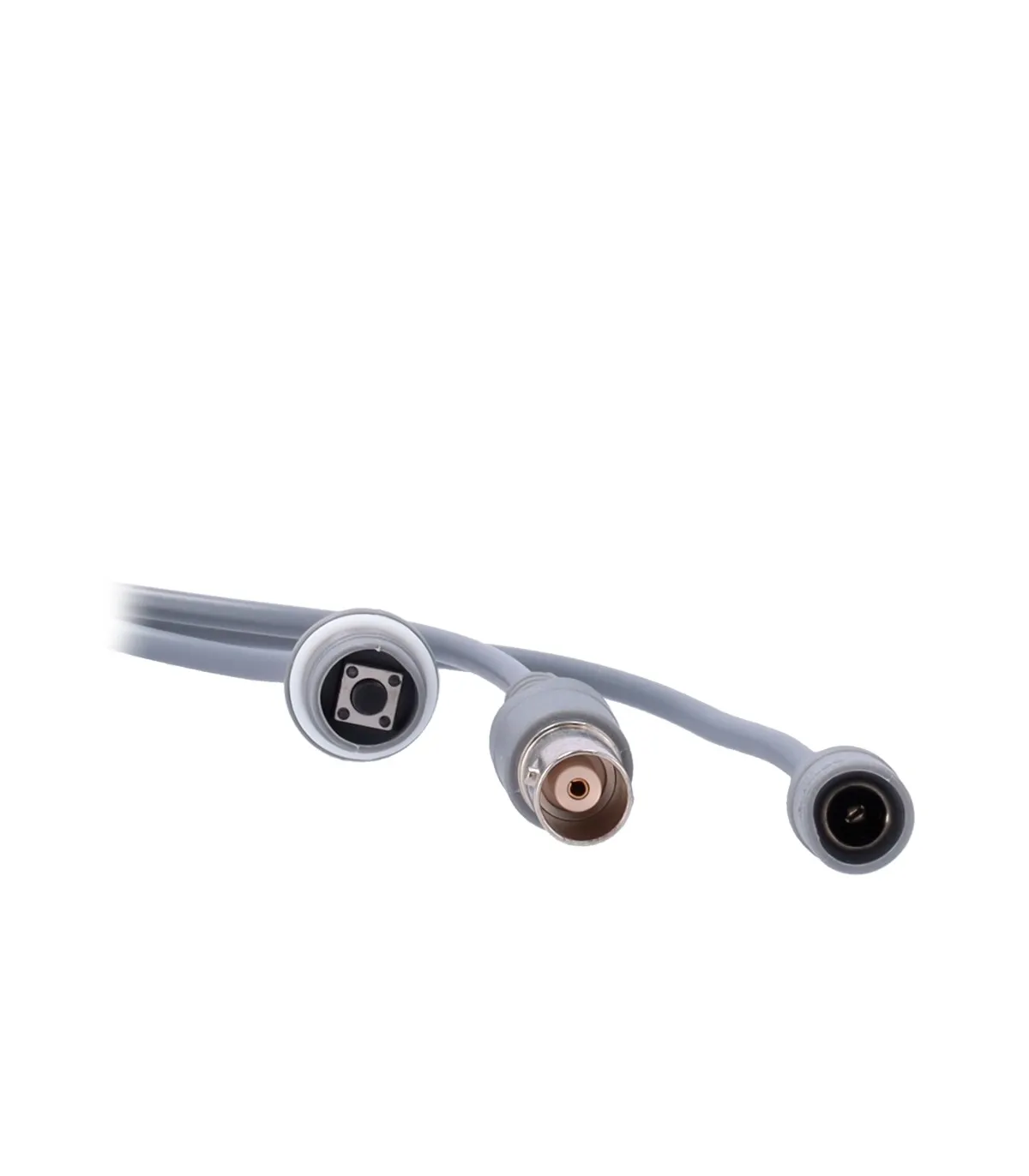

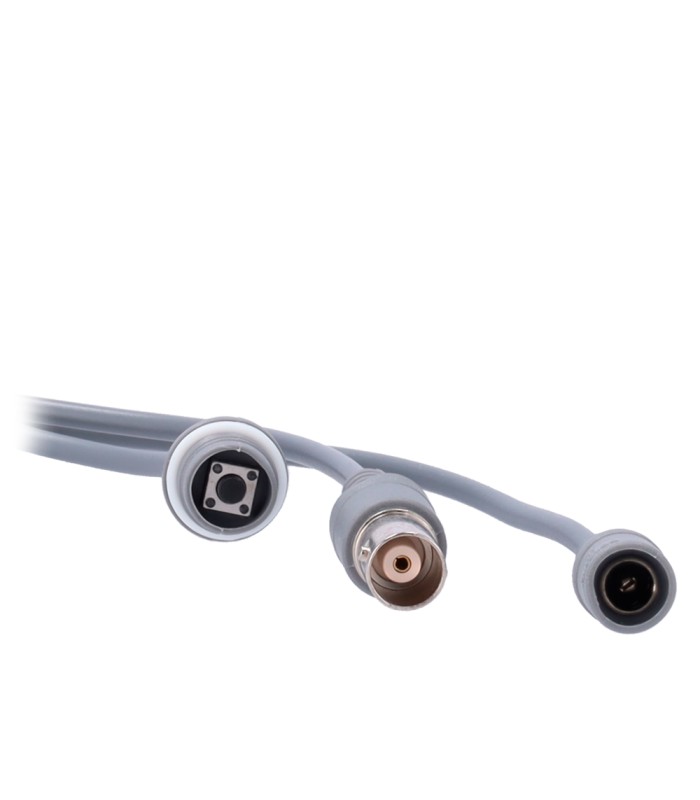

| Video output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Via Switch |
| Audio | Microphone integrated Audio via coaxial cable |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR, BLC, HLC, 2DNR, AGC, AWB, Smart Light |
| Communication | HIKVISION-C |
| Lens Positioning | 3 Axis |
| Power | DC 12 V / 5.2 W max. |
| Protection grade | Waterproof IP67 |
| Temp. operation | -40º C ~ +60º C |
| Material | Body: Metal Cover: Plastic |
| Dimensions | Ø 109.98 mm x 98.27 mm (H) |

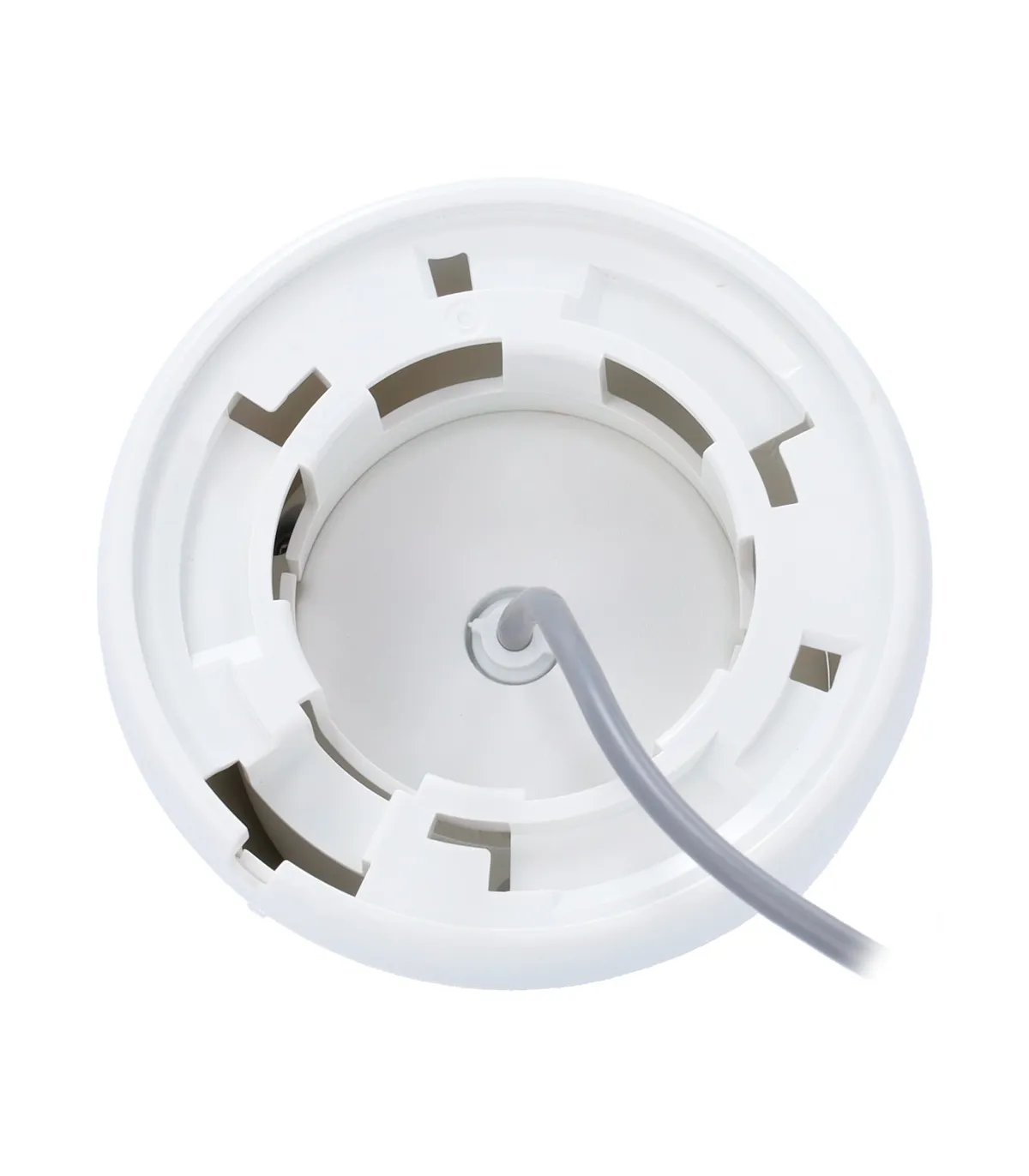

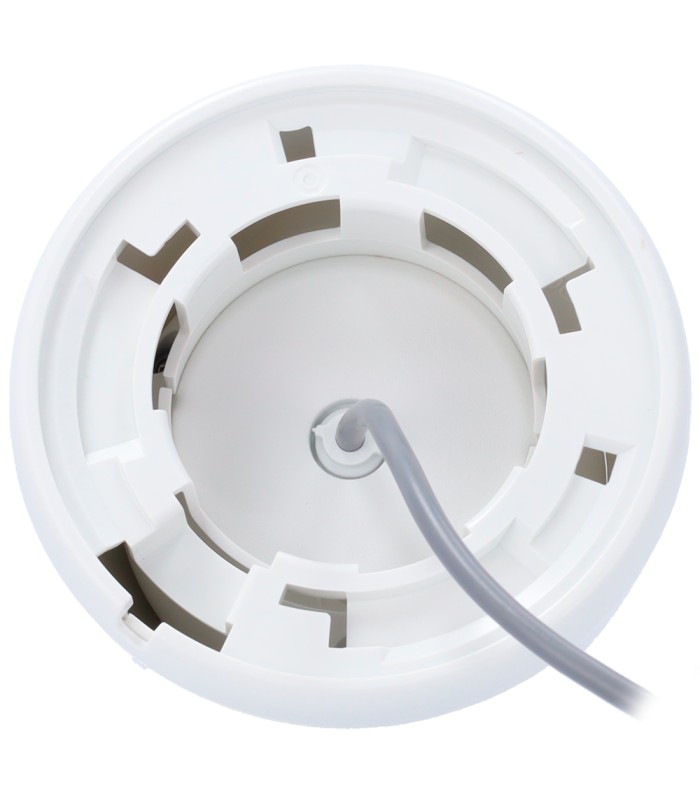

| Base diameter | base Ø 109.98 mm / Ø between screws 85 mm / 3 screws |
| Weight | 320 g |
Data sheet
