- Hikvision
- 4-in-1 Value Series Dome Camera
- 8 Megapixel Resolution (3840x2160)
- Motorized Varifocal Lens 2.7~13.5 mm
- IR Range 60 m
- IP67 Waterproof

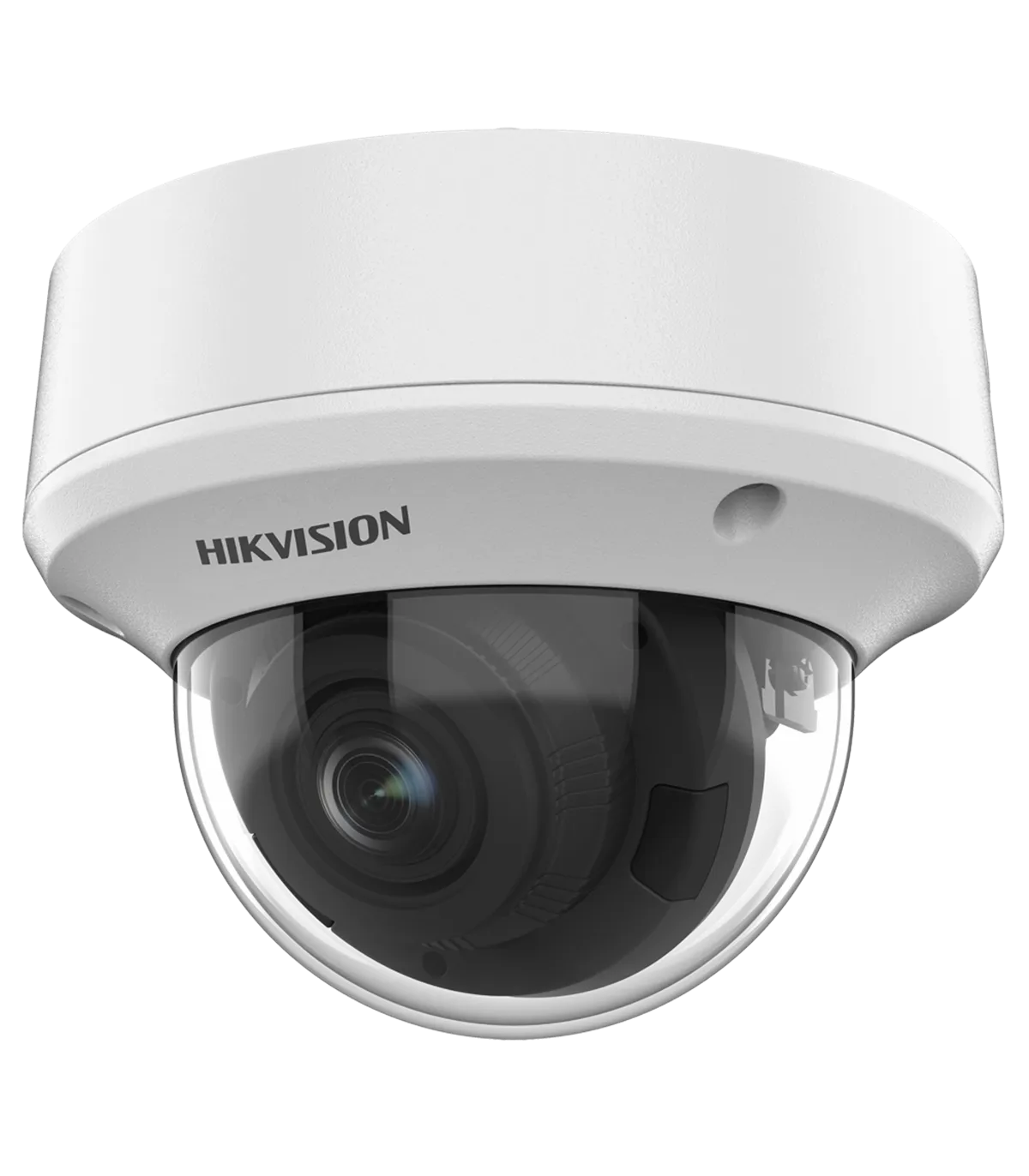

Description & Key Features: DS-2CE5AU1T-VPIT3ZF(2.7-13.5mm)
The DS-2CE5AU1T-VPIT3ZF is a versatile dome camera designed for high-definition surveillance in various environments. This device is ideal for both indoor and outdoor applications, providing exceptional image quality with its 8 Megapixel resolution. The camera features a varifocal motorized lens ranging from 2.7 to 13.5 mm, allowing for flexible installation and optimal viewing angles. With its Smart IR technology, it ensures clear visibility even in complete darkness, making it a reliable choice for comprehensive security solutions.
- Hikvision
- Value Series
- HDTVI, HDCVI, AHD, and CVBS Dome Camera
- High Performance CMOS
- 8 Megapixel (3840x2160)
- 4-in-1 Output
- Motorized Varifocal Lens 2.7~13.5 mm
- 0 Lux
- Smart IR EXIR Range 60 m
- IP67 Waterproof
Specifications: DS-2CE5AU1T-VPIT3ZF(2.7-13.5mm)
| Brand | Hikvision |
| Series | Value |
| Image Sensor | 8.29Mpx progressive scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) at 15 fps |
| Resolution | TVI: 8Mpx (12.5~15 fps), 5Mpx (20 fps), 4Mpx (25~30 fps), 2Mpx (25~30 fps) CVI: 8Mpx (12.5~15 fps) AHD: 8Mpx (12.5~15 fps) CVBS: 960H PAL/NTSC |
| Lens | Motorized Varifocal Lens 2.7~13.5 mm |
| Field of View (FOV) | 108.1~45.6º (H) |
| Minimum Illumination | 0.01 Lux @ (F1.2, AGC ON) |
| Infrared Illumination | 0 Lux / (Smart IR EXIR range 60 m) |
| Day/Night | Auto / Color / Black and White (ICR) |
| Video Output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video Output Switching | Via Switch |
| Basic Functions | OSD Menu (remote) |
| Configurable OSD Functions | DWDR, BLC, HLC, DNR, AGC, AWB, Mirror Function, Smart IR |
| Communication | HIKVISION-C |
| Lens Positioning | 3 Axis |
| Power Supply | DC 9~15 V / 6.4 W max. |
| Protection Rating | IP67 Waterproof |
| Operating Temperature | -40º C ~ +60º C |
| Material | Metal |
| Dimensions | Ø 145 mm x 111.3 mm (H) |
| Base Diameter | Ø base 139.9 mm / Ø between screws 130 mm / 3 screws |
| Weight | 860 g |
Package Contents
- Hikvision Value 4-in-1 Dome Camera
- Mounting Material
- User Instructions
Use Case
The DS-2CE5AU1T-VPIT3ZF is an excellent choice for security installations in retail stores, warehouses, and outdoor facilities. Its 8 Megapixel resolution ensures that every detail is captured, providing clear evidence in case of incidents. The camera's Smart IR technology allows for effective night surveillance, making it suitable for 24/7 monitoring. Installers can benefit from the motorized varifocal lens, which enables quick adjustments to the field of view without the need for manual intervention. Additionally, the IP67 rating guarantees durability against harsh weather conditions, ensuring reliable performance in various environments. With its remote monitoring capabilities, users can access live feeds from anywhere, enhancing security management.
Data sheet
- Brand
- HIKVISION
- Resolution
- 8 Mpx
- Technology
- HD-Coaxial
- WDR
- DWDR
- Audio
- No dispone
- Lens
- 2.7 ~ 13.5 mm Motorizada
Specific References
- EAN13
- 6954273669492
