- Hikvision PRO Series HDTVI Dome Camera
- Resolution 1080p (1920x1080)
- Lens 2.8~12 mm
- Smart IR range 60 m | Audio over Coaxial
- Power over Coaxial PoC.af | Microphone
- Waterproof IP67 | Vandal-proof IK10

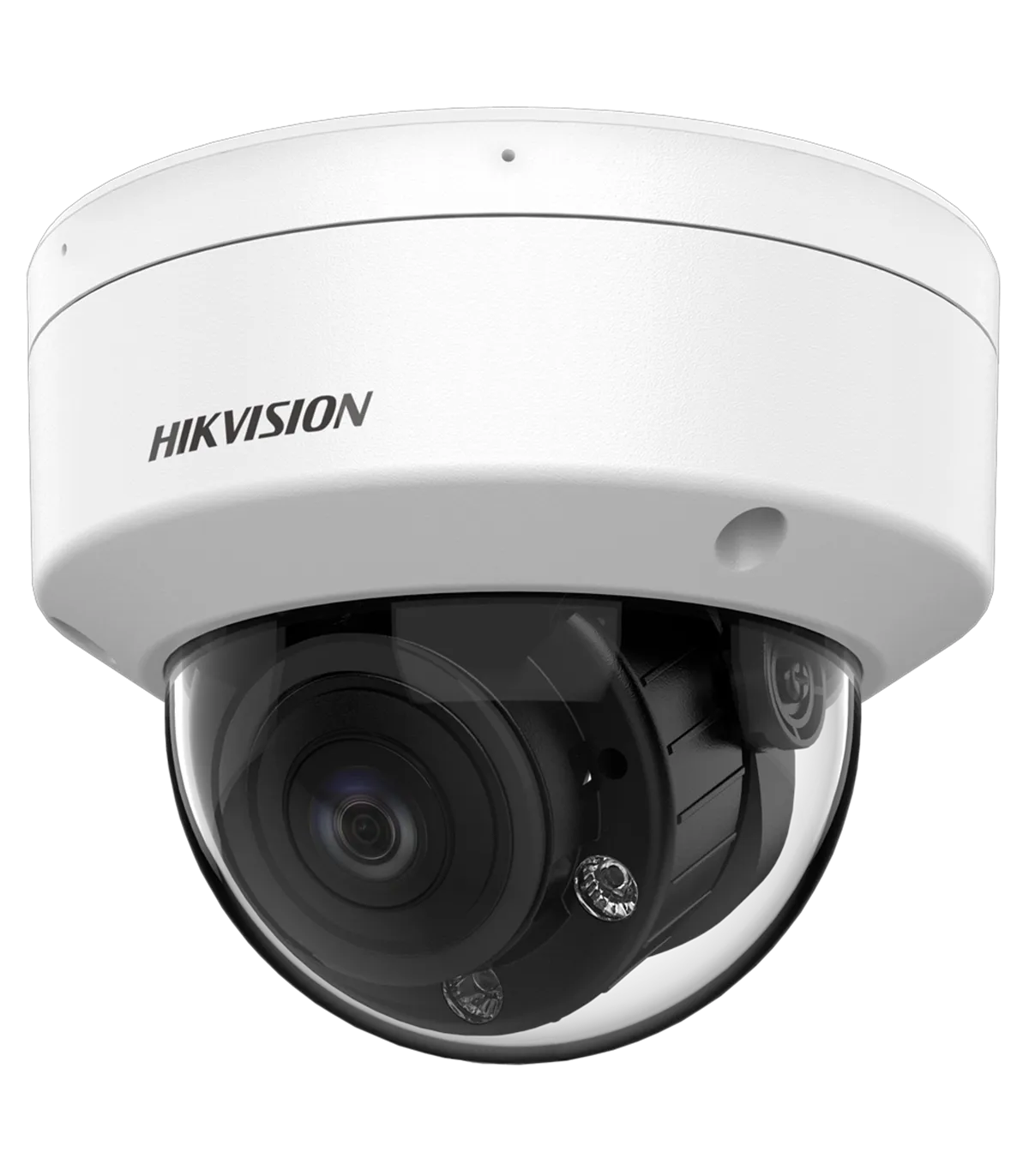

Description & Key Features: DS-2CE50D8T-VPITSZE(2.8-12mm)
The DS-2CE50D8T-VPITSZE is a high-performance HDTVI dome camera designed for professional surveillance applications. With its advanced 2 MP CMOS sensor, this camera delivers exceptional 1080p resolution video, making it ideal for monitoring both indoor and outdoor environments. The motorized varifocal lens, ranging from 2.8 to 12 mm, allows for flexible installation and precise field of view adjustments, ensuring optimal coverage in various settings.
- Hikvision
- PRO Series
- HDTVI Dome Camera
- 2 MP CMOS
- 1080p (1920x1080)
- HDTVI Output
- Motorized Varifocal Lens 2.8~12 mm
- 0 Lux
- Ultra Low Light
- IR Range 60 m
- WDR (130 dB)
- 3D-DNR
- IR CUT
- Integrated Microphone
- Audio over Coaxial
- Power over Coaxial PoC.at
- IP67 Waterproof
- IK10 Vandal Resistant
Specifications: DS-2CE50D8T-VPITSZE(2.8-12mm)
| Brand | Hikvision |
| Series | PRO |
| Image Sensor | 2 MP progressive scan CMOS |
| Maximum Resolution | 1080p (1920x1080) at 30 fps |
| Resolution | 1080p (25~30 fps) |
| Lens | Motorized Varifocal Lens 2.8~12 mm |
| Field of View (FOV) | 106~32º (H), 56~18º (V), 127~37º (D) |
| Minimum Illumination | 0.0005 Lux @ (F1.28, AGC ON) |
| Infrared Illumination | 0 Lux / IR range 60 m |
| Day/Night | Auto / Color / Black and White (ICR) |
| Video Output | 1 x BNC HDTVI |
| Basic Functions | OSD Menu (Remote) |
| Configurable OSD Functions | WDR (130 dB), BLC, 3D-DNR, AGC, Privacy masking |
| Audio | Integrated Microphone Audio over coaxial cable using TVI technology |
| Communication | HIKVISION-C |
| Lens Positioning | 3 Axis |
| Power Supply | DC 12 V / 7.4 W max. PoC.at (power over coaxial cable) |
| Protection Rating | IP67 Waterproof IK10 Vandal Resistant |
| Operating Temperature | -40º C ~ +60º C |
| Material | Metal |
| Dimensions | Ø 121.5 mm x 97.6 mm (H) |
| Base Dimensions | Ø base 121.5 mm / Ø between screws 104.7 mm / 3 screws |
| Weight | 570 g |
Package Contents
- Hikvision PRO HDTVI Dome Camera
- Mounting Material
- User Instructions
Use Case
The DS-2CE50D8T-VPITSZE is ideally suited for a variety of surveillance applications, including retail stores, parking lots, and residential areas. Its IP67 waterproof rating ensures reliable performance in outdoor environments, while the IK10 vandal-resistant design protects it from tampering. Installers can take advantage of the motorized varifocal lens to easily adjust the field of view during setup, allowing for precise monitoring of critical areas. The camera's integrated microphone enables audio capture, enhancing security by providing context to video footage. With WDR technology and 3D-DNR, the camera excels in challenging lighting conditions, ensuring clear images day and night. This makes it an excellent choice for users seeking a robust and versatile surveillance solution.
Data sheet
- Brand
- HIKVISION
- Resolution
- 1080p
- Technology
- HD-Coaxial
- Audio
- No dispone
- Lens
- 2.8 ~ 12 mm Motorizada
- Compatible models
- DS-1280ZJ-DM46,DS-1280ZJ-DM46,DS-1276ZJ-SUS,DS-1276ZJ-SUS,DS-1275ZJ-SUS,DS-1275ZJ-SUS,DS-1272ZJ-120B,DS-1272ZJ-120B,DS-1272ZJ-120,DS-1272ZJ-120,DS-1271ZJ-120,DS-1271ZJ-120
Specific References
- EAN13
- 6942160479996
