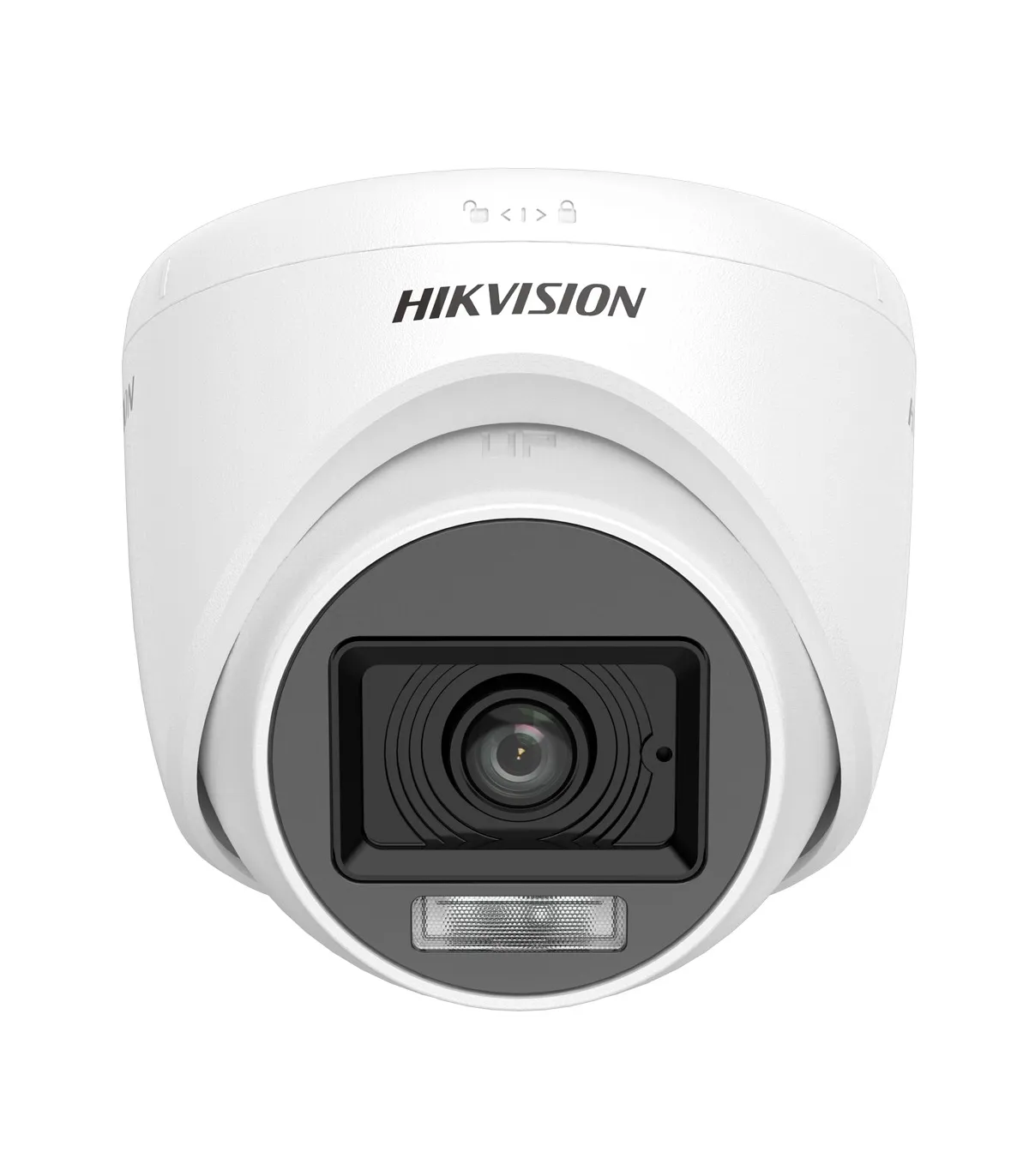

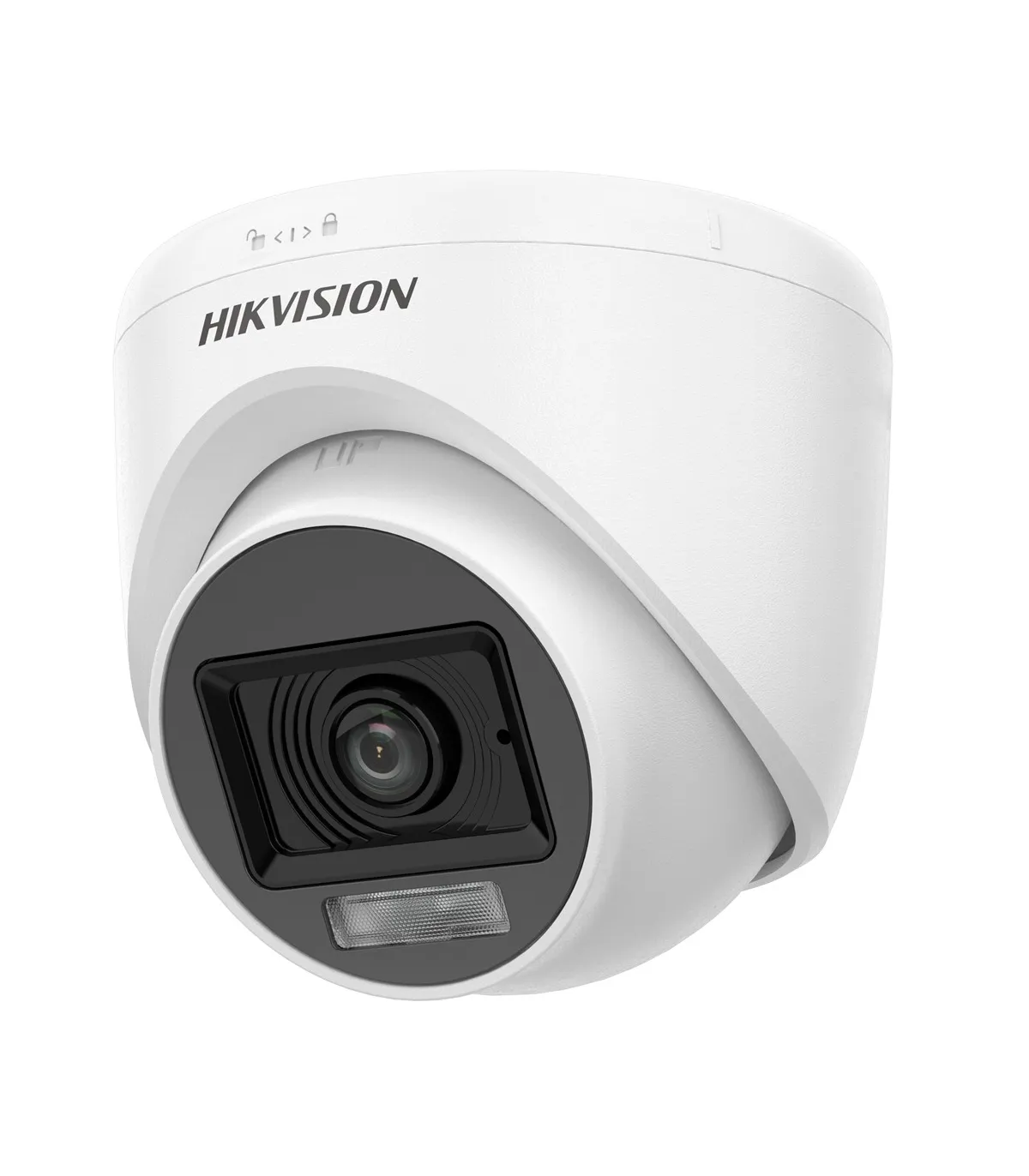

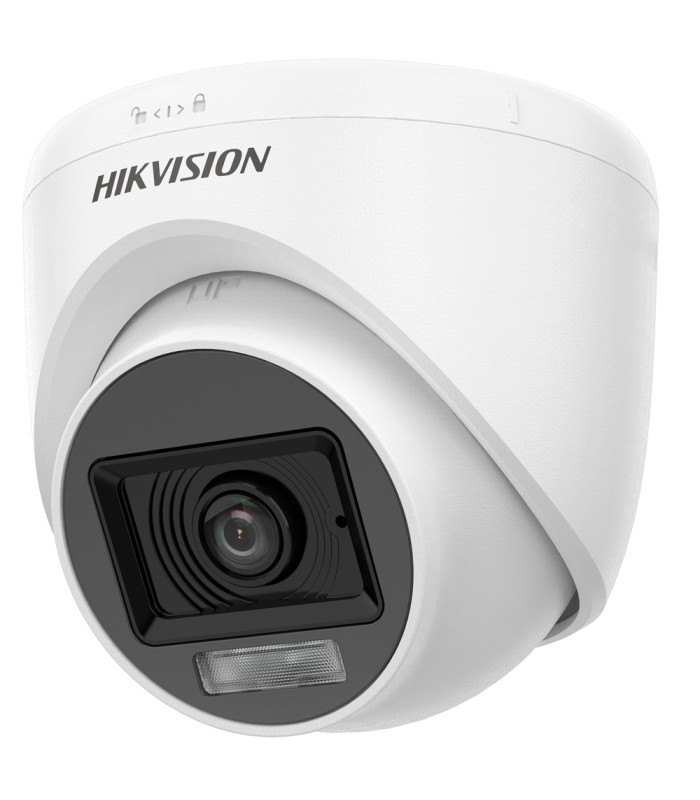

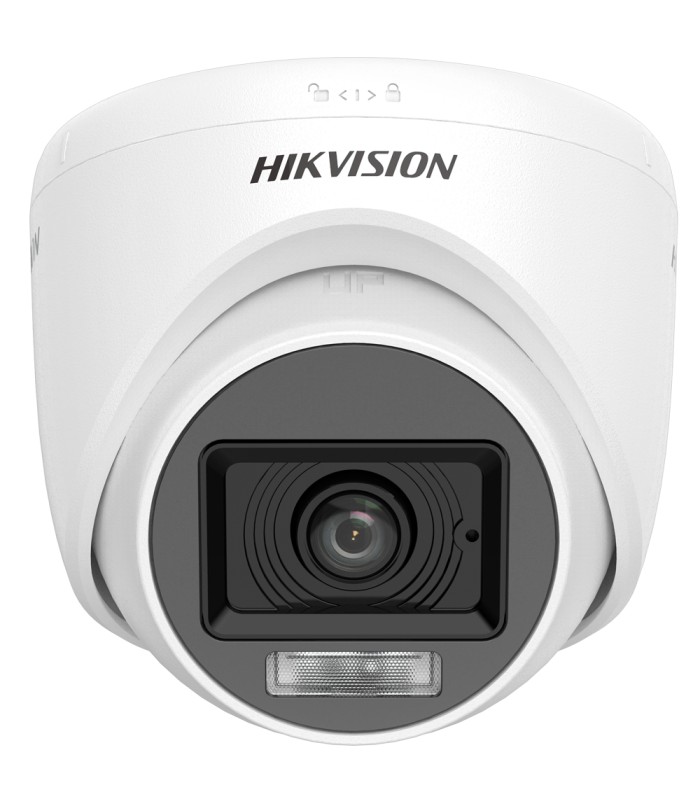

Hikvision DS-2CE76D0T-LPFS Value Range 4in1 Dome Camera (2.8mm)
Brand: HIKVISION VALUE
- Hikvision
- 4-in-1 Value Range Dome Camera
- Resolution 1080p (1920x1080)
- 2.8mm Lens | Suitable for indoor use
- Dual light: Smart IR 20m and white light 20m
- Audio over coaxial cable | Built-in microphone
Hikvision DS-2CE76D0T-LPFS(2.8mm) Value Range 4in1 Dome Camera
- Hikvision
- VALUE Range
- HDTVI, HDCVI, AHD and CVBS Dome Camera
- High Performance CMOS
- HD 1080p (1920x1080)
- 4 in 1 output
- 2.8 mm lens
- 0 Lux
- Smart IR range 20 m
- White light range 20 m
- Audio over Coaxial
- Built-in microphone
- DNR
- IR CUT
- Suitable for interior
Technical specifications
| Brand | Hikvision |
| Gamma | Value |
| Image Sensor | High Performance CMOS |
| Maximum resolution | 1080p (1920x1080) at 30 fps |
| Resolution | TVI: 1080p (25~30 fps) CVI: 1080p (25~30 fps) AHD: 1080p (25~30 fps) CVBS: PAL/NTSC |
| Lens | 2.8 mm |
| Angle of view (FOV) | 101º (H), 56º (V), 118º (D) |
| Minimum illumination | 0.01 Lux @ (F1.2, AGC ON) |
| Illumination infrared | 0 Lux / (Smart IR range 20 m) |
| Day / Night | Auto / Color / Black and white (ICR) White light (range 20 m) |
| Video output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Via Switch |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR, DNR, AGC, AWB, Smart IR |
| Communication | HIKVISION-C |
| Audio | Integrated microphone (Audio via coaxial cable in TVI technology) |
| Lens Positioning | 3 Axis |
| Power | DC 12 V / 3.3 W max. |
| Protection degree | Suitable for indoors |
| Temp. operation | -40º C ~ +60º C |
| Material | Plastic |
| Dimensions | Ø 85 mm x 84.6 mm (H) |
| Base diameter | Ø base 85 mm / Ø between screws 60 mm / 3 screws |
| Weight | 156 g |
Contents
- Hikvision Value 4N1 Dome Camera
- Mounting material
- Instructions for use
