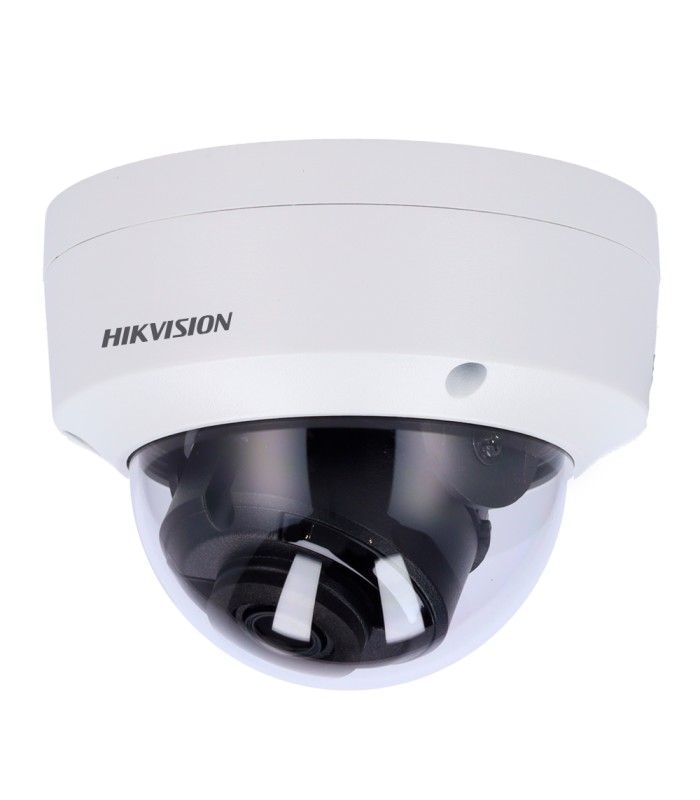

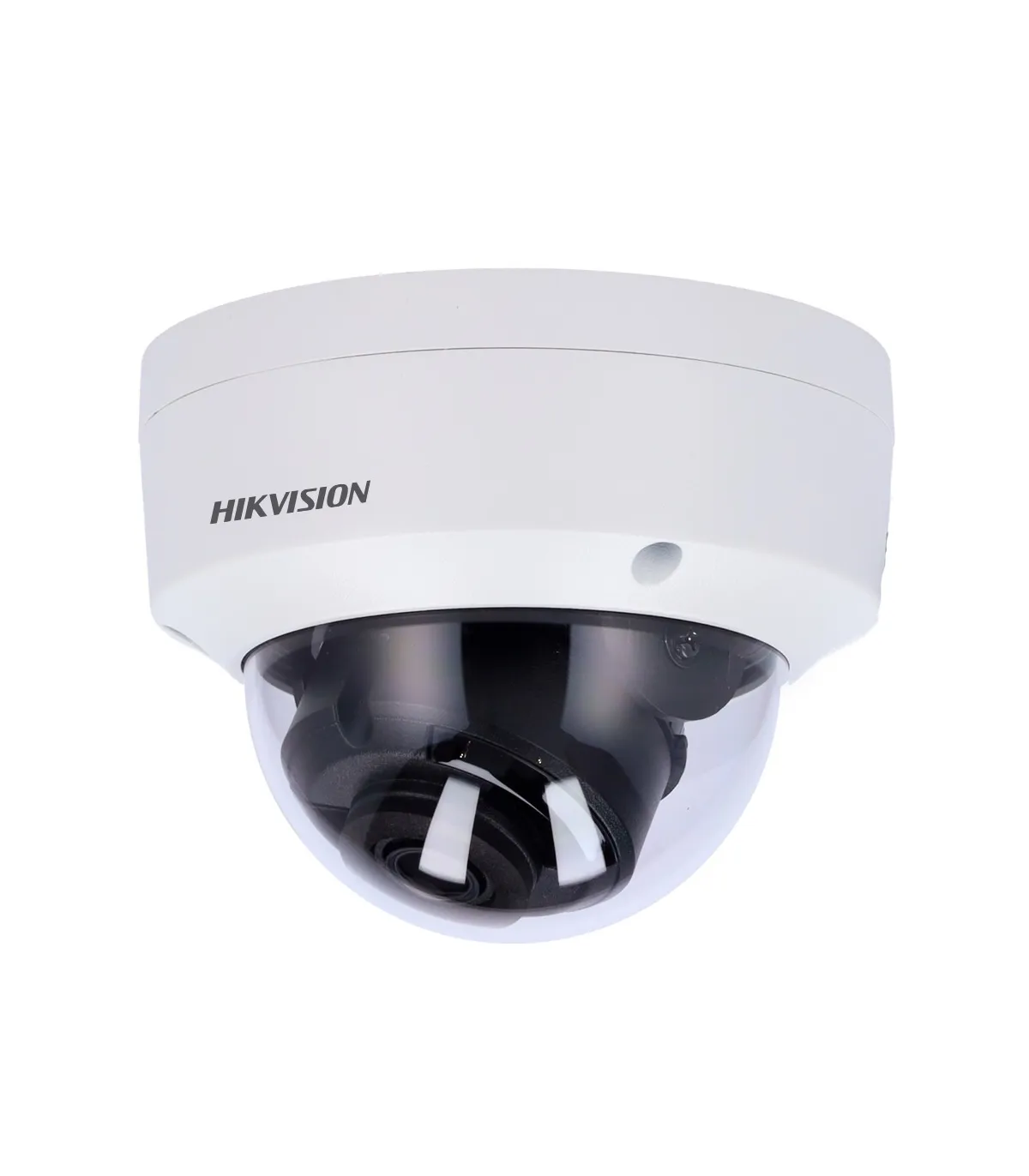

Hikvision DS-2CE57D3T-VPITF Value Range 4in1 Dome Camera (2.8mm)
Brand: HIKVISION VALUE
- Hikvision
- 4-in-1 Value Range Dome Camera
- Resolution 1080p (1920x1080)
- 2.8mm Lens
- EXIR IR Range 30m
- Waterproof IP67, vandal-proof IK10
4in1 Dome Camera Value Range Hikvision DS-2CE57D3T-VPITF(2.8mm)
- Hikvision
- VALUE Range
- HDTVI, HDCVI, AHD and CVBS Dome Camera
- 2 Mpx progressive scan CMOS
- 1080p (1920x1080)
- 4 in 1 output
- 2.8 mm lens
- 0 Lux
- EXIR IR Range 30 m
- WDR (120 dB)
- 3D DNR
- IR CUT
- Waterproof IP67
- Anti-vandal IK10
Technical specifications
| Brand | Hikvision |
| Range | Value |
| Image sensor | 2 Mpx CMOS |
| Maximum resolution | 1080p (1920x1080) at 30 fps |
| Resolution | 1080p (25~30 fps) |
| Lens | 2.8 mm |
| Angle of view (FOV) | 106º (H) |
| Minimum illumination | 0.005 Lux@(F1.2, AGC ON) |
| Infrared illumination | 0 Lux / (Smart EXIR IR range 30 m) |
| Day / Night | Auto / Color / Black and white (ICR) |

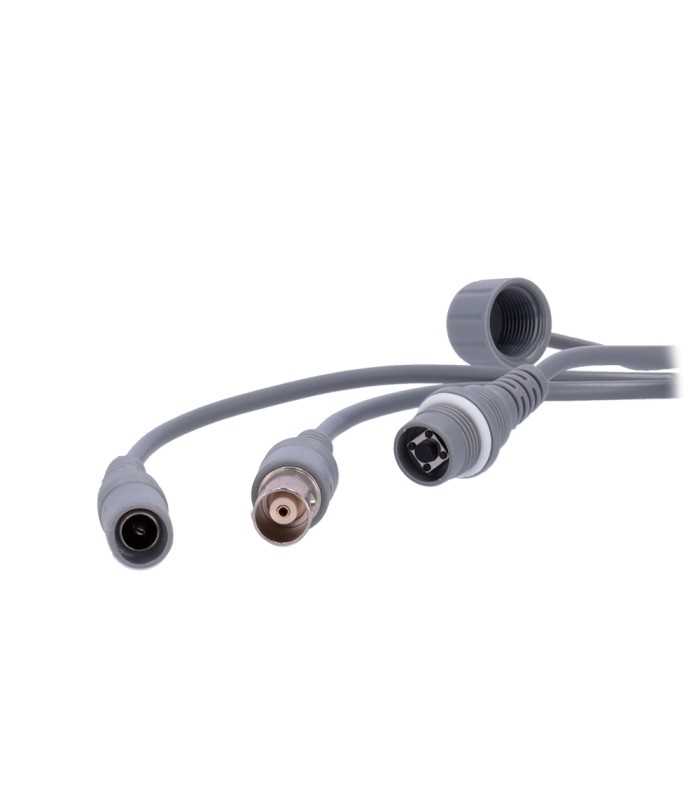

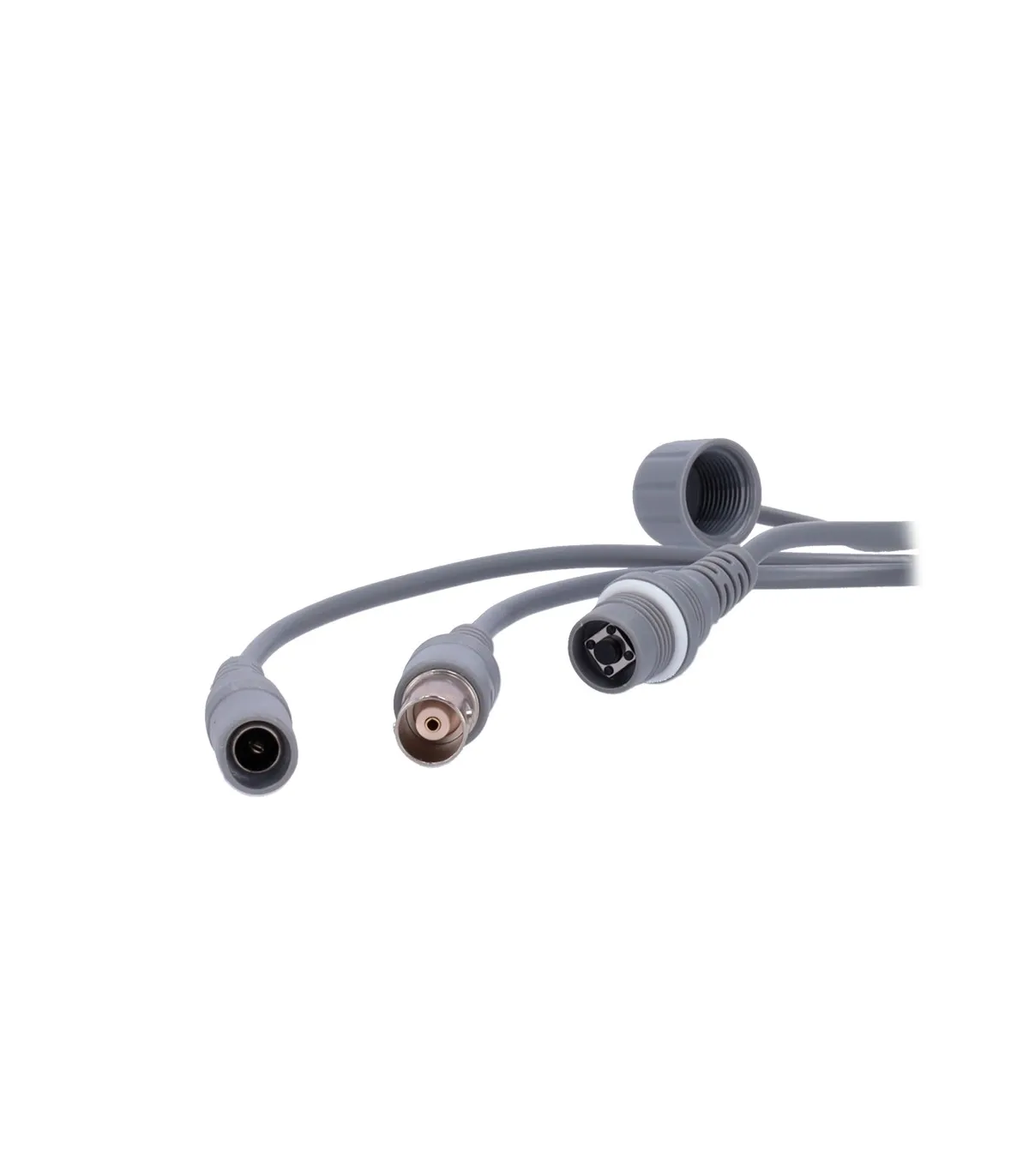

| Video output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Via Switch |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | WDR (120 dB), BLC, HLC, 3DNR, AGC, AWB, Mirror function, Smart IR |
| Communication | HIKVISION-C |
| Lens Positioning | 3 Axis |
| Power | DC 12 V / 4.6 W max. |
| Protection degree | Waterproof IP67, vandal-resistant IK10 |
| Temp. operation | -40º C ~ +60º C |
| Material | Metal |
| Dimensions | Ø 110.8 mm x 84.7 mm (Al) |

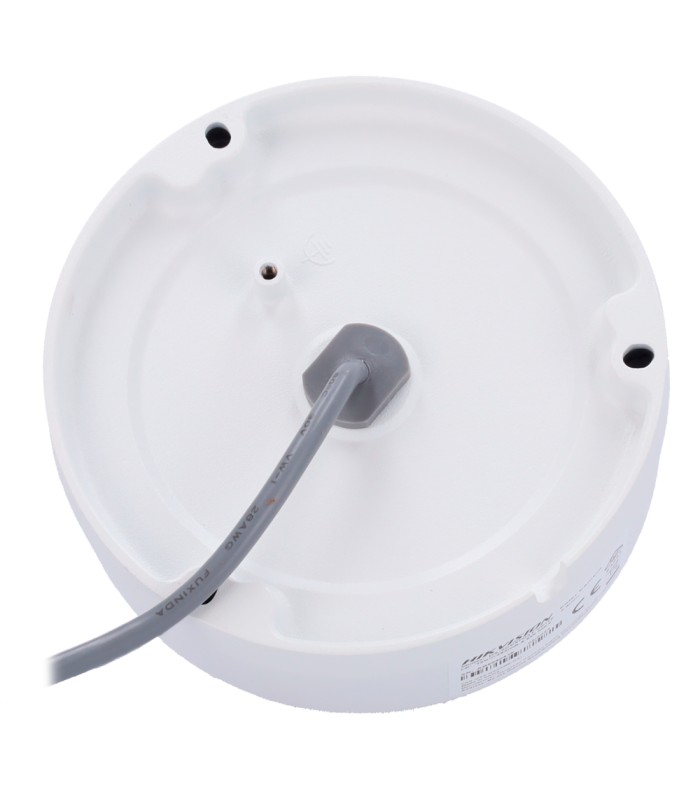

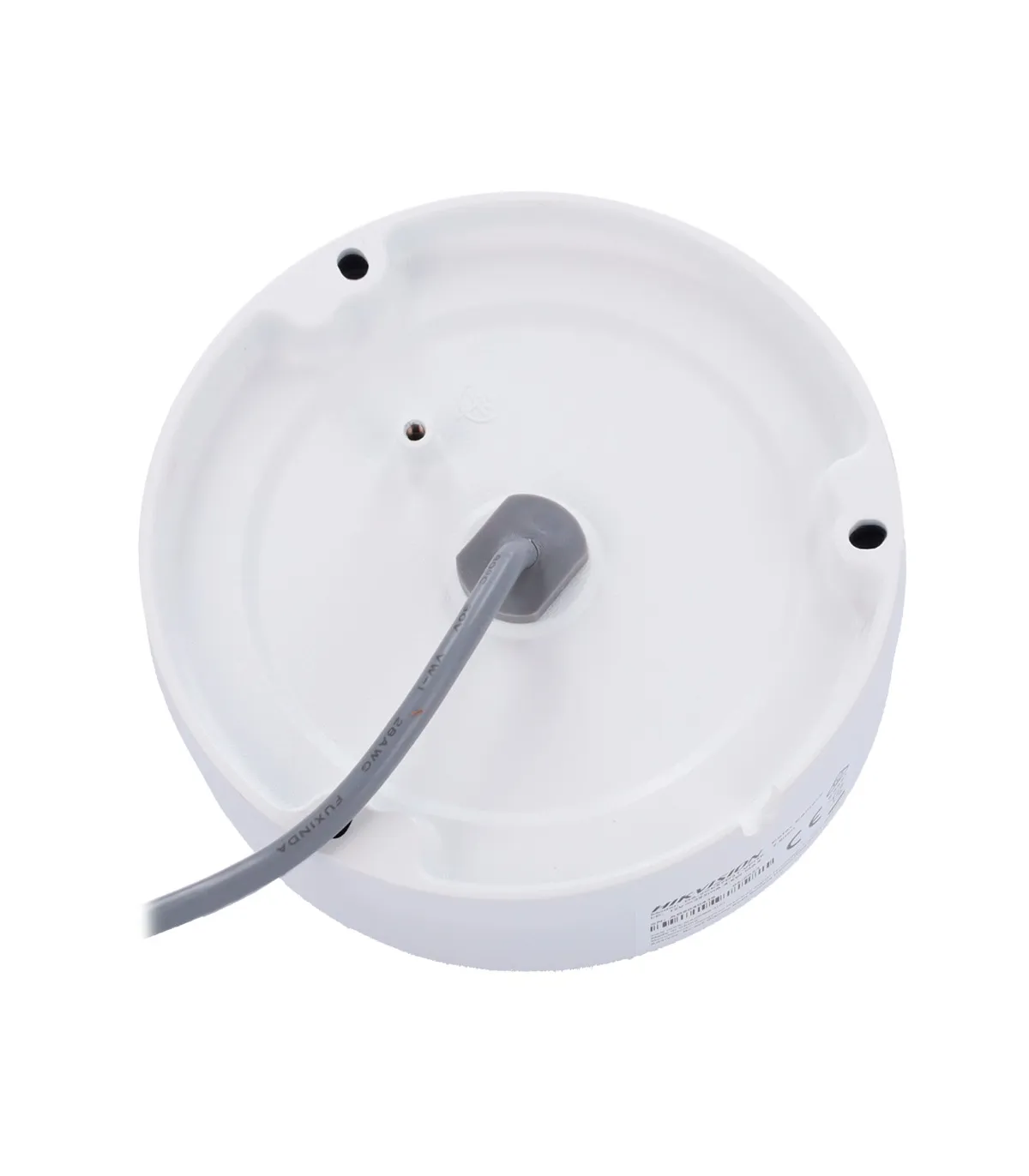

| Base diameter | Ø base 110.8 mm / Ø between screws 100.36 mm / 3 screws |
| Weight | 374 g |
Contents
- Hikvision Value 4N1 Dome Camera
- Mounting material
- Instructions for use
