| Brand | Hikvision |
| Range | Value |
| Image Sensor | High Performance CMOS |
| Maximum resolution | 2 Megapixel (1920×1080) |
| Resolution | TVI: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC |
| Lens | 3.6 mm |
| Angle of view (FOV) | 79.6º (H), 43.5º (V), 93.7º (D) |
| Minimum illumination | 0.01 Lux @ (F1.2, AGC ON) |
| Infrared illumination | 0 Lux / (Smart IR Range 40 m) |
| Day / Night | Auto / Color / Black and White (ICR) |

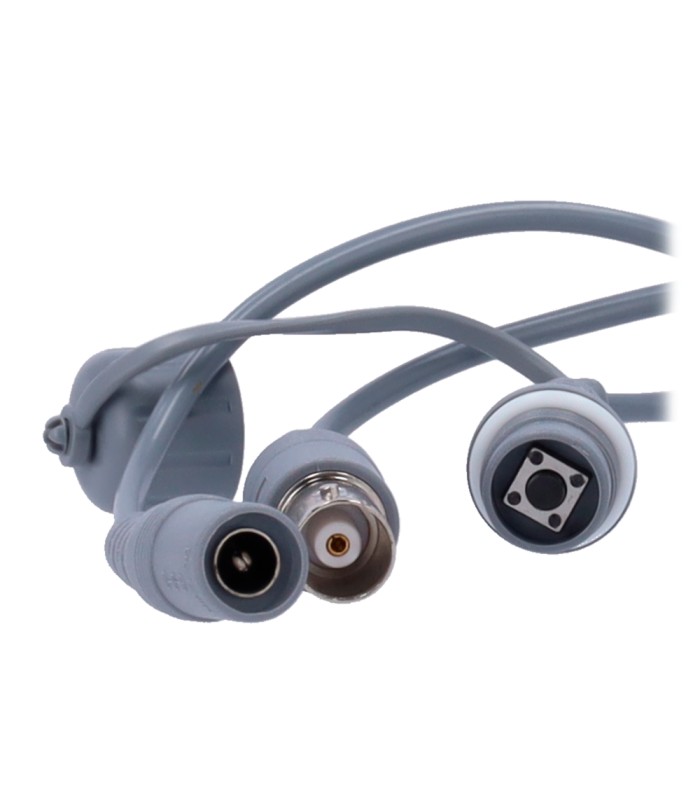

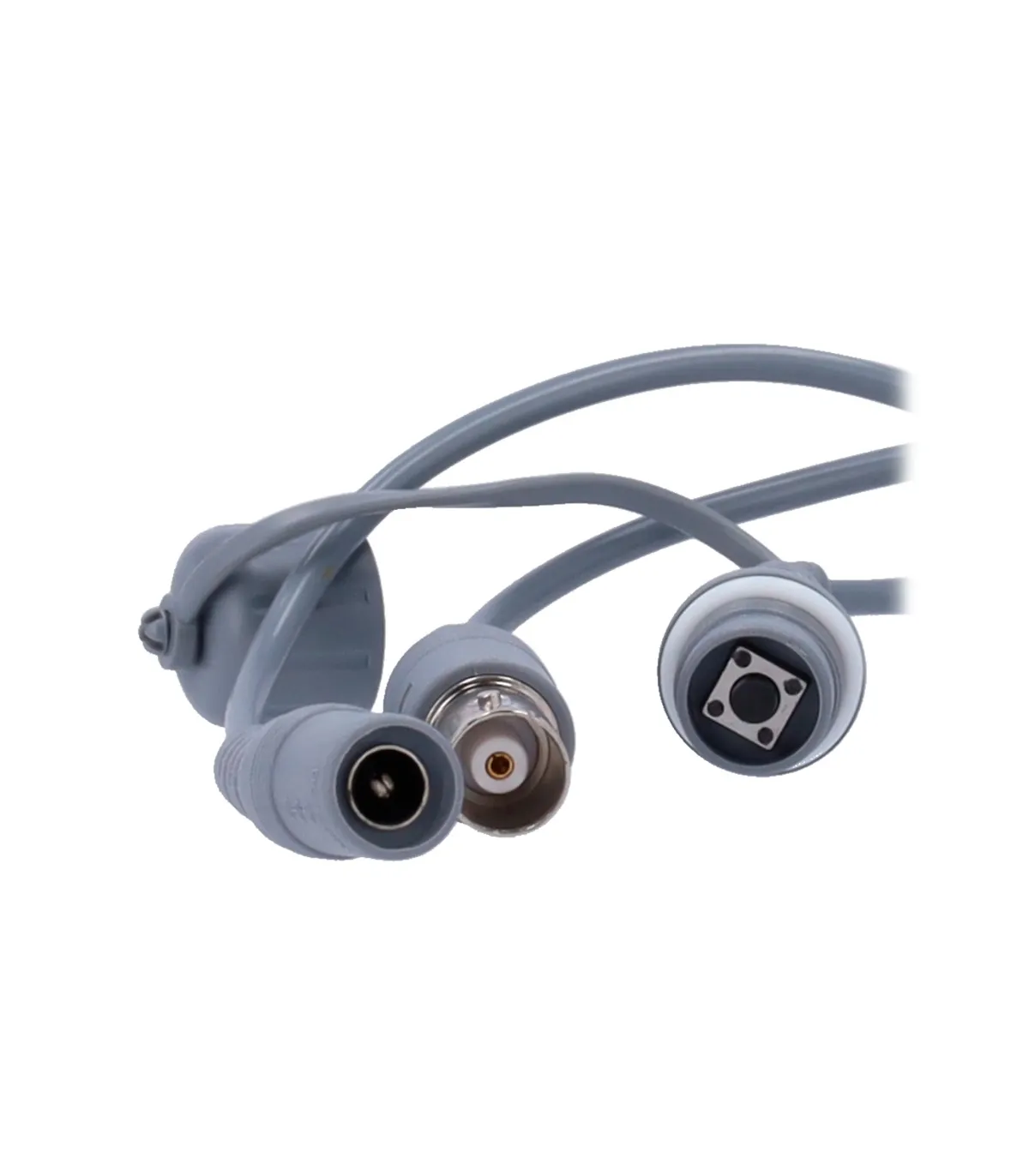

| Video output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Using Switch |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR, BLC, HLC, 2DNR, AGC, AWB, Mirror function, Smart IR |
| Communication | HIKVISION-C |
| Lens Positioning | 3 Axis |
| Power | DC 12 V / 3.9 W max |
| Protection degree | Waterproof IP67 |
| Temp. operation | -40º C ~ +60º C |
| Material | Front Cover: Metal Camera body: Plastic |
| Dimensions | 75.4 mm (H) × 78.9 mm (W) × 216.6 mm (D) |

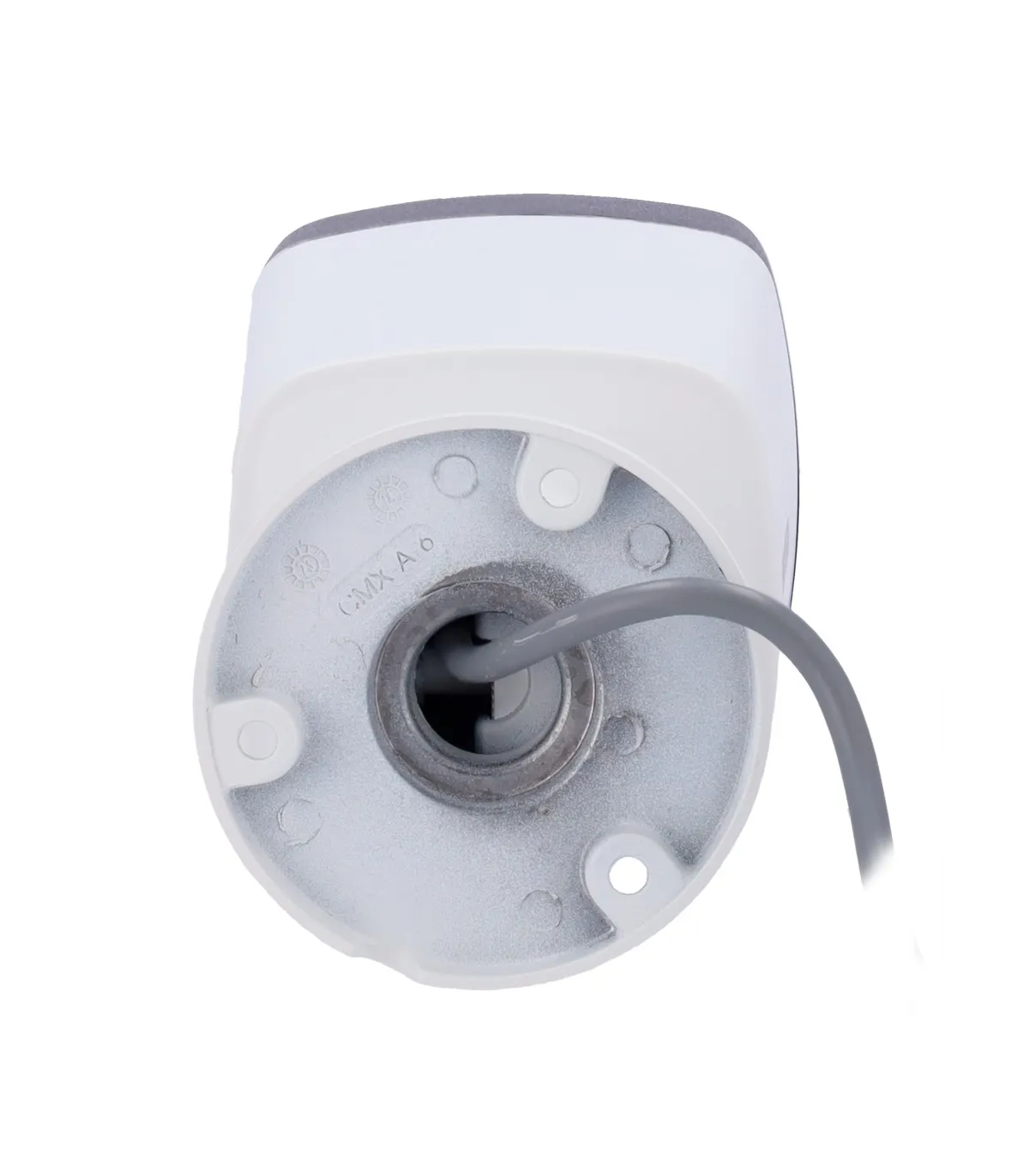

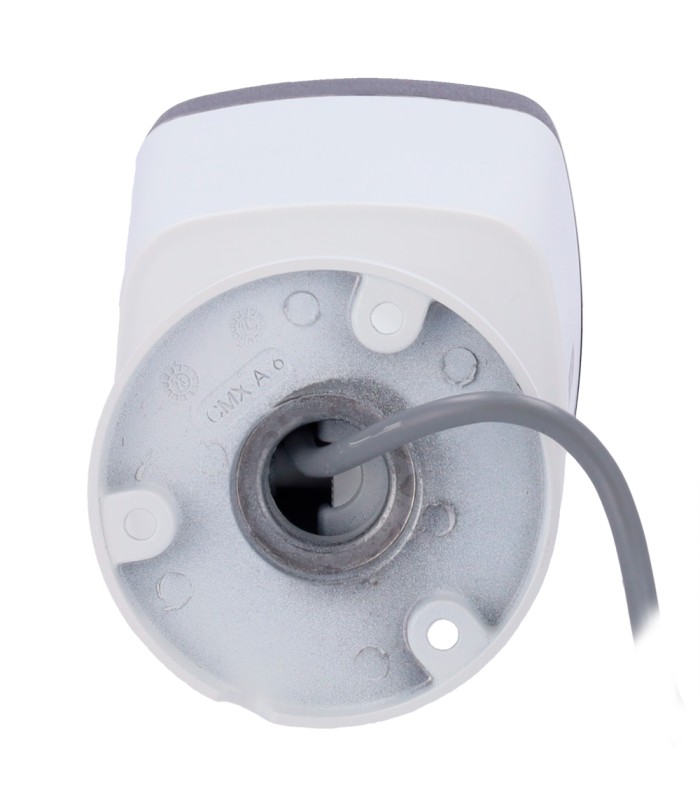

| Base diameter | Ø base 70 mm / Ø between screws 55 mm / 3 screws |
| Weight | 320 g |
Data sheet
Specific References
