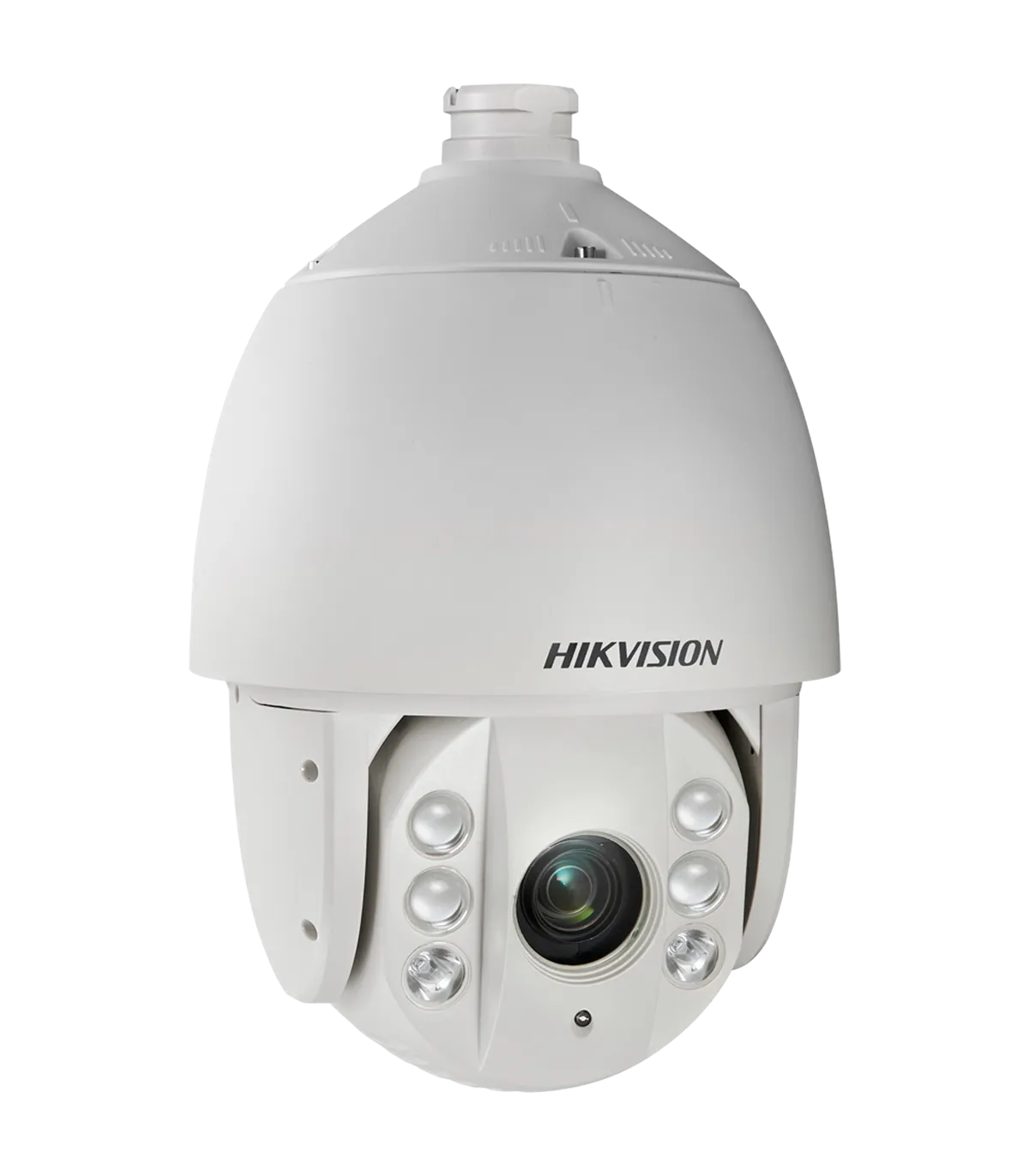

- Hikvision 4-in-1 PRO Motorized Dome Camera
- Resolution 1080p
- Motorized Varifocal Lens 4.8 ~ 153.6 mm
- Speed 160º/s
- IR 150 m | Optical Zoom 32X
- IP66 | IK10 | Surge Protection 4000 V
Description & Key Features: DS-2AE7232ITG
The DS-2AE7232ITG motorized dome camera from Hikvision is designed for outdoor surveillance, featuring an IP66 rating for weather resistance and IK10 vandal-proof capability. With a 32X optical zoom and an infrared range of 150 m, it delivers high-quality images in various lighting conditions. Its versatile design makes it ideal for installations in both commercial and residential areas.
- Hikvision
- PRO Series
- Motorized dome camera supporting HDTVI, HDCVI, AHD, and CVBS
- 1/2.8" Progressive Scan CMOS
- 1080P (1920x1080)
- 4-in-1 output
- Varifocal lens 4.8~153.6 mm
- 32X optical zoom
- 16X digital zoom
- Minimum illumination 0.005 Lux @(F1.2, AGC ON), B/W: 0.001 Lux @(F1.2, AGC ON), 0 lux with IR
- IR range 150 m
- 3D DNR
- IR CUT
- WDR (120dB)
- Pelco P/D protocols supported
- Speed 160 º/s
- OSD menu
- Waterproof IP66
- Vandal-proof IK10
- Surge protection 4000 V
Specifications: DS-2AE7232ITG
| Brand | Hikvision |
| Series | PRO |
| Image Sensor | 1/2.8“ Progressive Scan CMOS |
| Resolution | 1080p (1920x1080) at 25 FPS |
| Video Output | 1x BNC format HDTVI/HDCVI/AHD/CVBS |
| Minimum Illumination | 0.005 Lux @ (F1.2, AGC ON)(Color) 0.001 Lux @ (F1.2, AGC ON)(B/W) |
| Infrared Illumination | IR LEDs, range 150 m |
| Optics | 4.8~153.6 mm (32X optical zoom) |
| Field of View | 55~1.7° (H) 33~1.0° (V) 61.5~1.9° (D) |
| Focus | Auto / Semi / Manual |
| Digital Zoom | 16X |
| Electronic Shutter | 1/1~1/10,000 s |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120dB), 3D-DNR, BLC, HLC, AWB, ATW, AGC |
| Privacy Masks | Up to 8 areas |
| Pan/Tilt Range | Horizontal: 0°~360°, Vertical: -15°~90° auto flip 180° |
| Manual Speed | Horizontal: 0.1°~160° /s, Vertical: 0.1°~120° /s |
| Speed Between Presets | Horizontal: 160° /s, Vertical: 120° /s |
| Preset Positions | 256 presets, 5 auto patterns, 10 auto tours, auto pan, auto scan |
| Communication | RS485, Pelco P / Pelco D / HIKVISION |
| Power Supply | DC 36 V, < 30 W |
| Operating Temperature | -30º C ~ +65º C (<90% humidity) |
| Protection Rating | Waterproof IP66 Vandal-proof IK10 Surge protection 4000 V |
| Dimensions (without mount) | 220 (Ø) x 356.9 (H) mm |
| Weight (without mount) | 4.5 Kg |
Package Contents
- Motorized dome camera
- Installation bracket
- Power supply
- Installation materials
- CD with software and instructions
Use Case
The DS-2AE7232ITG motorized dome camera is an excellent choice for commercial security installations in retail environments, parking lots, and residential areas. Its robust IP66 weatherproof rating ensures reliable performance in various outdoor conditions, while the 32X optical zoom allows for detailed monitoring of distant objects. Installers can easily set up the camera using the included installation bracket and power supply, making it a plug-and-play solution. The camera's remote monitoring capabilities enable users to access live feeds from anywhere, enhancing security management. With features like 3D DNR and WDR, the camera provides clear images even in challenging lighting situations, making it a versatile option for any security system.
Data sheet
- Brand
- HIKVISION
- Resolution
- 2 Mpx
- Technology
- HD-Coaxial
- WDR
- WDR (120dB)
- Audio
- No dispone
- Lens
- 4.8 ~ 153 mm Motorizada
- Compatible models
- DS-1674ZJ,DS-1674ZJ,DS-1673ZJ,DS-1673ZJ,DS-1667ZJ,DS-1667ZJ,DS-1663ZJ,DS-1663ZJ,DS-1662ZJ,DS-1662ZJ,DS-1661ZJ,DS-1661ZJ,DS-1660ZJ,DS-1660ZJ,DS-1619ZJ,DS-1619ZJ,DS-1604ZJ-POLE,DS-1604ZJ-POLE,DS-1604ZJ-CORNER,DS-1604ZJ-CORNER,DS-1604ZJ-BOX-POLE,DS-1604ZJ-BO
Specific References
- EAN13
- 6936422180577
